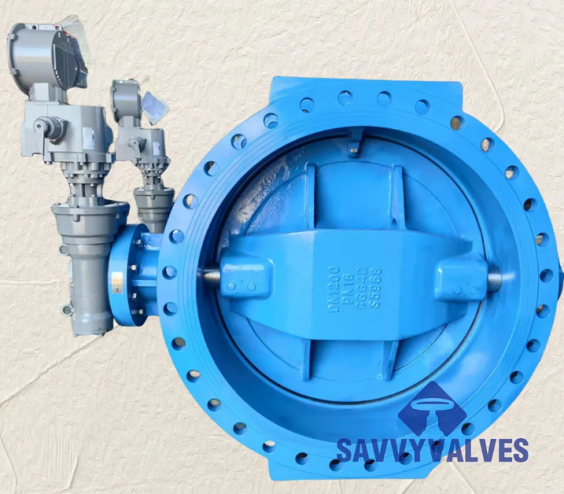

Double Eccentric Butterfly Valves in Deep-Sea Exploration

In the challenging realm of industrial fluid control, the ability to operate reliably under extreme conditions separates adequate components from exceptional ones. Savvy Valves stands at the forefront of this field, engineering valve solutions that meet the rigorous demands of global industries, including the unforgiving environment of deep-sea exploration. The immense pressures, corrosive seawater, and inaccessibility for maintenance in the deep ocean necessitate equipment of unparalleled durability and precision. This is where the advanced engineering of the butterfly valve, particularly the double eccentric butterfly valve and double offset butterfly valves, becomes critical. These are not mere components; they are meticulously designed systems that ensure the safety and efficiency of subsea operations. By integrating robust materials and innovative design principles, Savvy Valves provides the reliability needed to unlock the mysteries of the deep, supporting everything from scientific research to offshore energy extraction with valves that are built to perform when it matters most.

The Foundational Role of the Butterfly Valve in Modern Industry

The butterfly valve is a cornerstone of fluid control systems across countless industries. Its fundamental design—a disc rotating on a shaft to regulate flow within a pipeline—is prized for its simplicity, compactness, and cost-effectiveness. From managing water flow in treatment plants to controlling chemicals in processing facilities, the standard butterfly valve offers efficient shut-off and throttling capabilities. However, in standard form, its design has limitations, particularly concerning seal wear and its suitability for high-pressure differentials. The disc is often centered in the seat, which can lead to constant friction and accelerated wear during operation. This is where evolution in design becomes necessary. The foundational butterfly valve serves as the starting point for a more sophisticated solution engineered for harsh applications. At Savvy Valves, we build upon this basic principle, leveraging our manufacturing expertise to transform the conventional butterfly valve into a high-performance asset capable of withstanding the extreme challenges presented by deep-sea exploration, where failure is not an option.

Engineering Superiority: The Double Eccentric Butterfly Valve Explained

The double eccentric butterfly valve represents a significant leap forward in valve technology. Its design incorporates two key offsets, or eccentricities, that fundamentally improve its performance and longevity. The first offset positions the stem axis behind the centerline of the disc seat, while the second offset angles the stem axis relative to the centerline of the valve bore. This ingenious geometry means the disc moves away from the seat immediately upon opening, drastically reducing operational friction and wear. During the closing cycle, the disc cams into the seat only in the final degrees of rotation, achieving a tight, uniform seal without abrasive scraping. This action is crucial for achieving a bubble-tight shut-off, a non-negotiable requirement in deep-sea applications to prevent leaks that could be catastrophic for both the environment and equipment. The double eccentric butterfly valve is therefore the embodiment of engineered evolution, addressing the shortcomings of its predecessor to deliver enhanced reliability, reduced maintenance needs, and superior performance under high-pressure conditions. Savvy Valves specializes in manufacturing these advanced valves with precision, ensuring they meet the exacting standards required for the world's most demanding fluid control challenges.

Conquering the Abyss: Double Offset Butterfly Valves in Deep-Sea Applications

In the context of deep-sea exploration, the double offset butterfly valves are the specialized workhorses engineered to thrive. The term is often used interchangeably with double eccentric butterfly valve, emphasizing its application in severe service conditions. These valves are deployed in critical subsea systems, including pipeline manifolds, wellhead control panels, and seawater intake lines, where they must reliably function under colossal hydrostatic pressure and resist constant corrosion from saltwater. The double offset butterfly valves design is perfectly suited for this, as the reduced friction translates to lower operating torque, allowing for more efficient actuation even at great depths. The material composition is equally vital. Savvy Valves constructs these valves using high-integrity materials to ensure resilience in the deep ocean. The specifications for a typical double offset butterfly valve from our portfolio, ideal for such environments, are detailed below:

This combination of a ductile iron body for strength, a stainless-steel seat ring for corrosion resistance at the critical sealing interface, and an EPDM elastomer for a resilient seal ensures the double offset butterfly valves can endure the harsh deep-sea environment. By choosing Savvy Valves, industries gain a partner dedicated to providing valve solutions that offer not just product excellence, but the confidence needed for successful and safe deep-sea operations.

Your Questions Answered: Butterfly Valve FAQs

What are key double eccentric butterfly valve advantages?

The key advantages of a double eccentric butterfly valve include dramatically reduced operating torque and minimal seat wear due to its cam-action design, which eliminates friction during most of the valve's travel. This leads to a longer service life and lower maintenance costs. Furthermore, it provides a bubble-tight seal, essential for preventing leaks in critical deep-sea applications. The robust construction of Savvy Valves' double eccentric butterfly valve ensures reliable performance under high pressures and corrosive conditions.

How does a double offset butterfly valve enhance durability?

A double offset butterfly valve enhances durability through its eccentric design, which prevents the disc from rubbing against the seat until the final moment of closure. This significantly reduces abrasive wear on the sealing components. Savvy Valves further amplifies this durability by using superior materials like corrosion-resistant stainless steel stems and robust ductile iron, ensuring the double offset butterfly valve withstands the test of time in challenging environments.

Can a butterfly valve handle deep-sea pressure?

Yes, when specifically engineered for the task, a butterfly valve can absolutely handle deep-sea pressure. The double eccentric butterfly valve and double offset butterfly valves are designed with reinforced structures and precision machining to maintain integrity under extreme external pressures. Savvy Valves manufactures these valves to ratings like PN16 and beyond, ensuring they are more than capable of performing reliably in the high-pressure environment of the deep ocean.

What materials are in your double offset butterfly valves?

Savvy Valves uses only high-grade materials in our double offset butterfly valves. As shown in our product table, this includes an ASTM A536 ductile iron body and disc for high strength, a SS416 stem for excellent mechanical properties and corrosion resistance, and an EPDM seat for a reliable, resilient seal. The addition of a 304 stainless steel body seat ring provides an extra layer of corrosion protection at the most critical sealing interface.

Why choose Savvy Valves for a butterfly valve?

Choosing Savvy Valves for your butterfly valve needs means partnering with a leader in precision valve manufacturing. We offer engineered excellence, with a full range of products from standard butterfly valves to advanced double eccentric butterfly valve models. Our commitment to quality, certified under ISO 9001, and our ability to provide customized OEM solutions ensure you receive a valve that perfectly fits your operational demands, backed by global manufacturing and dedicated support.
