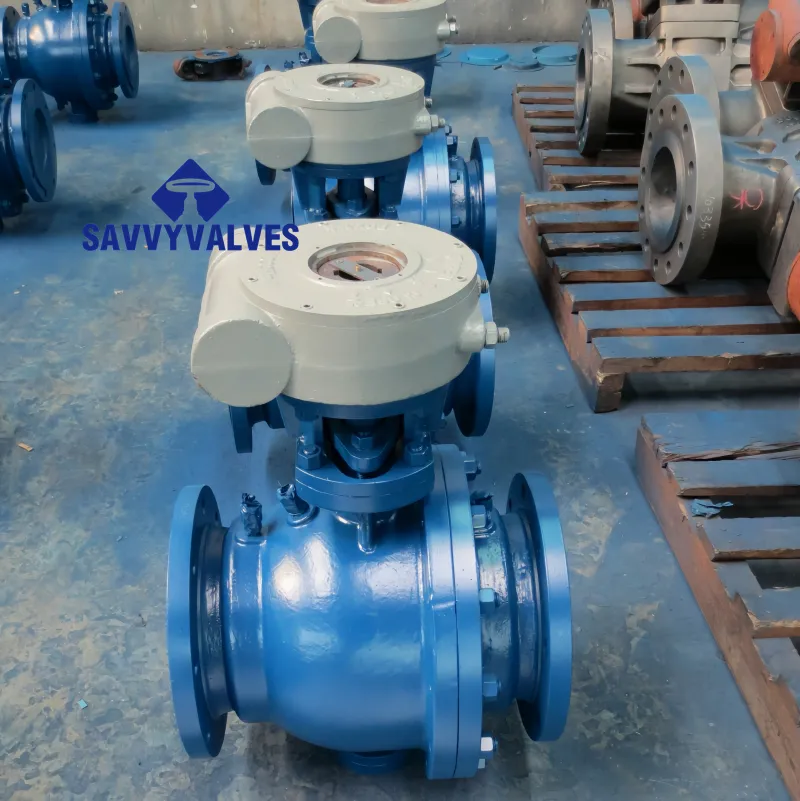

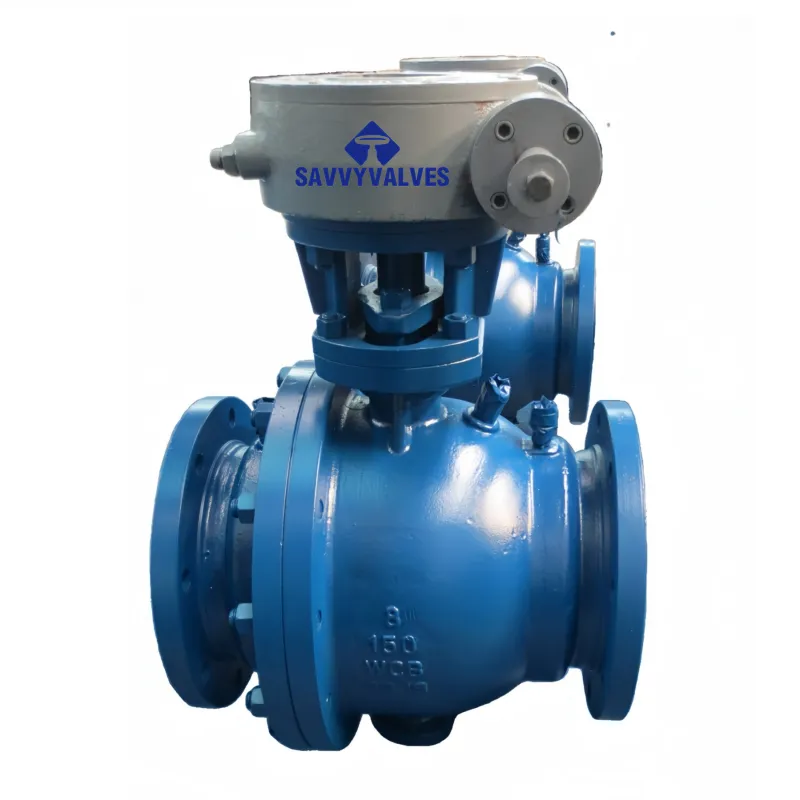

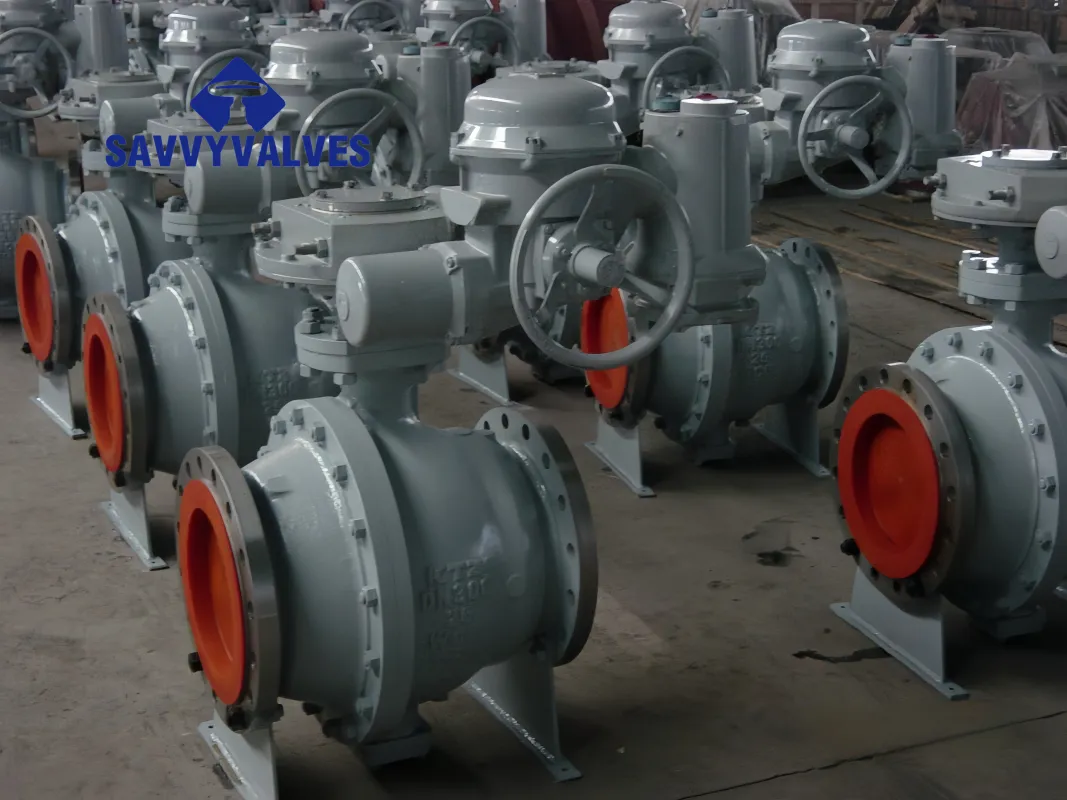

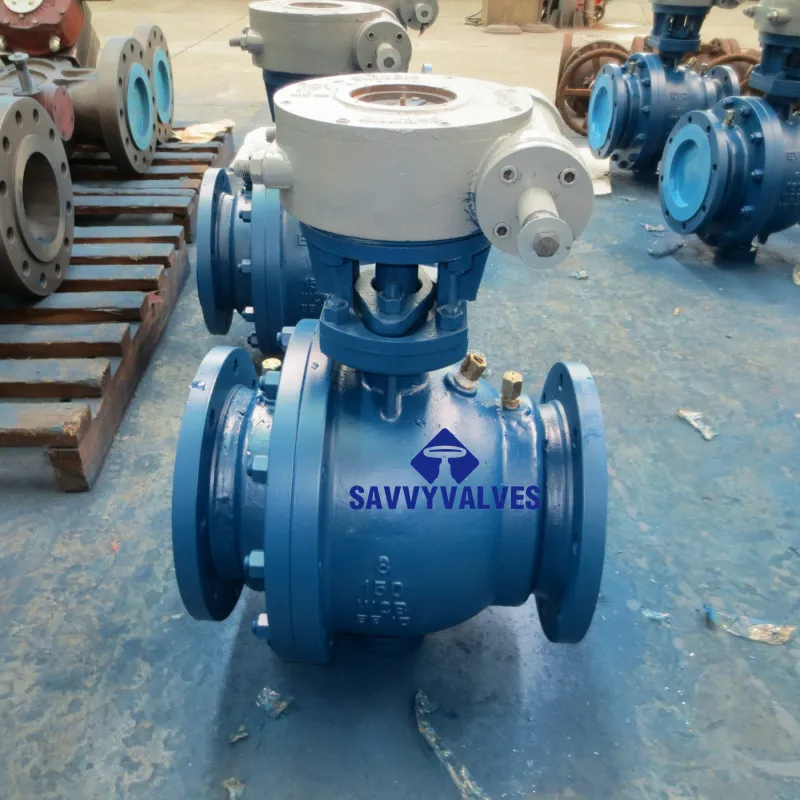

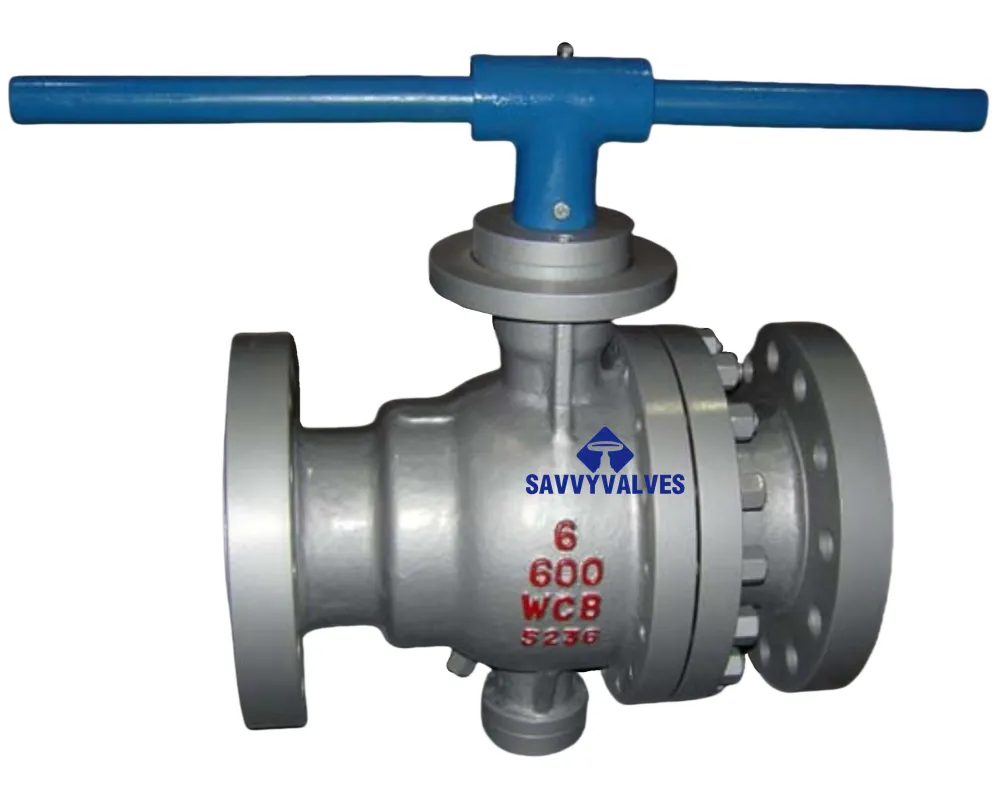

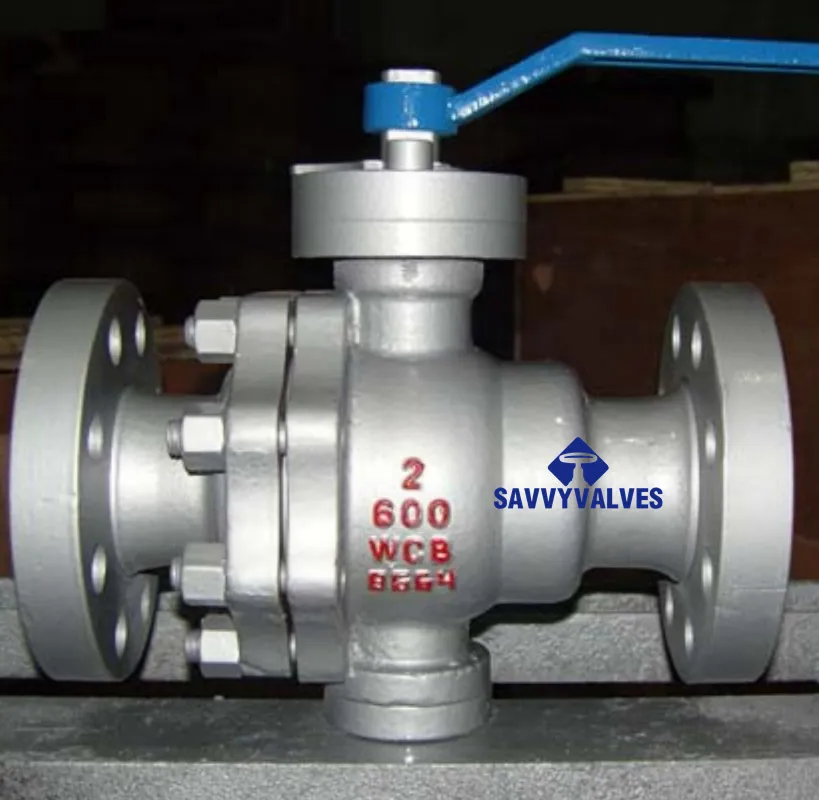

8" 150LB Trunnion Mounted Ball Valve - API 6D, High Performance Shut-off

Understanding the 8" 150LB Trunnion Mounted Ball Valve in B2B Applications

In critical industrial fluid control applications, precision, durability, and operational reliability are paramount. The 8" 150LB Trunnion Mounted Ball Valve stands as a cornerstone technology, engineered to meet the rigorous demands of high-pressure and high-volume fluid handling. This comprehensive guide delves into its technical intricacies, manufacturing excellence, application versatility, and strategic advantages for B2B decision-makers and engineering professionals.

Trunnion mounted ball valves are distinguished by their design, where the ball is supported by trunnions, reducing friction between the ball and seats. This design is crucial for larger sizes and higher pressures, enabling lower operating torque and extending service life. The 8-inch, 150-pound class specification indicates a robust valve suitable for nominal pipeline sizes of 8 inches and a pressure rating adhering to ASME Class 150 standards, typically supporting up to 285 psi (19.6 bar) at ambient temperatures, depending on the material.

Current Industry Trends and Market Demands

The industrial valve market is continually evolving, driven by global energy demands, infrastructure development, and stringent environmental regulations. Key trends influencing the demand for valves like the 8" 150LB Trunnion Mounted Ball Valve include:

• Emphasis on Digitalization and Smart Valves: Integration of actuators with advanced diagnostics and remote monitoring capabilities is growing, enabling predictive maintenance and enhanced operational efficiency.
• Sustainable Solutions: Demand for valves with low fugitive emissions (e.g., ISO 15848-1 compliance) and enhanced energy efficiency is increasing, particularly in the oil & gas and chemical sectors.
• Advanced Material Science: Development of new alloys and coatings to combat severe corrosion, erosion, and extreme temperature conditions, extending valve service life and reducing total cost of ownership (TCO).
• Safety and Reliability Standards: Continual updates to international standards (e.g., API 6D, ASME B16.34) drive manufacturers to produce valves with higher safety integrity levels (SIL-rated) and improved reliability for critical applications.
• Market Growth in Emerging Economies: Rapid industrialization in regions like Southeast Asia, Africa, and Latin America fuels the need for robust industrial infrastructure, including high-performance valves.

These trends highlight the imperative for manufacturers to not only produce technically superior valves but also to innovate in terms of material science, digital integration, and adherence to global sustainability directives. The 8" 150LB Trunnion Mounted Ball Valve is a prime example of a product adapted to these evolving market dynamics.

Technical Specifications and Parameters

The precise technical specifications of an 8" 150LB Trunnion Mounted Ball Valve are critical for proper system integration and reliable performance. Below is a detailed overview of typical parameters.

General Product Specifications

These parameters ensure that the 8" 150LB Trunnion Mounted Ball Valve can be precisely specified and integrated into diverse industrial systems, offering predictable and reliable performance under defined operating conditions.

Manufacturing Process Flow

The production of a high-quality 8" 150LB Trunnion Mounted Ball Valve involves a meticulous multi-stage process, integrating advanced engineering with stringent quality control. This process ensures durability, performance, and adherence to international standards.

Schematic Manufacturing Steps:

1. Material Sourcing & Inspection: High-grade raw materials (e.g., ASTM A216 WCB for carbon steel, ASTM A351 CF8M for stainless steel) are sourced from certified suppliers. Incoming materials undergo chemical composition analysis, mechanical property testing, and non-destructive testing (NDT) to verify compliance with specifications.
2. Casting/Forging: Valve bodies and major components are produced via either sand casting or forging processes. Forging provides superior mechanical properties and finer grain structure, often preferred for higher pressure applications, while casting offers design flexibility. Precise molds and dies are used to ensure dimensional accuracy.
3. Rough Machining: Cast or forged components undergo initial machining to remove excess material and prepare surfaces for fine machining. This step ensures basic geometry and alignment.
4. Heat Treatment: Components like stems and balls may undergo specific heat treatments (e.g., annealing, normalizing, quenching and tempering) to optimize their mechanical properties, such as hardness, toughness, and wear resistance, tailored to application demands.
5. CNC Precision Machining: State-of-the-art CNC (Computer Numerical Control) machines are utilized for high-precision machining of critical valve parts – the ball, stem, seats, and body cavities. This ensures tight tolerances for sealing surfaces, perfect sphericity of the ball, and accurate stem alignment, which are crucial for leakage class standards (e.g., API 6D, ANSI/FCI 70-2 Class VI).
6. Surface Treatment & Coating: Depending on service conditions, components may receive specialized surface treatments like Electroless Nickel Plating (ENP) for corrosion resistance, or hard chrome plating for wear resistance.
7. Assembly: Skilled technicians assemble the valve components in a clean environment. This includes installing seats, seals, stem, trunnions, and the ball into the valve body. Proper torqueing of fasteners is critical.
8. Pressure Testing & Leakage Testing: Every valve undergoes rigorous testing:
   • Hydrostatic Shell Test: Performed at 1.5 times the maximum allowable working pressure (MAWP) according to ASME B16.34 and API 6D, to ensure the structural integrity of the valve body.
   • High-Pressure Gas Seat Test: Performed with inert gas (e.g., Nitrogen) at MAWP to check for seat leakage.
   • Low-Pressure Gas Seat Test: Performed at low pressure (e.g., 60-100 psi) to detect minor leakages as per API 6D standards.
   • Fugitive Emissions Test: (Optional, but increasingly common) Tests for stem seal leakage as per ISO 15848-1.
9. Final Inspection & Documentation: A thorough final inspection covers dimensional accuracy, surface finish, operational functionality, and compliance with all specifications and order requirements. Certification documents (e.g., Material Test Reports, Pressure Test Certificates, API 6D monogram) are prepared.
10. Packaging & Shipping: Valves are properly packaged to prevent damage during transit, often with protective coatings and crating.

This rigorous process ensures that each 8" 150LB Trunnion Mounted Ball Valve meets the highest industry standards for safety, performance, and longevity, contributing to an extended service life often exceeding 20 years with proper maintenance.

Application Scenarios and Industry Advantages

The robust design and reliable performance of the 8" 150LB Trunnion Mounted Ball Valve make it indispensable across a multitude of heavy industries where dependable fluid control is critical. Its advantages are particularly pronounced in challenging environments.

Target Industries:

• Petrochemical & Oil & Gas: Used in upstream, midstream, and downstream operations for controlling crude oil, natural gas, refined products, and various chemicals. Applications include pipeline isolation, processing units, and storage facilities.
• Power Generation: Employed in steam, water, and fuel lines within thermal, nuclear, and combined-cycle power plants.
• Chemical Processing: Handling corrosive and abrasive chemicals, slurries, and high-purity media. Material selection (e.g., Duplex, Super Duplex, Inconel) is critical here.
• Metallurgy & Mining: Managing abrasive slurries, high-temperature gases, and various process fluids in smelting, refining, and ore processing.
• Water Supply & Drainage: Large-scale municipal water treatment, desalination plants, and industrial wastewater management systems require robust isolation valves for efficient flow control.
• Pulp & Paper: Handling fibrous slurries, chemicals, and steam in various stages of pulp and paper production.

Demonstrated Advantages in Typical Scenarios:

• Energy Saving (Reduced Pressure Drop): With its full-bore design, the trunnion mounted ball valve offers minimal flow obstruction when fully open, leading to a very low pressure drop. This significantly reduces pumping energy requirements in long pipelines or high-volume systems, translating to substantial operational cost savings over the valve's service life. For example, in a natural gas pipeline, a properly sized full-bore valve can reduce compressor energy consumption by up to 5% compared to reduced-bore alternatives.
• Corrosion Resistance: By utilizing advanced materials such as ASTM A351 CF8M (316 Stainless Steel) or special alloys (e.g., Hastelloy, Monel), and applying protective coatings like ENP, these valves excel in highly corrosive environments typical of chemical plants and offshore oil platforms. This prevents material degradation, extends valve life, and reduces maintenance frequency, enhancing overall system integrity.
• High-Pressure and High-Temperature Capability: The trunnion design inherently supports the ball, preventing seat overload and deformation under high differential pressures. Combined with robust body materials and advanced seat materials (like PEEK or metal seats), these valves reliably operate in environments up to Class 2500 (420 bar) and temperatures reaching 400°C (752°F), providing superior safety and functionality where conventional floating ball valves would fail.
• Bi-directional Shut-off: Many trunnion ball valves feature double block and bleed (DBB) capabilities or bi-directional sealing, ensuring positive shut-off in both flow directions. This is crucial for isolating sections of a pipeline for maintenance without interrupting the entire system, significantly improving operational safety and reducing downtime.
• Fire Safe Design: Certified to standards like API 6FA and API 607, fire-safe trunnion ball valves incorporate secondary metal-to-metal seating. In the event of a fire, even if primary soft seats are destroyed, the metal seats provide a reliable seal, minimizing external leakage and preventing escalation of hazardous situations.

These advantages position the 8" 150LB Trunnion Mounted Ball Valve as a high-value asset for industries demanding uncompromising performance and safety.

Technical Advantages and Engineering Excellence

Beyond its broad application, the 8" 150LB Trunnion Mounted Ball Valve offers several distinct technical advantages that contribute to its superiority in demanding industrial environments. These are rooted in its engineering design and material selection.

Key Engineering Advantages:

• Low Operating Torque: The trunnion-mounted design supports the ball, isolating the stem from line pressure. This significantly reduces the torque required to operate the valve, even under full differential pressure. Lower torque allows for smaller actuators, reducing initial investment costs and operational energy consumption. This is a critical factor for automated systems where precise control and energy efficiency are desired.
• Extended Seat Life: Since the ball is firmly supported by the trunnions, it does not press against the seats due to upstream pressure. The spring-loaded seats are pushed against the ball, ensuring a tight seal without excessive wear. This separation of ball support from sealing function minimizes seat wear and extends the service life, especially in throttling or frequent cycling applications.
• Self-Relieving Seats (Optional): Many trunnion designs offer self-relieving seats, which automatically vent trapped body cavity pressure to the upstream or downstream side when it exceeds a certain threshold. This is a critical safety feature for preventing overpressure in the body cavity, particularly with thermal expansion of trapped media or in double block and bleed (DBB) configurations.
• Anti-Static Device: Standard on most high-quality trunnion ball valves, an anti-static device ensures electrical continuity between the ball, stem, and body. This safely discharges any static electricity that may build up from fluid flow, preventing potential ignition of flammable media, and meeting international safety standards like ISO 17292.
• Blow-out Proof Stem: The stem is inserted from the inside of the valve body, with a shoulder that is larger than the stem hole. This design prevents the stem from being ejected by line pressure, enhancing safety, particularly in high-pressure applications.
• Multiple Sealing Options: The design allows for various primary and secondary sealing arrangements, including soft seats (e.g., PTFE, PEEK) for tight shut-off and metal seats for high-temperature or abrasive services. This versatility ensures optimal performance across a wide range of process conditions.

These inherent technical features underscore why the 8" 150LB Trunnion Mounted Ball Valve is often the preferred choice for critical industrial processes requiring maximum reliability and minimal maintenance.

Vendor Comparison and Selection Criteria

Selecting the right vendor for an 8" 150LB Trunnion Mounted Ball Valve is as crucial as the valve's technical specifications. A thorough comparison based on critical factors ensures long-term reliability and cost-effectiveness.

Key Vendor Comparison Factors:

Authoritative companies like Savvy Valve Tech prioritize adherence to international standards and robust quality management systems (e.g., ISO 9001:2015, API Q1), often backed by decades of experience in the valve manufacturing sector. Their commitment to continuous improvement and customer-centric service ensures that clients receive not just a product, but a complete, reliable, and compliant solution. Reputable manufacturers will also readily provide references from major clients, demonstrating their track record in delivering high-performance valve solutions for critical infrastructure projects.

Customized Solutions for Unique Requirements

While standard configurations of the 8" 150LB Trunnion Mounted Ball Valve meet most industrial needs, specific operating conditions often necessitate bespoke solutions. Reputable manufacturers excel in providing tailored designs to address unique challenges.

Areas of Customization:

• Material Upgrades: For extreme corrosion or high-temperature/cryogenic service, customization includes alternative body, ball, stem, and seat materials (e.g., Duplex Stainless Steel for chloride stress corrosion, Inconel for high-temperature oxidation, Monel for hydrofluoric acid service, or low-temp carbon steel for cryogenic applications).
• Specialized Coatings: Enhanced wear resistance (e.g., Tungsten Carbide, Chrome Carbide coatings for abrasive slurries) or anti-fouling coatings for sticky media.
• Actuation and Control: Integration with specific electric, pneumatic, or hydraulic actuators, including failsafe mechanisms, smart positioning, and advanced control systems (e.g., SIL 3 rated actuators for critical safety functions).
• End Connections: While flanged ends (ASME B16.5) are standard, custom valves can be supplied with butt-weld ends (ASME B16.25), hub ends, or special couplings to match existing pipeline infrastructure.
• Stem Extensions and Gearboxes: For buried service or remote operation, custom stem extensions and specialized gearboxes can be incorporated.
• Double Block and Bleed (DBB) Features: Enhanced cavity relief or specific bleeding arrangements for complex isolation requirements.
• Environmental & Emissions Control: Fugitive emission packing systems (e.g., live-loaded packing) tested to ISO 15848-1 for minimal emissions, crucial for VOCs and hazardous gases.

Partnering with a manufacturer capable of comprehensive engineering assessment and customized fabrication ensures that the 8" 150LB Trunnion Mounted Ball Valve delivers optimal performance, safety, and longevity even in the most challenging and non-standard operating environments. This capability is a hallmark of expertise and authoritativeness.

Application Case Studies & Customer Feedback

Real-world deployments showcase the tangible benefits and reliability of the 8" 150LB Trunnion Mounted Ball Valve. These case studies highlight successful integration and customer satisfaction.

Case Study 1: Natural Gas Transmission Pipeline

• Client: Major North American Midstream Operator
• Challenge: Need for high-integrity isolation valves for a new 8-inch segment of a high-pressure natural gas transmission line, requiring reliable shut-off and minimal pressure drop.
• Solution: Installation of 8" 150LB Trunnion Mounted Ball Valves with full bore design, API 6D certified, carbon steel body (A216 WCB), and PEEK seats for extended service life under continuous operation. Valves were supplied with gear operators for easy manual actuation.
• Outcome: Valves provided excellent tight shut-off, facilitating safe pipeline maintenance and isolation. The low operating torque allowed for efficient manual operation. The client reported significant operational efficiency due to reduced pressure loss across the valves, leading to estimated annual energy savings of 2-3% on that pipeline segment.

Case Study 2: Chemical Processing Plant

• Client: European Specialty Chemical Manufacturer
• Challenge: Handling highly corrosive and slightly abrasive organic acids at elevated temperatures. Existing valves experienced frequent seat and body degradation, leading to costly downtime and maintenance.
• Solution: Customized 8" 150LB Trunnion Mounted Ball Valves were engineered with ASTM A351 CF8M (316 SS) body, Hastelloy C-276 ball and stem for superior corrosion resistance, and PEEK seats with a secondary metal-to-metal sealing feature. Valves were equipped with a pneumatic actuator for rapid shut-off.
• Outcome: After 3 years of continuous operation, these customized valves exhibited minimal wear and no signs of leakage. The enhanced material selection drastically improved valve longevity, reducing maintenance frequency by over 70% and enhancing overall plant safety by preventing chemical leaks.

Customer Feedback:

"The 8" 150LB Trunnion Mounted Ball Valve supplied by Savvy Valve Tech for our offshore platform has consistently outperformed previous installations. The low-torque operation is a game-changer for our automated system, and the robust construction gives us confidence in its reliability in such a harsh environment." - Chief Engineer, Offshore Oil & Gas Company.

"We were impressed by the engineering support and customization options. Our specific process required unique material selection, and Savvy Valve Tech delivered a solution that has been flawless. Their valves are a critical component in maintaining our production uptime." - Operations Manager, Industrial Water Treatment Facility.

Frequently Asked Questions (FAQ)

Q1: What is the primary advantage of a trunnion-mounted ball valve over a floating ball valve?

A1: The primary advantage is the trunnion support, which anchors the ball and prevents it from moving downstream under pressure. This design ensures lower operating torque, especially in larger sizes and higher pressures, and reduces seat wear, leading to extended service life compared to floating ball valves where the ball relies on the seats for support.

Q2: Can the 8" 150LB Trunnion Mounted Ball Valve be used for throttling applications?

A2: While ball valves are primarily designed for on/off service, trunnion ball valves can be used for limited throttling. However, continuous throttling can lead to seat erosion and reduced service life. For precise and continuous throttling, globe valves or specifically designed control valves are generally recommended.

Q3: What are the typical delivery times for these valves?

A3: Lead times for 8" 150LB Trunnion Mounted Ball Valve can vary based on material, customization, and order volume. Standard configurations typically have a lead time of 6-10 weeks. Highly customized valves or those requiring exotic materials may require 12-18 weeks. We encourage clients to discuss their project timelines with our sales team for precise scheduling.

Q4: What warranty and after-sales support do you offer?

A4: We offer a comprehensive 12-24 month warranty on our valves from the date of shipment or installation, covering manufacturing defects. Our after-sales support includes a dedicated technical service team, spare parts availability, troubleshooting assistance, and on-site support where feasible. Customer satisfaction is our top priority.

Q5: Are your valves certified for specific industry standards?

A5: Yes, all our 8" 150LB Trunnion Mounted Ball Valve products are designed and manufactured in strict compliance with international standards such as API 6D, ASME B16.34, ISO 17292, and often come with certifications like ISO 9001 for quality management, API 6FA/607 for fire safety, and NACE MR0175 for sour service applications. Specific certification requirements can be discussed during order placement.

Conclusion

The 8" 150LB Trunnion Mounted Ball Valve represents a pinnacle of industrial valve engineering, offering unparalleled reliability, safety, and operational efficiency for critical applications across numerous sectors. Its sophisticated design, coupled with stringent manufacturing and testing protocols, ensures long-term performance and reduced total cost of ownership. For B2B stakeholders, choosing a reputable manufacturer with proven expertise, robust quality control, and comprehensive after-sales support is paramount to leveraging the full potential of this essential fluid control device.

References

1. American Petroleum Institute. (2014). API Specification 6D: Specification for Pipeline and Piping Valves. 24th Ed.
2. American Society of Mechanical Engineers. (2017). ASME B16.34: Valves—Flanged, Threaded, and Welding End.
3. International Organization for Standardization. (2017). ISO 17292: Metal ball valves for petroleum, petrochemical and allied industries.
4. NACE International. (2015). NACE MR0175/ISO 15156: Petroleum and natural gas industries—Materials for use in H2S-containing environments in oil and gas production.
5. Valve Manufacturers Association of America (VMA). (2020). Valve Magazine: Trends in Industrial Valve Technology.
