In the demanding landscape of modern industry, where high temperatures and extreme pressures are the norm, selecting the right valve technology is not just a matter of performance—it's a critical decision for safety, efficiency, and long-term operational reliability. As industries like petrochemicals, power generation, and metallurgy push the boundaries of process intensity, the need for robust, zero-leakage valve solutions has never been greater. The market is witnessing a significant shift away from traditional gate and globe valves towards more advanced, efficient technologies. This is where the SAVVY Triple offset replaceable metal seated butterfly valve for thermal duty emerges as a superior engineering solution, designed to excel where others fail.
This comprehensive guide delves into the technical supremacy of the SAVVY TOV, exploring its design principles, material science, manufacturing excellence, and proven performance in the world's most challenging thermal applications.
Industry Trends: The Rise of High-Performance Butterfly Valves
The global industrial valve market is projected to grow from USD 73.0 billion in 2020 to USD 85.1 billion by 2025, at a CAGR of 3.1%. A key driver of this growth is the increasing adoption of high-performance butterfly valves in critical service applications. Historically dominated by gate and globe valves, these sectors are now transitioning to Triple Offset Butterfly Valves (TOVs) for several compelling reasons:
- Superior Sealing Performance: The market demands bubble-tight shut-off (Zero Leakage) to prevent fugitive emissions and enhance process efficiency, a standard met by TOVs but often challenging for other valve types in high-cycle, high-temperature environments.
- Enhanced Efficiency and Lower Cost of Ownership: The quarter-turn operation of butterfly valves results in faster actuation and lower energy consumption. Their compact, lighter design, as compared to a gate valve of the same rating, reduces installation costs, structural support requirements, and overall footprint.
- Durability in Extreme Conditions: The unique design of a TOV minimizes seat and seal wear, significantly extending service life and reducing maintenance downtime, which is a critical metric for plant profitability. The SAVVY Triple offset replaceable metal seated butterfly valve for thermal duty is specifically engineered to address these trends.
Market Share by Application Industry
The versatility of high-performance valves is evident in their wide adoption across critical industries. The chart below illustrates the typical market distribution for valves like the SAVVY Triple offset replaceable metal seated butterfly valve for thermal duty.
Technical Deep-Dive: Unpacking the SAVVY TOV Technology

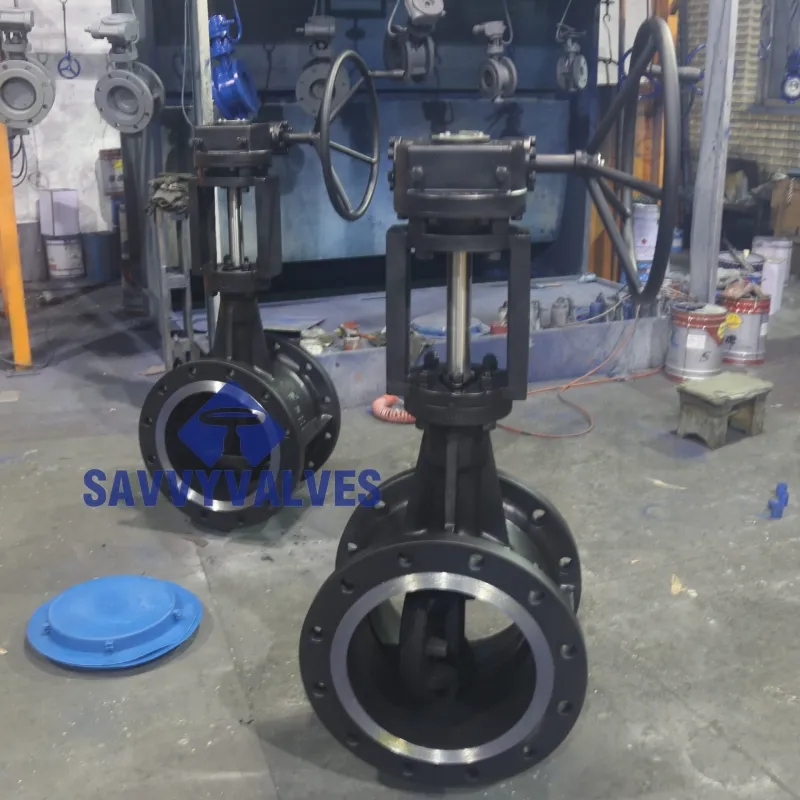

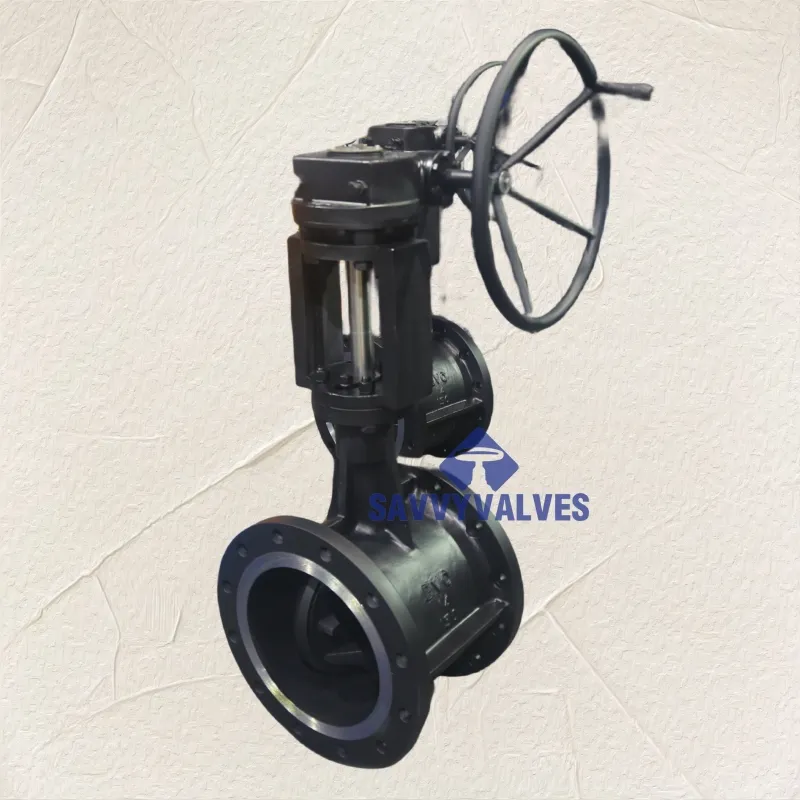

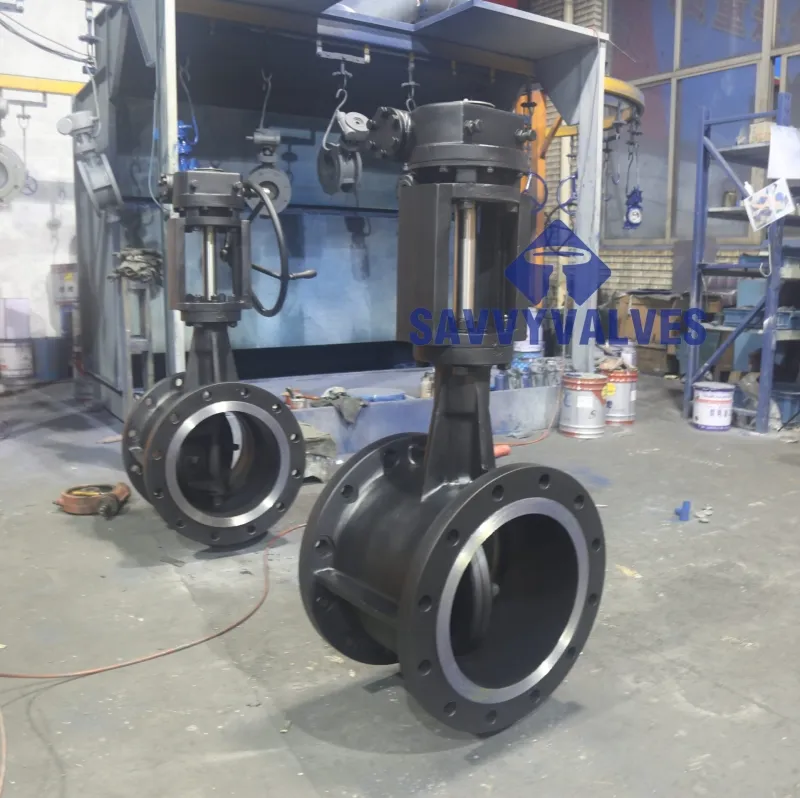

To fully appreciate the value of the SAVVY Triple offset replaceable metal seated butterfly valve for thermal duty, it's essential to understand its core engineering principles and specifications. The term "Triple Offset" is not a marketing gimmick; it's a precise geometric design that fundamentally solves the problems of wear and leakage inherent in other valve designs.
What is Triple Offset Geometry?
The "Triple Offset" refers to three distinct geometric offsets in the valve's design, which work in concert to create a frictionless, cam-like opening and closing motion:
- First Offset: The shaft is offset from the center-line of the sealing surface.
- Second Offset: The shaft is offset from the center-line of the pipe/valve bore.
- Third Offset: The seat cone axis is offset from the center-line of the shaft.
This ingenious geometry ensures that the laminated metal seat only makes contact with the valve body seat at the final point of closure, eliminating friction and rubbing during rotation. This results in consistent sealing performance, drastically reduced wear, lower operating torque, and significantly longer service life, a hallmark of the SAVVY Triple offset replaceable metal seated butterfly valve for thermal duty.
✓ Zero Leakage Sealing
The metal-to-metal sealing, enabled by the triple offset design, provides bi-directional, bubble-tight shut-off, meeting stringent standards like API 598 Rate A. This is crucial for hazardous media and energy conservation.
✓ Replaceable Seat & Disc Seal
Unlike valves where seat damage requires complete replacement, SAVVY's design features a field-replaceable laminated seat and a solid metal disc seal. This drastically reduces maintenance costs and downtime, maximizing asset availability.
✓ Thermal Duty Engineering
Designed for extreme temperatures, it features materials with compatible thermal expansion coefficients, extended bonnets to protect actuation systems from heat, and robust construction that withstands thermal cycling without performance degradation.
Technical Specifications
The following table outlines the standard specifications for the SAVVY Triple offset replaceable metal seated butterfly valve for thermal duty. Custom configurations are available to meet specific project requirements.
| Parameter | Specification | Significance |
|---|---|---|
| Size Range | DN80 - DN3000 (3" - 120") | Covers a wide range of piping requirements, from standard to large-scale infrastructure. |
| Pressure Class | ASME Class 150, 300, 600, 900, 1500, 2500 | Suitable for low-pressure to high-pressure critical service applications. |
| Temperature Range | -196°C to +815°C (-320°F to +1500°F) | Engineered for both cryogenic (LNG) and extreme high-temperature (thermal duty) services. |
| Body Materials | WCB, LCC, CF8M, Duplex, Super Duplex, Monel, Inconel, Hastelloy | A wide selection of materials ensures compatibility with corrosive media and extreme temperatures. |
| Disc Material | A351 CF8M, Duplex, Monel, Inconel (Typically matches or exceeds body material grade) | Robust disc construction for high-velocity flow and pressure resistance. |
| Seat Material | Laminated Multi-Layer: Stainless Steel / Graphite (Standard), Inconel / Graphite | The laminated, flexible seat energizes to form a perfect seal against the conical body seat. Graphite provides fire-safe properties. |
| Stem Material | 17-4PH, XM-19 (Nitronic 50), Inconel 718 | High-strength stem materials prevent shearing under high torque and are anti-blowout by design (API 609). |
| Design Standard | API 609, ASME B16.34 | Compliance with leading international standards ensures safety, reliability, and interoperability. |
| Testing Standard | API 598 (Zero Leakage, Rate A) | Every valve is rigorously tested to guarantee bi-directional bubble-tight performance. |
| End Connections | Wafer, Lug, Double Flanged (RF, FF, RTJ), Butt-Weld (BW) | Versatile connection options to suit any piping specification. |
Manufacturing Excellence: From Raw Material to Flawless Performance
The superior performance of a SAVVY Triple offset replaceable metal seated butterfly valve for thermal duty is not just a result of its design, but also of a meticulous, quality-controlled manufacturing process. Adhering to ISO 9001 standards, each stage is optimized for precision and durability.
The SAVVY Manufacturing Process Flow
Material Sourcing & Verification
Certified raw materials (forgings/castings) are sourced from reputable mills. PMI (Positive Material Identification) testing is performed to verify alloy composition.
Precision CNC Machining
Bodies, discs, and shafts are machined on advanced 5-axis CNC machines to achieve sub-millimeter tolerances, critical for the triple-offset geometry.
Seat Lamination & Machining
Layers of metal and graphite are precisely welded and machined to create the resilient, fire-safe laminated seat ring, the heart of the valve's sealing mechanism.
Expert Assembly
Skilled technicians assemble the components, ensuring perfect alignment and setting the correct disc-to-seat contact for optimal performance.
Rigorous Testing (API 598)
Each valve undergoes hydrostatic and pneumatic testing to verify shell integrity and bi-directional zero-leakage sealing at full rated pressure.
Performance & Manufacturer Comparison
When selecting a valve for critical thermal duty, a direct comparison reveals the clear advantages of the SAVVY TOV. Its design philosophy directly translates to superior operational metrics compared to older technologies like gate valves or less advanced butterfly valves.
SAVVY TOV vs. Competitors
| Feature | SAVVY Triple Offset Butterfly Valve | Generic Double Offset Valve | Traditional Gate Valve |
|---|---|---|---|
| Sealing Mechanism | Torque-seated, Metal-to-Metal, Friction-Free | Position-seated, interference fit (rubbing) | Wedge seating, sliding friction |
| Leakage Rate (API 598) | Rate A (Zero Leakage) Bi-Directional | Rate A initially, degrades with cycles | Rate C/D, prone to leakage from wear |
| Suitability for Thermal Duty | Excellent (Designed for thermal cycling) | Fair (Sealant can degrade, wear accelerates) | Poor (Prone to thermal binding) |
| Service Life / Wear | Very High (Minimal friction) | Moderate (Constant seat rubbing) | Low to Moderate (High friction on seats) |
| Operating Torque | Low | Moderate | Very High (Requires larger actuators) |
| Maintenance | Low (Field-replaceable seat) | Moderate (Seat replacement often difficult) | High (Lapping or replacement is complex) |
| Fugitive Emissions | Extremely Low (Zero leakage design) | Low to Moderate | High (Packing leakage is common) |
Operating Torque Comparison
Lower torque translates to smaller, less expensive actuators and reduced energy consumption over the valve's lifespan. The frictionless nature of the SAVVY Triple offset replaceable metal seated butterfly valve for thermal duty provides a distinct advantage.
Customized Solutions for Demanding Applications
We understand that "one size fits all" does not apply to critical industrial processes. SAVVY Valvetech thrives on providing customized solutions. Our engineering team works closely with clients to develop tailored versions of the SAVVY Triple offset replaceable metal seated butterfly valve for thermal duty to meet unique challenges.
Material Science Expertise
Need to handle highly corrosive media like wet chlorine or hydrofluoric acid? We can specify and source exotic alloys like Hastelloy C276, Titanium, or Zirconium for valve construction, ensuring maximum chemical resistance and service life.
Application-Specific Modifications
From cryogenic extensions for LNG service to extended bonnets for superheated steam, and from specialized coatings for abrasive slurry to specific face-to-face dimensions, we modify our valves to integrate seamlessly into your system.
Actuation & Control Packages
We provide complete automated valve packages, including pneumatic, electric, or hydraulic actuators, smart positioners, and control accessories, all calibrated and tested as a single unit for plug-and-play installation.
Application Case Study: Power Generation Plant Steam Isolation
The Challenge
A 500MW combined cycle power plant was experiencing significant issues with their 24" Class 900 main steam isolation gate valves. The valves were prone to thermal binding after shutdowns, requiring excessive force to operate and frequently failing to provide tight shut-off. This resulted in energy losses of over $150,000 annually and posed a significant safety risk during maintenance.
The SAVVY Solution
The plant's reliability engineers partnered with SAVVY to replace the problematic gate valves with our SAVVY Triple offset replaceable metal seated butterfly valve for thermal duty. The valves were supplied with an Inconel/Graphite laminated seat for the 550°C (1022°F) steam service and equipped with high-temperature smart electric actuators.
The Results: A Paradigm Shift in Reliability
The impact was immediate and quantifiable. The new SAVVY TOVs provided consistent, zero-leakage shut-off, eliminating energy loss. The low-friction design eradicated the thermal binding problem, ensuring smooth operation under all conditions.
Client Testimonial: "The SAVVY triple offset valves have been a game-changer for our main steam lines. They just work. No leaks, no binding. Our maintenance team can finally focus on proactive tasks instead of fighting with unreliable valves." - Lead Mechanical Engineer, Power Generation Facility.
Our Commitment to Quality, Reliability, and Trust
At SAVVY Valvetech, we build more than just valves; we build trust. Our commitment to Expertise, Authoritativeness, and Trustworthiness is embedded in everything we do, from design to delivery and beyond.
Authoritative Certifications
Our manufacturing facilities are ISO 9001:2015 certified, and our valves are designed and tested to international standards like API, ASME, and ISO. We hold fire-safe certifications to API 607, ensuring performance in emergencies.
Proven Experience
With over 20 years of experience serving major EPCs and end-users in Oil & Gas, Power, and Chemical industries, our valves have a proven track record of reliability in the most demanding environments globally.
Unwavering Support & Warranty
We stand behind our products with a comprehensive 24-month warranty and provide 24/7 technical support. Our standard delivery cycle is 6-8 weeks, with expedited options available for urgent requirements.
Frequently Asked Questions (FAQ)
The standard construction for the replaceable laminated seat is multiple layers of stainless steel (e.g., SS316) and high-purity flexible graphite. The graphite provides the resilient sealing capability and ensures fire-safe performance (per API 607). For more severe services, we use exotic materials like Inconel 625, Duplex, or Monel for the metal layers to handle extreme temperatures and corrosion.
It means the valve provides a bubble-tight seal with no detectable leakage (as defined by API 598 Rate A) when pressure is applied from either direction (upstream or downstream). This is a critical feature for isolation valves, ensuring safety and preventing backflow contamination. Many other valve types only seal effectively in one direction.
There are several key design features. First, all metallic components (body, disc, shaft, seat) are chosen for their compatible coefficients of thermal expansion to prevent binding. Second, the flexible, laminated seat can absorb minor dimensional changes without compromising the seal. Third, for very high temperatures, an extended bonnet is used to move the stem packing and actuator mounting flange away from the hot pipeline, protecting them from heat damage.
We offer a full range of pressure classes, from ASME Class 150 up to Class 2500 for high-pressure applications. Our end connections are highly versatile and include Wafer, Lug, Double Flanged (with options for Raised Face - RF, Flat Face - FF, or Ring Type Joint - RTJ), and Butt-Weld (BW) ends to match any piping system standard.
No, it is designed for straightforward field maintenance. The seat is a self-contained ring held in place by a retainer ring. By removing the retainer, the old seat can be easily taken out and a new one installed without needing to remove the valve from the pipeline or requiring special tools or lapping, significantly reducing downtime.
The primary advantage is the elimination of thermal binding. Gate valves have large seating surfaces that can seize or "bind" due to thermal expansion, making them difficult or impossible to operate. The SAVVY Triple offset replaceable metal seated butterfly valve for thermal duty has a friction-free, quarter-turn design that is immune to this issue. It also provides a better, more reliable seal and is more compact and lighter.
Our standard lead time for most configurations is between 6 to 8 weeks. We also offer expedited manufacturing for critical projects, with lead times as short as 4 weeks. All our valves come with a standard 24-month warranty from the date of shipment, guaranteeing them to be free from defects in material and workmanship.
Conclusion & Further Reading
The SAVVY Triple offset replaceable metal seated butterfly valve for thermal duty represents the pinnacle of modern valve technology for critical applications. Its superior design, robust construction, and proven performance offer unparalleled reliability, safety, and a lower total cost of ownership. By overcoming the limitations of traditional valves, it empowers industries to operate more efficiently and safely in the face of increasing process demands.
For more in-depth technical information and industry standards, we recommend the following resources:
- API Standard 609: Butterfly Valves: Double-flanged, Lug- and Wafer-type - Available from the American Petroleum Institute (API).
- Valve Manufacturers Association of America (VMA): "Valve Basics" and technical resources. - Visit VMA.org.
- Academic Journal Reference: "Analysis and optimization of sealing performance for a triple-offset butterfly valve" - Often found in engineering journals on platforms like ScienceDirect or IEEE Xplore, discussing the finite element analysis of sealing surfaces.
Contact SAVVY Valvetech today to discuss your specific thermal duty application and discover how our engineering expertise can enhance your operations.
