Size: 2″~60″
Pressure Rating: 150LB~4500LB
Design Temperature: -196℃~800℃
General applications: water, oil , gas
Design & Manufacture: API 600, API 6D , ASME B16.34 are basic,other norms could be used according to orders.
F TO F dimensions: API 6D, ASME B16.10, BS EN 558
Connection: ASME B16.5,ASME B16.47 A&B, EN 1092, JIS 5K-20K. BW, RTJ are available.
Structure : SOLID DISC, OS&Y, BB, FB. PRESSURE SEAL BONNET AND WELDED BONNET IS AVAILABLE.
TYPICAL MATERIAL LIST
BODY AND BONNET: ASTM A216 WCB/WCC, ASTM A217 WC6/WC9/C5/C12/C12A/CA15, ASTM A352 LCB/LCC, A351 CF8/CF8M/CF3/CF3M, A995 4A/5A, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718
ASTM A105, F11, F22, C5, F91, ASTM A182 F304/F304L/F316/F316L/F6A/F11/F22/F91/F51/F53/F55, A694 F60, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718.
DISC: ASTM A216 WCB/WCC, ASTM A217 WC6/WC9/C5/C12/C12A/CA15, ASTM A352 LCB/LCC, A351 CF8/CF8M/CF3/CF3M, A995 4A/5A, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718
ASTM A105, F11, F22, C5, F91, ASTM A182 F304/F304L/F316/F316L/F6A/F11/F22/F91/F51/F53/F55, A694 F60, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718
+HARD FACED
STEM: A182 F6A, F304, F304L, F316, F316L, F51, F53,17-4PH, XM-19, C95400, C95800, C83600, INCONEL 625, INCONEL 718, MONEL K400, MONEL K500, H-276
SEAT:A182 F6A, F304, F304L, F316, F316L, F51, F53,17-4PH, XM-19, C95400, C95800, C83600, INCONEL 625, INCONEL 718, MONEL K400, MONEL K500 +HARD FACED.

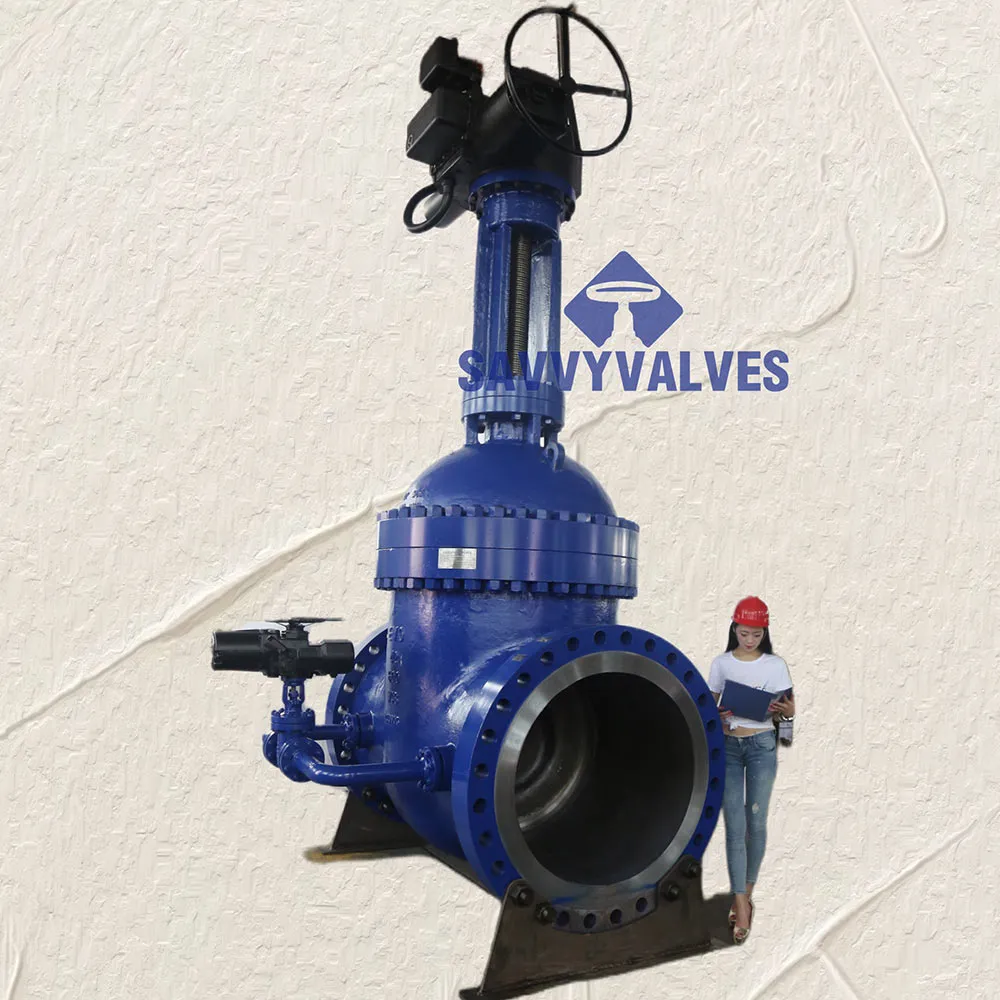

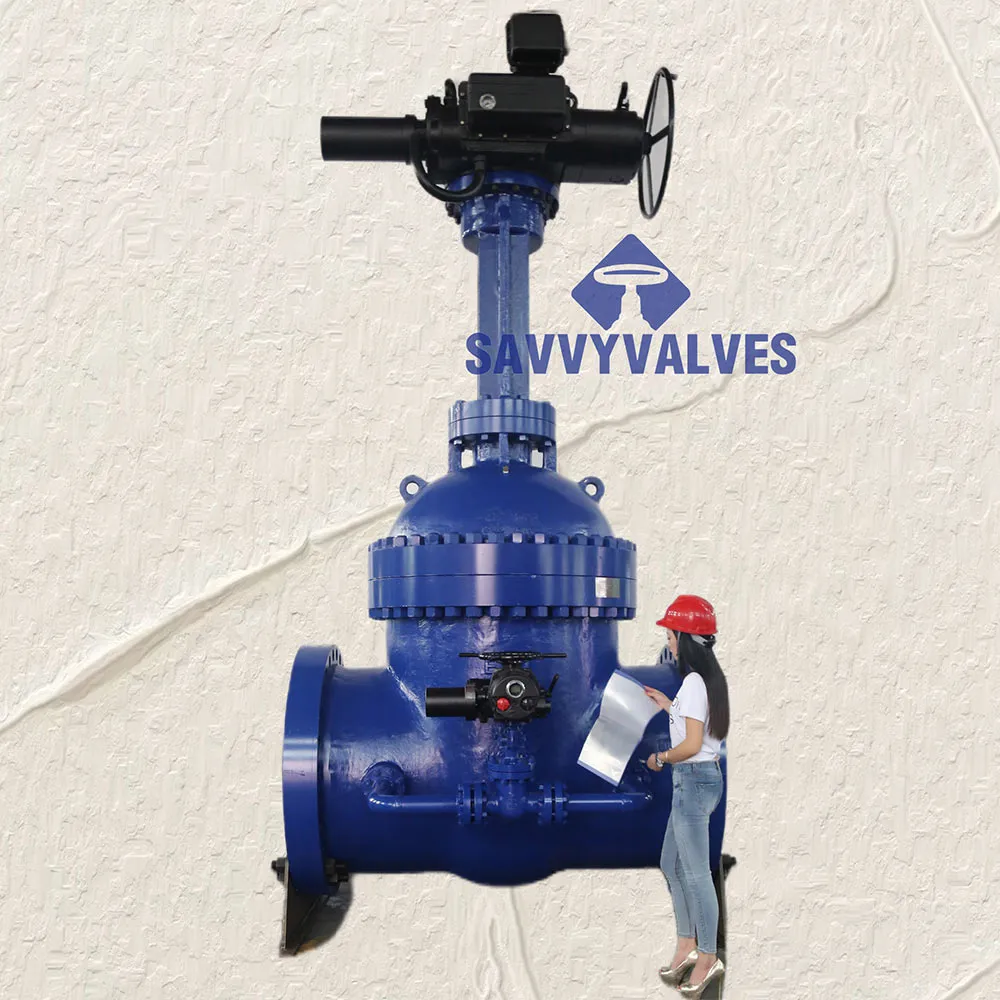

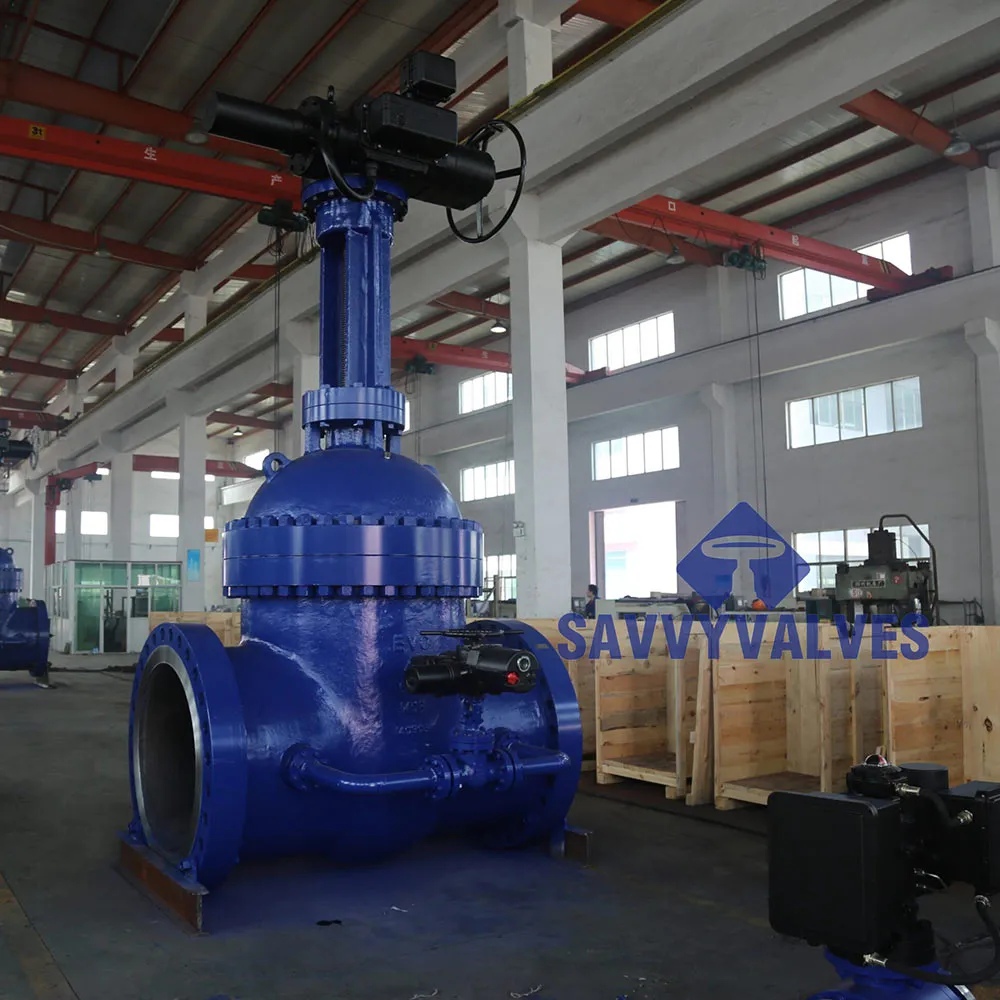

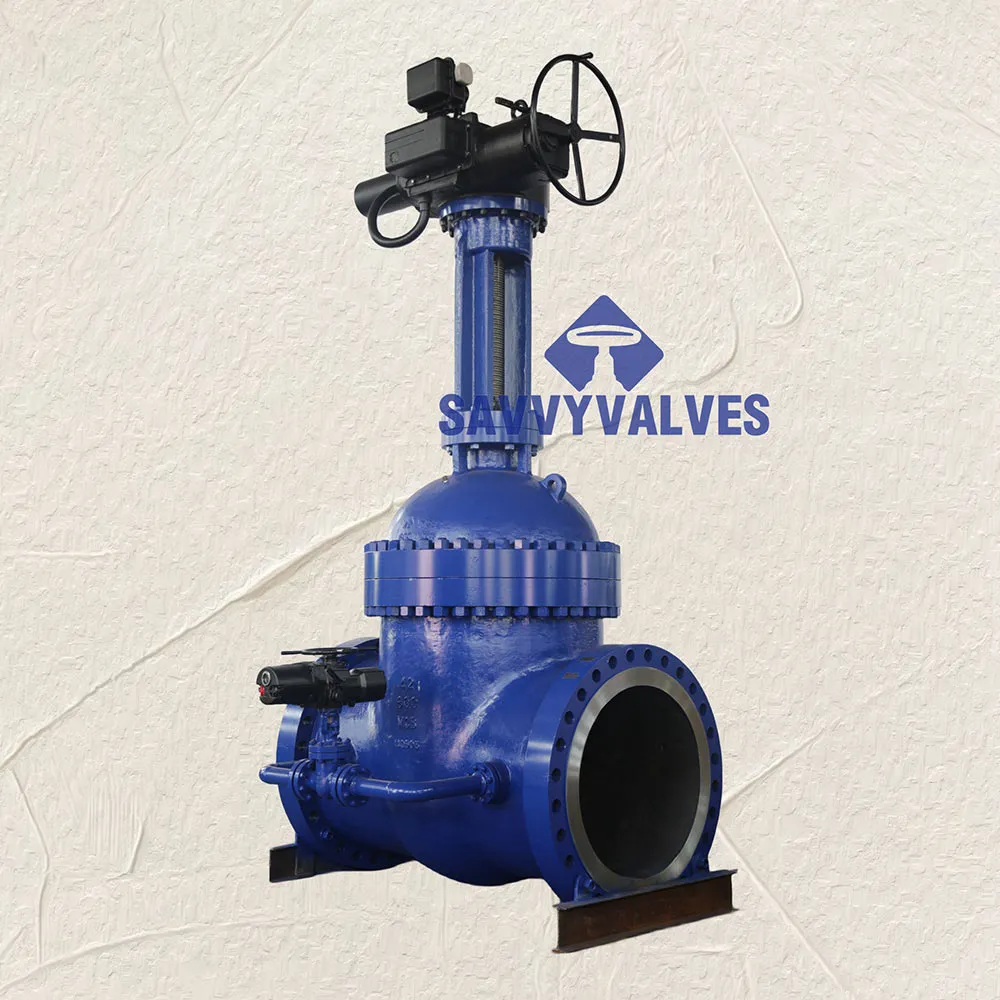

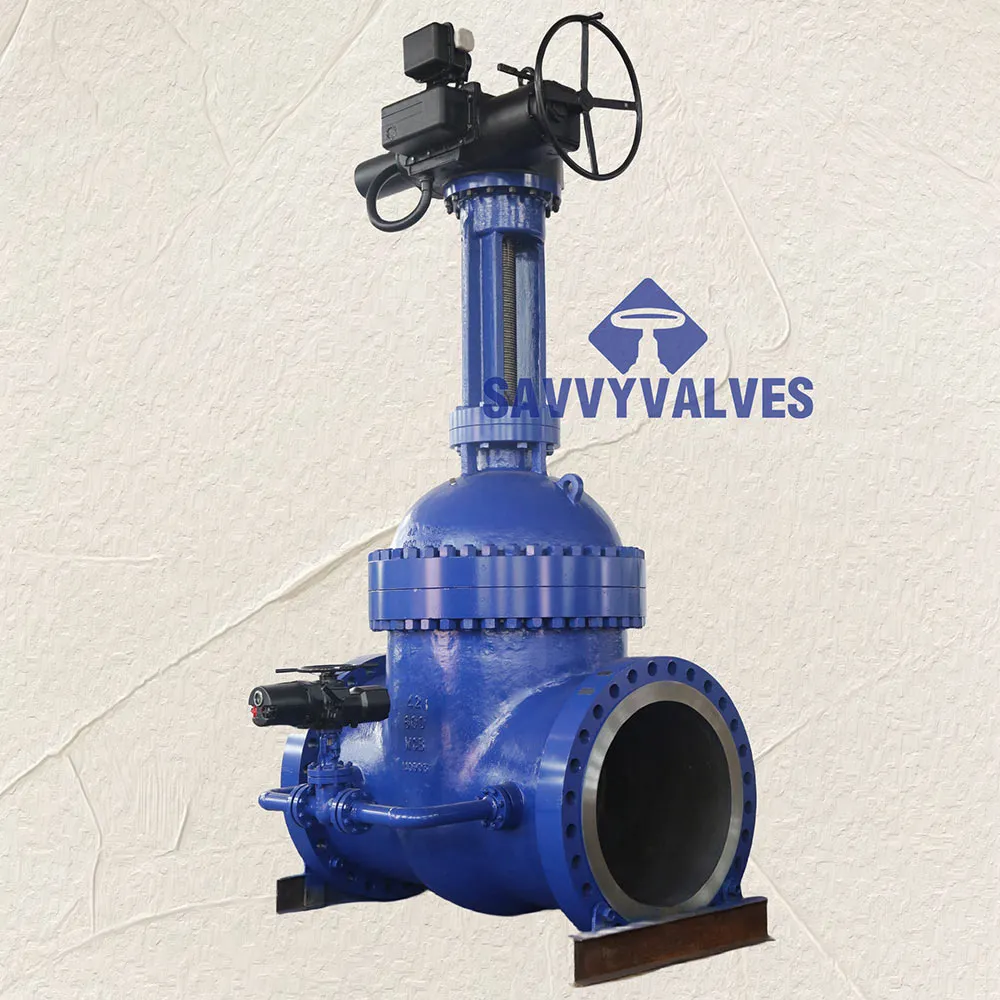

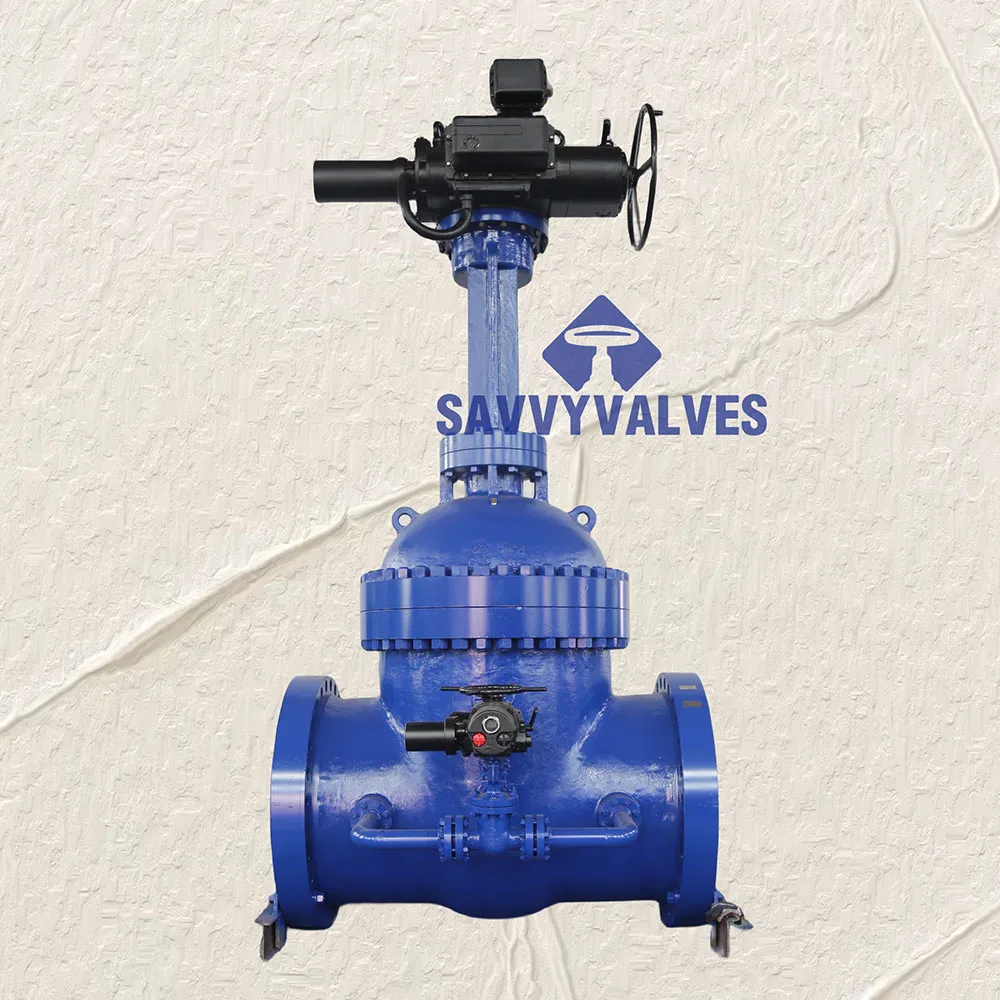

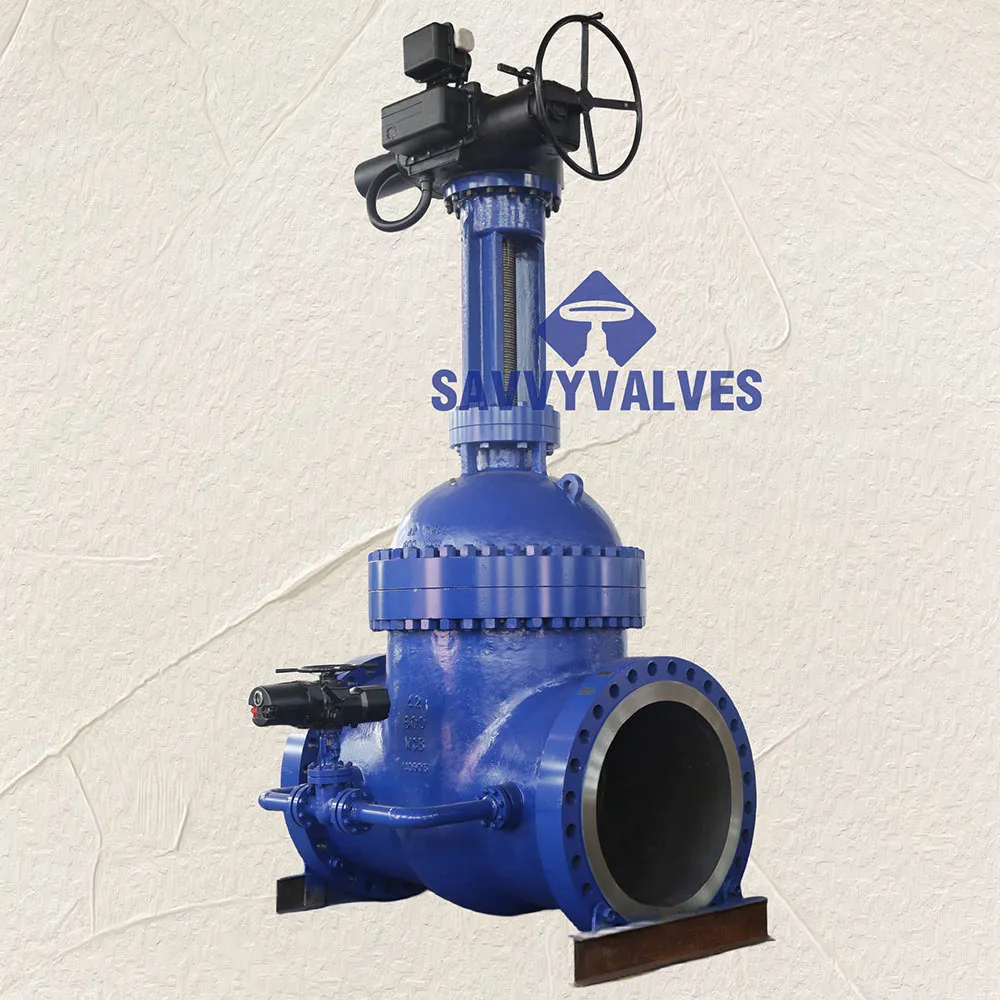

OPERATOR: ELECTRIC ACTAUTED
OTHER SPECIAL MATERIALS ARE AVAILABLE TO CUSTOMIZE.
TEST AND INSPECTION
Inspection and approval norm: API598, API6D.
QUALITY CONTROL
100% Chemical analysis and mechanical test with raw materials of each heat numbers.
100% DPT test with the castings, partly MT or UT test, RT is always available if required.
100% hydraulic test with the shell and seal and low pressure air test.
GUATANTEE
SAVVY VALVES is committed to delivering exceptional product quality and worry-free after-sales service. Our valves are guaranteed to provide a minimum service life of 12 months, during which we will supply all necessary spare parts and detailed maintenance instructions free of charge. Within the warranty period, if any non-human-induced damage occurs, we will replace components at no cost and provide professional technical support. After the warranty expires, customers only need to pay for the cost of spare parts, while still benefiting from discounted maintenance services. Our goal is to help clients reduce operational costs and enhance production efficiency through reliable quality and comprehensive after-sales support. Whether for technical inquiries or maintenance needs, our expert team will respond promptly to ensure your valve system maintains optimal performance at all times.
