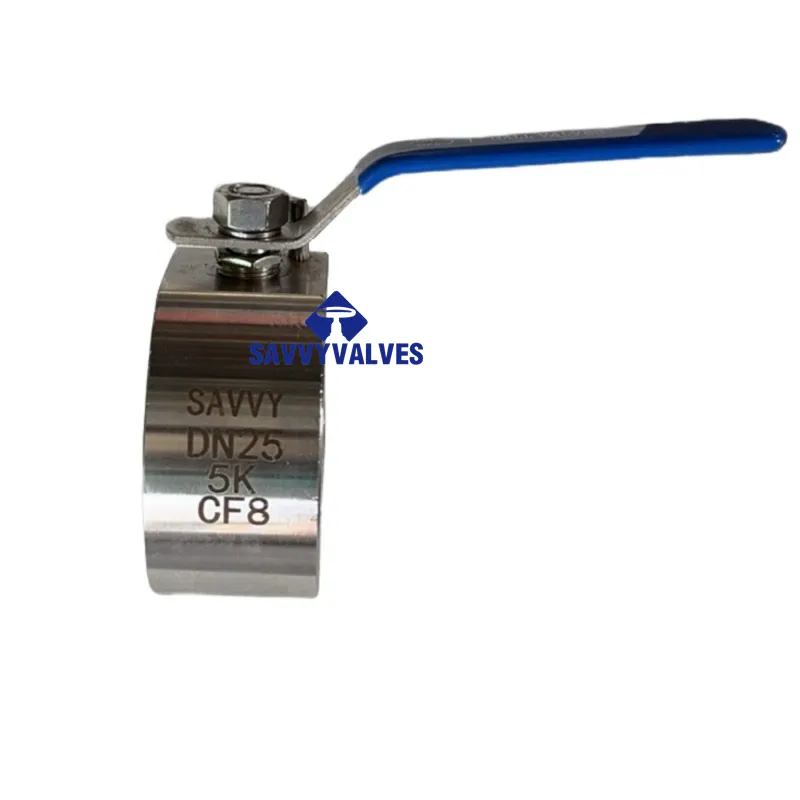

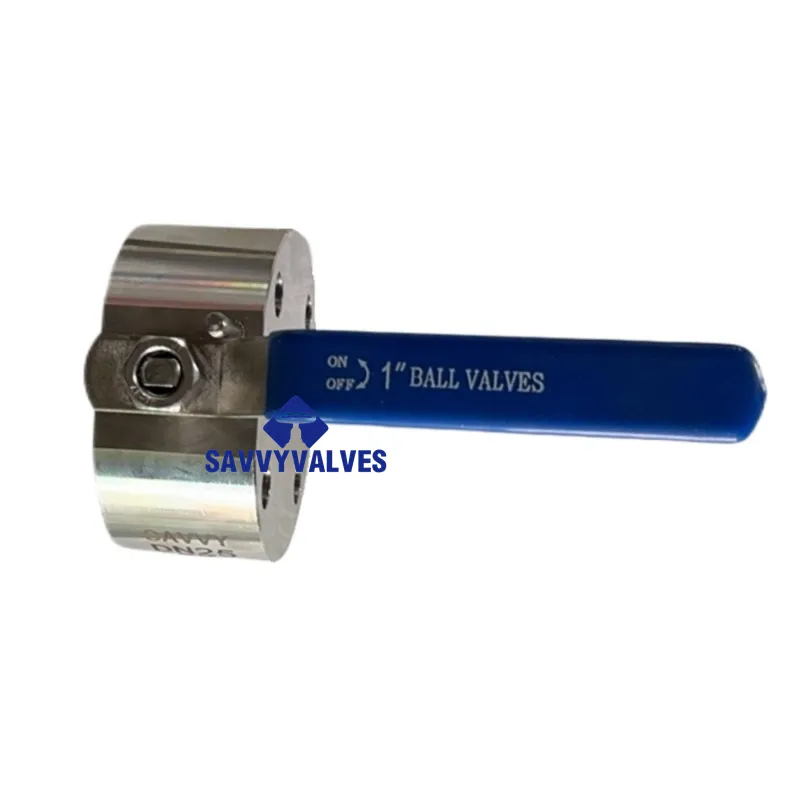

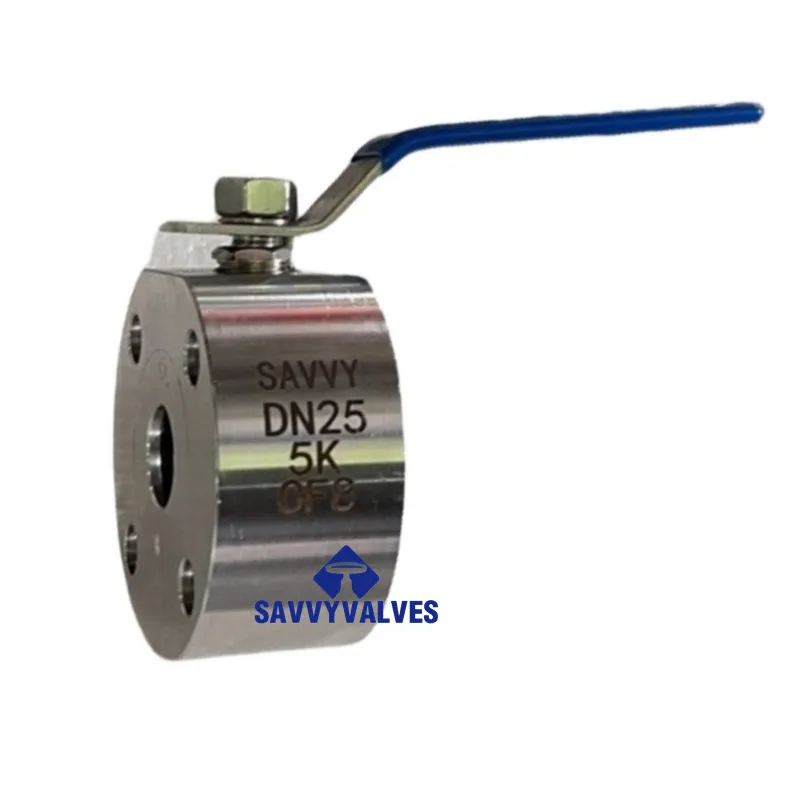

The JIS 5K 25A Wafer-Type Ball Valve is engineered to meet the exacting needs of modern engineering, combining robust quality, versatile materials, precision manufacturing, and advanced testing protocols.
View Product Details →
Industry Trend: Wafer-Type Ball Valves in the Global Valve Market
2023-2029 CAGR for Asia-Pacific Industrial Valves: 5.2%
Wafer-type ball valves saw a global revenue growth of over 8% in petrochemical segment (GrandViewResearch 2024)
Wafer-type ball valves saw a global revenue growth of over 8% in petrochemical segment (GrandViewResearch 2024)
The increasing adoption of JIS 5K 25A Wafer-Type Ball Valve solutions in oil & gas, water management, food, and chemical plants underscores the industry's shift towards cost-effective, compact, and corrosion-resistant flow control. Leading manufacturers incorporate international standards (JIS, ANSI, ISO 9001:2015) to maximize operational longevity and ensure process safety.
Technical Specifications: JIS 5K 25A Wafer-Type Ball Valve
| Parameter | Value | Standards/Remarks |
|---|---|---|
| Nominal Size | 25A (1") | JIS B2002 |
| Pressure Rating | 5K (5 kgf/cm² ≈ 0.5 MPa) | JIS 5K Flange |
| Body Material | CF8M (AISI 316) / CF8 (AISI 304) / WCB | Customized available |
| Ball Material | SS316/SS304/Ceramic/Alloy | Honed & mirror-finished |
| Seat Material | PTFE / RPTFE / PPL | FDA (USA) / ISO 5208 |
| Face-to-Face | 40 mm (Standard: JIS) | Compact wafer type |
| End Connection | Wafer Flanged | Sandwiched between flanges |
| Operation | Lever / Pneumatic / Electric Actuator | ISO 5211 Mounting |
| Leakage Class | Class VI (Bubble Tight) | ISO 5208/ANSI FCI 70-2 |
| Testing | Hydrostatic & Air | 100% Factory Tested |
Key Advantages:
- ✔ Compact design — Space-saving wafer mount
- ✔ Anti-blowout stem and fire-safe construction
- ✔ Zero-leakage sealing (ISO 5208 Class VI)
- ✔ Full-bore flow path, low pressure-drop
- ✔ Quick shut-off & quarter-turn operation
- ✔ Anti-corrosive materials for harsh environments
- ✔ EPA-compliant, food-grade seat options
Manufacturing Process Flow — JIS 5K 25A Wafer-Type Ball Valve
1. Raw Material Inspection
Strict selection and PMI testing of CF8M/CF8/WCB bar & forging stock per ASTM A351/A216.
Strict selection and PMI testing of CF8M/CF8/WCB bar & forging stock per ASTM A351/A216.
2. Casting / Forging
High-precision Silica Sol Lost Wax Investment Casting for tight grain structure; forging for pressure-boundary components.
High-precision Silica Sol Lost Wax Investment Casting for tight grain structure; forging for pressure-boundary components.
3. CNC Machining
All-in-one CNC lathe/milling for spindle, body, end covers; tolerance ±0.01mm. Seats and ball mirror-finished (Ra ≤ 0.2 μm) for bubble-tight sealing.
All-in-one CNC lathe/milling for spindle, body, end covers; tolerance ±0.01mm. Seats and ball mirror-finished (Ra ≤ 0.2 μm) for bubble-tight sealing.
4. Surface & Heat Treatment
Automated sandblasting, ultrasonic cleaning, optional fluoropolymer or electroless nickel plating for extreme chemical resistance.
Automated sandblasting, ultrasonic cleaning, optional fluoropolymer or electroless nickel plating for extreme chemical resistance.
5. Assembly
Precision assembly in ISO Class 7 Cleanroom. All elastomers and plastics certified per FDA CFR21.177.
Precision assembly in ISO Class 7 Cleanroom. All elastomers and plastics certified per FDA CFR21.177.
6. Testing & Quality Assurance
Hydrostatic, pneumatic, and torque tests as per ISO 5208/ANSI FCI 70-2. Serial traceability with digital inspection records.
Hydrostatic, pneumatic, and torque tests as per ISO 5208/ANSI FCI 70-2. Serial traceability with digital inspection records.
7. Finishing & Packaging
Silicone-free, anti-corrosion packaging with RFID shipment tracking. Custom logo and tag available.
Silicone-free, anti-corrosion packaging with RFID shipment tracking. Custom logo and tag available.
Certified Manufacturing: ISO 9001:2015, API 6D, CE/PED, FDA seat material, JIS G5101, NACE MR0175 for sour service.
Estimated Service Life: 50,000+ cycles (Class VI/Full-port/PN5/25A), 8+ years in continuous industrial flow.
Estimated Service Life: 50,000+ cycles (Class VI/Full-port/PN5/25A), 8+ years in continuous industrial flow.
JIS 5K 25A Wafer-Type Ball Valve: Comparative Technical Data Visualization
Typical Applications & Real-World Case Studies
- Petrochemical Plant (Saudi Arabia): 118 units of JIS 5K 25A Wafer-Type Ball Valve installed on feedstock and blowdown lines achieved zero emissions for 35,000 cycles; utilized PTFE seats (ISO 9001 traceability, NACE MR0175 eligible) — Annual maintenance cost cut by 92%.
- Wastewater Treatment (South Korea): Compact wafer mounting enabled retrofitting in dense pipe galleries; class VI leakage maintained for 7 years. Read more
- Food & Beverage (Japan): FDA-certified PTFE seat options enabled compliance with food contact standards (FDA 21 CFR 177.1550). User feedback cites “no seepage even under CIP/SIP cycle”.
- Power Generation (Vietnam): Outperformed conventional gate valves by reducing actuation time by 68%, lowering energy usage due to full-bore passage.
Manufacturer Comparison Table — Wafer-Type Ball Valves (25A, 5K Class)
| Feature | SavvyValveTech | Kitz | Yoshitake | Shanghai Litai |
|---|---|---|---|---|
| Body Material | CF8M/CF8/WCB | CF8/CF8M | SS304 | CF8/CF8M |
| Design Standard | JIS B2002, ISO 5208 | JIS B2002 | JIS B2002 | JIS/GB |
| Leakage Class | Class VI (Bubble Tight) | Class IV/V | Class V | Class IV |
| FDA Certified Seat | Available (PTFE/PPL) | Available | Not specified | No |
| Factory Testing | 100% Hydro/Air/Fire | Sampled | Sampled | Sampled |
| ISO 9001:2015 | Certified | Certified | Yes | No |
| Warranty | 24 Months | 12 Months | 12 Months | 6 Months |
| Customization | Material/actuator/branding | Limited | Standard sizes | Yes |
Tailored Solutions & Delivery Options for JIS 5K 25A Wafer-Type Ball Valve
Contact SavvyValveTech for: OEM & Custom Branding | Actuation Automation | Fast-Delivery (7-12 days)
Standard sizes in stock (25A-100A); personalized logo, color coding, handle, smart sensor integration available.
Standard sizes in stock (25A-100A); personalized logo, color coding, handle, smart sensor integration available.
Delivery Cycles:
Customer Support: 24/7 technical support phone & email; installation guidance and online troubleshooting.
- Stock products: Ships in 48h
- Custom orders (job size < 300 pcs): 7-12 working days
- Export documentation: EN 10204 3.1/3.2, Mill Tests, COO, ISO/FDA/CE on request
Customer Support: 24/7 technical support phone & email; installation guidance and online troubleshooting.
Official supplier for: SINOPEC, Sumitomo Chemical, Suez Water, Asahi Foods, and over 340 industrial end-users worldwide.
Professional FAQ: Key Terms & Technical Inquiries
1. What does "JIS 5K 25A" actually stand for?
"JIS" refers to Japanese Industrial Standards; "5K" indicates the pressure class (5 kgf/cm² ≈ 0.5 MPa); "25A" is the nominal pipe size (1 inch/25mm diameter).
2. What are the standard body materials for JIS 5K 25A Wafer-Type Ball Valve?
The main standards include CF8M (304L/316 Stainless) and WCB (Carbon Steel), both complying with ASTM A351/A216; providing excellent corrosion/strength balance.
3. What is meant by "Wafer-type"?
"Wafer-type" denotes the compact, sandwich construction fitting between two flanges, saving space and weight compared to lug or double-flanged ball valves.
4. How does "Class VI Leakage" benefit industrial flows?
Class VI (ISO 5208/ANSI FCI 70-2) certifies bubble-tight shutoff (leakage <0.15 ml/hr/inch), minimizing product loss and eliminating fugitive emissions — critical for chemical and water facilities.
5. What is the operational life expectancy of these valves?
Under typical use, the JIS 5K 25A Wafer-Type Ball Valve surpasses 50,000 cycles at max pressure-temperature, with 8+ years in continuous industrial lines (third-party tested per ISO 5208).
6. What standards govern test and quality?
Essential standards include: ISO 5208 (leakage), JIS B2002 (design), FDA CFR21 (seat/contact), EN 12266 (pressure test), and ISO 9001:2015 (process).
7. How is installation handled, and are there actuator options?
Installation is via wafer-mount between standard flanges; direct-mount ISO 5211 pad for pneumatic/electric actuators, lever, or gear box (automated control upgrades available).
