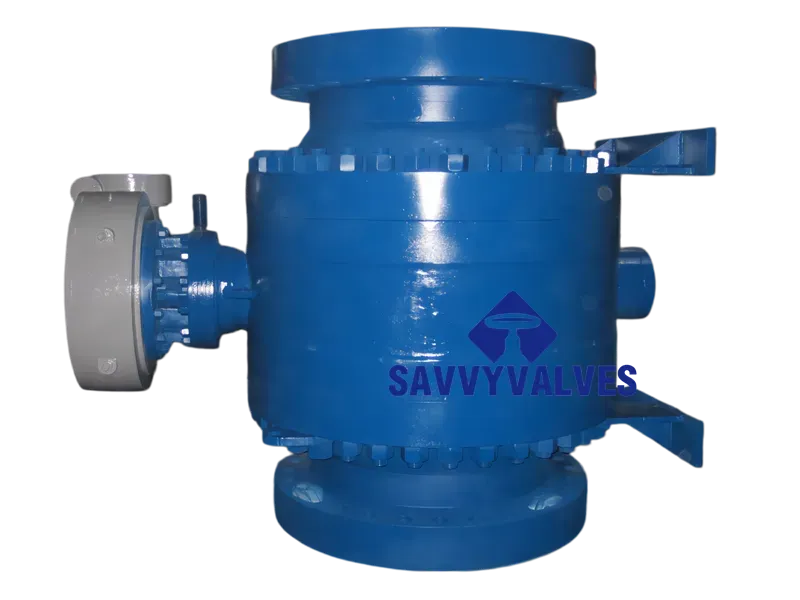

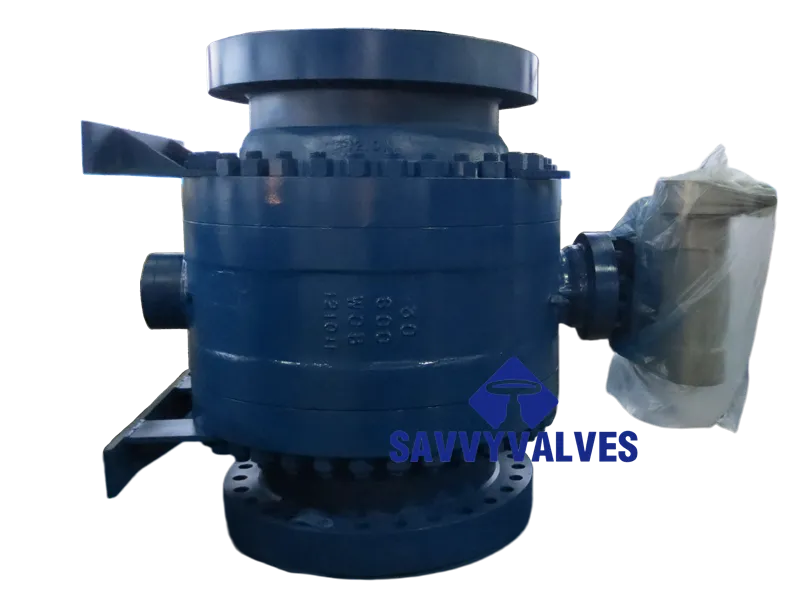

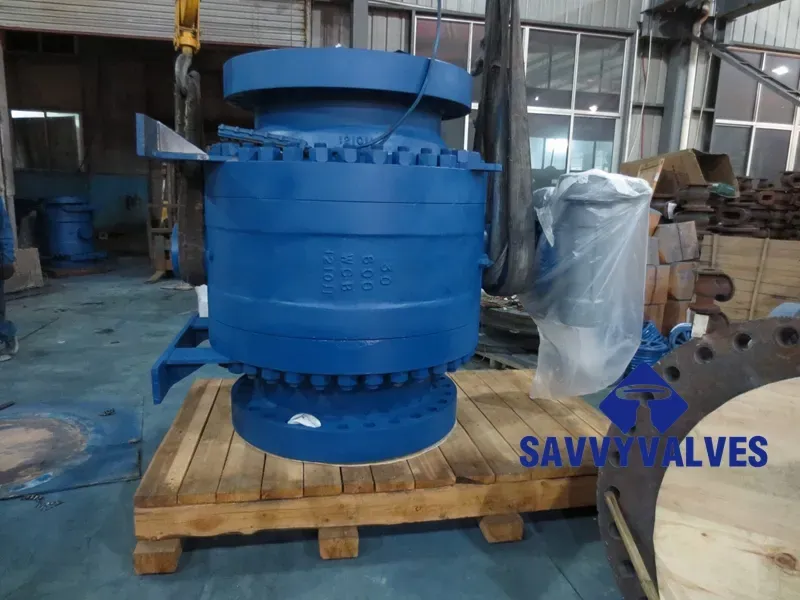

30″-600LB 3-Piece Trunnion Mounted Ball Valve

Valve Type 3-Piece Trunnion Ball Valve
Nominal Bore 30 inches (DN750)
Pressure Class 600 LB (Class 600)
Connection Type Flanged Ends (RF)

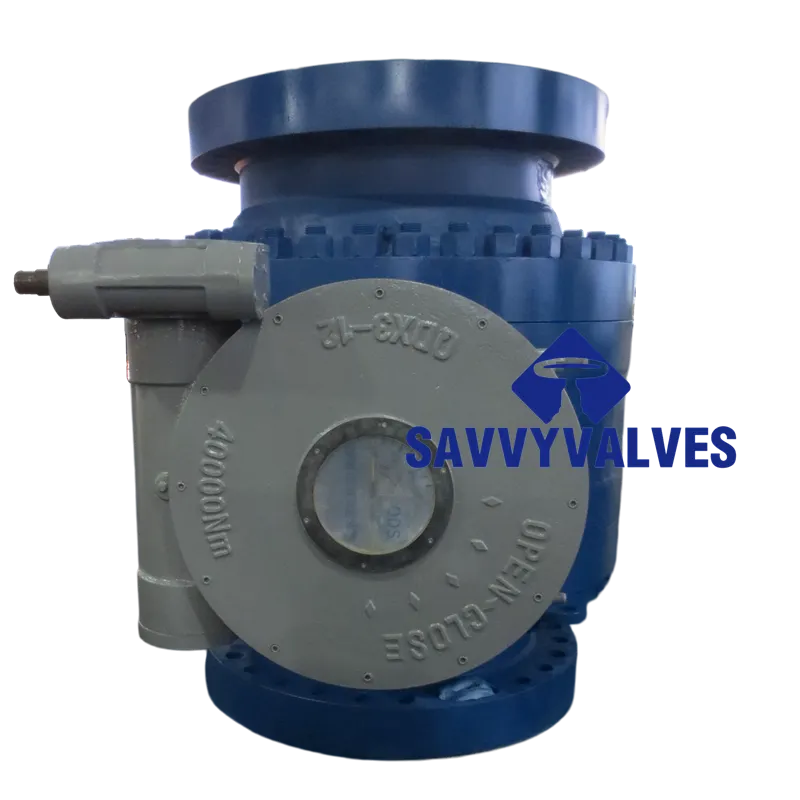

Operation Type Worm Gear Operator
Design Standard API 6D / ASME B16.34

تماس با ما

توضیحات

Technical Data Sheet

3-Piece Trunnion Mounted Ball Valve

Project/Item: 3-Piece Fixed Ball Valve
Valve Size: 30 inches (DN750)
رتبه‌بندی فشار: 600LB (Class 600)

General Information

Item	Technical Parameter	اظهارات
نوع شیر	3-Piece Trunnion Ball Valve	Side Entry, Bolted Bonnet Construction
Nominal Bore	30 inches (DN750)	Full Bore Design
Pressure Class	600 LB (Class 600)	Corresponds to PN100
Connection Type	Flanged Ends (RF)	Raised Face Flanges per ASME B16.5
Operation Type	Worm Gear Operator	Essential for high-pressure/large bore valves
Design Standard	API 6D / ASME B16.34	Pipeline valve design specification
حضوری	ASME B16.10	For RF flanged ends
Flange Standard	ASME B16.5	Flange dimensions and drilling
Inspection & Test	API 598	Pressure test standards

Main Technical Parameters & Performance

Item	Technical Parameter	اظهارات
Shell Test Pressure	15.3 MPa (2220 psi)	Hydrostatic, ambient temperature (Increased for 600LB)
High-Pressure Seal Test	11.2 MPa (1625 psi)	Hydrostatic, ambient temperature (Increased for 600LB)
Low-Pressure Seal Test	0.5 – 0.7 MPa	Air or Nitrogen
محدوده دما	-29°C ~ +200°C	Depends on seat material selection (e.g., PTFE)
Applicable Media	Water, Oil, Natural Gas, Steam	WCB body suitable for non-corrosive & mildly corrosive media
اپراتور	Turbine (Worm Gear)	Standard; heavy-duty gearbox required
Fire Safe Design	API 607	Optional; ensures sealing during fire conditions
دستگاه ضد الکتریسیته ساکن	Yes	Springs and balls to dissipate static charge
Blow-out Proof Stem	Yes	Stem designed with an integral shoulder

Main Material Specifications

*(Materials remain the same – WCB Body + 316 Trim)*

Part Name	Material Type	Material Grade	Standard / Remarks
Body / Bonnet	Carbon Steel	A216 WCB	Cast steel suitable for 3-piece design
توپ	Stainless Steel	A182 F316	316 SS, may be hardened (Chrome Plated)
ساقه	Stainless Steel	A182 F316	High strength, good corrosion resistance
Seat Insert (Ring)	Reinforced PTFE	RPTFE / Nylon	Or PPL (High temp version)
Seat Support / Holder	Stainless Steel	A182 F316	Supports the soft seal ring
Springs	Alloy Steel	17-7PH / Inconel	Preloads the seats for low-pressure sealing
Studs / Bolts	Alloy Steel	A193 B7	High strength alloy steel
Nuts	Carbon Steel	A194 2H	Standard heavy hex nuts
Packing / Gasket	Flexible Graphite / PTFE	/	Optional Low-Emission packing available

Main Dimensions (For 30″ Class 600)

Typical dimensions per ASME standards. Note: 30″ Class 600 flanges are very large and heavy. Variations may occur between manufacturers.

توضیحات	Dimensions (mm)	Dimensions (inches)	اظهارات
Port Diameter (d)	737	29.0″	Full bore (approx – actual may vary slightly by mfr)
Flange O.D. (D)	1092	43.0″	Per ASME B16.5 30″ Class 600
Bolt Circle (D1)	978	38.5″
Flange Thickness (b)	98.6	3.88″	Significantly thicker for high pressure
No. of Holes – Dia	28 – Φ54 mm	28 – 2.12″	28 larger bolt holes
Face-to-Face (L)	1397	55.0″	Flanged RF to RF (ASME B16.10 for Class 600)
Center to Top (H1)	~950	~37.4″	Approx, from stem center to top of valve (larger for higher pressure)
Gearbox Height (H2)	~1300	~51.2″	Total height with gearbox (approx – heavy-duty gearbox)
Handwheel Dia (Do)	~1200	~47.2″	Reference (larger for increased torque at 600LB)
Approx Weight (WT)	~5500 kg	~12125 lbs	Estimated, cast steel body (significant increase due to pressure)

Design Features & Requirements

(Design features remain the same, but structural integrity is even more critical for 600LB)

3-Piece Bolted Body: The body consists of three parts (Body + 2 End Caps) bolted together with heavy-duty studs. This allows for easy maintenance without removing the entire valve from the pipeline, a major advantage for a large, heavy 30″ 600LB valve.
Trunnion Mounted Ball: The ball is fixed and supported by heavy-duty upper and lower stems/bearings. This design is essential for 30″ Class 600 applications, managing high thrust loads and reducing operating torque.
Double Piston Effect (DPE) Seats: Standard seats provide bidirectional sealing. The valve typically features automatic cavity pressure relief to protect the body in case of thermal expansion.
Emergency Sealant Injection: The valve body is equipped with sealant injection fittings. In case of seat damage at high pressure, sealant can be injected to temporarily restore sealing.
دستگاه ضد الکتریسیته ساکن: A spring-loaded plunger/ball ensures electrical continuity between the ball, stem, and body.
Secondary Metal Seal: In the event the soft seat is destroyed by fire, the ball will contact the metal seat support, providing a metal-to-metal seal (Fire Safe feature).

Note:

This data sheet is based on standard ASME/API specifications for a 30″ Class 600 valve.
30″ Class 600 is a very high-pressure, large-diameter valve. The flange dimensions provided are per ASME B16.5. Please confirm if ASME B16.5 or ASME B16.47 (Series A or B) is required for your project, as large diameter high-pressure flanges sometimes fall under the larger flange standards.
The gearbox dimensions, handwheel size, and overall weight are estimates and will vary significantly by manufacturer. A heavy-duty gearbox is mandatory for this pressure class. Certified drawings are essential for installation and lifting planning.
