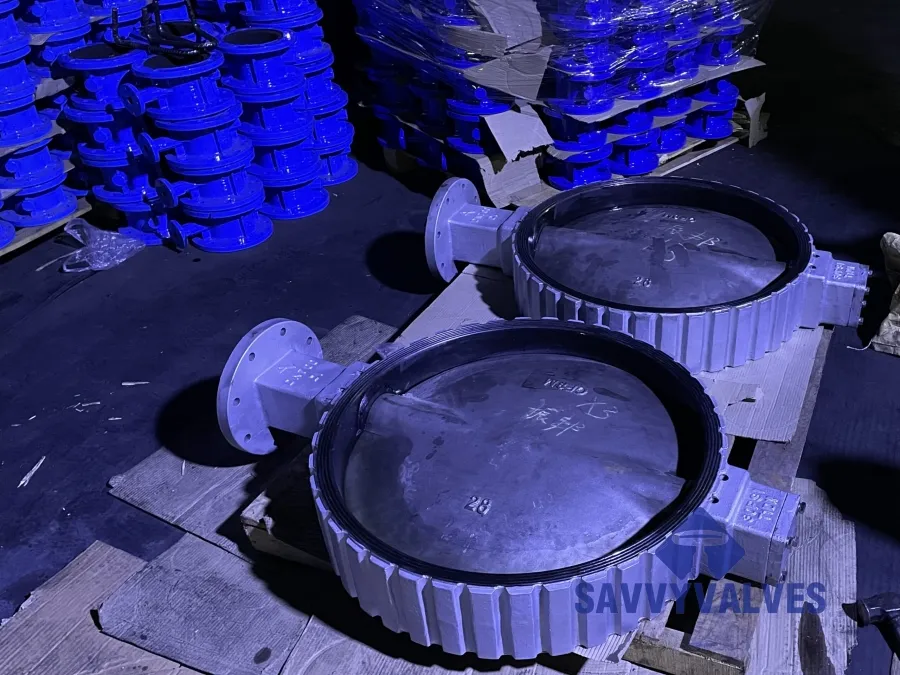

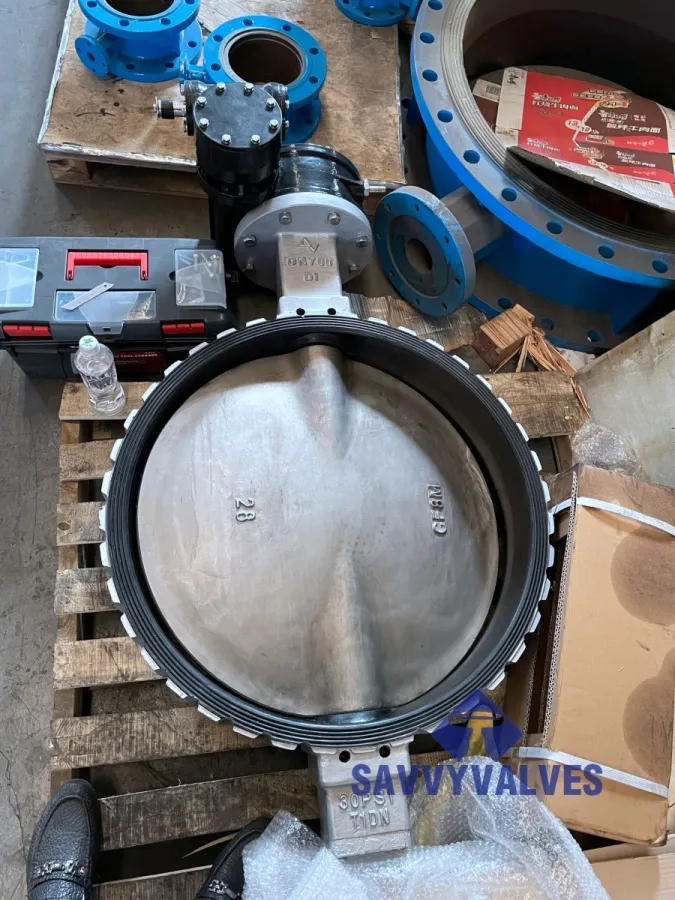

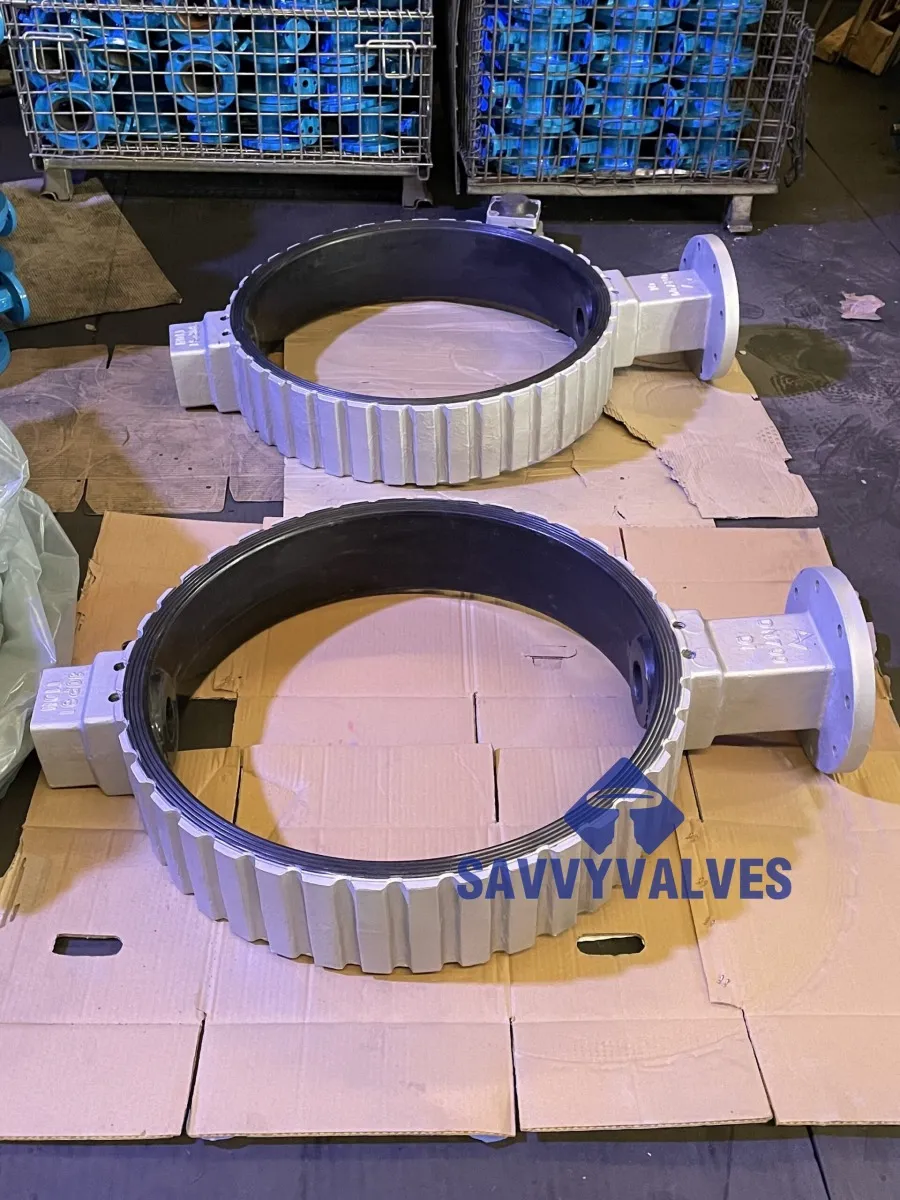

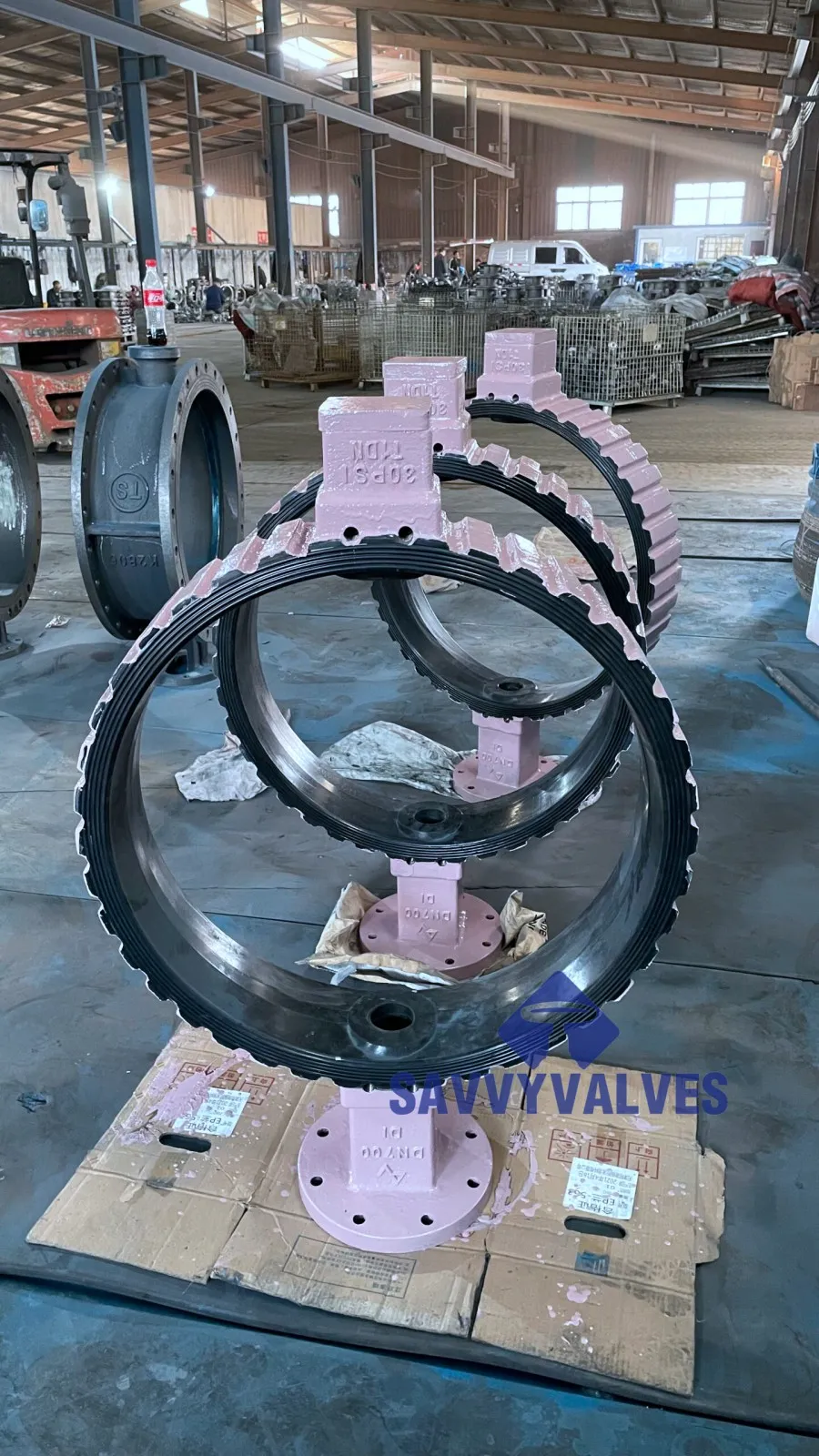

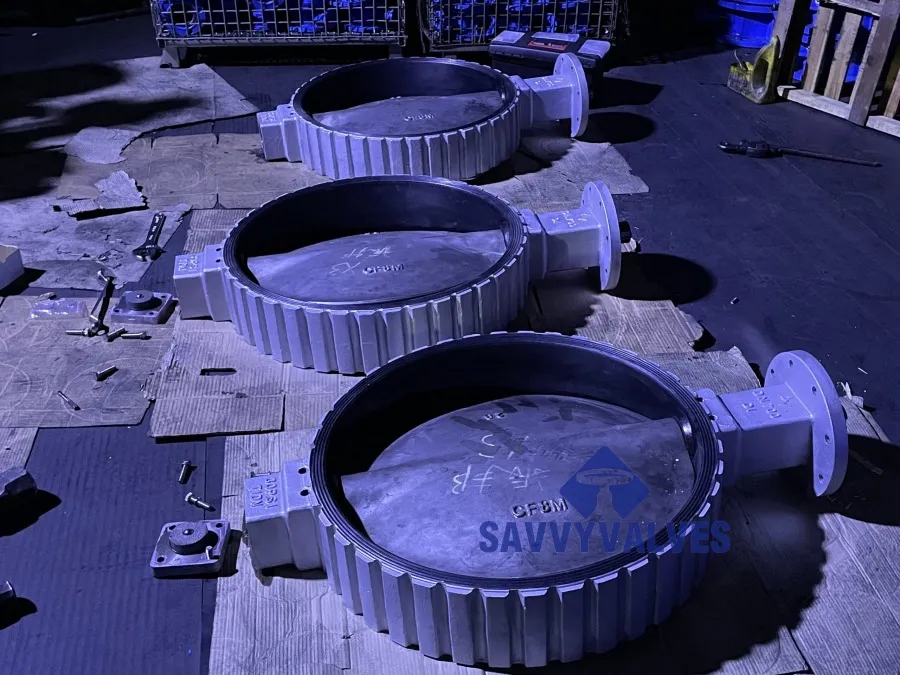

ASME B16.47 B siri getah tervulkan injap rama-rama duduk

SAIZ: DN700
PENILAIAN: PN6
BADAN: ASTM A536 65-45-12
CAKERA: ASTM A351 CF8M
BATANG: SS416 TANPA PIN
DUDUK: NBR
LUKISAN: KARBON FLUORIN, C5-I
PENGAKUAN: UNIT GEAR

Hubungi Kami

ASME B16.47 B series vulcanized rubber seated butterfly valve

SPESIFIKASI REKA BENTUK AM

Saiz: 2″~48″.
Penilaian Tekanan: PN6, PN10, PN16,PN20, 200WOG, 125LB, 150LB, JIS 5K 10K 16K 20K
Aplikasi umum: Air. Minyak. Gas.
Suhu yang sesuai: -29℃~150℃
Reka Bentuk & Pembuatan: API 609 adalah asas, ASME B16.34, norma lain boleh digunakan mengikut pesanan.
F TO F dimensions: API 609, ASME B16.10,BS EN 558
Sambungan: Digerudi mengikut ASME B16.5, EN 1092, JIS 5K-20K. BW, RTJ tersedia.
Reka bentuk keselamatan: batang anti-letupan.

SENARAI BAHAN TYPICAL

BADAN: ASTM A126 , ASTM A536, ASTM A216 WCB ASTM A395

CAKERA: ASTM A536, ASTM A395, ASTM A351 CF8, ASTM A351 CF8M, ALUMINIUM GANGSA (C95400, C95500), DSS F51, F53, F55

STEM: 13CR,SS304,SS316, DSS F51, F53, F55, XM-19, 17-4PH, INCONEL 718, MONEL K-500

KEDUDUKAN: EPDM, NPR, VITON

OPERATOR: UNIT TUAS DAN GEAR

BAHAN KHAS LAIN ADA UNTUK DISESUAIKAN.

UJIAN DAN PEMERIKSAAN

Pemeriksaan dan norma kelulusan: API598, API6D.

KAWALAN KUALITI

100% Analisis kimia dan ujian mekanikal dengan bahan mentah setiap nombor haba.
Ujian DPT 100% dengan tuangan, sebahagiannya ujian MT atau UT, RT sentiasa tersedia jika diperlukan.

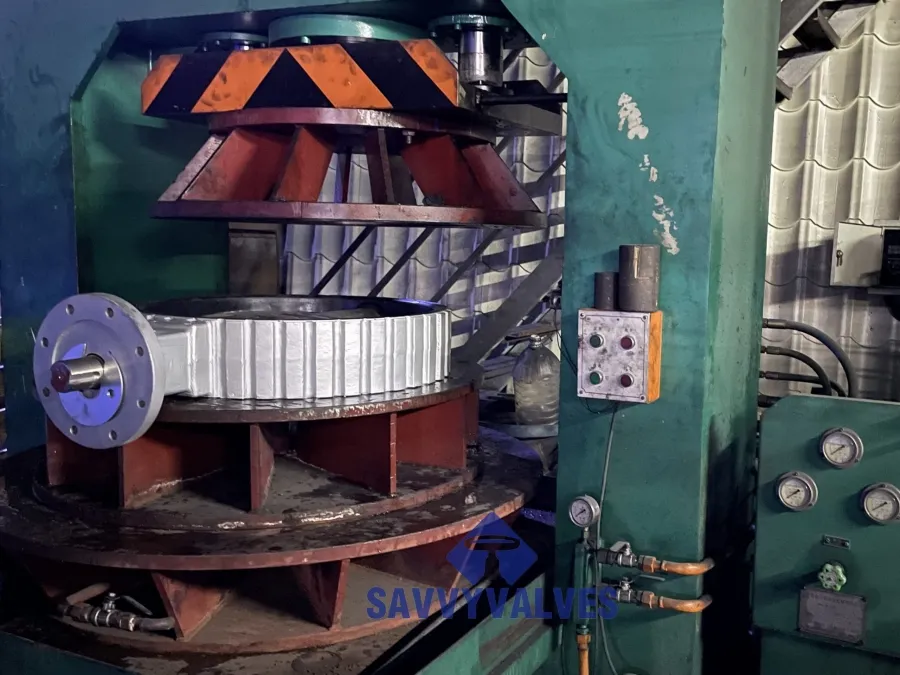

Ujian hidraulik 100% dengan shell dan meterai dan ujian udara tekanan rendah.

JAMINAN

SAVVY VALVES menyediakan hayat perkhidmatan sekurang-kurangnya 12 bulan, alat ganti percuma dan arahan penyelenggaraan akan diberikan apabila diperlukan.

PRODUK JUALAN PANAS

Selama lebih 10 tahun, kami telah menjadi pembekal utama injap industri untuk projek global utama dalam bekalan air, minyak & gas, dan penyahgaraman.

How Is The ASME B16.47 B Series Vulcanized Rubber Seated Butterfly Valve Used In Large-Diameter Systems?

The ASME B16.47 B series vulcanized rubber seated butterfly valve is ideal for large-diameter pipeline applications in industries such as water treatment, HVAC, and industrial fluid control. Designed to meet the dimensional standards of ASME B16.47 B, it ensures compatibility with standard flanges in high-volume flow systems. The vulcanized rubber seat, which is permanently bonded to the valve body, provides excellent sealing performance and durability under varying pressures and temperatures. This eliminates seat displacement or leakage over time, even with frequent operation. The valve allows for bi-directional flow control and is easy to install, operate, and maintain, making it well-suited for critical isolation or throttling functions in systems up to 48 inches or more. Its robust sealing and corrosion resistance make it a dependable choice for cost-effective, leak-tight service in demanding environments.
