Injap rama-rama dudukan logam tiga kali ganda yang boleh diganti untuk tugas terma

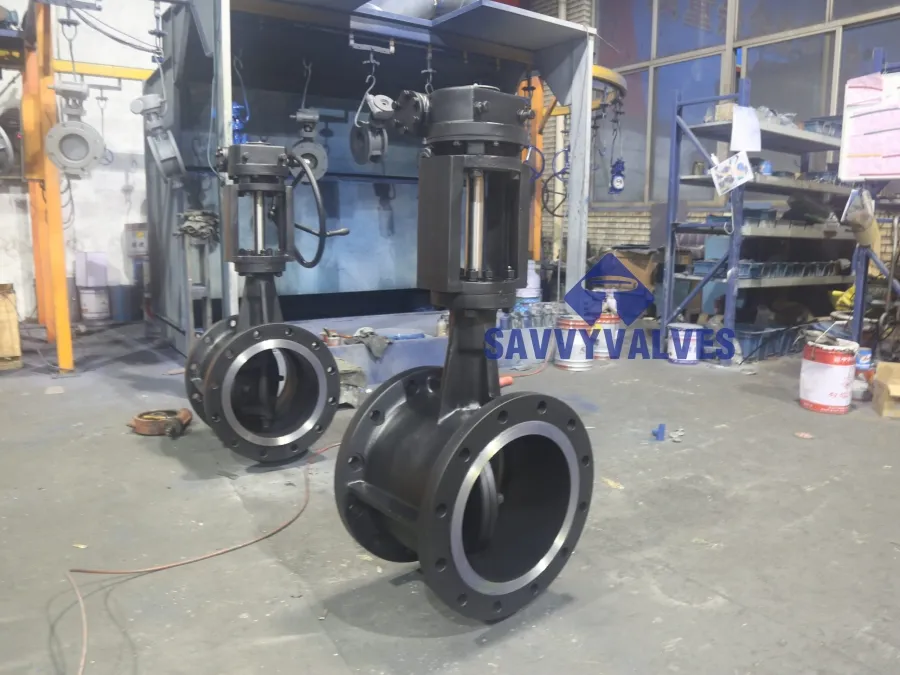

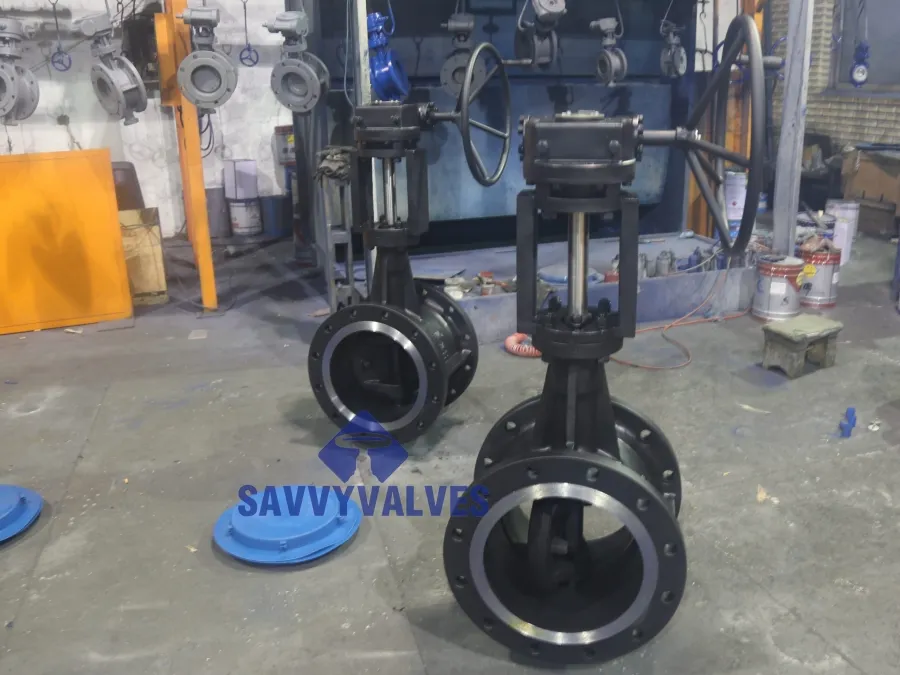

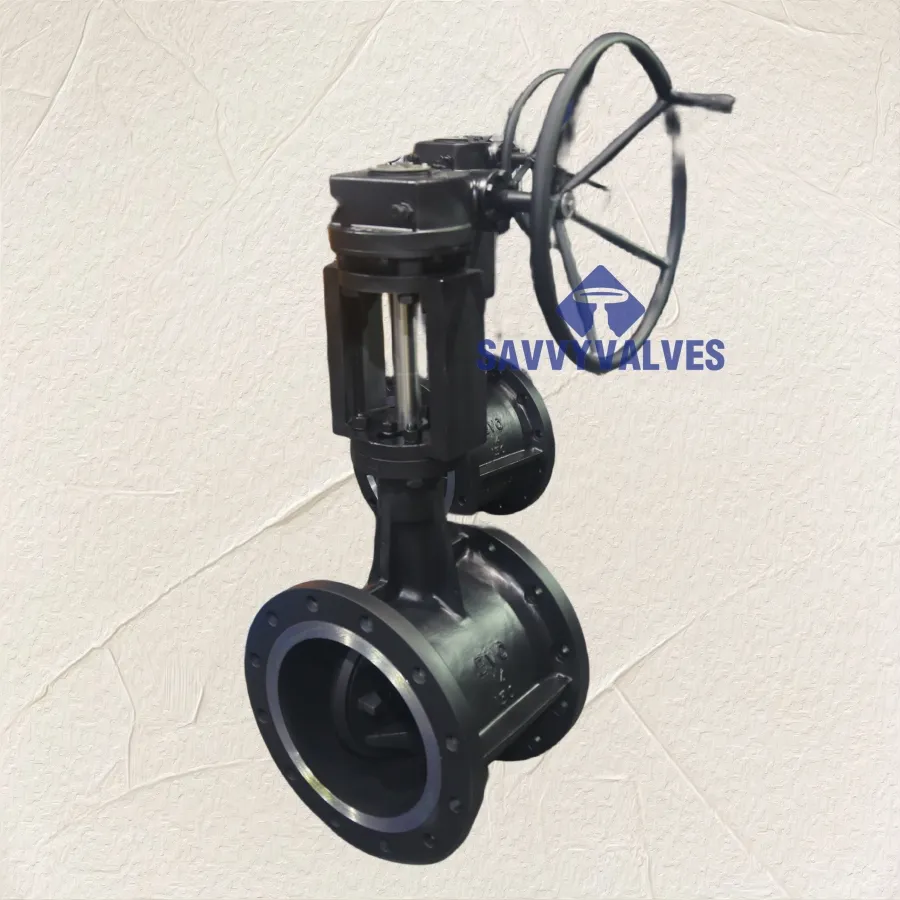

GAMBAR MENUNJUKKAN SPESIFIKASI SEPERTI DI BAWAH
SAIZ: 14″
RATING: 150LB
BADAN: ASTM A217 C5
CAKERA: ASTM A217 C5
YOKE EXTENDED: ASTM A182 F5
STEM: SS416
KEDUDUKAN: ASTM A182 F5 BOLEH DIGANTIKAN
SEAL: SS316+GRAPHITE LAMINATED
PENGAKUAN: UNIT GEAR

Hubungi Kami

Triple offset replaceable metal seated butterfly valve for thermal duty

SPESIFIKASI UMUM YANG DIREKA

Saiz: 2″~144″
Penilaian Tekanan: 150LB~4500LB
Suhu Reka Bentuk: 800 ℃ maks..
Aplikasi umum: Air. Minyak. Gas.
Reka Bentuk & Pembuatan: API 609 EN593 adalah asas, ASME B16.34, norma lain boleh digunakan mengikut pesanan.
F TO F dimensions: API 609, ASME B16.10,BS EN 558
Sambungan: ASME B16.5, ASME B16.47, EN 1092, JIS 5K-20K. BW, RTJ tersedia.
Reka bentuk keselamatan: batang anti-letupan, BALI KEBAKARAN.
REKA BENTUK TUDUNG YANG BOLEH DIGANTIKAN.

SENARAI BAHAN TYPICAL

BADAN:ASTM A216 WCB/WCC, ASTM A217 WC6/WC9/C5/C12/C12A/CA15, ASTM A352 LCB/LCC, A351 CF8/CF8M/CF3/CF3M, A995 4A/5A, C83600/C95400/C95400 K400/K500, H-276, INCONEL 625/718
ASTM A105, F11, F22, C5, F91, ASTM A182 F304/F304L/F316/F316L/F6A/F11/F22/F91/F51/F53/F55, A694 F60, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718

DISC: ASTM A216 WCB/WCC, ASTM A217 WC6/WC9/C5/C12/C12A/CA15, ASTM A352 LCB/LCC, A351 CF8/CF8M/CF3/CF3M, A995 4A/5A, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718
ASTM A105, F11, F22, C5, F91, ASTM A182 F304/F304L/F316/F316L/F6A/F11/F22/F91/F51/F53/F55, A694 F60, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718

EXTENDED YOKE: ASTM A216 WCB/WCC, ASTM A217 WC6/WC9/C5/C12/C12A/CA15, ASTM A352 LCB/LCC, A351 CF8/CF8M/CF3/CF3M, A995 4A/5A, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718
ASTM A105, F11, F22, C5, F91, ASTM A182 F304/F304L/F316/F316L/F6A/F11/F22/F91/F51/F53/F55, A694 F60, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718

STEM: A182 F6A, F304, F304L, F316, F316L, F51, F53,17-4PH, XM-19, C95400, C95800, C83600, INCONEL 625, INCONEL 718, MONEL K400, MONEL K400, MONEL K400

KEDUDUKAN: STELLITE NO.6 HF

SEAL: SS316+GRAPHITE LAMINATED

OPERATOR: UNIT GEAR

BAHAN KHAS LAIN ADA UNTUK DISESUAIKAN.

UJIAN DAN PEMERIKSAAN

Pemeriksaan dan norma kelulusan: API598, API6D.

KAWALAN KUALITI

100% Analisis kimia dan ujian mekanikal dengan bahan mentah setiap nombor haba.
Ujian DPT 100% dengan tuangan, sebahagiannya ujian MT atau UT, RT sentiasa tersedia jika diperlukan.
Ujian hidraulik 100% dengan shell dan meterai dan ujian udara tekanan rendah.

JAMINAN

SAVVY VALVES menyediakan hayat perkhidmatan sekurang-kurangnya 12 bulan, alat ganti percuma dan arahan penyelenggaraan akan diberikan apabila diperlukan.

PRODUK JUALAN PANAS

Selama lebih 10 tahun, kami telah menjadi pembekal utama injap industri untuk projek global utama dalam bekalan air, minyak & gas, dan penyahgaraman.

What Are The Advantages Of A Triple Offset Replaceable Metal Seated Butterfly Valve For Thermal Duty?

The triple offset replaceable metal seated butterfly valve for thermal duty is engineered to perform reliably in high-temperature, high-pressure environments such as power plants, chemical facilities, and steam systems. Its triple offset geometry ensures zero rubbing between the disc and seat during operation, reducing wear and extending service life. The replaceable metal seat adds flexibility and cost-efficiency, allowing maintenance or replacement without discarding the entire valve. Designed to withstand thermal cycling and aggressive media, the metal seat offers superior resistance to heat, corrosion, and erosion, making it ideal for thermal duty applications. This valve also delivers tight shut-off and consistent performance even under extreme conditions. Its compact design, combined with quarter-turn operation and compatibility with automated actuators, enhances system control and efficiency. Overall, this valve provides a robust, low-maintenance solution where long-term reliability and high-temperature capability are essential.
