Fabricated Triple Offset Butterfly Valve For Thermal Duty

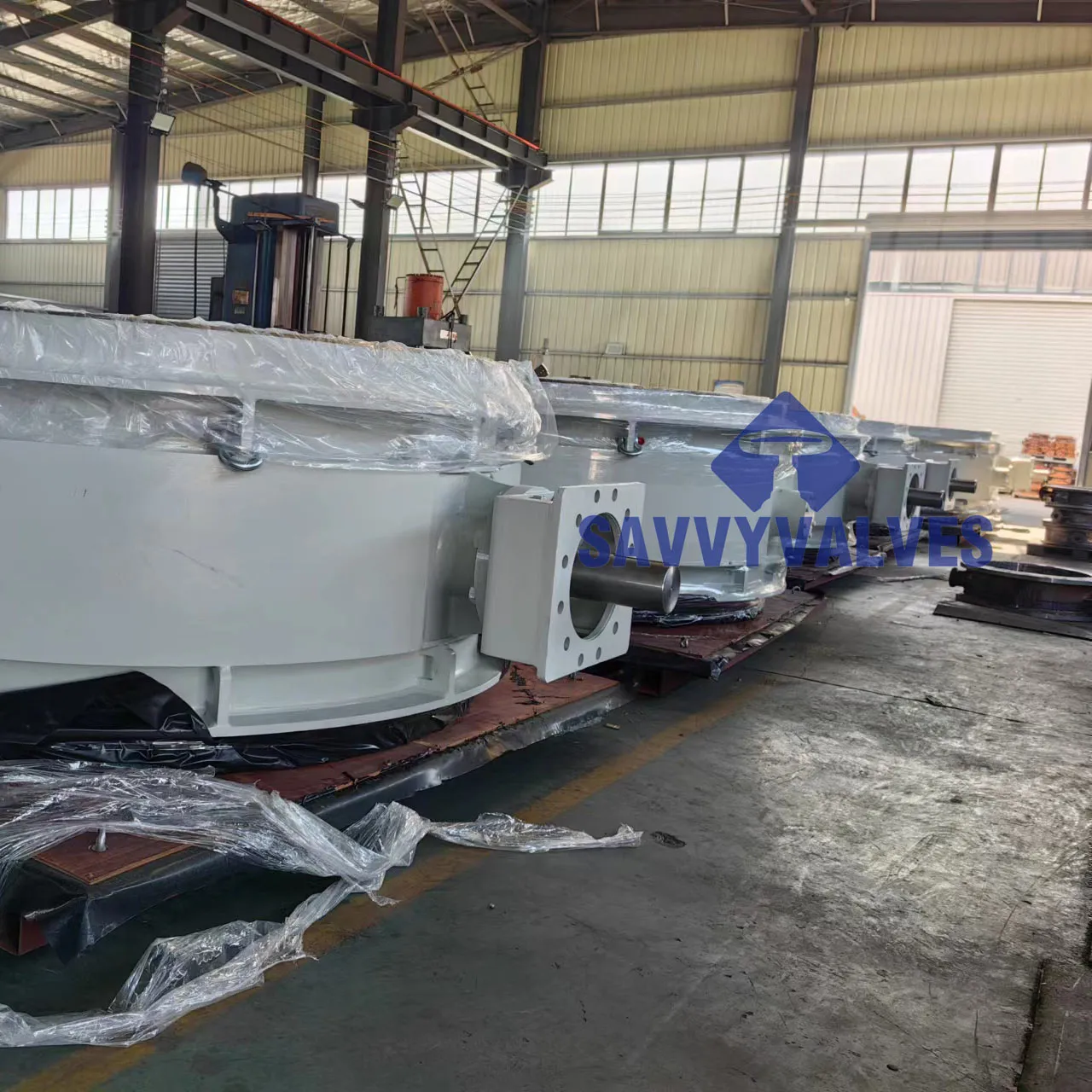

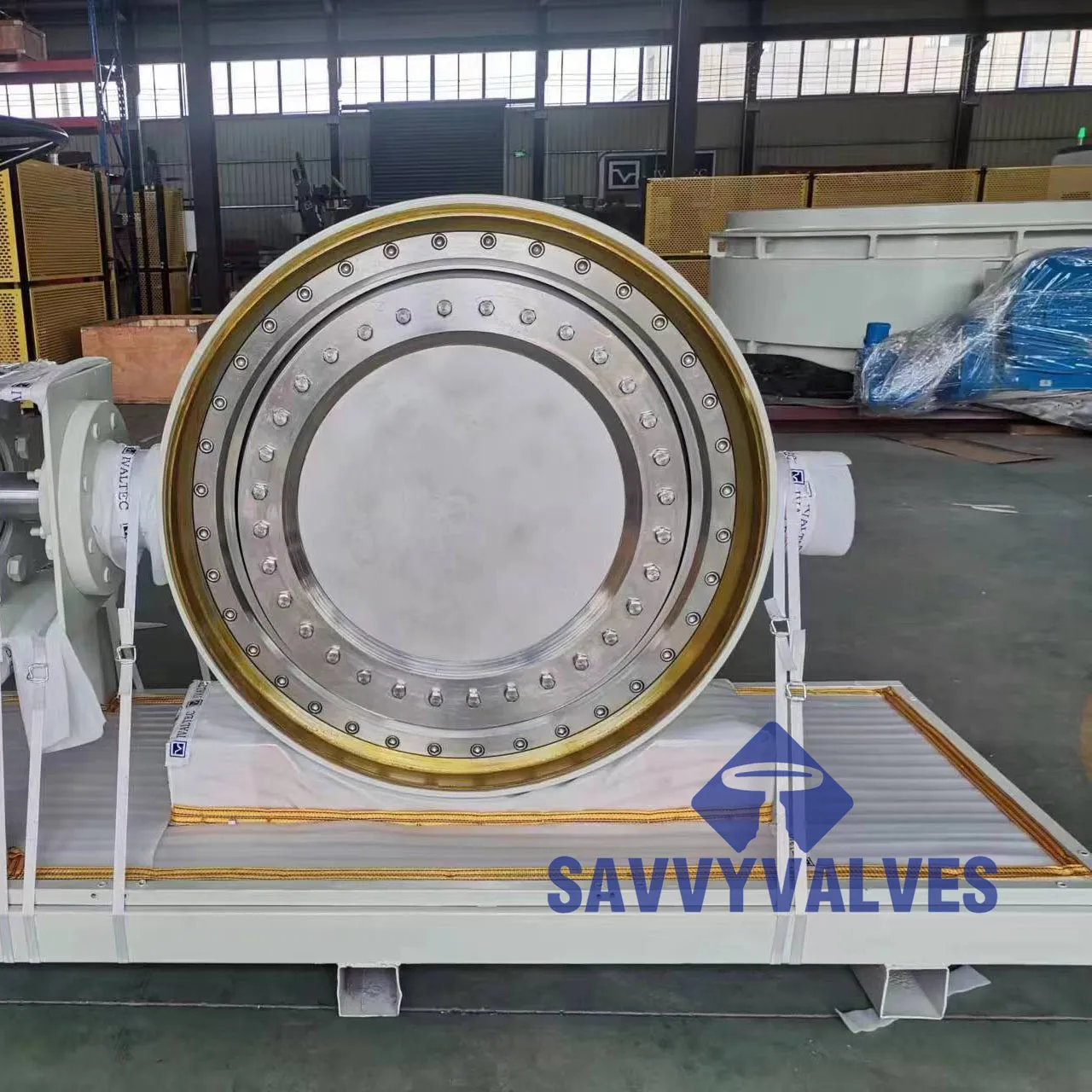

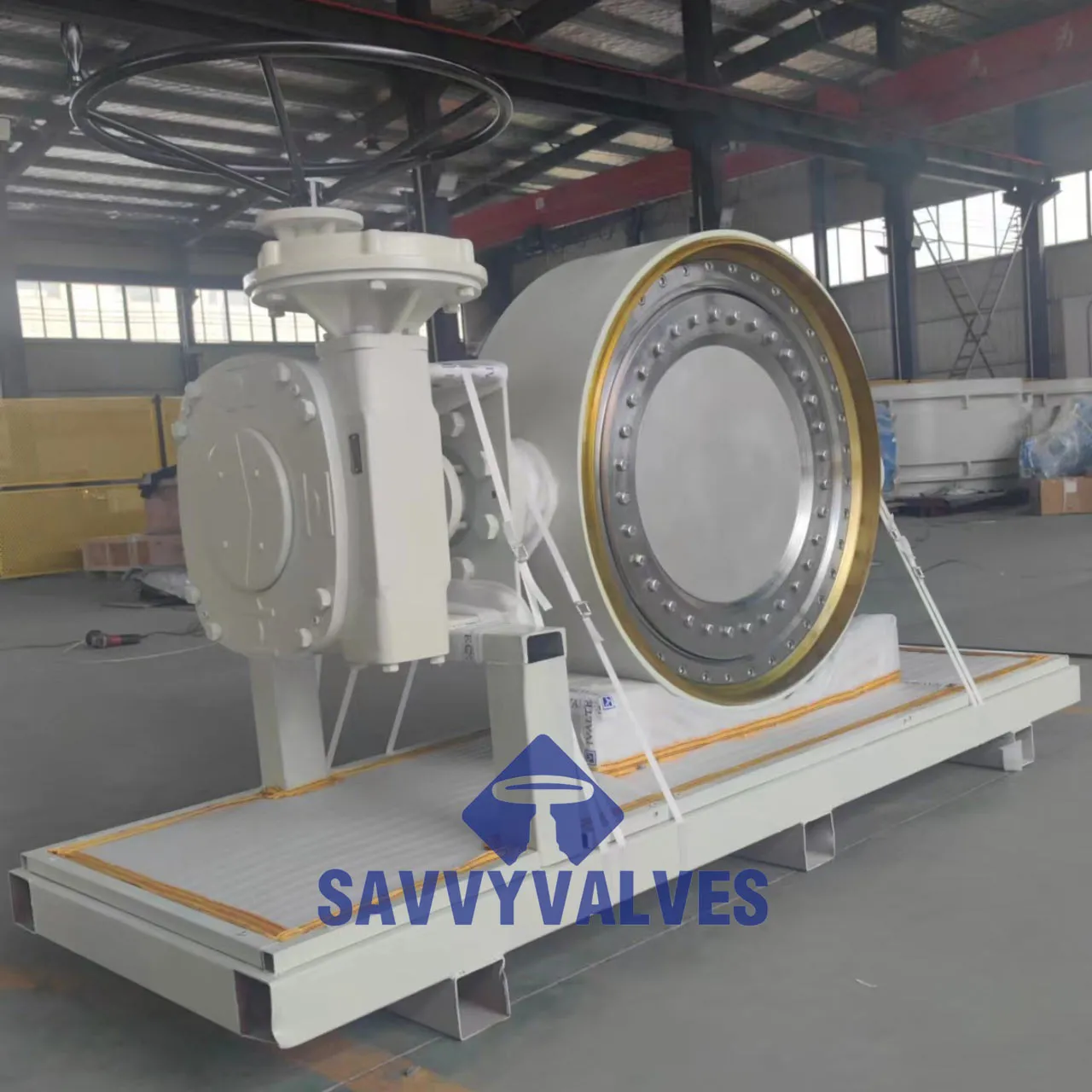

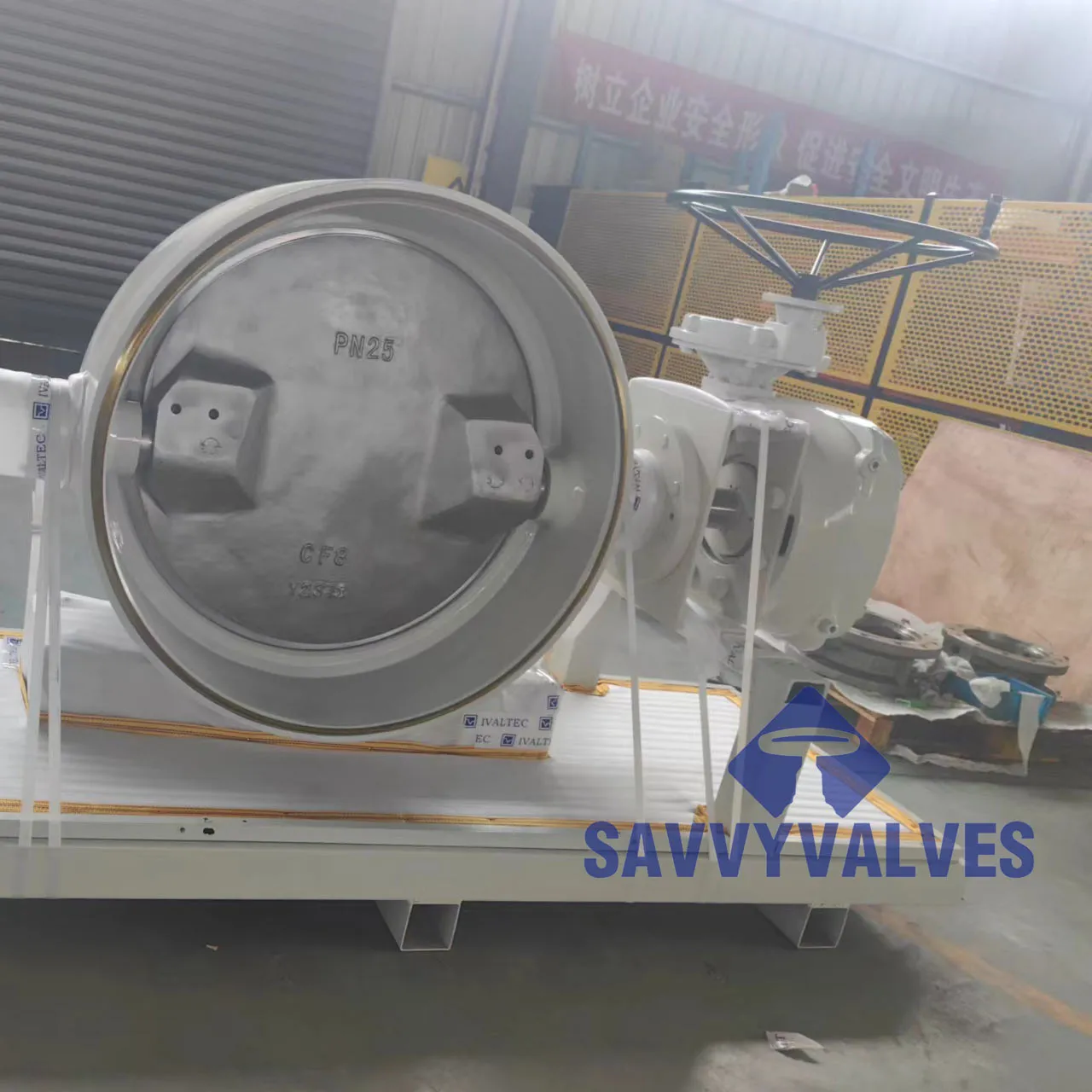

SPESIFIKASI CONTOH
SAIZ: DN800
PENILAIAN: PN25
BADAN: CS
DISC: CF8
YOKE EXTENDED: ASTM A182 F5
STEM: SS416
KEDUDUKAN: ASTM A182 F5 BOLEH DIGANTIKAN.
SEAL: SS316+GRAPHITE LAMINATED
PENGAKUAN: UNIT GEAR

Hubungi Kami

Fabricated Triple Offset Butterfly Valve For Thermal Duty

Description

GENERAL DESIGNED SPECIFICATION

Size: 2″~144″.

Penilaian Tekanan: 150LB~4500LB

Design Temperature: MAX. 800℃.

General applications: STEAM.

Design & Manufacture: API 609, EN 593 are basic, ASME B16.34 ,other norms could be used according to orders.

F TO F dimensions: API 609, ASME B16.10,BS EN 558

Connection: ASME B16.25, EN 1092, JIS 5K-20K. RF, RTJ are available.

Safety design: anti-blow out stem.thermal plate.

SENARAI BAHAN TYPICAL

BODY: ASTM A216 WCB/WCC, ASTM A217 WC6/WC9/C5/C12/C12A/CA15, ASTM A352 LCB/LCC, A351 CF8/CF8M/CF3/CF3M, A995 4A/5A, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718
ASTM A105, F11, F22, C5, F91, ASTM A182 F304/F304L/F316/F316L/F6A/F11/F22/F91/F51/F53/F55, A694 F60, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718

DISC: ASTM A216 WCB/WCC, ASTM A217 WC6/WC9/C5/C12/C12A/CA15, ASTM A352 LCB/LCC, A351 CF8/CF8M/CF3/CF3M, A995 4A/5A, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718
ASTM A105, F11, F22, C5, F91, ASTM A182 F304/F304L/F316/F316L/F6A/F11/F22/F91/F51/F53/F55, A694 F60, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718

EXTENDED YOKE: ASTM A216 WCB/WCC, ASTM A217 WC6/WC9/C5/C12/C12A/CA15, ASTM A352 LCB/LCC, A351 CF8/CF8M/CF3/CF3M, A995 4A/5A, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718
ASTM A105, F11, F22, C5, F91, ASTM A182 F304/F304L/F316/F316L/F6A/F11/F22/F91/F51/F53/F55, A694 F60, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718

STEM: A182 F6A, F304, F304L, F316, F316L, F51, F53,17-4PH, XM-19, C95400, C95800, C83600, INCONEL 625, INCONEL 718, MONEL K400, MONEL K400, MONEL K400

KEDUDUKAN: STELLITE NO.6 HF

SEAL: SS316+GRAPHITE LAMINATED

OPERATOR: UNIT GEAR

BAHAN KHAS LAIN ADA UNTUK DISESUAIKAN.

UJIAN DAN PEMERIKSAAN

Pemeriksaan dan norma kelulusan: API598, API6D.

KAWALAN KUALITI

100% Analisis kimia dan ujian mekanikal dengan bahan mentah setiap nombor haba.

Ujian DPT 100% dengan tuangan, sebahagiannya ujian MT atau UT, RT sentiasa tersedia jika diperlukan.

Ujian hidraulik 100% dengan shell dan meterai dan ujian udara tekanan rendah.

JAMINAN

SAVVY VALVES menyediakan hayat perkhidmatan sekurang-kurangnya 12 bulan, alat ganti percuma dan arahan penyelenggaraan akan diberikan apabila diperlukan.

PRODUK JUALAN PANAS

Selama lebih 10 tahun, kami telah menjadi pembekal utama injap industri untuk projek global utama dalam bekalan air, minyak & gas, dan penyahgaraman.

Why Use A Fabricated Triple Offset Butterfly Valve For Thermal Duty?

The fabricated triple offset butterfly valve for thermal duty is engineered to handle extreme temperatures in demanding applications such as power plants, refineries, and high-temperature process systems. Its triple offset design eliminates seat wear during operation by ensuring the disc moves away from the seat without scraping, enabling bubble-tight shutoff even under thermal stress. The fabricated body construction allows for customized designs and weight reduction while maintaining structural strength. This valve is ideal for thermal cycles because it resists deformation and provides consistent performance across temperature fluctuations. Metal-to-metal seating offers excellent resistance to heat, pressure, and corrosion, extending the valve’s service life. In thermal duty systems, where precision and durability are critical, this valve delivers superior sealing, reduced torque, and minimal maintenance, making it a reliable choice for high-temperature flow control.
