DN40-PN40 BW Ends SS Y Strainer

TECHNICAL DATA SHEET

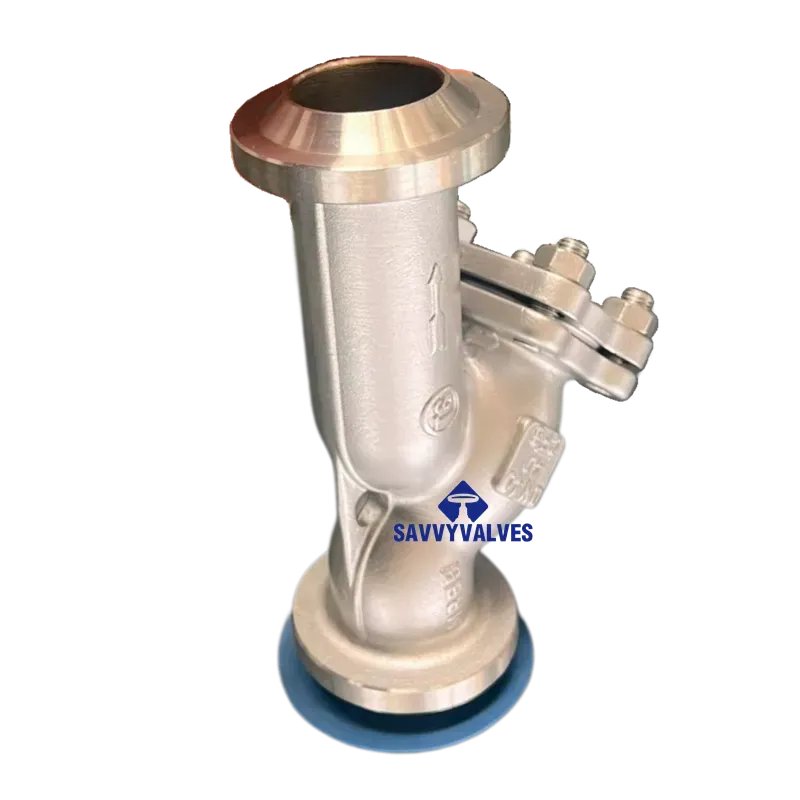

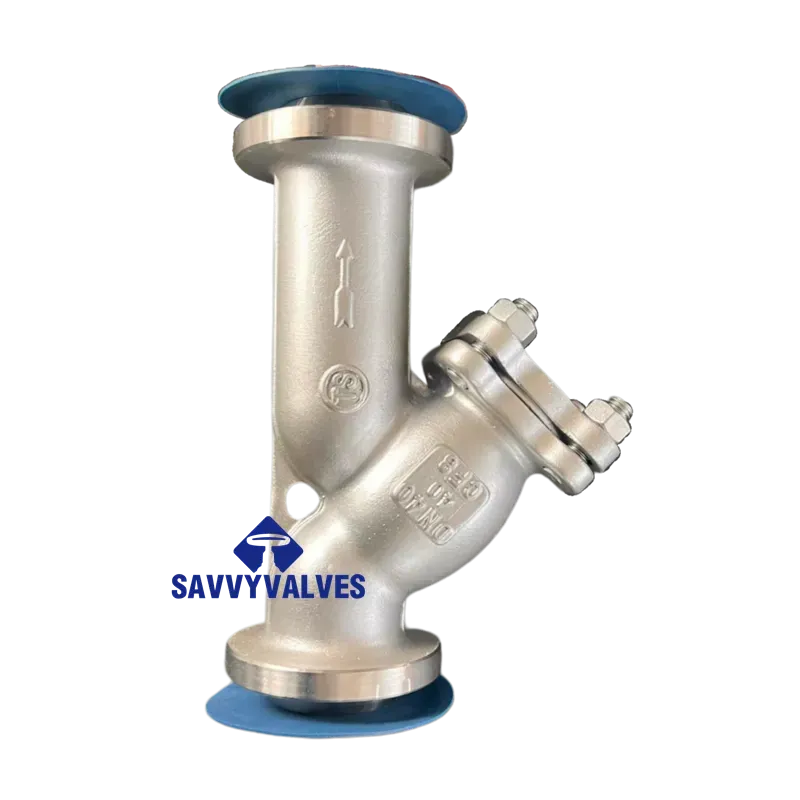

Product Name: DN40 PN40 Stainless Steel Y-Type Strainer (Butt Weld Ends)

1. Product Description

This is a high-quality Y-type strainer designed for the protection of pipeline equipment such as pumps, valves, and flow meters. It is manufactured from stainless steel to remove solid particles from liquid or gas media. The butt weld ends ensure a permanent, leak-proof seal when welded into the pipeline. The “Y” pattern design allows for a compact installation and easy maintenance with low pressure drop.

2. Ciri-ciri Utama

• Design: Compact Y-pattern design ideal for horizontal or vertical pipelines (flow direction downwards).
• Bahan Badan: Full Stainless Steel construction (CF8/CF8M or forged equivalent) providing excellent corrosion resistance.
• Connection: Butt Weld (BW) ends conforming to ASME B16.25 or EN 12627, suitable for high-integrity welding.
• Screen: Perforated or mesh screen in Stainless Steel for effective particle filtration.
• Maintenance: Easy access to the screen via a threaded or bolted cover plug without removing the strainer body from the pipeline.
• Blow-off Connection: Optional side drain plug for flushing out debris.

3. Technical Specifications

4. Material of Construction

Note: Please specify if CF8 (304) or CF8M (316) material is required.

5. Applicable Standards

• Design & Manufacture: ASME B16.34 / EN 13709 or similar.
• Face-to-Face Dimensions: Manufacturer’s standard (in-line).
• End Connections: ASME B16.25 (Butt Weld) or EN 12627.
• Testing: API 598 / EN 12266-1.

6. Dimensions (Reference: mm / inches)

Dimensions are typical and may vary slightly depending on the manufacturer’s design.

Note: The Face-to-Face length (L) varies by manufacturer. The Height (H) is from centerline to top of cover plug.

7. Screen Specifications (Standard Offering)

Note: Screens can be customized for specific filtration requirements.

8. Test Pressure (Hydrostatic)

Disclaimer: The information provided above is based on standard industry practices. For physical specifications and custom configurations, please refer to the official drawings or consult the factory. It is recommended to verify material and mesh compatibility for specific media and operating conditions.
