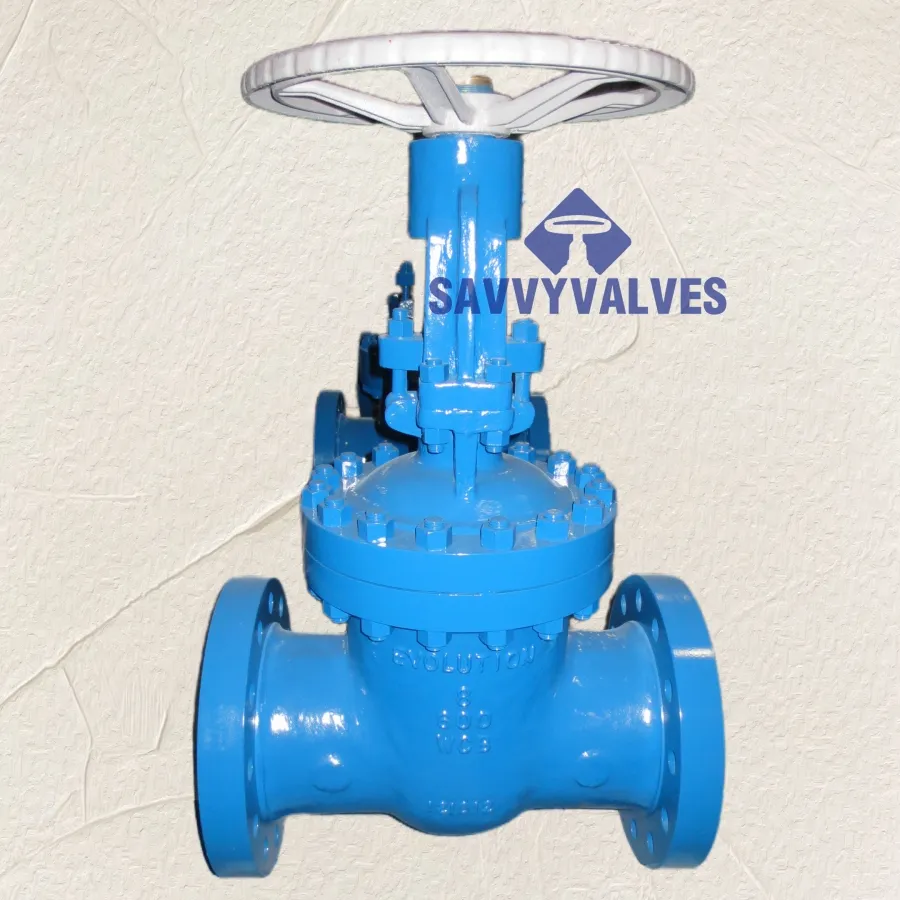

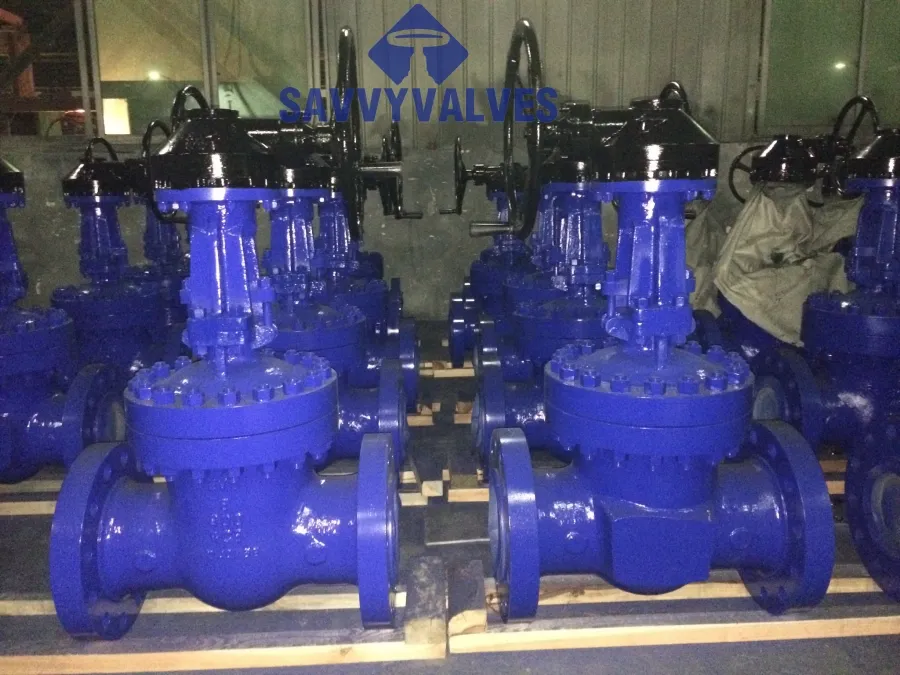

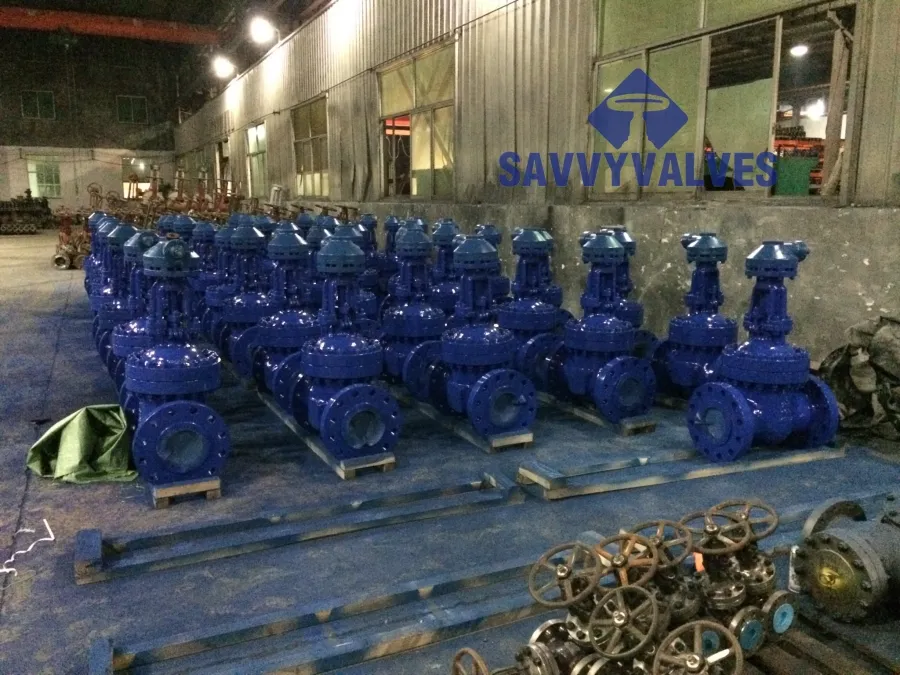

Manual gear flexible wedge gate valve

GAMBAR MENUNJUKKAN SPESIFIKASI SEPERTI DI BAWAH
SAIZ: 8″
PENILAIAN: 600LB
BADAN DAN BONNET : ASTM A216 WCB
CAKERA: ASTM A216 WCB+STELLITE 6, BAJI FLEKSIBEL
STEM: ASTM A182 F6A
KEDUDUKAN: ASTM A105+STELLITE 6
PENGAKUAN: UNIT GEAR

Hubungi Kami

SPESIFIKASI REKA BENTUK AM

Saiz: 2″~60″
Penilaian Tekanan: 150LB~4500LB
Suhu Reka Bentuk: -196℃~800℃
Aplikasi umum: air, minyak, gas
Reka Bentuk & Pembuatan: API 600, API 6D, ASME B16.34 adalah asas, norma lain boleh digunakan mengikut pesanan.
Dimensi F HINGGA F: API 6D, ASME B16.10, BS EN 558
Sambungan: ASME B16.5,ASME B16.47 A&B, EN 1092, JIS 5K-20K. BW, RTJ tersedia.
Struktur : CAKERA PEPEJAL, OS&Y, BB, FB. BONNET SEAL PRESSURE DAN BONNET KIMPAL ADA.

SENARAI BAHAN TYPICAL

BADAN DAN BONNET: ASTM A216 WCB/WCC, ASTM A217 WC6/WC9/C5/C12/C12A/CA15, ASTM A352 LCB/LCC, A351 CF8/CF8M/CF3/CF3M, A995 4A/5A, C835400/C95400/C95400/C95600 K400/K500, H-276, INCONEL 625/718
ASTM A105, F11, F22, C5, F91, ASTM A182 F304/F304L/F316/F316L/F6A/F11/F22/F91/F51/F53/F55, A694 F60, C83600/C95800/C95400 K400/K500, H-276, INCONEL 625/718.

DISC: ASTM A216 WCB/WCC, ASTM A217 WC6/WC9/C5/C12/C12A/CA15, ASTM A352 LCB/LCC, A351 CF8/CF8M/CF3/CF3M, A995 4A/5A, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718
ASTM A105, F11, F22, C5, F91, ASTM A182 F304/F304L/F316/F316L/F6A/F11/F22/F91/F51/F53/F55, A694 F60, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718
+KERAS BERMUKA

STEM: A182 F6A, F304, F304L, F316, F316L, F51, F53,17-4PH, XM-19, C95400, C95800, C83600, INCONEL 625, INCONEL 718, MONEL K400, MONEL K400, MONEL K400

SEAT:A182 F6A, F304, F304L, F316, F316L, F51, F53,17-4PH, XM-19, C95400, C95800, C83600, INCONEL 625, INCONEL 718, MONEL K400, MONEL K400, MONEL K400D

OPERATOR: RODA ATAU GEAR

BAHAN KHAS LAIN ADA UNTUK DISESUAIKAN.

UJIAN DAN PEMERIKSAAN

Pemeriksaan dan norma kelulusan: API598, API6D.

KAWALAN KUALITI

100% Analisis kimia dan ujian mekanikal dengan bahan mentah setiap nombor haba.
Ujian DPT 100% dengan tuangan, sebahagiannya ujian MT atau UT, RT sentiasa tersedia jika diperlukan.
Ujian hidraulik 100% dengan shell dan meterai dan ujian udara tekanan rendah.

JAMINAN

SAVVY VALVES menyediakan hayat perkhidmatan sekurang-kurangnya 12 bulan, alat ganti percuma dan arahan penyelenggaraan akan diberikan apabila diperlukan.

PRODUK JUALAN PANAS

Selama lebih 10 tahun, kami telah menjadi pembekal utama injap industri untuk projek global utama dalam bekalan air, minyak & gas, dan penyahgaraman.

How Does A Manual Gear Flexible Wedge Gate Valve Enhance Sealing And Operation In Piping Systems?

The manual gear flexible wedge gate valve is designed to deliver reliable shut-off performance in various industrial applications such as water treatment, oil and gas, and power plants. Its flexible wedge design helps accommodate thermal expansion and pipe misalignment, providing a tight, uniform seal even under pressure or temperature fluctuations. Operated through a manual gear mechanism, it allows smooth, controlled opening and closing, especially useful in large-diameter or high-pressure pipelines where force reduction is essential. The gear system also enhances precision and minimizes operator fatigue. This valve type features a full-bore design to reduce flow resistance and energy loss, ensuring efficient fluid transmission. Its robust construction and corrosion-resistant components make it suitable for long-term use with minimal maintenance. With excellent sealing, ease of operation, and adaptability to demanding service conditions, this valve is a dependable choice for on-off flow control in a wide range of pipeline systems.
