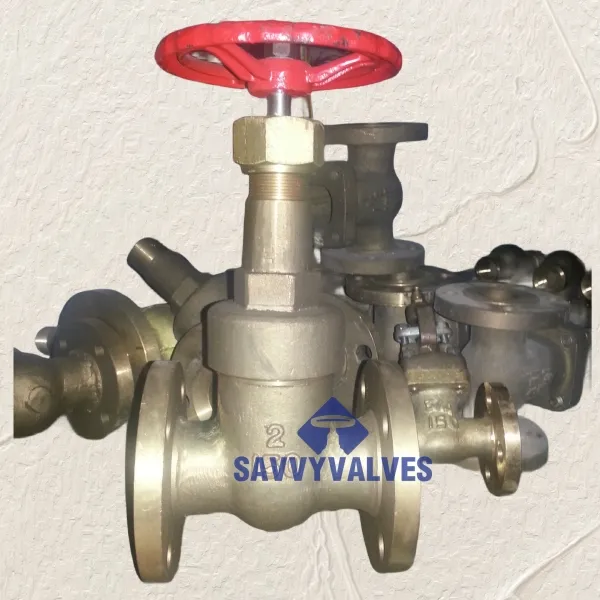

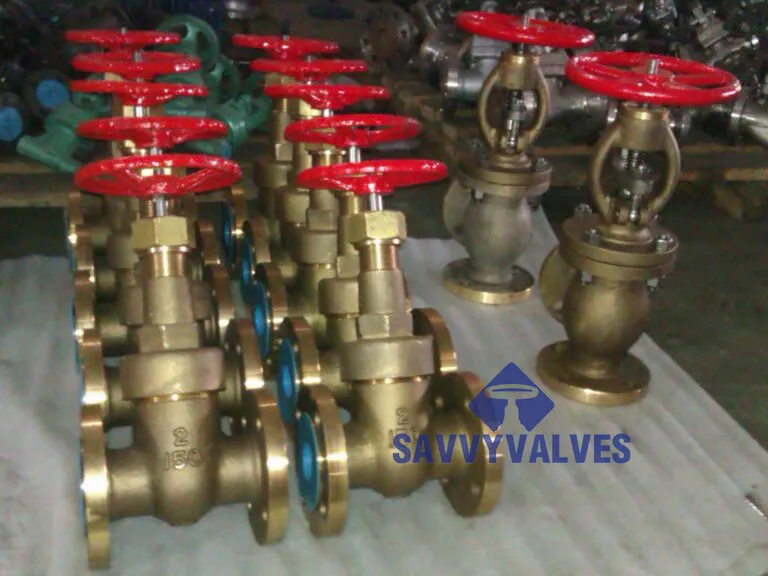

Screwed bonnet gate valve

GAMBAR MENUNJUKKAN SPESIFIKASI SEPERTI DI BAWAH
SAIZ: 2″
PENILAIAN: 150LB
BADAN DAN BONNET : B62
CAKERA: B62, PADAT
STEM: ASTM A182 F316
DUDUK: B62
PENGAKUAN: RODA

Hubungi Kami

SPESIFIKASI REKA BENTUK AM

Saiz: 1/4″~4″.
Penilaian Tekanan: sehingga 1500LB
Suhu Reka Bentuk: ASME B16.34 penarafan suhu tekanan.
Aplikasi umum: air, minyak, gas
Reka Bentuk & Pembuatan: API 602, API 600, ASME B16.34 adalah asas, norma lain boleh digunakan mengikut pesanan.
Dimensi F HINGGA F: API 6D, ASME B16.10, BS EN 558
Sambungan: ASME B16.5, EN 1092, JIS 5K-20K. BW, RTJ tersedia.
Struktur : SOLID DISC, OS&Y, SB, FB.

BAHAN AM

BADAN DAN BONNET: ASTM B62, B148, C83600, C95400, C95800

CAKERA: ASTM B62, B148, C83600, C95400, C95800

STEM: ASTM B62, B148, C83600, C95400, C95800, MONEL K400 K500

KEDUDUKAN: ASTM B62, B148, C83600, C95400,C95800, MONEL K400 K500

OPERATOR: RODA

BAHAN KHAS LAIN ADA UNTUK DISESUAIKAN.

UJIAN DAN PEMERIKSAAN

Pemeriksaan dan norma kelulusan: API598, API6D.

KAWALAN KUALITI

100% Analisis kimia dan ujian mekanikal dengan bahan mentah setiap nombor haba.
Ujian DPT 100% dengan tuangan, sebahagiannya ujian MT atau UT, RT sentiasa tersedia jika diperlukan.
Ujian hidraulik 100% dengan shell dan meterai dan ujian udara tekanan rendah.

JAMINAN

SAVVY VALVES menyediakan hayat perkhidmatan sekurang-kurangnya 12 bulan, alat ganti percuma dan arahan penyelenggaraan akan diberikan apabila diperlukan.

PRODUK JUALAN PANAS

Selama lebih 10 tahun, kami telah menjadi pembekal utama injap industri untuk projek global utama dalam bekalan air, minyak & gas, dan penyahgaraman.

What Is The Function Of A Screwed Bonnet Gate Valve In Piping Systems?

The screwed bonnet gate valve is commonly used in small-diameter piping systems where a reliable and compact shutoff solution is required. Its screwed bonnet design allows for easy assembly and disassembly, which simplifies maintenance in applications where space and serviceability are key considerations. The gate valve mechanism ensures full unobstructed flow when open and tight sealing when closed, making it suitable for both on/off services in water, steam, gas, and oil pipelines. Typically made from brass, bronze, or forged steel, this type of valve is durable and ideal for medium-pressure systems. It’s especially useful in HVAC systems, plumbing lines, and industrial process pipelines. The threaded connection makes installation straightforward, and the bonnet’s screwed construction offers a secure, leak-resistant seal between the body and the cover. Overall, the screwed bonnet gate valve provides a cost-effective and dependable shutoff solution for general-purpose applications.
