Triple offset butterfly valves gear operated

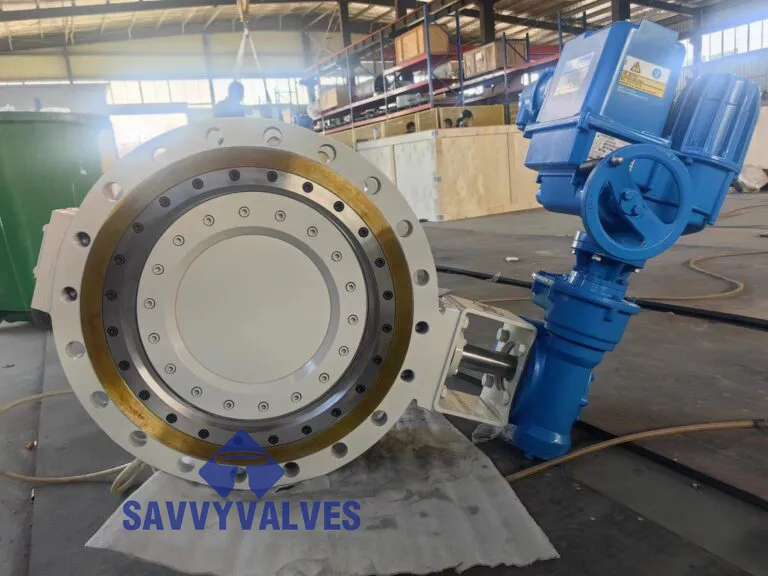

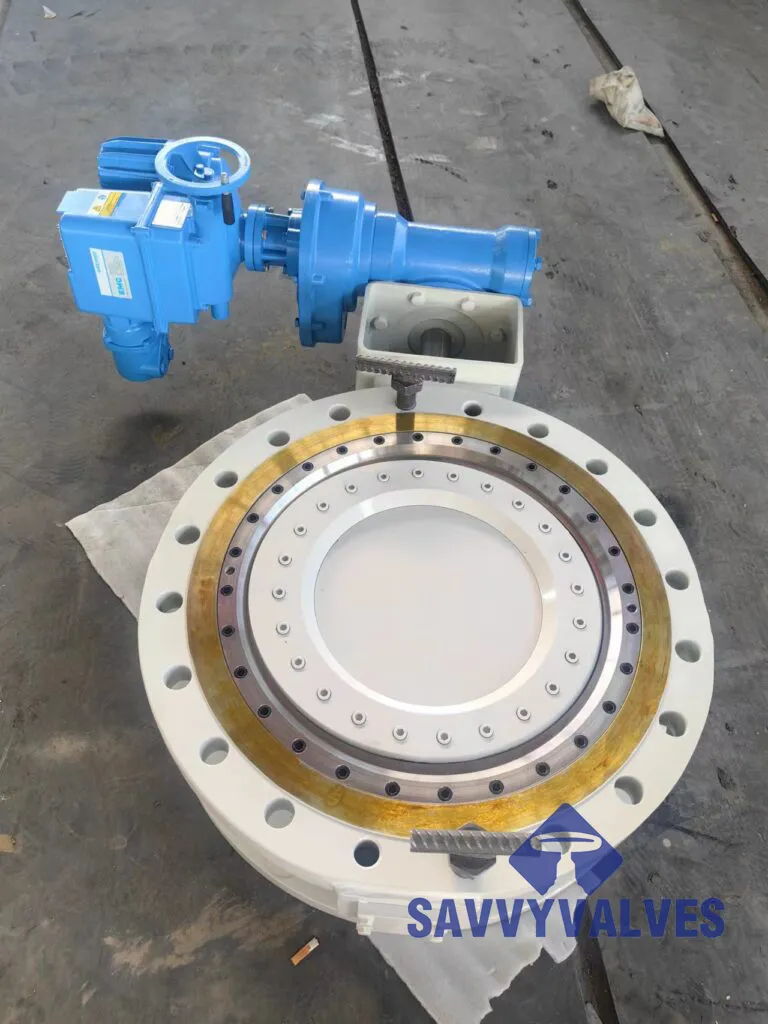

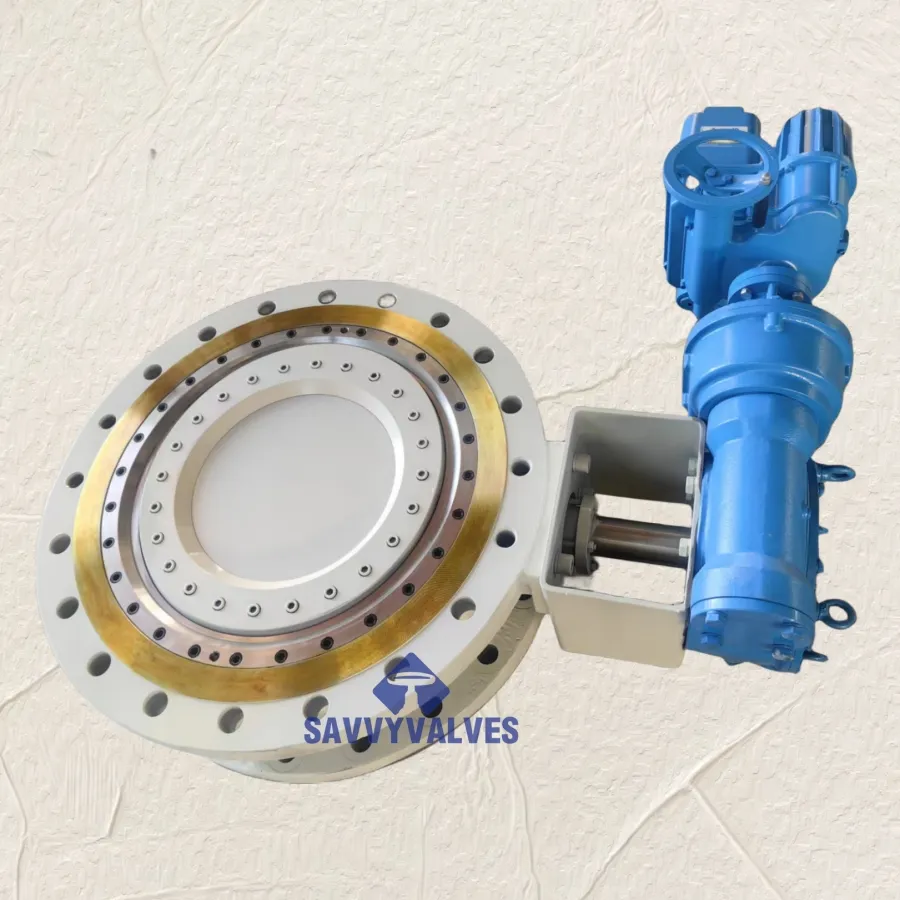

PHOTOS SHOWS SPECIFICATIONS AS BELOWS
SIZE: 20″
RATING: 150LB
BODY: WCB
DISC: CF8
YOKE: ASTM A105
STEM: SS416
SEAT: STELLITED 6 HF
SEAL: SS316+GRAPHITE LAMINATED
ACTUATION: ELECTRIC ACTUATED

Hubungi Kami

Triple offset butterfly valves gear operated

GENERAL DESIGNED SPECIFICATION

Size: 2″~144″.
Penilaian Tekanan: 150LB~4500LB
Design Temperature: MAX. 800℃.
General applications: STEAM.
Design & Manufacture: API 609, EN 593 are basic, ASME B16.34 ,other norms could be used according to orders.
F TO F dimensions: API 609, ASME B16.10,BS EN 558
Connection: ASME B16.25, EN 1092, JIS 5K-20K. RF, RTJ are available.
Safety design: anti-blow out stem.thermal plate.

SENARAI BAHAN TYPICAL

BODY: ASTM A216 WCB/WCC, ASTM A217 WC6/WC9/C5/C12/C12A/CA15, ASTM A352 LCB/LCC, A351 CF8/CF8M/CF3/CF3M, A995 4A/5A, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718
ASTM A105, F11, F22, C5, F91, ASTM A182 F304/F304L/F316/F316L/F6A/F11/F22/F91/F51/F53/F55, A694 F60, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718

DISC: ASTM A216 WCB/WCC, ASTM A217 WC6/WC9/C5/C12/C12A/CA15, ASTM A352 LCB/LCC, A351 CF8/CF8M/CF3/CF3M, A995 4A/5A, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718
ASTM A105, F11, F22, C5, F91, ASTM A182 F304/F304L/F316/F316L/F6A/F11/F22/F91/F51/F53/F55, A694 F60, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718

EXTENDED YOKE: ASTM A216 WCB/WCC, ASTM A217 WC6/WC9/C5/C12/C12A/CA15, ASTM A352 LCB/LCC, A351 CF8/CF8M/CF3/CF3M, A995 4A/5A, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718
ASTM A105, F11, F22, C5, F91, ASTM A182 F304/F304L/F316/F316L/F6A/F11/F22/F91/F51/F53/F55, A694 F60, C83600/C95400/C95800, MONEL K400/K500, H-276, INCONEL 625/718

STEM: A182 F6A, F304, F304L, F316, F316L, F51, F53,17-4PH, XM-19, C95400, C95800, C83600, INCONEL 625, INCONEL 718, MONEL K400, MONEL K400, MONEL K400

KEDUDUKAN: STELLITE NO.6 HF

SEAL: SS316+GRAPHITE LAMINATED

OPERATOR: UNIT GEAR

BAHAN KHAS LAIN ADA UNTUK DISESUAIKAN.

UJIAN DAN PEMERIKSAAN

Pemeriksaan dan norma kelulusan: API598, API6D.

KAWALAN KUALITI

100% Analisis kimia dan ujian mekanikal dengan bahan mentah setiap nombor haba.
Ujian DPT 100% dengan tuangan, sebahagiannya ujian MT atau UT, RT sentiasa tersedia jika diperlukan.
Ujian hidraulik 100% dengan shell dan meterai dan ujian udara tekanan rendah.

JAMINAN

SAVVY VALVES menyediakan hayat perkhidmatan sekurang-kurangnya 12 bulan, alat ganti percuma dan arahan penyelenggaraan akan diberikan apabila diperlukan.

PRODUK JUALAN PANAS

Selama lebih 10 tahun, kami telah menjadi pembekal utama injap industri untuk projek global utama dalam bekalan air, minyak & gas, dan penyahgaraman.

How Do Triple Offset Butterfly Valves Gear Operated Work In Industrial Use?

Triple offset butterfly valves gear operated are ideal for precise flow control in high-pressure and high-temperature industrial applications. The triple offset design ensures that the disc moves away from the seat during opening and closing, eliminating friction and minimizing wear, which leads to a reliable, bubble-tight shutoff. The gear operation provides mechanical advantage, allowing smooth and accurate manual control even in large valve sizes or under demanding conditions. This setup is particularly valuable in industries like power generation, oil and gas, and petrochemical processing, where operational reliability is critical. The robust construction and metal-to-metal sealing enable the valve to withstand thermal expansion, pressure surges, and aggressive media. Thanks to the gear-operated mechanism, operators benefit from enhanced torque control, reduced effort, and improved safety, making these valves a dependable solution for challenging flow control environments.
