DN80-PN40 NRS SS Globe Valve

TECHNICAL DATA SHEET

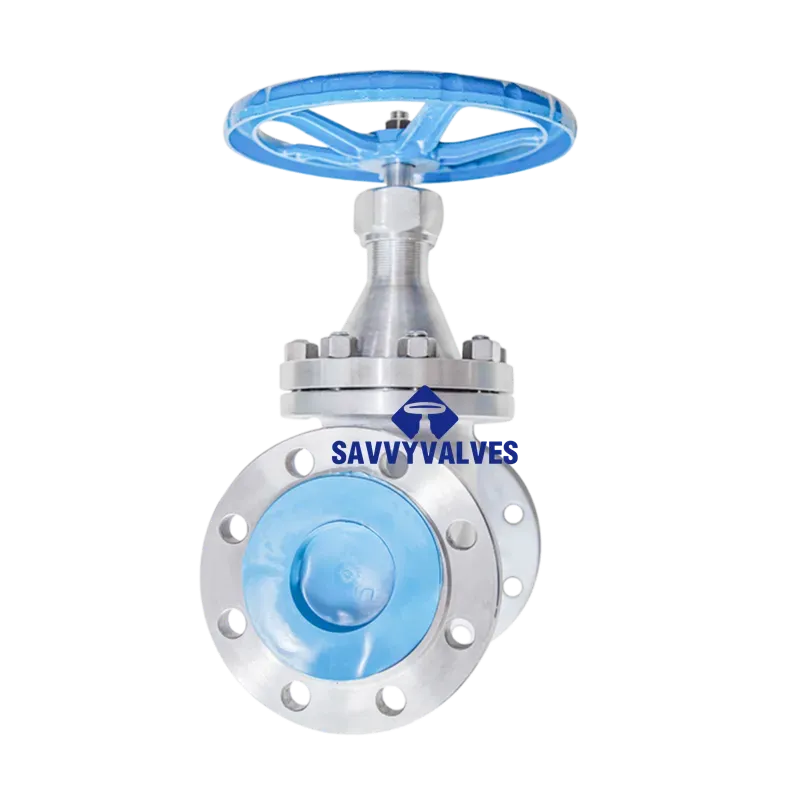

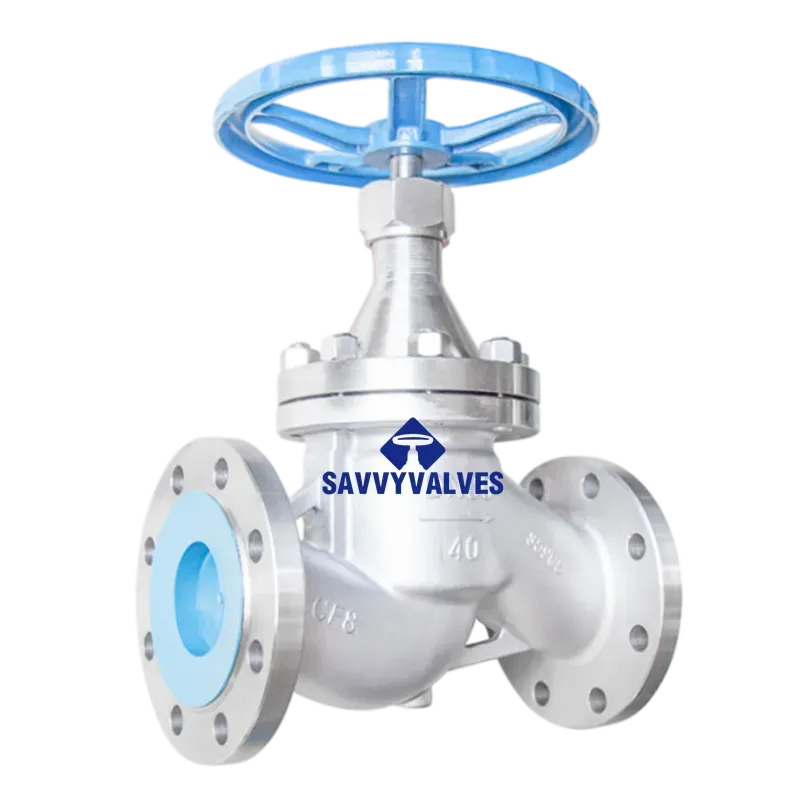

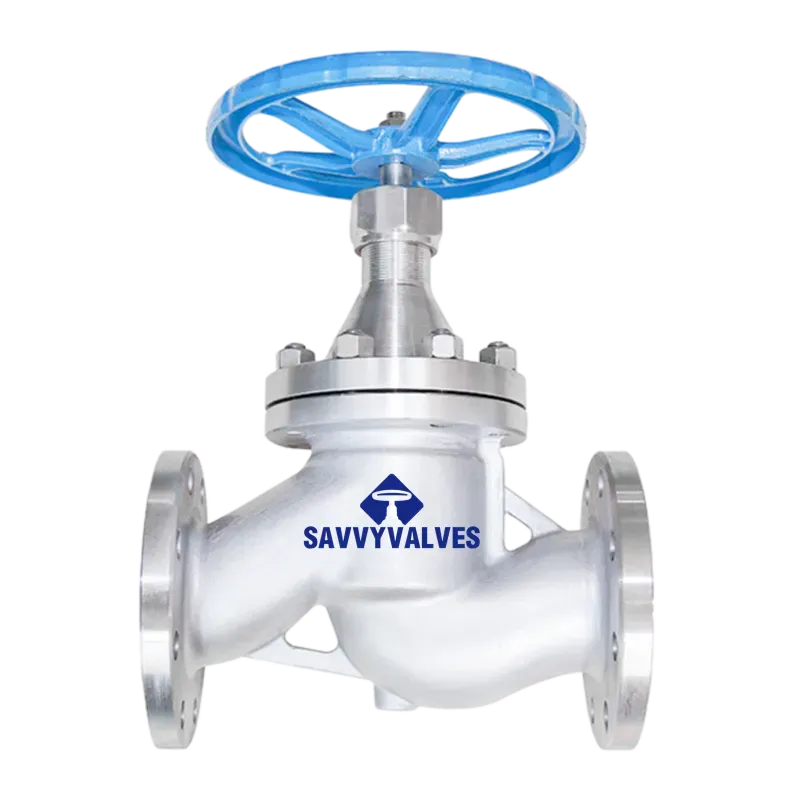

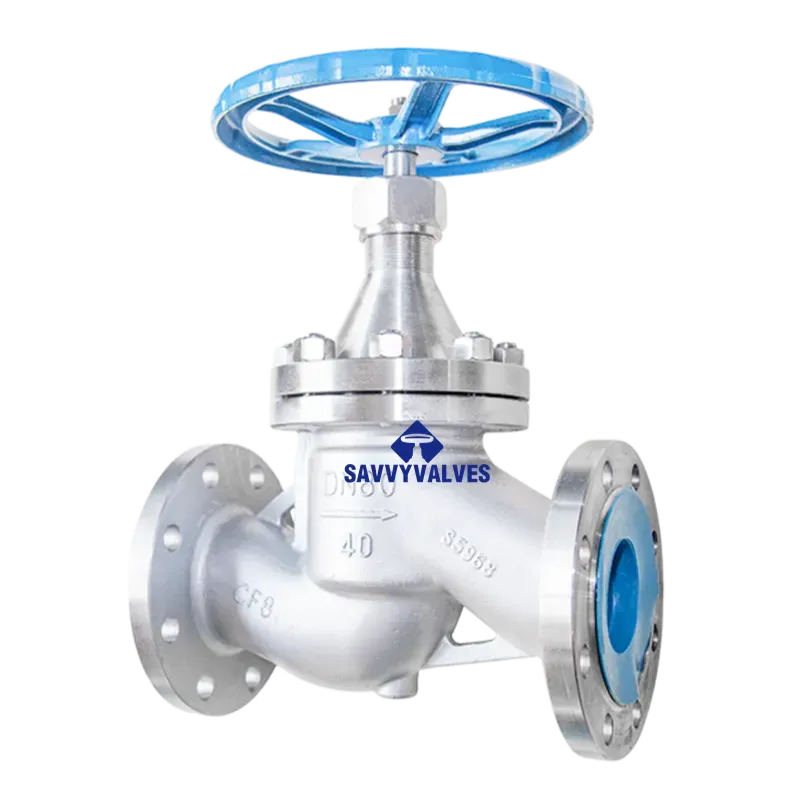

Product: DN80 – PN40 NRS Globe Valve
Material: Stainless Steel
Jenis Batang: Non-Rising Stem (NRS)

1. General Description

This Non-Rising Stem (NRS) globe valve is designed for DN80 (3″) PN40 service. The NRS design features a stem that rotates but does not move vertically, resulting in a compact overall height—ideal for installations with limited overhead space such as underground pipelines, pits, and pump rooms. Constructed from stainless steel, the valve offers excellent corrosion resistance and is suitable for a wide range of industrial applications including water treatment, chemical processing, steam systems, and oil & gas services.

2. Spesifikasi

3. Material Specification

4. Ciri-ciri Utama

• Non-Rising Stem (NRS): The stem rotates within the bonnet without linear movement, reducing the valve’s overall height. This design is ideal for underground installations, valve pits, and locations with limited headroom.
• Stainless Steel Construction: Provides excellent resistance to corrosion, erosion, and high temperatures. Suitable for demanding environments including chemical, marine, and steam applications.
• Globe Valve Design: Offers superior throttling capability and positive shut-off compared to gate valves. The flow path creates pressure drop that allows precise flow control.
• Bolted Bonnet: Facilitates easy in-line maintenance and repacking without removing the valve from the pipeline.
• Integral Seat or Stellite Hardfacing (Optional): Provides extended service life in high-temperature or abrasive conditions.
• Anti-Static Design (Optional): Available for applications requiring static charge dissipation.

5. Dimensional Data (Typical)

Note: Dimensions vary by manufacturer; please refer to actual product drawings.

6. Testing & Compliance

• Standard Reka Bentuk: EN 13709 / ASME B16.34
• Bersemuka: EN 558 Series 1 / ASME B16.10
• Flange Connection: EN 1092-1 / ASME B16.5
• Pressure Testing: EN 12266 / API 598
• Material Certification: EN 10204 Type 3.1

7. Aplikasi

• Water distribution systems (underground or pit installations)
• Steam and condensate lines
• Chemical processing plants
• HVAC and building services
• Oil and gas pipelines
• Marine and offshore utilities

8. Ordering Information

Please specify the following when ordering:

9. Nota

• NRS vs. OS&Y: The Non-Rising Stem (NRS) design is recommended where vertical space is constrained. For applications requiring visual stem position indication, an Open Stem & Yoke (OS&Y) design may be preferred.
• Arah Aliran: For optimal shut-off performance, the valve should be installed with pressure under the disc (flow entering below the seat). Verify direction arrow on the valve body.

JAMINAN:

SAVVY VALVES komited untuk menyampaikan kualiti produk yang luar biasa dan perkhidmatan selepas jualan tanpa bimbang. Injap kami dijamin memberikan hayat perkhidmatan minimum selama 12 bulan, di mana kami akan membekalkan semua alat ganti yang diperlukan dan arahan penyelenggaraan terperinci secara percuma. Dalam tempoh jaminan, jika sebarang kerosakan bukan disebabkan oleh manusia berlaku, kami akan menggantikan komponen tanpa kos dan menyediakan sokongan teknikal profesional. Selepas jaminan tamat, pelanggan hanya perlu membayar kos alat ganti, sementara masih mendapat manfaat daripada perkhidmatan penyelenggaraan berdiskaun. Matlamat kami adalah untuk membantu pelanggan mengurangkan kos operasi dan meningkatkan kecekapan pengeluaran melalui kualiti yang boleh dipercayai dan sokongan selepas jualan yang komprehensif. Sama ada untuk pertanyaan teknikal atau keperluan penyelenggaraan, pasukan pakar kami akan bertindak balas dengan segera untuk memastikan sistem injap anda mengekalkan prestasi optimum pada setiap masa.
