30″ 600lb Injap Semak Ayunan Duduk Logam

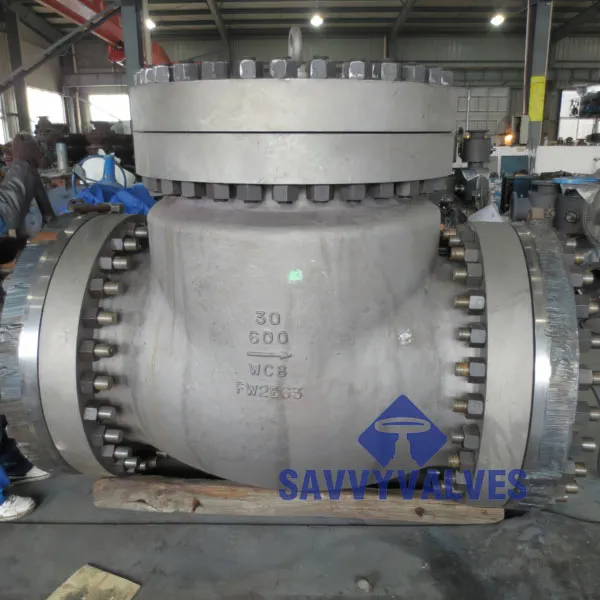

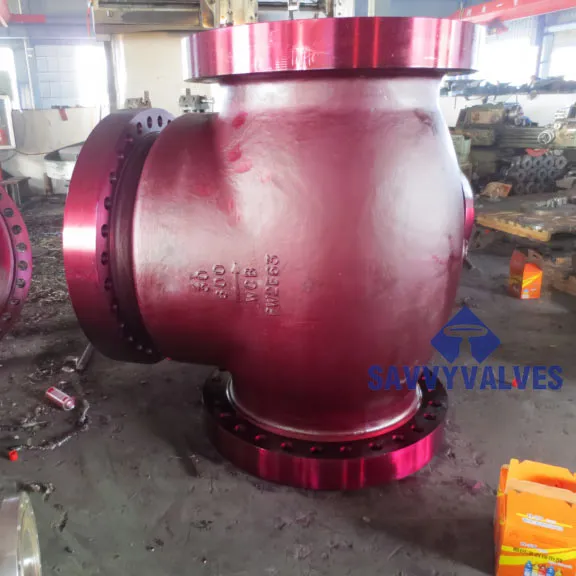

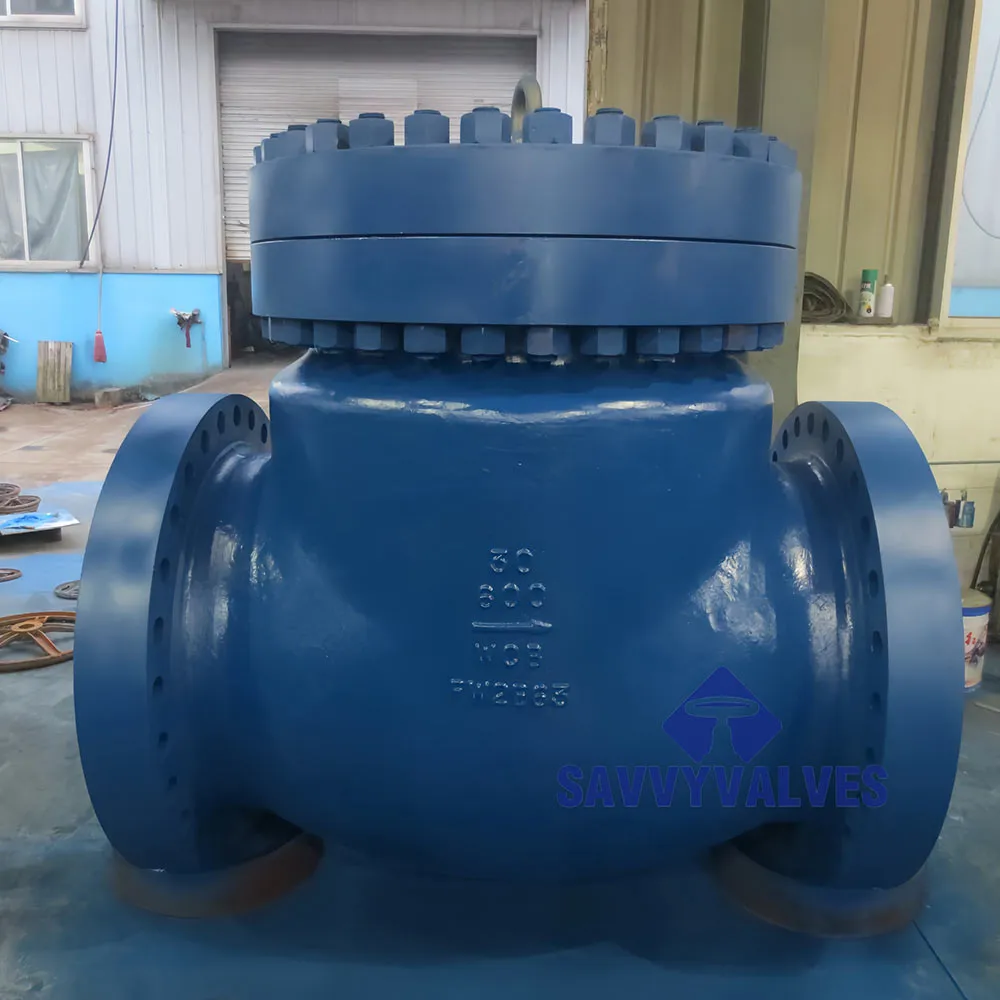

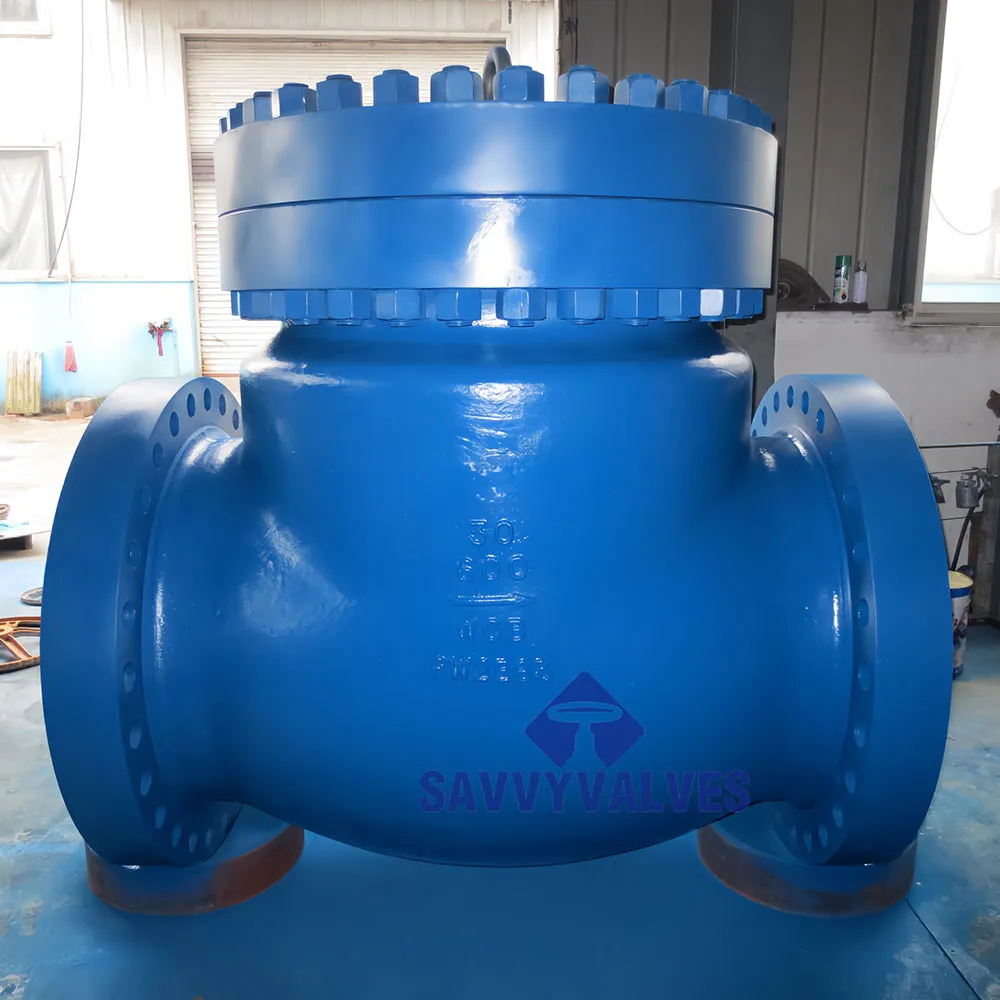

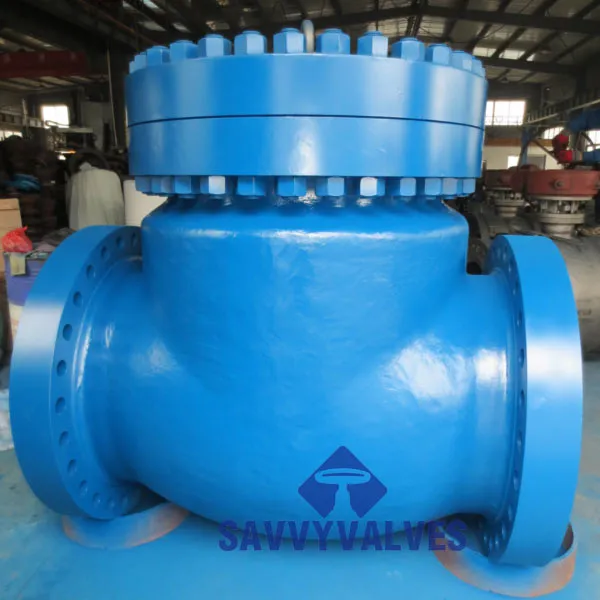

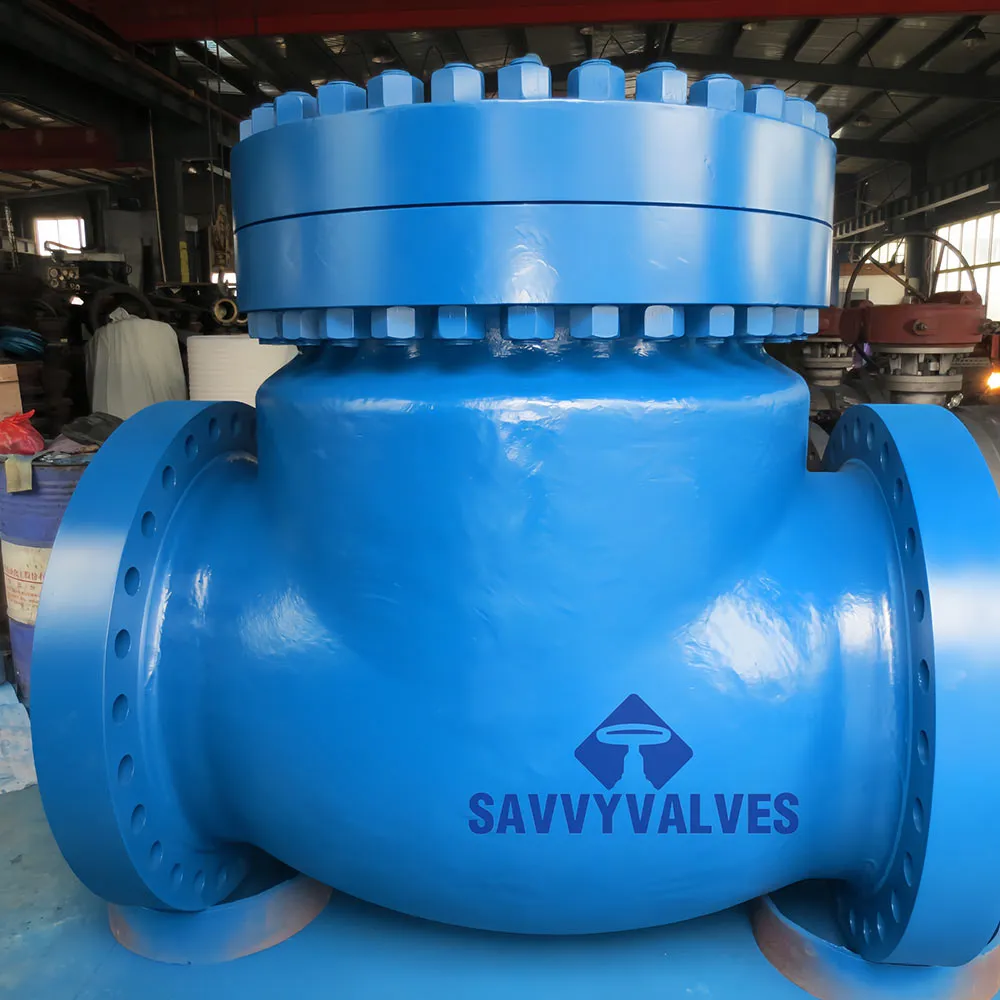

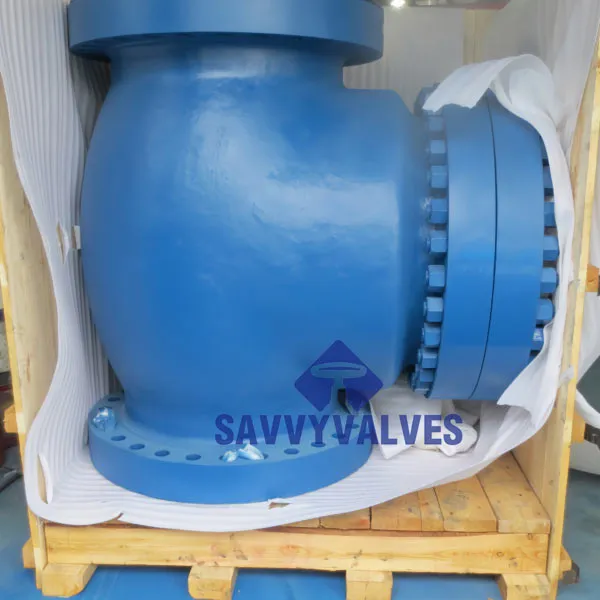

GAMBAR MENUNJUKKAN SPESIFIKASI SEPERTI DI BAWAH
SAIZ: 30″
PENILAIAN: 600LB
BADAN DAN BONNET : ASTM A216 WCB
CAKERA: ASTM A216 WCB+STELLITE 6
ACI: ASTM A182 F6A
KEDUDUKAN: ASTM A105+STELLITE 6

Hubungi Kami

Penerangan

UMUM

Saiz: 2″~48″.

Penilaian Tekanan: 150LB~4500LB

Suhu Reka Bentuk: -196℃~800℃.

Aplikasi umum: air, minyak, gas

Reka Bentuk & Pembuatan: API 594, API 6D, ASME B16.34 adalah asas, norma lain boleh digunakan mengikut pesanan.

Dimensi F HINGGA F: API 6D, API 594, ASME B16.10, BS EN 558

Sambungan: RF AS PER ASME B16.5, ASME B16.47, EN 1092, JIS 5K-20K. BW, RTJ tersedia.

Struktur : SWING DISC, BOLTED BONNET / PRESSURE SEAL BONNET / WELDED BONNET, STELLITED 21 KERUSI BERMUKA KERAS

BAHAN AM

BADAN DAN BONNET: ASTM A216 WCB/WCC, ASTM A217 WC6/WC9/C5/C12/C12A/CA15, ASTM A352 LCB/LCC, A351 CF8/CF8M/CF3/CF3M, A995 4A/5A, C835400/C95400/C95400/C95600 K400/K500, H-276, INCONEL 625/718.

CAKERA: ASTM A216 WCB/WCC, ASTM A217 WC6/WC9/C5/C12/C12A/CA15, ASTM A352 LCB/LCC, A351 CF8/CF8M/CF3/CF3M, A995 4A/5A, C83600/C95400/C95400/C95400 K400/K500, H-276, INCONEL 625/718+BERMUKA KERAS

SHAFT: ASTM A 182 F6A, F304,F316,XM-19, 17-4PH, INCONEL 625/718, MONEL K-400/500

TEMPAT TEMPAT: ASTM A105, ASTM A182 F304/F304L/F316/F316L/F6A/F11/F22/F91/F51/F53/F55, A694 F60, C83600/C95400/C95800, INKEL500, INKEL500, HARISON 625/718+KERAS MUKA.

BAHAN KHAS LAIN ADA UNTUK DISESUAIKAN.

UJIAN

Pemeriksaan dan norma kelulusan: API598, API6D.

KAWALAN KUALITI:

100% Analisis kimia dan ujian mekanikal dengan bahan mentah setiap nombor haba.

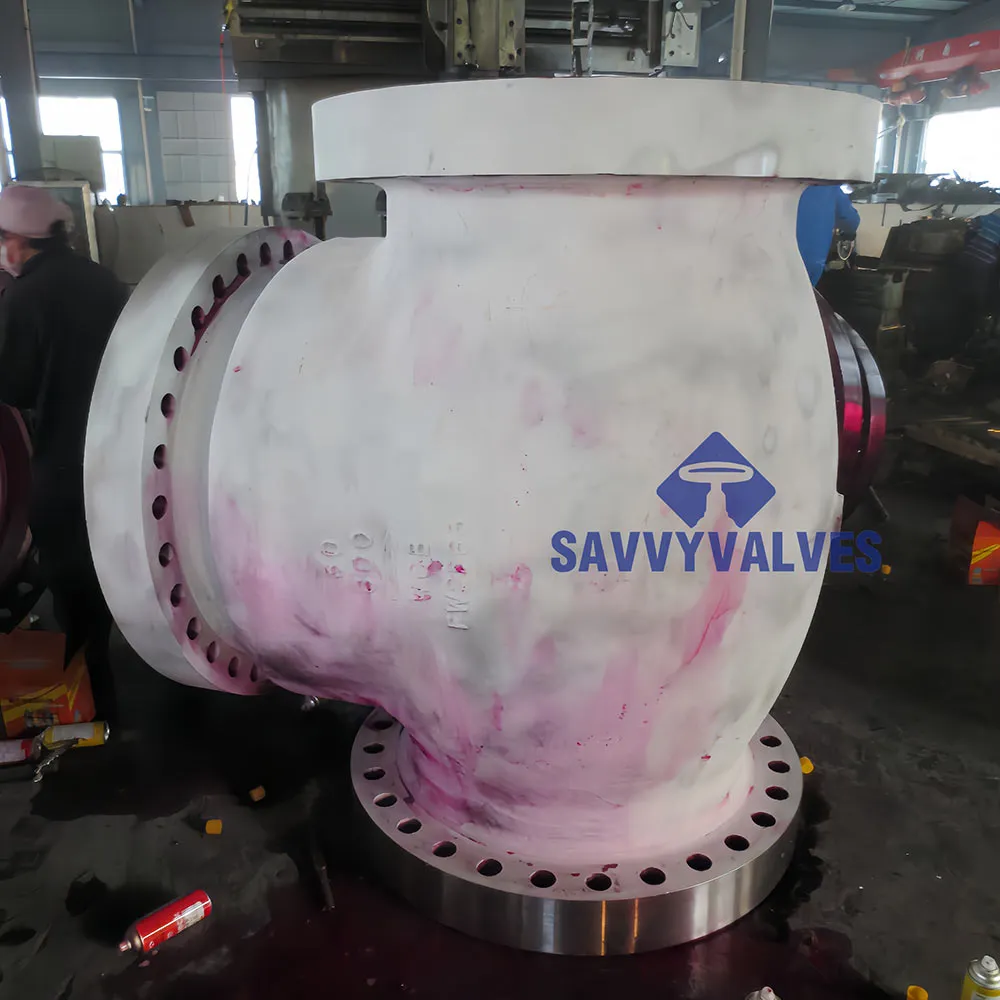

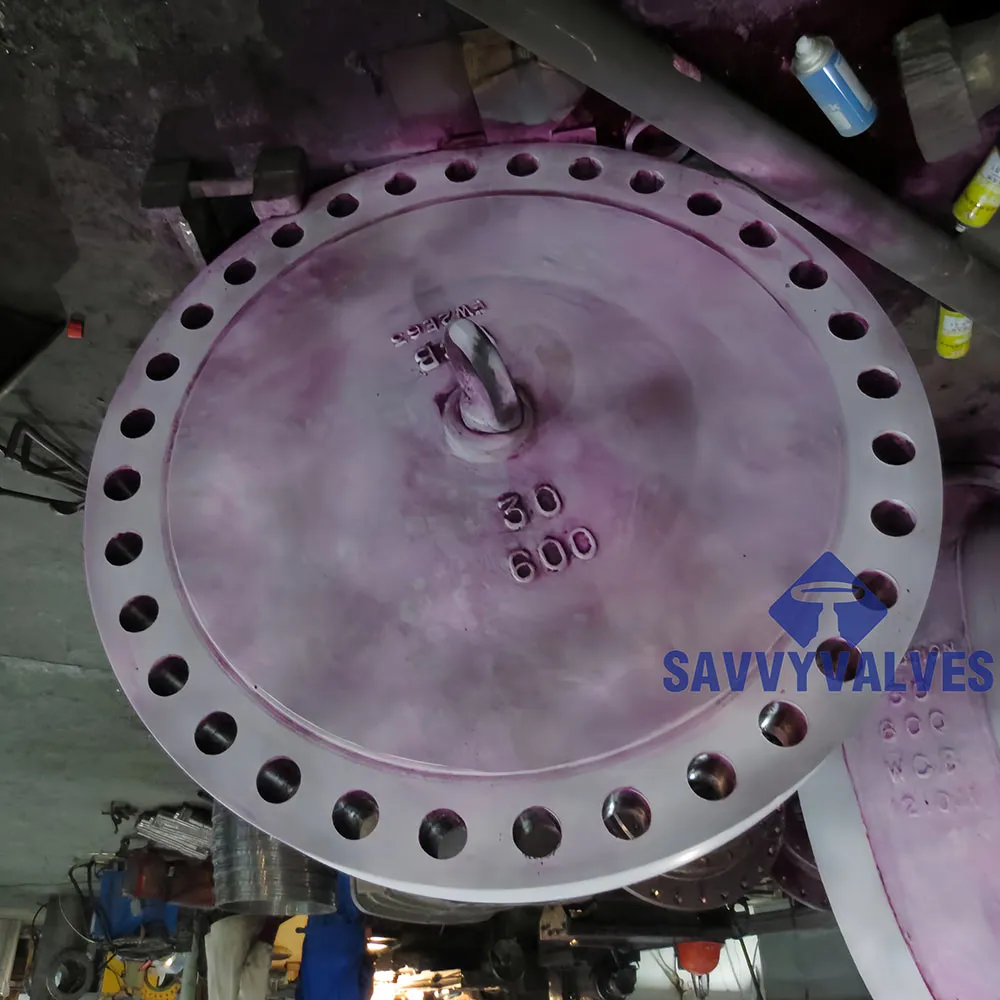

Ujian DPT 100% dengan tuangan, sebahagiannya ujian MT atau UT, RT sentiasa tersedia jika diperlukan.

Ujian hidraulik 100% dengan shell dan meterai dan ujian udara tekanan rendah.

JAMINAN:

SAVVY VALVES menyediakan hayat perkhidmatan sekurang-kurangnya 12 bulan, alat ganti percuma dan arahan penyelenggaraan akan diberikan apabila diperlukan.

PRODUK JUALAN PANAS

Selama lebih 10 tahun, kami telah menjadi pembekal utama injap industri untuk projek global utama dalam bekalan air, minyak & gas, dan penyahgaraman.

What Are The Benefits Of A 30″ 600LB Metal Seated Swing Check Valve?

The 30″ 600LB metal seated swing check valve is designed for large-diameter, high-pressure pipelines where flow protection and durability are essential. Its metal-to-metal seating provides excellent resistance to wear, high temperatures, and aggressive media, making it ideal for use in power plants, petrochemical systems, and high-temperature steam lines. The swing-type mechanism allows smooth forward flow while effectively preventing backflow when the flow reverses, helping to protect pumps and other critical downstream equipment. With a 600LB pressure rating, it can withstand demanding operating conditions while maintaining reliable sealing performance. The large 30-inch size accommodates high flow volumes, and the heavy-duty construction ensures long service life with minimal maintenance. This valve is particularly well-suited for applications where soft seats might fail due to temperature, pressure, or media characteristics, offering a robust and dependable solution for mission-critical operations.
