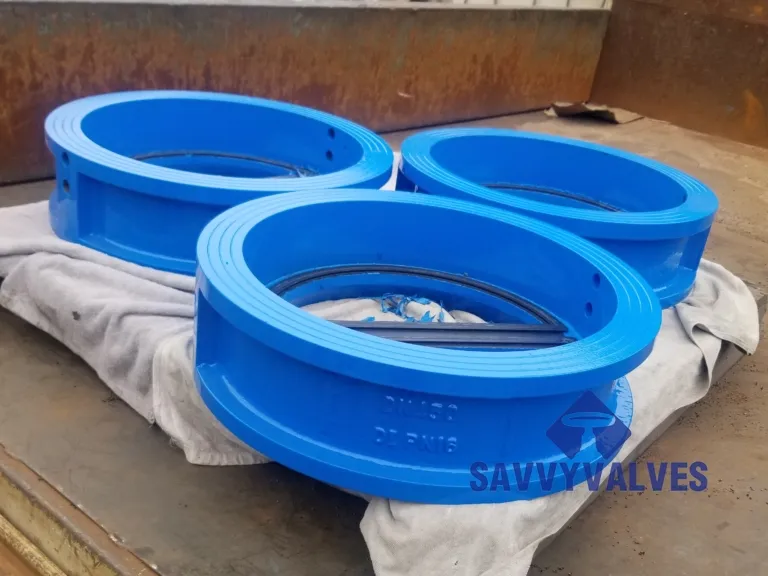

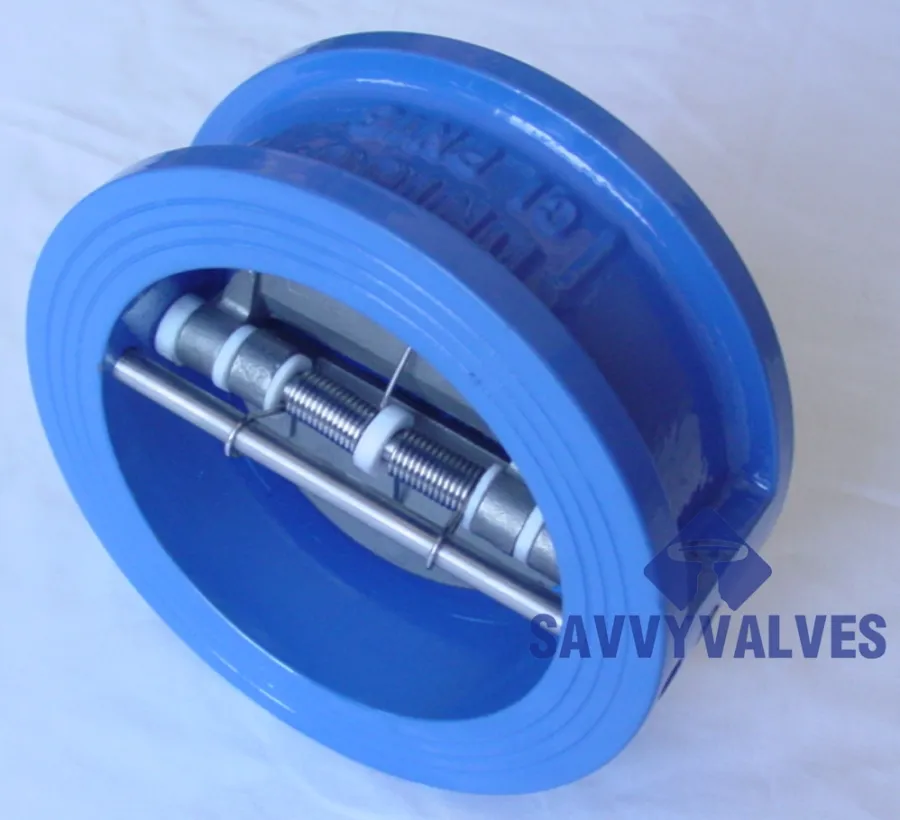

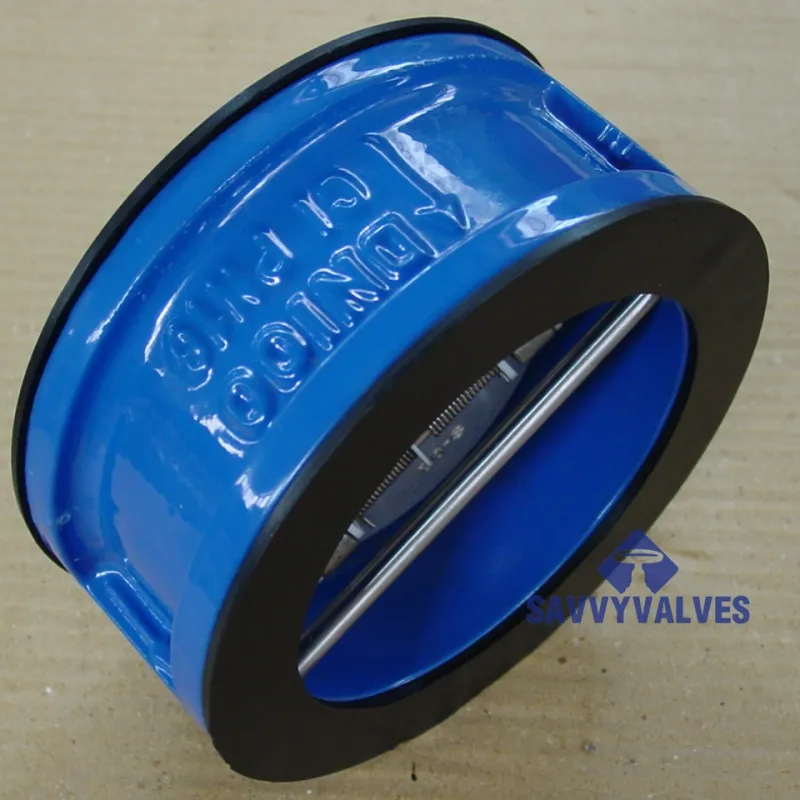

Rubber seated resilient dual plate check valve

GAMBAR MENUNJUKKAN SPESIFIKASI SEPERTI DI BAWAH
SAIZ:DN100
PENILAIAN:PN16
BADAN DAN BONNET : ASTM A536 65-45-12
CAKERA: ASTM A536 65-45-12
ACI: 416SS
KEDUDUKAN: EPDM

Hubungi Kami

Rubber seated resilient dual plate check valve

UMUM

Saiz: 2″~48″, DN50~DN1200.
Penilaian Tekanan: 50LB~150LB,PN6~PN16,5K~16K
Suhu Reka Bentuk: CWP AMBIENT
Aplikasi umum: air, minyak, gas
Reka Bentuk & Pembuatan: API 594, API 6D, ASME B16.34 adalah asas, norma lain boleh digunakan mengikut pesanan.
Dimensi F HINGGA F: API 6D, API 594, ASME B16.10, BS EN 558, JIS 45SERIES
Sambungan: WAFER AS PER ASME B16.5, ASME B16.47, EN 1092, JIS 5K-20K.RF, RTJ tersedia.
Struktur: dwi plat, cek ayunan, spring dimuatkan

BAHAN AM

BADAN DAN BONNET: ASTM A536 65-45-12, ASTM A395, ASTM A126, C95400,C95800, CF8, CF8M.
CAKERA: ASTM A536 65-45-12, CF8, CF8M, CF3, CF3M, 2205, 2507, C95400, C95800.
SHAFT: ASTM A 182 F6A, F304,F316,XM-19, 17-4PH, INCONEL 625/718, MONEL K-400/500
KEDUDUKAN:EPDM/NBR/VITON.
SPRING: SS316, INCONEL X-750
BAHAN KHAS LAIN ADA UNTUK DISESUAIKAN.

UJIAN

Pemeriksaan dan norma kelulusan: API598, API6D.

KAWALAN KUALITI:

100% Analisis kimia dan ujian mekanikal dengan bahan mentah setiap nombor haba.
Ujian DPT 100% dengan tuangan, sebahagiannya ujian MT atau UT, RT sentiasa tersedia jika diperlukan.

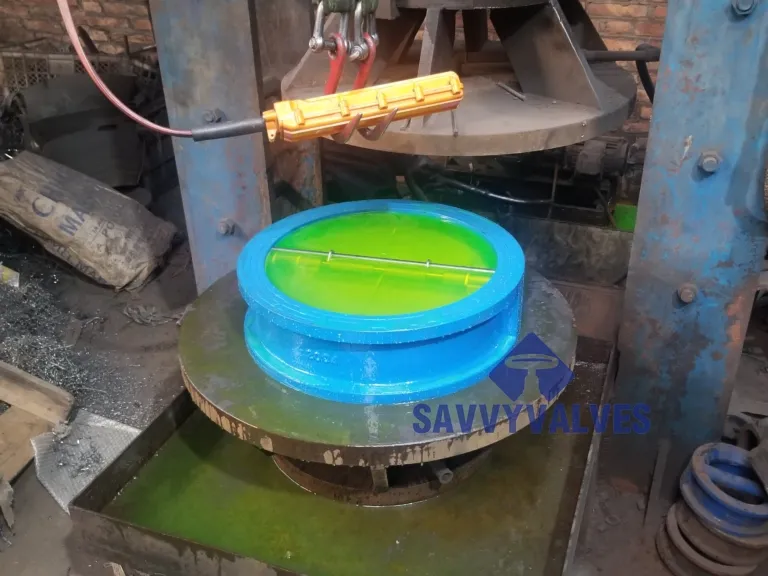

Ujian hidraulik 100% dengan shell dan meterai dan ujian udara tekanan rendah.

JAMINAN:

SAVVY VALVES menyediakan hayat perkhidmatan sekurang-kurangnya 12 bulan, alat ganti percuma dan arahan penyelenggaraan akan diberikan apabila diperlukan.

PRODUK JUALAN PANAS

Selama lebih 10 tahun, kami telah menjadi pembekal utama injap industri untuk projek global utama dalam bekalan air, minyak & gas, dan penyahgaraman.

Why Is A Rubber Seated Resilient Dual Plate Check Valve Ideal For Backflow Prevention?

The rubber seated resilient dual plate check valve offers reliable and efficient backflow protection in a variety of fluid handling systems, including water treatment, HVAC, fire protection, and general industrial pipelines. Its dual plate design, supported by a spring mechanism, ensures quick closure to minimize water hammer and flow reversal damage. The resilient rubber seat provides a soft-seal interface that delivers tight shut-off performance, even in low-pressure applications, and compensates for minor pipeline misalignments. This valve operates with low cracking pressure, allowing it to respond effectively to slight changes in flow, enhancing system responsiveness. Its wafer-style body is compact, lightweight, and easy to install between flanges, making it suitable for both vertical and horizontal installations. With minimal moving parts and a corrosion-resistant interior, it requires low maintenance while delivering long service life, making it a dependable solution for continuous and trouble-free flow direction control.
