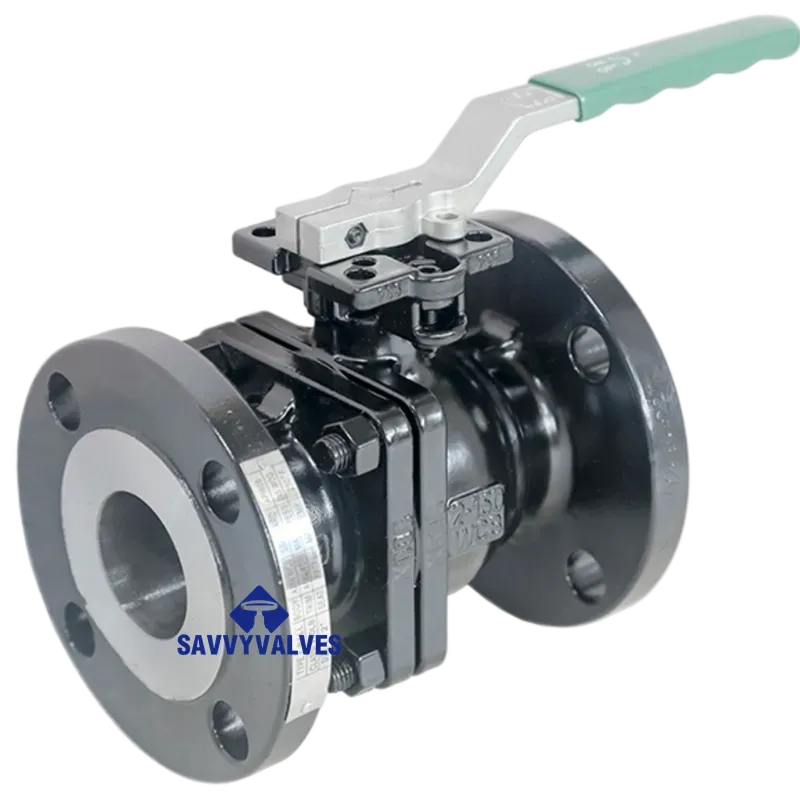

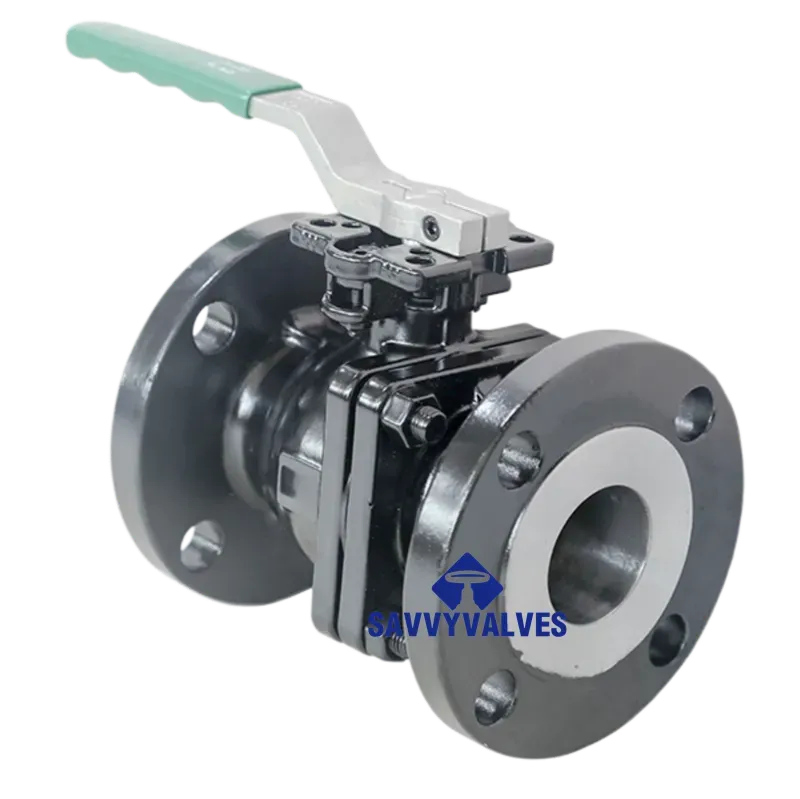

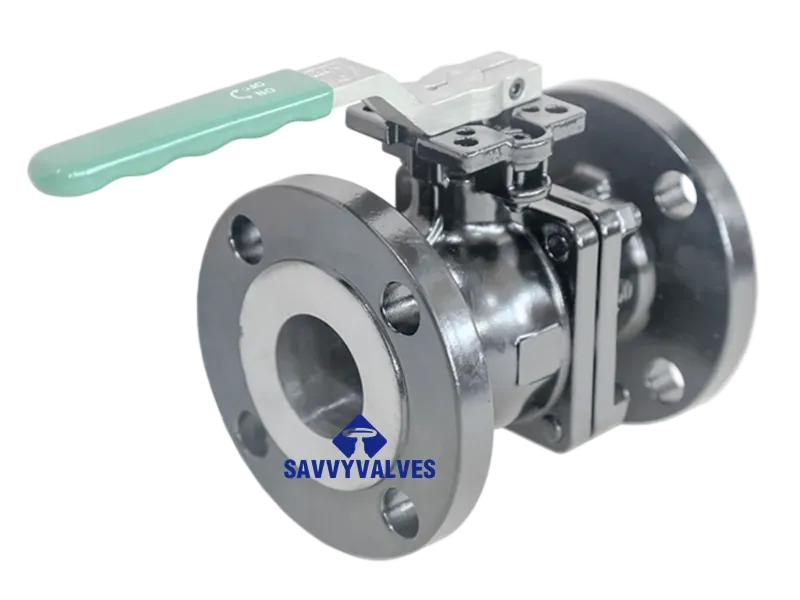

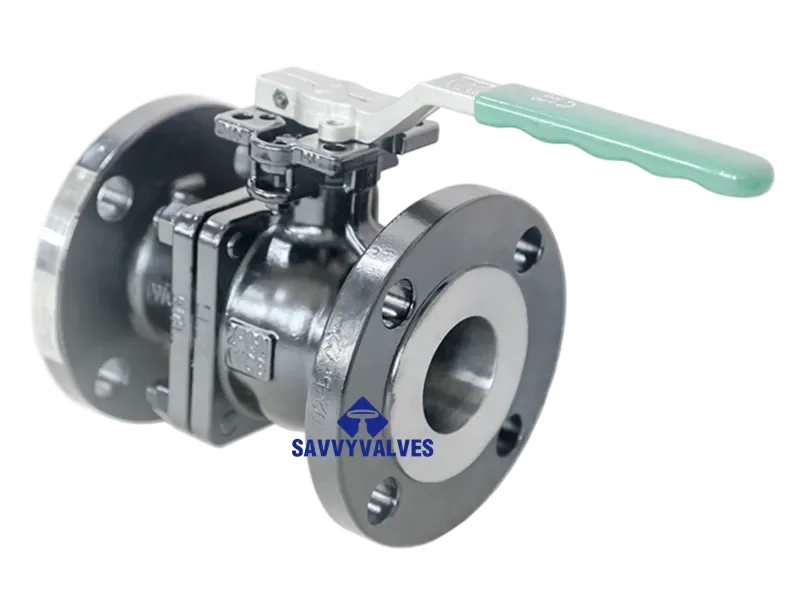

2″-150LB Flange Floating Ball Valve

Product Technical Data Sheet

Product Name: Flanged Floating Ball Valve
Model / Size: 2″ – 150LB (RF) / Floating Type

1. Umum

This product is a straight-through ball valve with flanged ends and a floating ball design. It is suitable for use in petroleum, chemical, natural gas, water treatment, and general industrial pipelines for isolating or connecting media. The valve features bidirectional sealing, low operating torque, and reliable sealing performance.

2. Basic Parameters

3. Design & Manufacturing Standards

4. Main Component Materials

5. Dimensions & Weight

6. Operating Data

7. Ciri-ciri

1. Bidirectional Sealing – The floating ball is pressed against the downstream seat by line pressure, providing tight shut‑off with no flow direction restriction.
2. Fire‑Safe Design (Optional) – Anti‑static design available; fire‑safe configuration with graphite backup seat meets API 607 / API 6FA.
3. Blow‑out Proof Stem – Stem is inserted from inside the body with a backseat to prevent blowout under sudden pressure surges.
4. Low Operating Torque – Precisely machined ball and seat offer low friction, quick quarter‑turn operation, and reduced torque.

8. Ordering Information

Please confirm the following when placing an order:

1. Size (2″) and pressure class (150LB);
2. Body material (carbon steel / stainless steel);
3. Flange standard (ASME B16.5 / HG/T 20615, etc.);
4. Locking device requirement (yes/no);
5. Fire‑safe and anti‑static requirements;
6. Actuation type (manual, pneumatic, electric).

JAMINAN:

SAVVY VALVES komited untuk menyampaikan kualiti produk yang luar biasa dan perkhidmatan selepas jualan tanpa bimbang. Injap kami dijamin memberikan hayat perkhidmatan minimum selama 12 bulan, di mana kami akan membekalkan semua alat ganti yang diperlukan dan arahan penyelenggaraan terperinci secara percuma. Dalam tempoh jaminan, jika sebarang kerosakan bukan disebabkan oleh manusia berlaku, kami akan menggantikan komponen tanpa kos dan menyediakan sokongan teknikal profesional. Selepas jaminan tamat, pelanggan hanya perlu membayar kos alat ganti, sementara masih mendapat manfaat daripada perkhidmatan penyelenggaraan berdiskaun. Matlamat kami adalah untuk membantu pelanggan mengurangkan kos operasi dan meningkatkan kecekapan pengeluaran melalui kualiti yang boleh dipercayai dan sokongan selepas jualan yang komprehensif. Sama ada untuk pertanyaan teknikal atau keperluan penyelenggaraan, pasukan pakar kami akan bertindak balas dengan segera untuk memastikan sistem injap anda mengekalkan prestasi optimum pada setiap masa.
