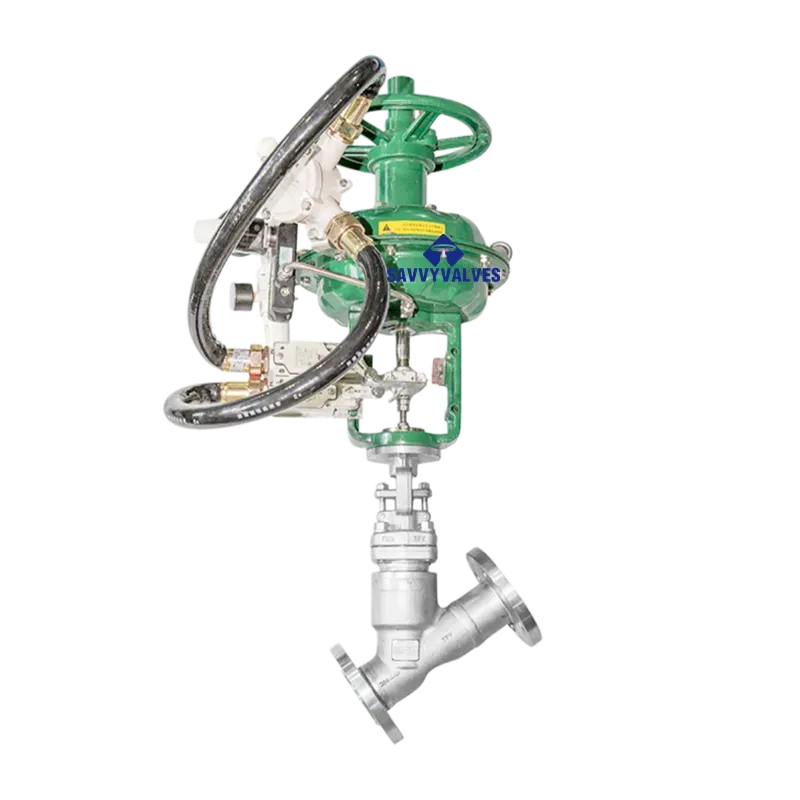

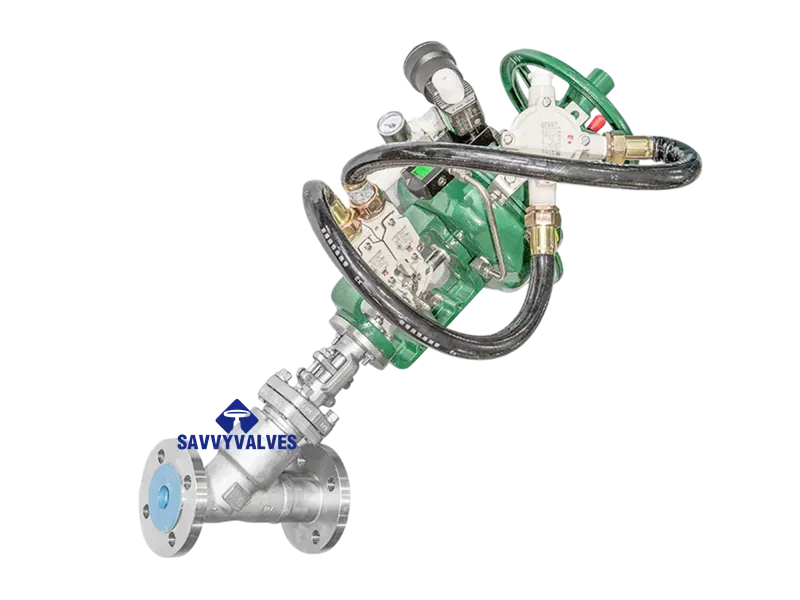

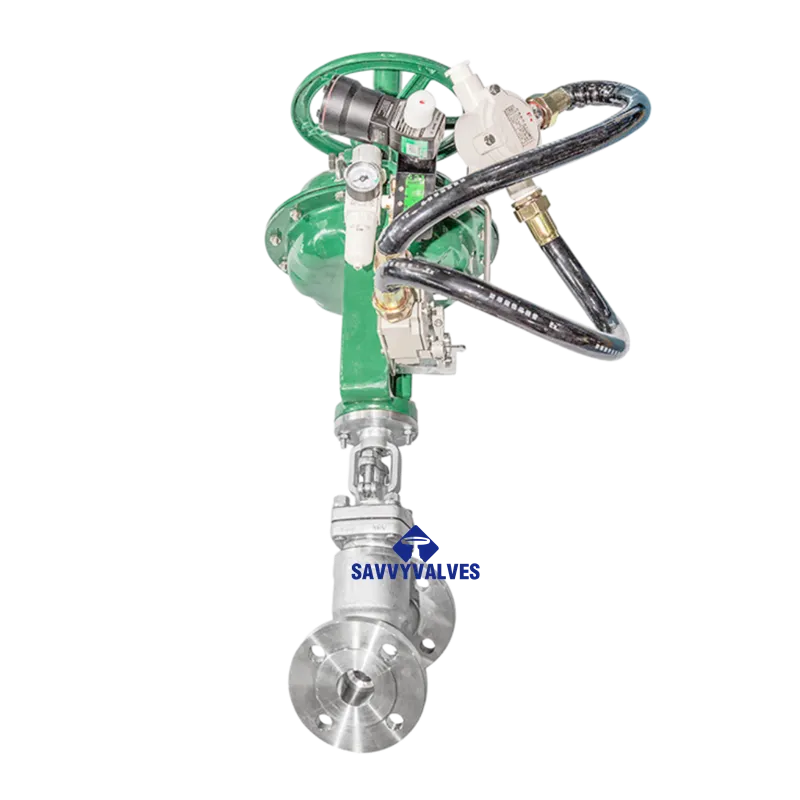

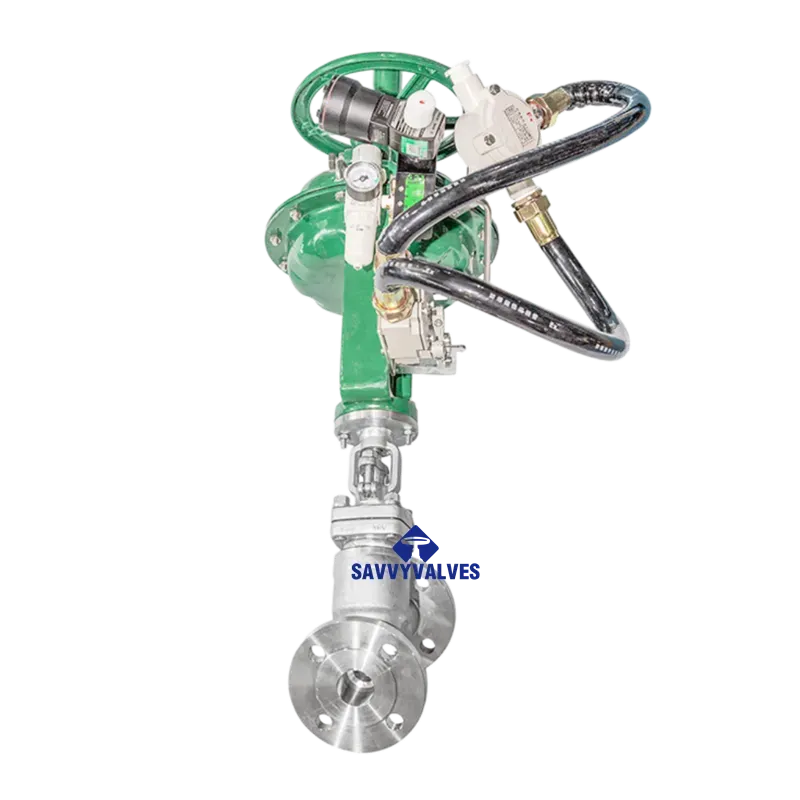

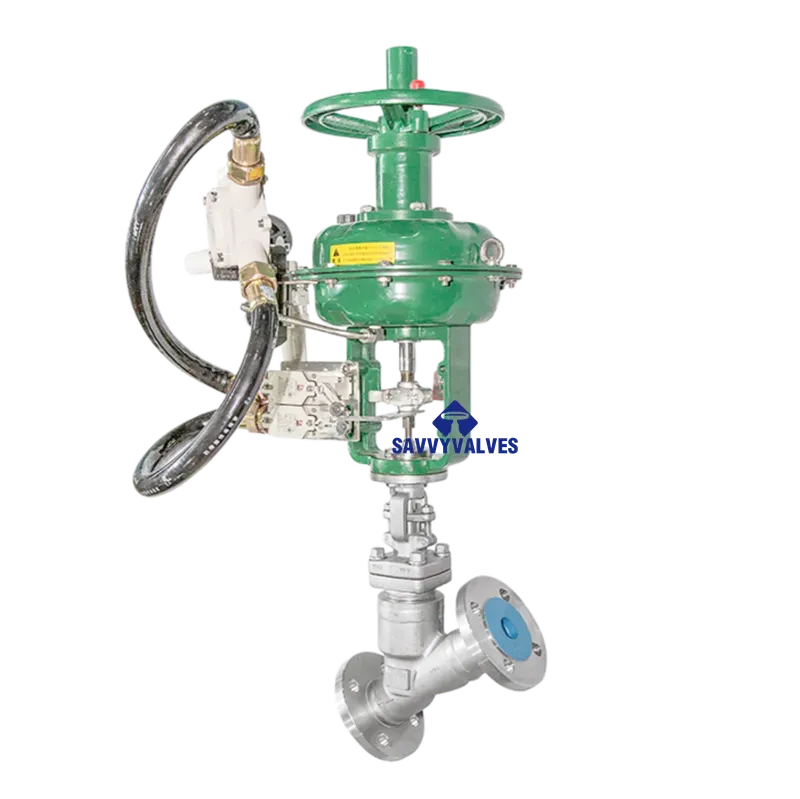

DN40-PN16-RF Pneumatic Y Pattern Bellows Seal Globe Valve

Valve Type Y Pattern Globe Valve (Oblique Pattern, Rising Stem) with Pneumatic Actuator
Nominal Size DN40 (1-1/2 inches)
Pressure Rating PN16 (Class 150)
Connection Type Flanged Ends with Raised Face (RF)
Special Design Bellows Seal (Hermetic stem sealing)
Body / Bonnet Material Cast Steel / Stainless Steel (Typically WCB / CF8 / CF8M, to be specified)
Actuation Type Pneumatic Actuator (Spring Return / Double Acting, to be specified)
Control Type On-Off / Modulating (to be specified)

문의하기

Technical Datasheet

Product Name: Pneumatic Y Pattern Bellows Seal Globe Valve
Model: DN40-PN16-RF Pneumatic Y Pattern Bellows Seal Globe Valve

General Information

Item	사양
밸브 유형	Y Pattern Globe Valve (Oblique Pattern, Rising Stem) with Pneumatic Actuator
공칭 크기	DN40 (1-1/2 inches)
압력 등급	PN16 (Class 150)
Connection Type	Flanged Ends with Raised Face (RF)
Special Design	Bellows Seal (Hermetic stem sealing)
Body / Bonnet Material	Cast Steel / Stainless Steel (Typically WCB / CF8 / CF8M, to be specified)
Actuation Type	Pneumatic Actuator (Spring Return / Double Acting, to be specified)
Control Type	On-Off / Modulating (to be specified)

Technical Specifications

Item	사양
압력 등급	PN16 (16 bar / 232 psi)
Shell Test Pressure	24 bar (2.4 MPa / 348 psi)
Seal Test Pressure	17.6 bar (1.76 MPa / 255 psi)
Design Temperature	-29°C to +425°C (Depending on body and seat materials)
Applicable Media	Steam, Thermal Oil, Water, Gas, Corrosive Fluids, and applications requiring zero fugitive emissions
Flow Path	Y Pattern (Oblique) – Reduced flow resistance compared to standard globe valves
Leakage Rate	Class V / Class VI per API 598 / FCI 70-2 (Metal seat) or Class VI(Soft seat optional)

Pneumatic Actuator Specifications

Item	사양
Actuator Type	Pneumatic Diaphragm / Piston Type (to be specified)
Actuation Mode	Spring Return (Fail Safe: Fail Open / Fail Closed) or Double Acting(No fail-safe)
Air Supply Pressure	4–7 bar (60–100 psi) (Typical)
Control Signal	On-Off: 3/2 or 5/2 solenoid valve; Modulating: 4–20 mA input / positioner
Accessories	Solenoid Valve, Positioner (Analog / Digital), Limit Switches, Air Filter Regulator, Lockout Valve (as specified)
Position Feedback	Mechanical or Proximity Limit Switches / 4–20 mA Position Transmitter
Manual Override	Handwheel or Manual Lever (Optional)
Enclosure Protection	IP65 / IP67 / NEMA 4 / NEMA 7 (Explosion-proof optional)

Main Material of Parts

Part Name	재료	Material Grade (Reference)
몸	Cast Carbon Steel / SS	ASTM A216 WCB / A351 CF8 (304) / CF8M (316)
Bonnet	Cast Carbon Steel / SS	ASTM A216 WCB / A351 CF8 / CF8M
Disc / Plug	Stainless Steel + Hard-facing	13Cr (AISI 410) / F304 / F316 with Stellite 6 hard-facing (optional)
줄기	Stainless Steel	ASTM A276 410 / 304 / 316
Bellows Assembly	Stainless Steel	ASTM A240 304 / 316L (Multi-ply, fully welded)
Seat Ring	Stainless Steel + Hard-facing	13Cr / 304 / 316 with Stellite 6 hard-facing (integral or welded)
Gland Packing	Flexible Graphite	High-density graphite with anti-extrusion rings
Gasket	Spiral Wound / Graphite	304SS + Flexible Graphite / PTFE
Bonnet Bolts / Studs	Alloy Steel / SS	ASTM A193 B7 / A193 B8
Flange Gasket Surface	Raised Face (RF) per ASME B16.5 / EN 1092-1	–
Actuator Yoke / Bracket	Carbon Steel / Stainless Steel	Painted Carbon Steel / SS304 / SS316
Actuator Body	Aluminum / Stainless Steel	Anodized Aluminum / CF8M

Main Dimensions & Connection Data (Unit: mm)

*Note: Flange dimensions conform to ASME B16.5 (Class 150) or EN 1092-1 (PN16).*

크기(DN)	Flange Standard	Face to Face (End to End) (L)	Flange OD (D)	Bolt Circle Dia (K)	Center to Top Height (H) approx. (without actuator)	Actuator Height (H1) approx.	Overall Height (H + H1) approx.
DN40	ASME B16.5 Class 150	200 mm (Y Pattern typical)	127 mm	98.5 mm	Varies by design	Varies by actuator size	Varies by design
DN40	EN 1092-1 PN16	200 mm (Y Pattern typical)	150 mm	110 mm	Varies by design	Varies by actuator size	Varies by design

Note: Dimensions above are typical. Overall height increases significantly with pneumatic actuator. Final dimensions should be based on approved manufacturer drawings.

Applicable Design Standards

Valve Design & Manufacture: BS 1873 / API 623 / ASME B16.34
Face-to-Face Dimensions: ASME B16.10 / EN 558 (Y pattern specific)
Flange Dimensions: ASME B16.5 (Class 150) / EN 1092-1 (PN16)
Pressure-Temperature Rating: ASME B16.34 / EN 1092-1
Inspection & Testing: API 598 / EN 12266
Bellows Design: ISO 15761 / BS 6364
Actuator Mounting: ISO 5211 / VDI/VDE 3845
Fugitive Emissions: ISO 15848-1 (Optional)
Control Valve Testing: IEC 60534 / FCI 70-2 (for modulating service)

Product Features

Y Pattern (Oblique) Design: Angled seat and stem design significantly reduces flow resistance (lower pressure drop) compared to standard globe valves, ideal for applications requiring continuous flow with throttling capability.
Bellows Seal: Fully welded stainless steel bellows provides a hermetic seal, eliminating fugitive emissions and ensuring zero stem leakage—critical for steam, thermal oil, and hazardous media applications.
Pneumatic Actuation: Enables remote, automated operation for on-off or modulating control, improving system efficiency and safety.
Fail-Safe Operation (Spring Return): Spring-return actuators ensure valve returns to a safe position (fail-open or fail-closed) upon loss of air supply, providing critical safety protection.
Raised Face Flanged Ends: Standard RF flanges ensure reliable, leak-free connections compatible with ASME or EN piping systems.
PN16 Pressure Rating: Suitable for low to medium pressure applications commonly found in steam distribution, HVAC, and industrial processing.
Hard-Faced Trim (Optional): Stellite hard-facing on seat and disc surfaces provides excellent wear resistance and tight shut-off for demanding services.
ISO 5211 Mounting Pad: Standardized mounting interface ensures easy actuator installation, alignment, and maintenance.
Accessories Ready: Designed to accommodate solenoid valves, positioners, limit switches, and air filter regulators for complete automation packages.

Remarks:

Material Selection: Specify body material based on media:

WCB: Water, oil, steam, non-corrosive services
CF8 (304): Mildly corrosive services
CF8M (316): Highly corrosive services, chlorides, and marine applications

Actuator Selection: Specify actuation mode:

Spring Return (Fail Closed): Air to open, spring to close
Spring Return (Fail Open): Air to close, spring to open
Double Acting: No fail-safe, requires air supply to both open and close

Control Type: Specify whether the valve is for on-off service (solenoid valve control) or modulating service (positioner with 4–20 mA signal).
부속품: Specify required accessories for complete automation:

Solenoid valve (voltage: 24VDC, 110VAC, 220VAC, etc.)
Positioner (analog 4–20 mA / digital / HART / Profibus)
Limit switches (mechanical / proximity / inductive)
Air filter regulator (with pressure gauge)

Fugitive Emissions: For applications with strict environmental compliance, specify ISO 15848-1 certification.
For specific dimensional data, actuator sizing, torque requirements, and wiring diagrams, please refer to the official certified drawings and actuator assembly documentation from the manufacturer.
