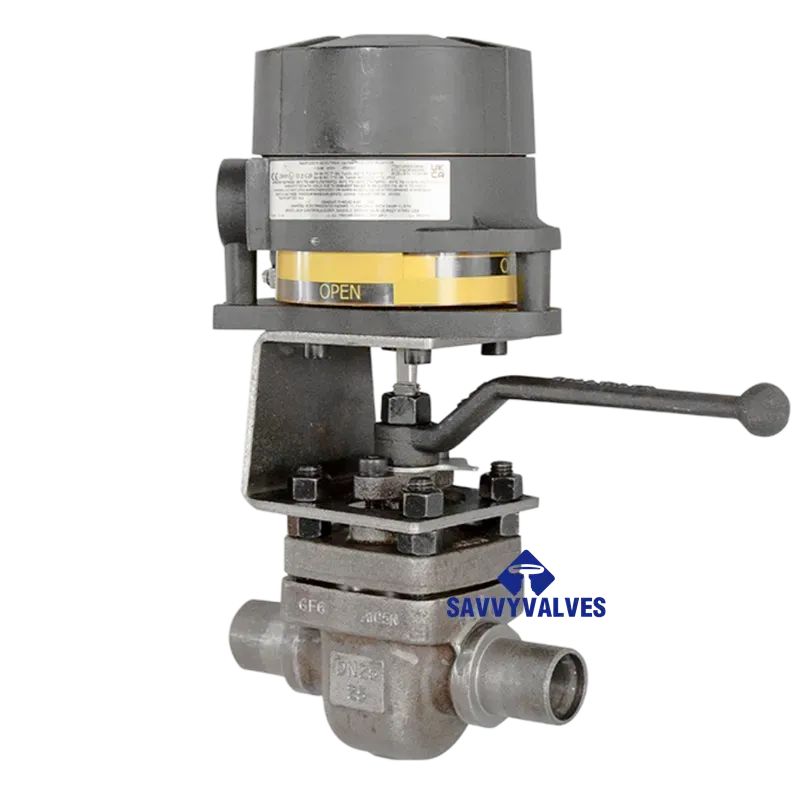

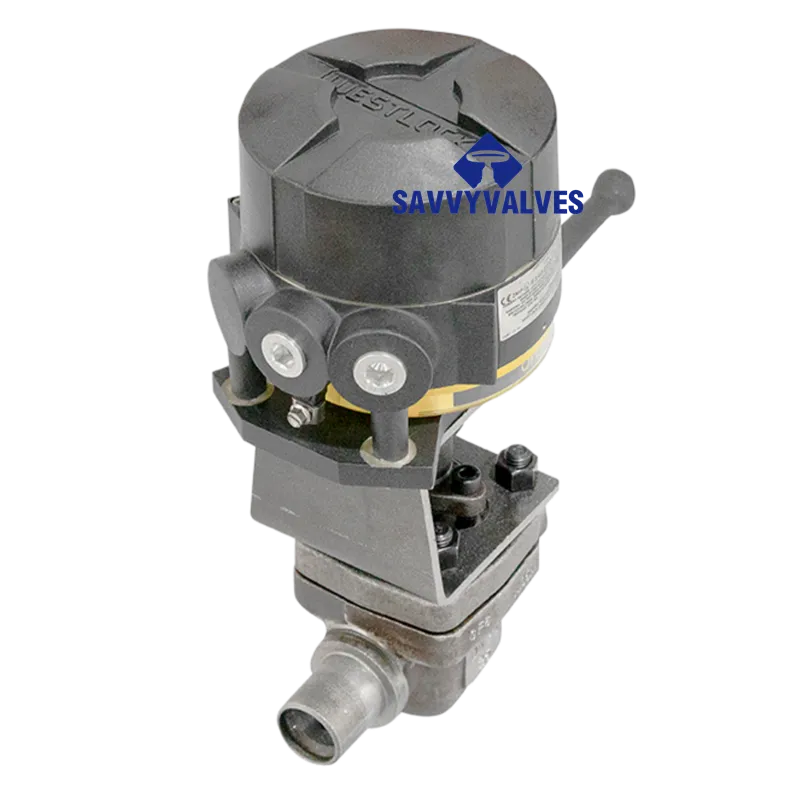

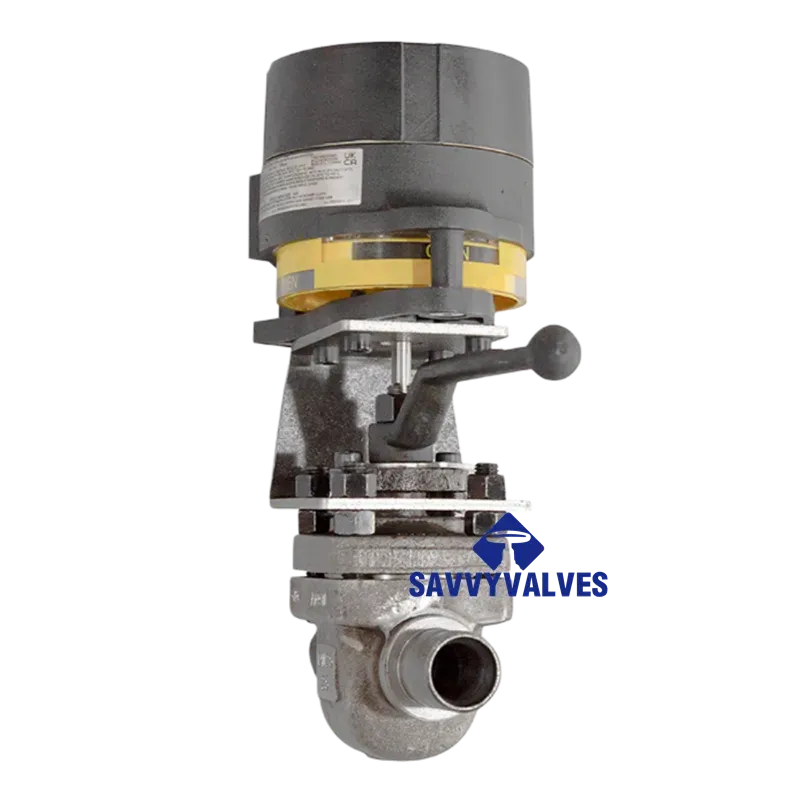

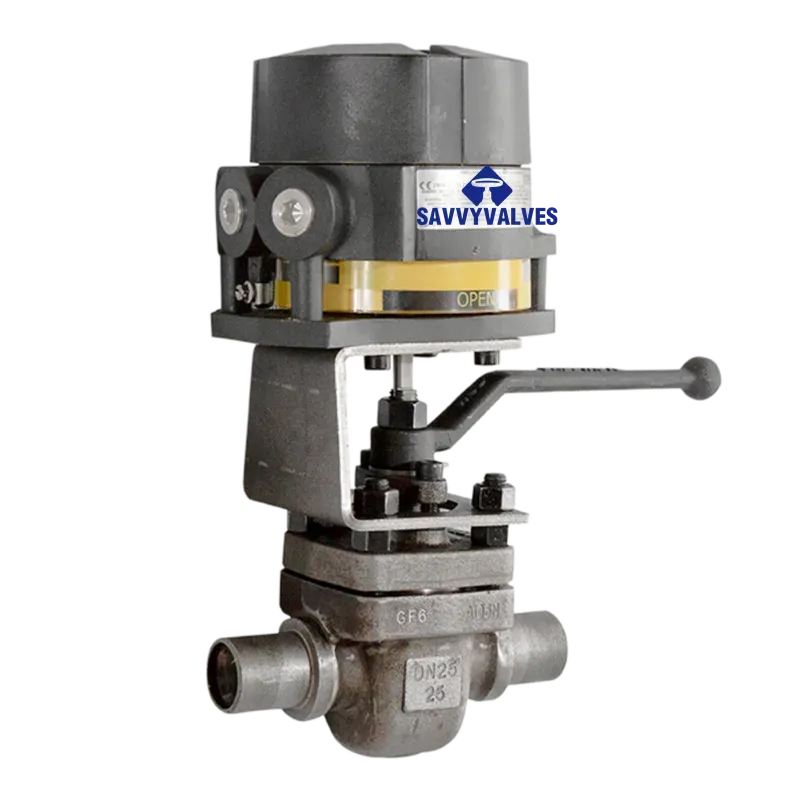

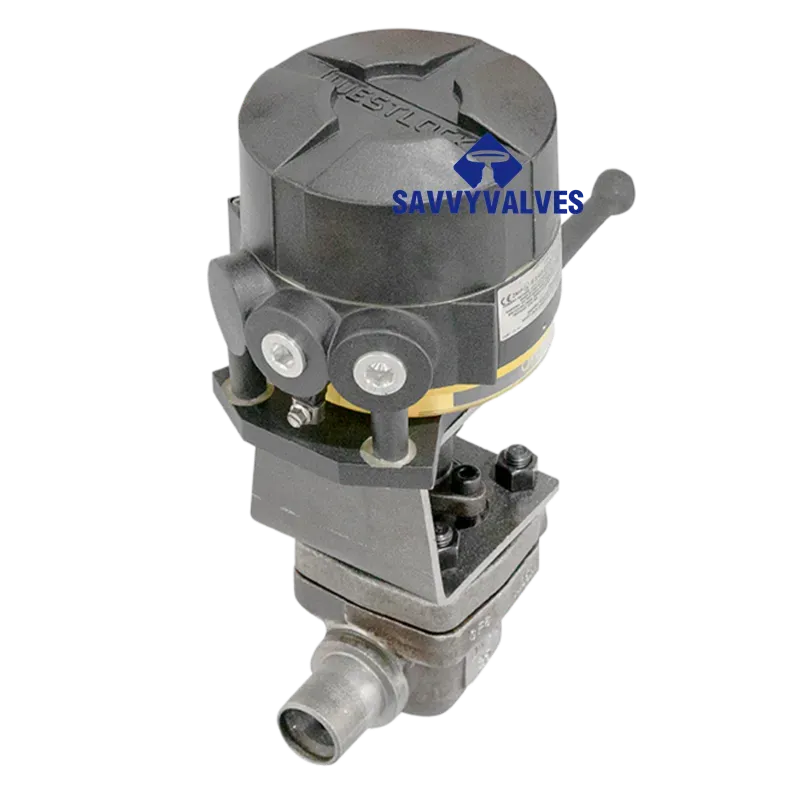

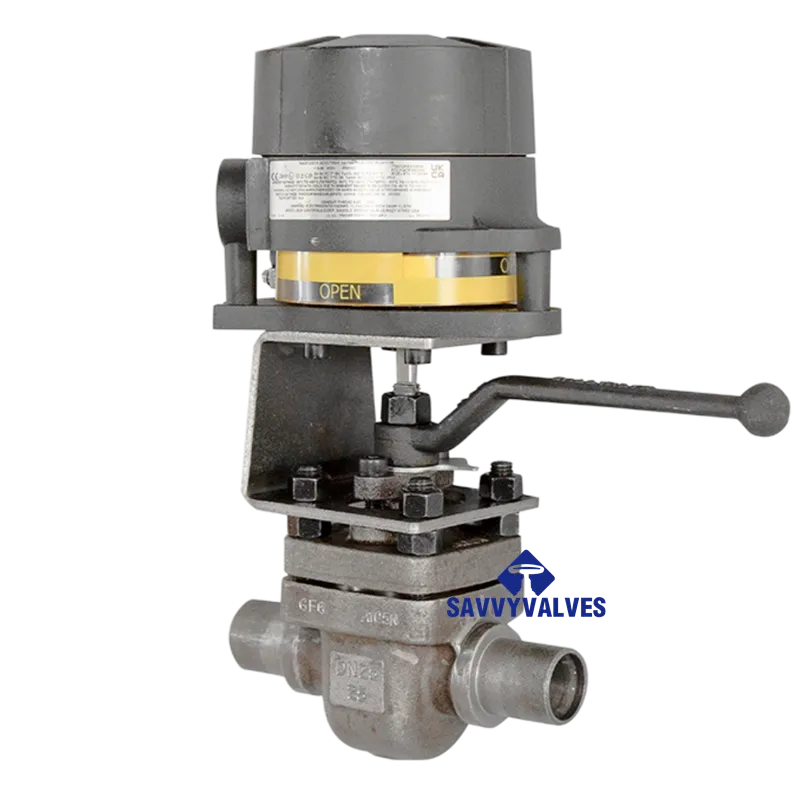

DN25-PN25-SW Top Entry Floating Ball Valve A

Nominal Size DN 25 (1″ NPS)
Pressure Rating PN 25 (Class 150)
Design Pressure Up to 25 bar at specified temperature
Temperature Range Standard: -29°C to +200°C with PTFE seats. Extended range available with special trim.
Flow Characteristic Full Port (FP) for minimum pressure drop.
End Connections Socket Weld x Socket Weld
Operation Manual Lever (Standard). Gear, Pneumatic, or Electric Actuation optional.
Seat Leakage Class ANSI/FCI 70-2 Class VI (Standard Soft Seat). Class IV (Metal Seat) optiona

문의하기

DN25-PN25-SW Top Entry Floating Ball Valve A

TECHNICAL DATA SHEET

PRODUCT: Top Entry Floating Ball Valve
MODEL / REFERENCE: DN25-PN25-SW
TYPE: One-Piece Body, Full Port, Side-Entry (Top Entry Maintenance)

1.0 PRODUCT DESCRIPTION & APPLICATION
A robust, single-piece body ball valve designed for superior structural integrity in demanding applications. Its unique Top Entry design allows for all internal components (ball, seats, stem) to be serviced or replaced in-line through the top-mounted bonnet, without the need to remove the valve from the pipeline. This eliminates downtime associated with pipe cutting and realignment. Featuring Socket Weld (SW) ends, it ensures a permanent, leak-proof connection ideal for high-vibration or critical services. Commonly used in chemical processing, oil & gas production, LNG, and high-pressure utility systems where reliability and in-line maintenance are key.

2.0 DESIGN & STANDARDS

Design & Pressure Rating: ASME B16.34, PN25 (Class 150)
연결 종료: Socket Weld (SW) per ASME B16.11
대면: Per manufacturer’s standard or relevant industry norms
Fire Safe Design: API 607 / ISO 10497 (Optional)
Anti-Static Device: Per API 608 / ISO 17292 (Standard)
Blow-Out Proof Stem: Per API 608 (Standard)
좌석 디자인: Spring-loaded or pressure-energized for bi-directional or unidirectional sealing.

3.0 GENERAL SPECIFICATIONS

매개변수	사양
공칭 크기	DN 25 (1″ NPS)
압력 등급	PN 25 (Class 150)
Design Pressure	Up to 25 bar at specified temperature
온도 범위	Standard: -29°C to +200°C with PTFE seats. Extended range available with special trim.
Flow Characteristic	Full Port (FP) for minimum pressure drop.
End Connections	Socket Weld x Socket Weld
작업	Manual Lever (Standard). Gear, Pneumatic, or Electric Actuation optional.
Seat Leakage Class	ANSI/FCI 70-2 Class VI (Standard Soft Seat). Class IV (Metal Seat) optional.

4.0 PRESSURE-TEMPERATURE RATINGS

Pressure-temperature ratings conform to ASME B16.34 for Class 150/Pressure Nominal 25.
The maximum allowable pressure is dependent on the selected body/trim materials and operating temperature. Consult detailed P-T chart.

5.0 MATERIALS OF CONSTRUCTION (STANDARD)

요소	Material Specification
Valve Body	ASTM A182 F316 / A351 CF8M (316 SS) – 기준 Common Options: F304/CF8, F316L/CF3M, WCB Carbon Steel, Duplex Stainless Steel (S31803/F51).
공	316 SS, Hard Chrome Plated or Electroless Nickel Plated for enhanced wear/corrosion resistance.
줄기	316 SS (Forged). Optional: 17-4PH SS for higher strength.
Seats (Primary)	Reinforced PTFE (RPTFE), PEEK, or Nylon for higher performance.
Stem Seals / Packing	Flexible Graphite Rings (High-temp) or PTFE V-Rings.
Body-Bonnet Gasket	Spiral Wound Graphite/SS or RTJ Ring (Metal)
Bolting (Bonnet)	ASTM A193 B8M (316 SS)
Actuator Mounting	ISO 5211 Direct Mounting Pad (Standard)

6.0 KEY DESIGN FEATURES

Top Entry Design: Enables all internal maintenance in-line, significantly reducing downtime and maintenance costs. The one-piece body offers superior structural strength and minimizes potential leak paths compared to multi-piece designs.
Socket Weld Ends: Provide a robust, permanent, and high-integrity connection suitable for high-pressure and high-vibration services.
Bi-Directional Sealing: Spring-loaded seats often provide reliable sealing in both flow directions.
Blow-Out Proof, Anti-Static Stem: Standard safety features for hazardous services.
ISO 5211 Mounting Pad: Facilitates easy and direct mounting of pneumatic/electric actuators.

7.0 TESTING & INSPECTION

Shell Pressure Test: Per API 598 / ISO 5208 at 1.5 x PN (38 bar).
좌석 누출 테스트: Per API 598 at 1.1 x PN (27.5 bar) with air or water.
High-Pressure Gas Test (Optional): For critical service verification.
Material Verification: PMI (Positive Material Identification) on critical components upon request.
Documentation: Certificate of Compliance (COC) with test records. Mill Test Certificates (MTC 3.1) available.

8.0 INSTALLATION & MAINTENANCE NOTES

Weld Procedure: The valve MUST be in the fully open position during socket welding to prevent heat damage to internal seals.
Follow proper socket weld preparation and technique as per ASME B31.3.
For maintenance, isolate and depressurize the valve. Loosening the bonnet bolts allows access to all internals from above.

9.0 OPTIONS & ACCESSORIES

작동: Pneumatic (Double-Acting, Spring-Return), Electric, Hydraulic.
Gear Operator for high-torque applications.
Locking Device for handle/lever.
Stem Extension for insulated lines.
Cryogenic or High-Temperature Extended Bonnet.
Fire-Safe Seats & Seals (certified to API 607).
Drain / Vent Ports on valve body.
Special Coatings (Internal Epoxy, Xylan, etc.).

보증:

SAVVY VALVES는 탁월한 제품 품질과 안심할 수 있는 애프터서비스를 제공하기 위해 최선을 다하고 있습니다. 당사 밸브는 최소 12개월의 서비스 수명을 보장하며, 이 기간 동안 필요한 모든 예비 부품과 자세한 유지보수 지침을 무상으로 제공합니다. 보증 기간 내에 인위적인 손상이 아닌 다른 원인으로 인한 손상이 발생할 경우, 무상으로 부품을 교체하고 전문 기술 지원을 제공합니다. 보증 기간이 만료된 후에는 예비 부품 비용만 지불하시면 되며, 할인된 유지보수 서비스 혜택도 누리실 수 있습니다. 당사의 목표는 신뢰할 수 있는 품질과 포괄적인 애프터서비스를 통해 고객의 운영 비용을 절감하고 생산 효율성을 향상시키는 것입니다. 기술 문의나 유지보수가 필요하시면 언제든지 전문가 팀이 신속하게 대응하여 밸브 시스템이 항상 최적의 성능을 유지하도록 보장합니다.
