Compact design globe valve

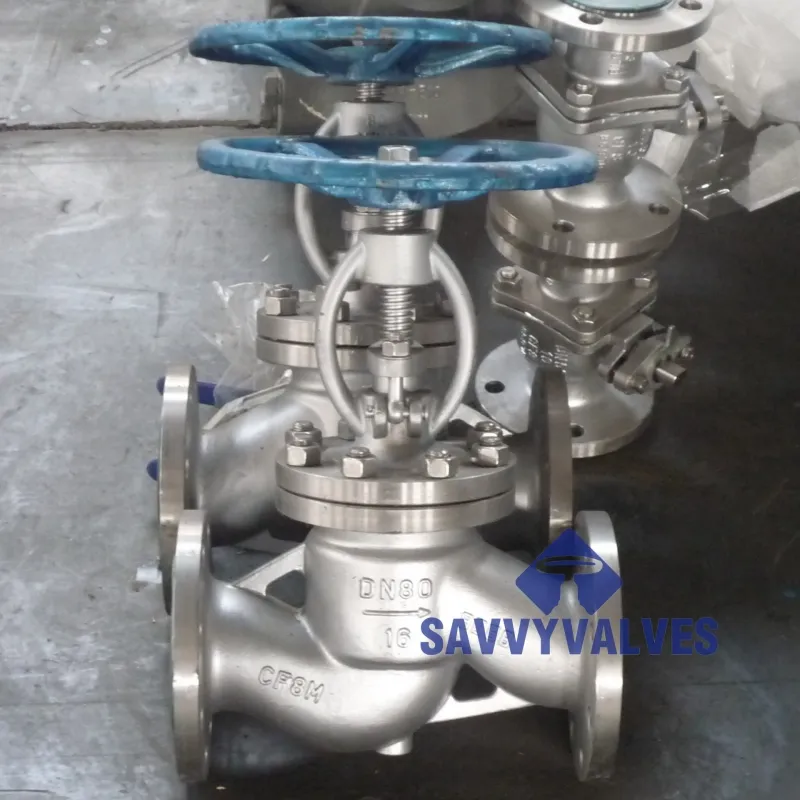

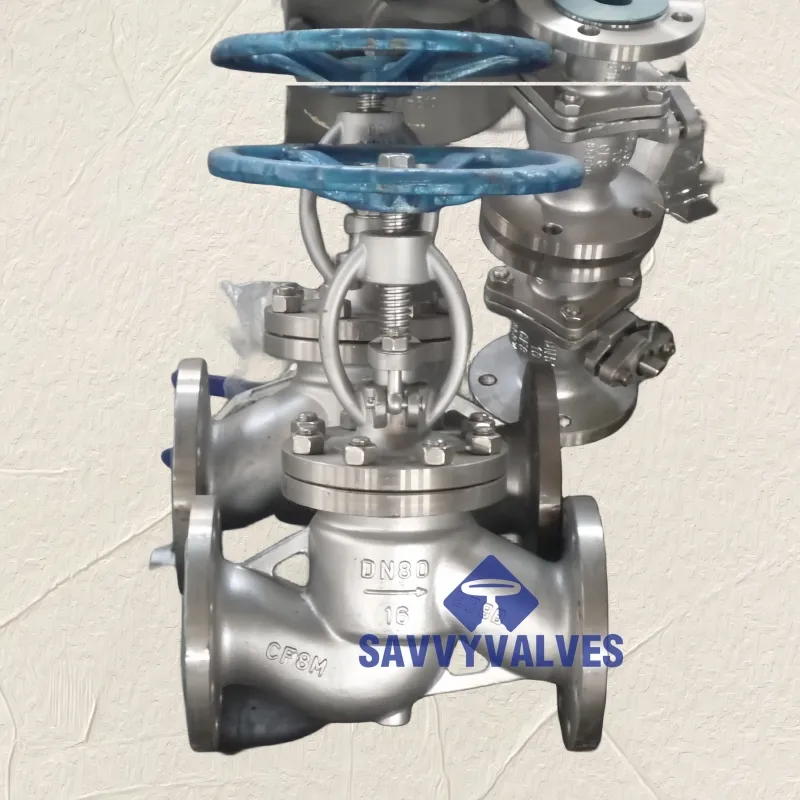

GAMBAR MENUNJUKKAN SPESIFIKASI SEPERTI DI BAWAH
SAIZ: DN80
PENILAIAN: PN16
TAMAT: RF SEPERTI ASME B16.5
SUHU: -29 ℃~425 ℃
BADAN DAN BONNET : ASTM A351 CF8
CAKERA: PEPEJAL ASTM A182 F304+HF
STEM: ASTM A182 F304
KEDUDUKAN: HF METAL
PENGAKUAN: RODA TANGAN

Hubungi Kami

UMUM

Saiz: 2″~48″.
Penilaian Tekanan: 150LB~4500LB, PN6~PN750
Suhu Reka Bentuk: -196℃~800℃.
Aplikasi am: CNG, LNG, LPG, CO2, N2, tugas kriogenik lain. Kewajipan terma STEAM.
Reka Bentuk & Pembuatan: BS 6364, API 6D, ASME B16.34, API 602 adalah asas, norma lain boleh digunakan mengikut pesanan.
Dimensi F HINGGA F: API 6D, ASME B16.10, BS EN 558
Sambungan: ASME B16.11, ASME B16.25, ASME B16.5, EN 1092, JIS 5K-20K. RF, RTJ tersedia.
Reka bentuk keselamatan: kalis api

BAHAN AM

BADAN: ASTM A182 F304/F316/F304L/F316L/F51/F53, MONEL K400/K500, H276,INCONEL 625/718
PALAM: ASTM A182 F304, F316
SEAT: PCTFE, PEEK, HF METAL
OPERATOR: SPRING MUAT
BAHAN KHAS LAIN ADA UNTUK DISESUAIKAN.

UJIAN

Pemeriksaan dan norma kelulusan: API598, API6D, BS6364.

KAWALAN KUALITI:

100% Analisis kimia dan ujian mekanikal dengan bahan mentah setiap nombor haba.
Ujian DPT 100% dengan tuangan, sebahagiannya ujian MT atau UT, RT sentiasa tersedia jika diperlukan.
Ujian hidraulik 100% dengan shell dan meterai dan ujian udara tekanan rendah.

JAMINAN:

SAVVY VALVES menyediakan hayat perkhidmatan sekurang-kurangnya 12 bulan, alat ganti percuma dan arahan penyelenggaraan akan diberikan apabila diperlukan.

PRODUK JUALAN PANAS

Selama lebih 10 tahun, kami telah menjadi pembekal utama injap industri untuk projek global utama dalam bekalan air, minyak & gas, dan penyahgaraman.

What Are The Benefits Of A Compact Design Globe Valve In Space-Constrained Installations?

The compact design globe valve is ideal for applications where space is limited but precise flow control is still essential. Its reduced body size and lightweight construction make it easier to install in tight piping systems, such as skid-mounted units, offshore platforms, and compact processing modules. Despite its smaller footprint, this valve maintains all the key advantages of a traditional globe valve, including excellent throttling capability, reliable shut-off, and easy maintenance access. The compact design also often results in lower material and installation costs without sacrificing performance or durability. Suitable for a wide range of media—including steam, gas, oil, and water—the valve is commonly used in HVAC systems, chemical plants, and energy facilities. With options for manual or actuated operation, it provides flexibility, efficiency, and dependable control, making it a smart choice for high-performance systems with spatial limitations.
