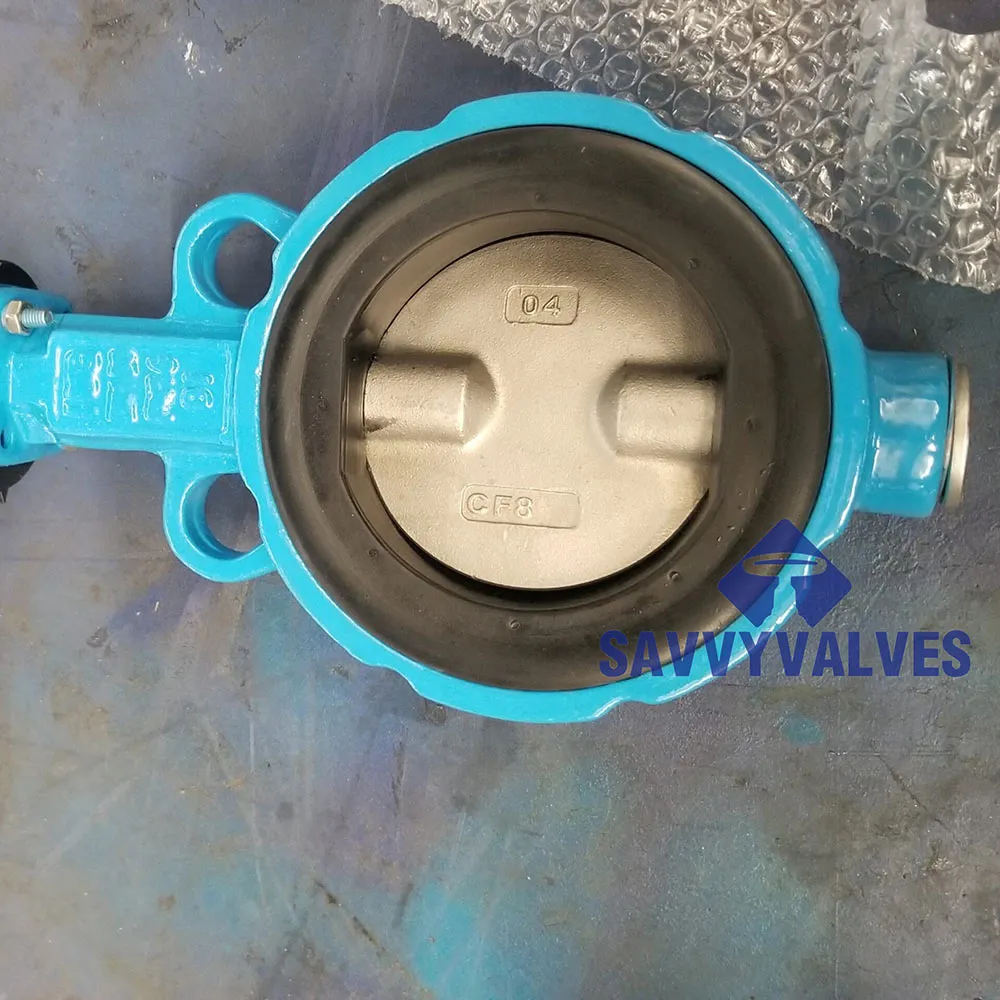

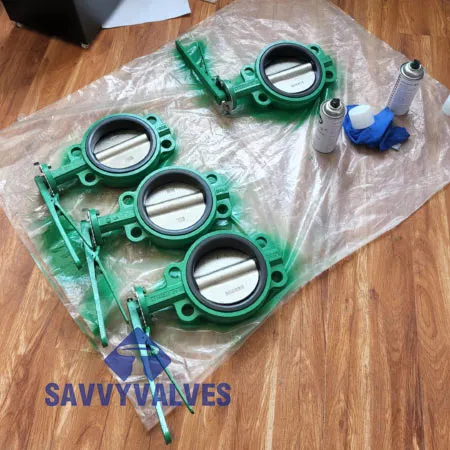

Understanding wafer style butterfly valves for Industrial Applications
In the demanding landscape of industrial fluid control, the selection of appropriate valve technology is paramount to operational efficiency, safety, and cost-effectiveness. Among the diverse array of quarter-turn valves, wafer style butterfly valves stand out for their compact design, ease of installation, and robust performance across a multitude of applications. This comprehensive guide delves into the intricate details of these essential components, covering their manufacturing processes, technical specifications, application advantages, and crucial considerations for B2B decision-makers. We specifically focus on advanced designs like the Replaceable Cartridge Seat Wafer Butterfly Valve, a testament to ongoing innovation in valve engineering.
The inherent simplicity of the wafer design, characterized by its installation between two flanges without requiring dedicated bolting to the pipeline, makes it a favored choice for pipelines where space is at a premium and cost-efficiency is a driver. Their widespread adoption in critical sectors like petrochemical, water treatment, HVAC, and power generation underscores their reliability and adaptability. This article aims to provide a deep dive for engineers and procurement specialists, ensuring they are equipped with the knowledge to make informed decisions regarding the integration of wafer butterfly valve technology into their systems.
Manufacturing Process Flow of Wafer Style Butterfly Valves

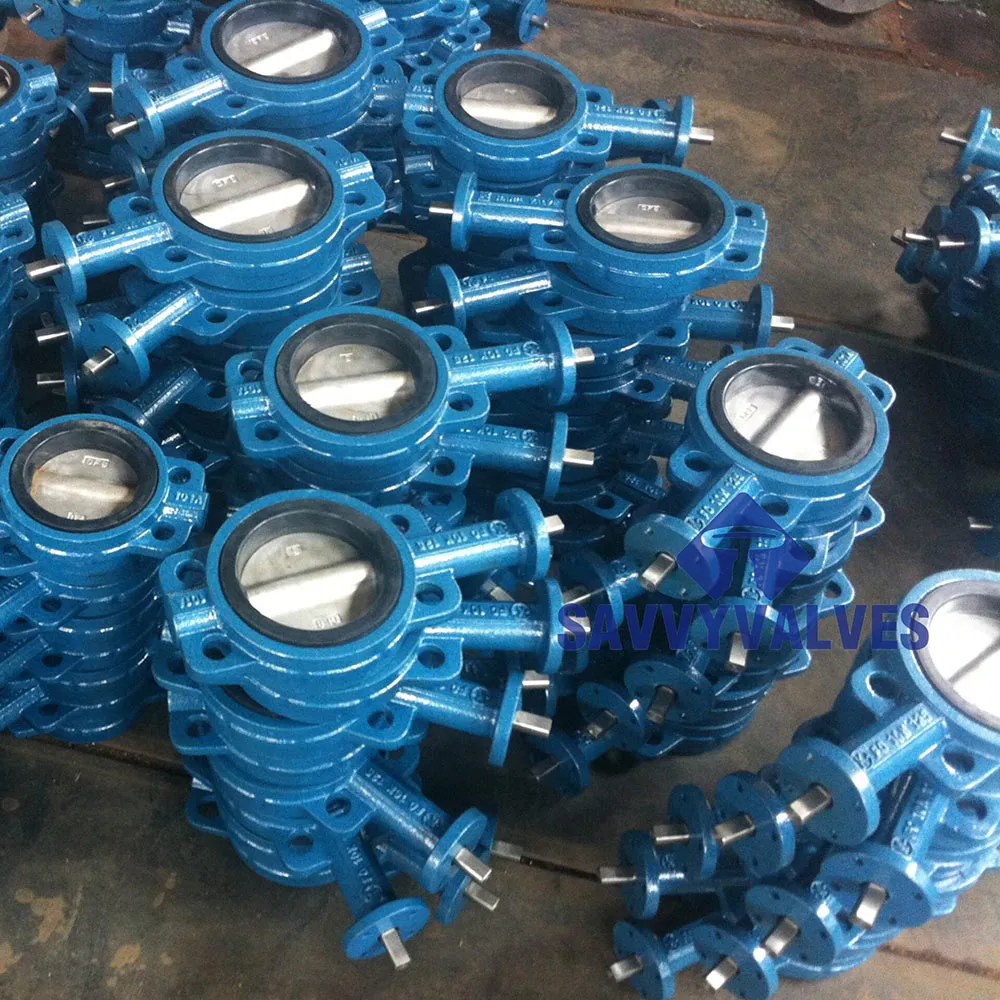

The production of high-quality wafer style butterfly valves involves a meticulous multi-stage process, beginning with material selection and extending through precision machining, assembly, and rigorous testing. This controlled environment ensures that each valve meets stringent industry standards and delivers exceptional service life.
Process Stages:
-
Material Sourcing & Casting/Forging: The journey begins with selecting raw materials such as ductile iron (GGG40, GGG50), carbon steel (WCB), stainless steel (CF8, CF8M, CF3M), or specialized alloys. Body and disc components are typically formed via sand casting (for ductile iron/carbon steel) or investment casting (for stainless steel/alloys) to achieve complex geometries and high structural integrity. For higher pressure ratings or critical applications, forging processes may be employed to enhance material strength and reduce porosity.
Compliance: ASTM A536 (Ductile Iron), ASTM A216 WCB (Carbon Steel), ASTM A351 CF8M (Stainless Steel).
-

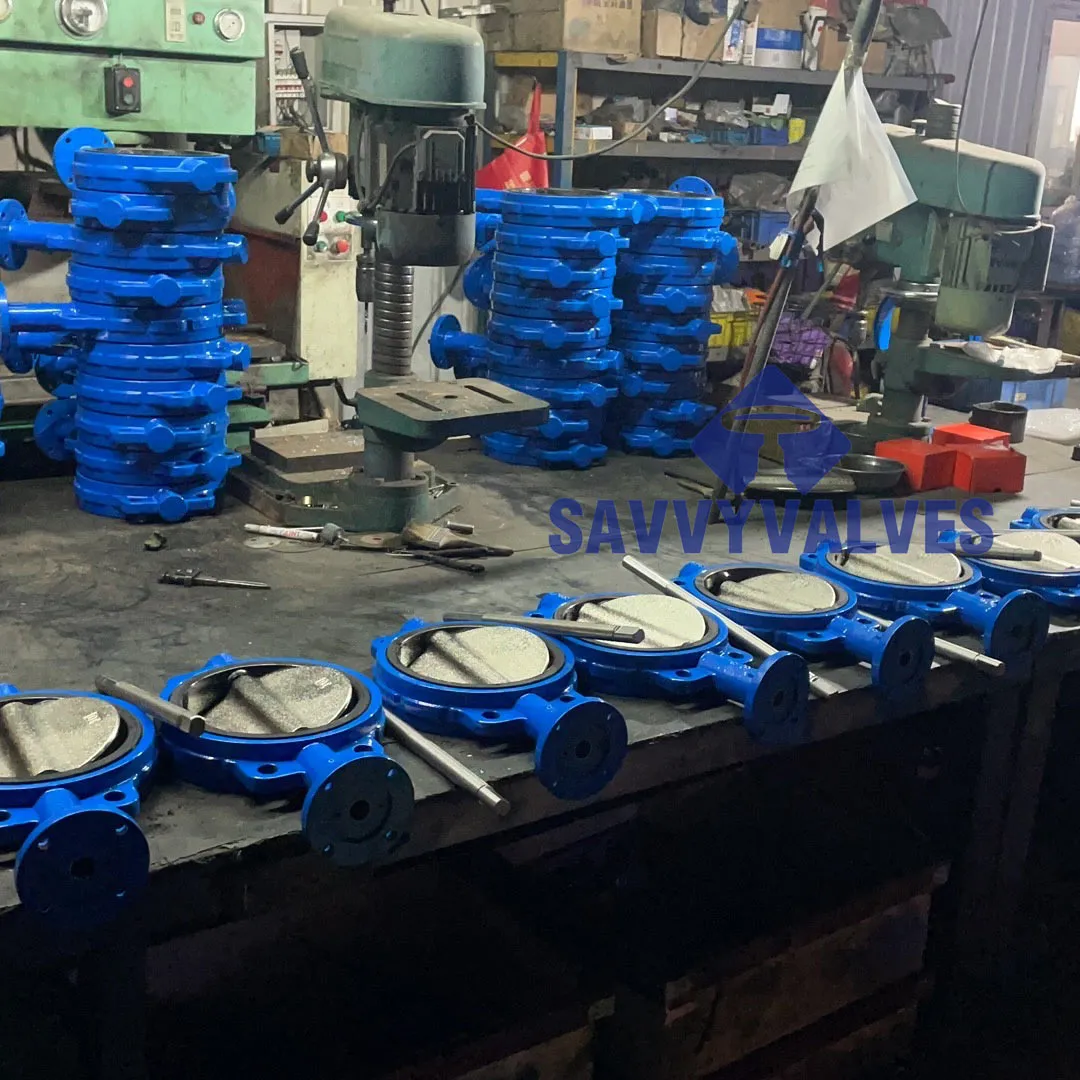

CNC Machining: Cast or forged components undergo precision CNC (Computer Numerical Control) machining. This stage ensures exact dimensions, smooth sealing surfaces, and tight tolerances for the body bore, disc edges, stem holes, and flange mating faces. Critical features like seat retention grooves for replaceable cartridge seats are also machined with extreme accuracy.
- Disc Polishing & Coating: For optimal sealing and corrosion resistance, the disc surface may be polished and, depending on application, undergo specialized coatings (e.g., PTFE, ceramic, or hard chrome plating) to enhance abrasion resistance and reduce friction.
- Stem Manufacturing: Stems are typically machined from high-strength stainless steels (e.g., SS410, SS304, SS316) to ensure robust torque transmission and resistance to shear forces. Keys or splines for disc attachment are precisely milled.
-

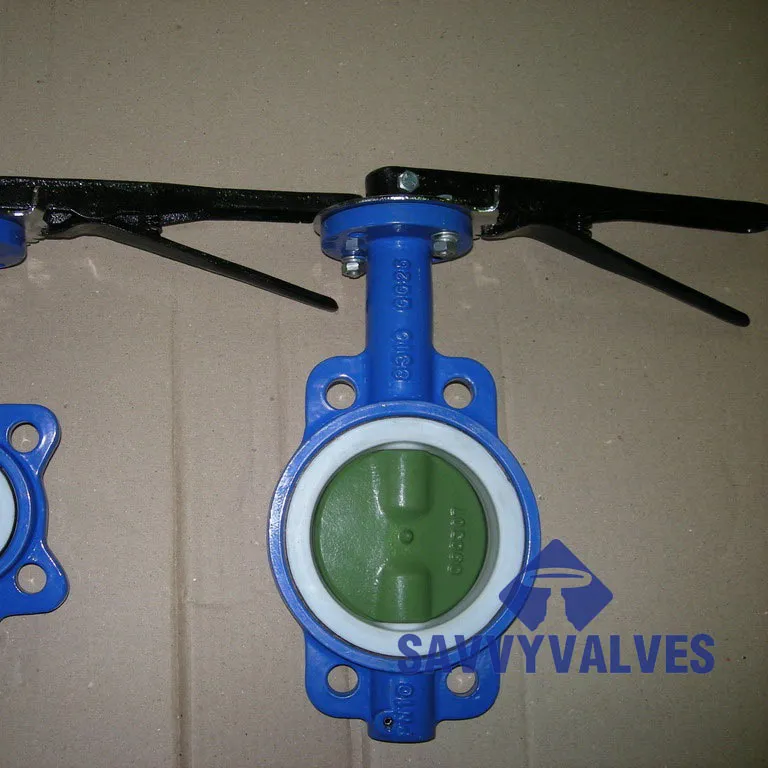

Seat Molding/Lining: For soft-seated wafer type butterfly valve, the elastomer seat (e.g., EPDM, NBR, Viton, PTFE) is either precisely molded to fit the valve body or supplied as a cartridge for easy replacement. The replaceable cartridge seat design, as featured in our product, significantly simplifies maintenance and extends valve life.

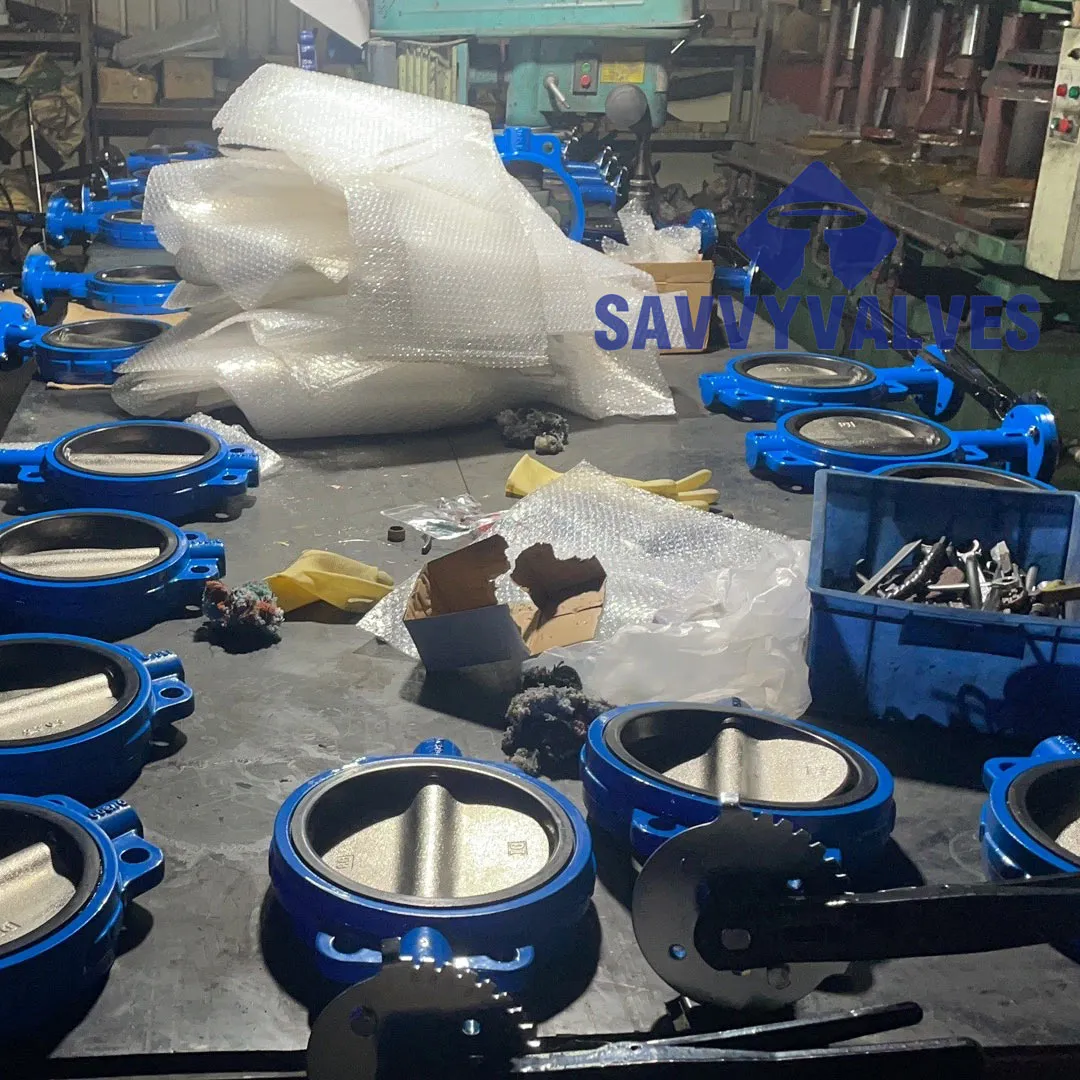

- Assembly: Components are meticulously assembled, including inserting the stem through the body and disc, positioning the seat, and attaching bearings and packing. Proper alignment and lubrication are crucial.
-
Testing & Quality Control: Each valve undergoes a battery of tests to ensure performance and integrity.
- Hydrostatic Shell Test: Performed at 1.5 times the rated working pressure, ensuring the body's structural integrity against leakage.
- Hydrostatic Seat Leakage Test: At 1.1 times the rated working pressure, verifying bubble-tight shut-off.
- Low Pressure Air Seat Test: Confirms sealing at low differential pressures.
- Operational Torque Test: Measures the torque required to open/close the valve, ensuring it's within specified limits.
- Dimensional Inspection: Verifies adherence to design specifications (e.g., ISO 5752, API 609).

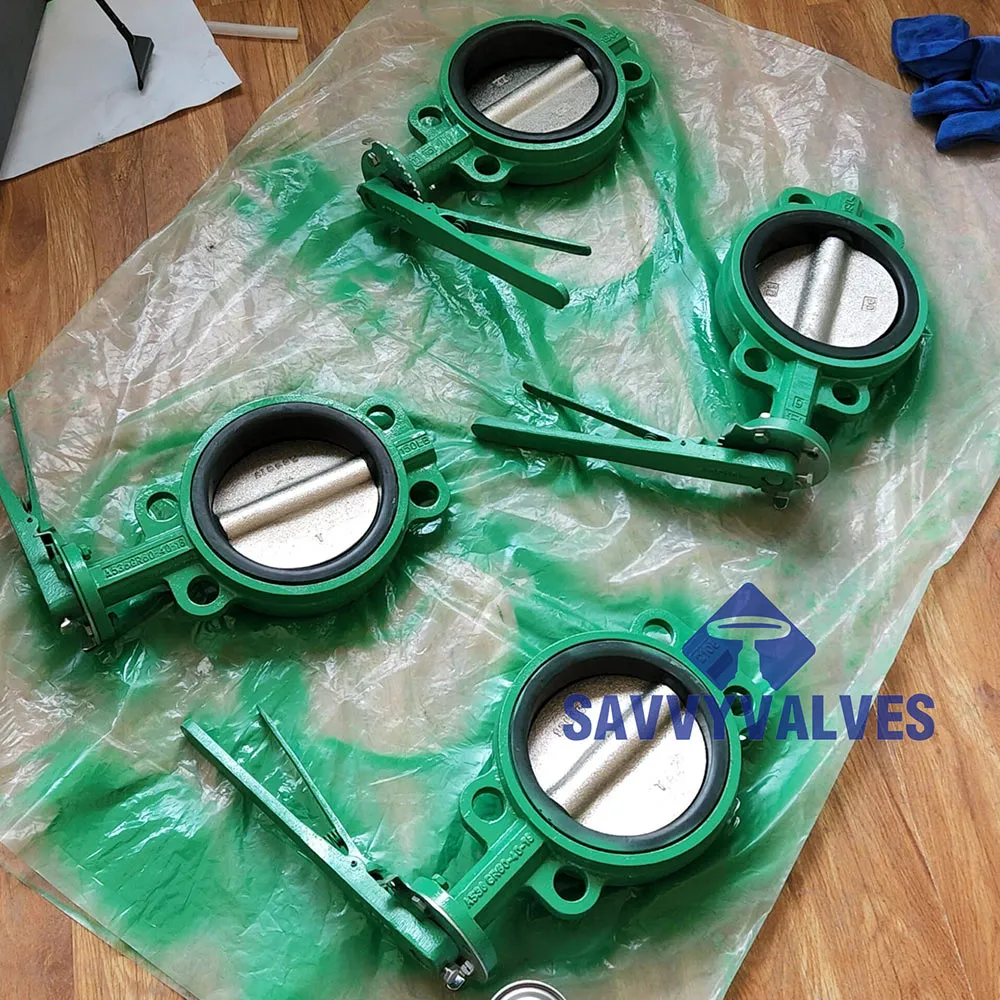

Certifications: ISO 9001 (Quality Management), API 609 (Butterfly Valves), ANSI/AWWA C504. - Finishing & Packaging: Valves are cleaned, coated (if applicable), and carefully packaged to prevent damage during transit.
The meticulousness of this process ensures a service life often exceeding 10-15 years under normal operating conditions, especially when featuring designs that facilitate easy maintenance, such as replaceable seats. Target industries benefitting from these robust manufacturing standards include petrochemical, oil & gas, metallurgy, water supply & drainage, power generation, and chemical processing. In typical application scenarios, such as regulating flow in a municipal water treatment plant, these valves offer significant energy savings due to their low pressure drop profile and excellent corrosion resistance in aggressive media due to specialized material selection.
Industry Trends in Wafer Style Butterfly Valve Technology
The industrial valve market, particularly for wafer butterfly valve, is dynamic, driven by evolving regulatory requirements, technological advancements, and increasing demands for efficiency and sustainability. Several key trends are shaping the future of these critical components.
-
Smart Valve Technology & IoT Integration: The integration of sensors, actuators, and control systems is transforming traditional valves into 'smart' devices. These intelligent valves can provide real-time data on position, pressure, temperature, and flow, enabling predictive maintenance, optimized process control, and enhanced operational safety. This trend is particularly relevant for large-scale industrial plants seeking to leverage Industry 4.0 principles.
- Advanced Materials for Extreme Conditions: As industries push the boundaries of temperature, pressure, and corrosive media, there's a continuous drive for new materials. Developments in high-performance alloys (e.g., Hastelloy, Monel), engineered plastics (e.g., PFA, UHMW-PE), and composite materials are extending the operational envelope of wafer type butterfly valve, allowing them to perform reliably in previously challenging environments.
- Enhanced Sealing Technologies: Innovations in seat design, such as the replaceable cartridge seat, and new elastomer/PTFE compounds are leading to improved bubble-tight shut-off capabilities and extended service life, even with abrasive or high-cycle applications. This reduces fugitive emissions and enhances operational efficiency.
- Focus on Sustainability and Energy Efficiency: With global emphasis on environmental responsibility, valve manufacturers are developing designs that minimize pressure drop, thereby reducing pumping energy requirements. Lighter valve constructions also contribute to a smaller carbon footprint during manufacturing and transport.
- Modular and Maintainable Designs: The trend towards modularity, exemplified by replaceable cartridge seats, simplifies field maintenance, reduces downtime, and lowers the total cost of ownership (TCO) for industrial operators. This shift prioritizes ease of serviceability and component replacement over full valve replacement.
These trends reflect a collective effort within the industry to deliver valves that are not only robust and reliable but also intelligent, efficient, and easier to maintain, meeting the evolving needs of modern industrial processes.

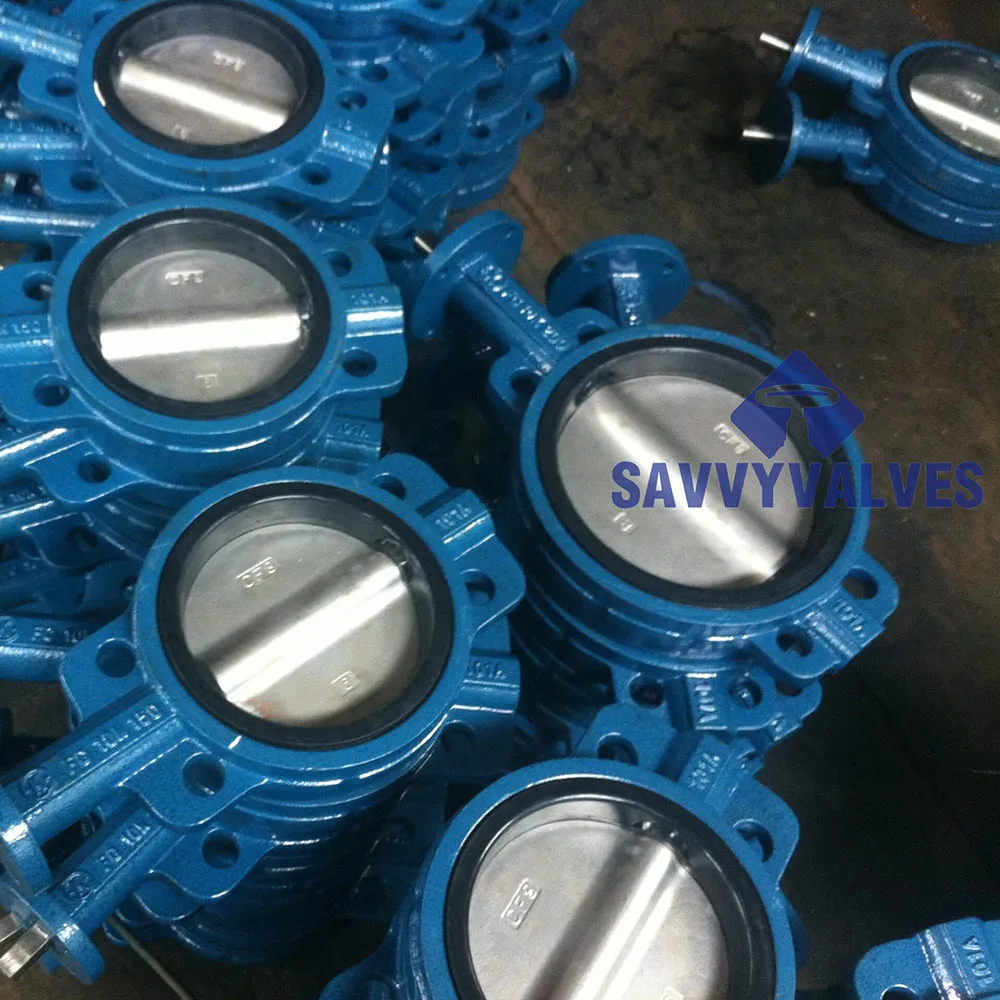

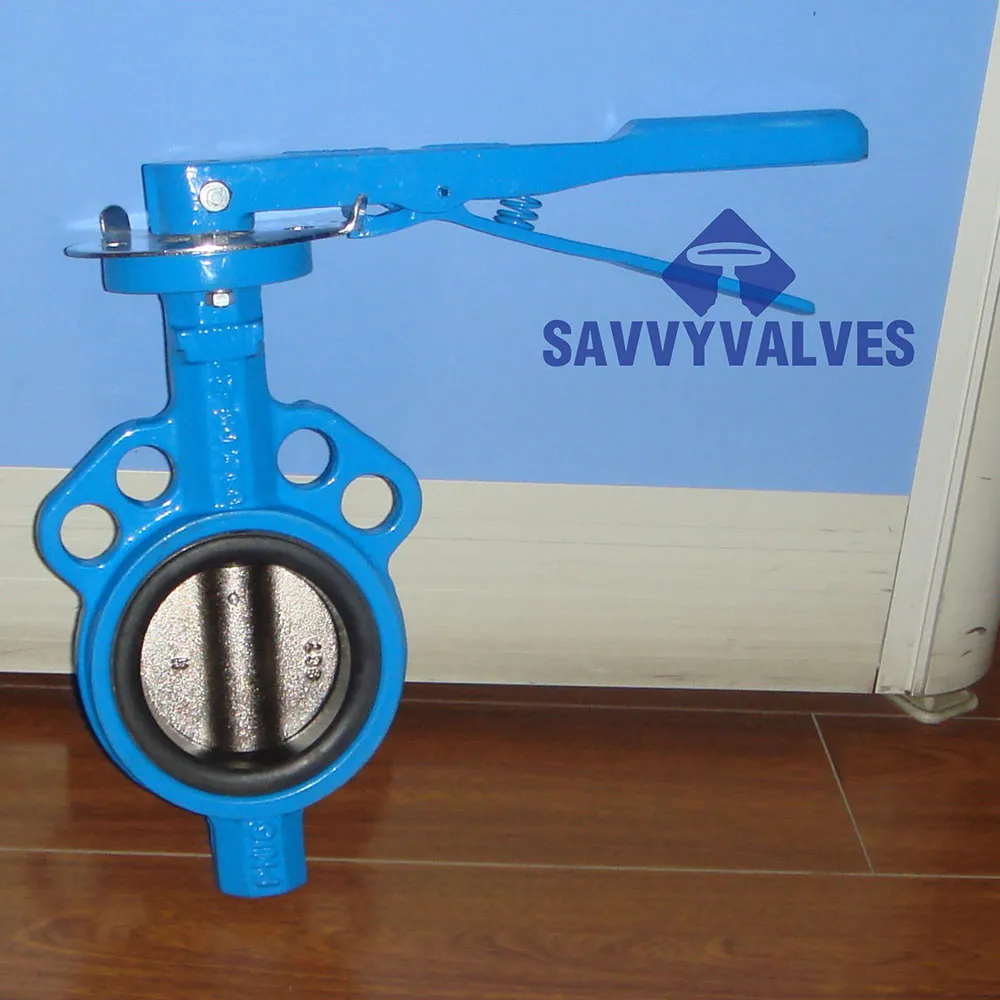

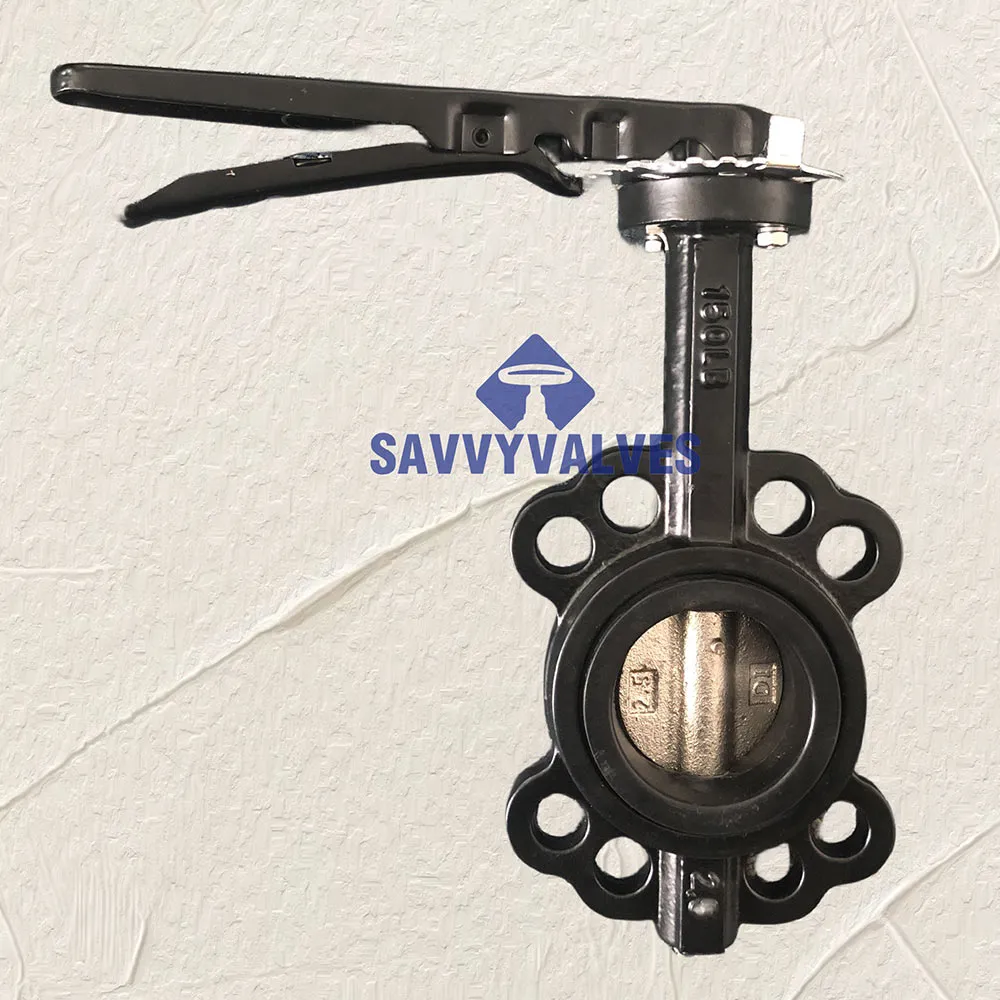

Technical Specifications: Replaceable Cartridge Seat Wafer Butterfly Valve

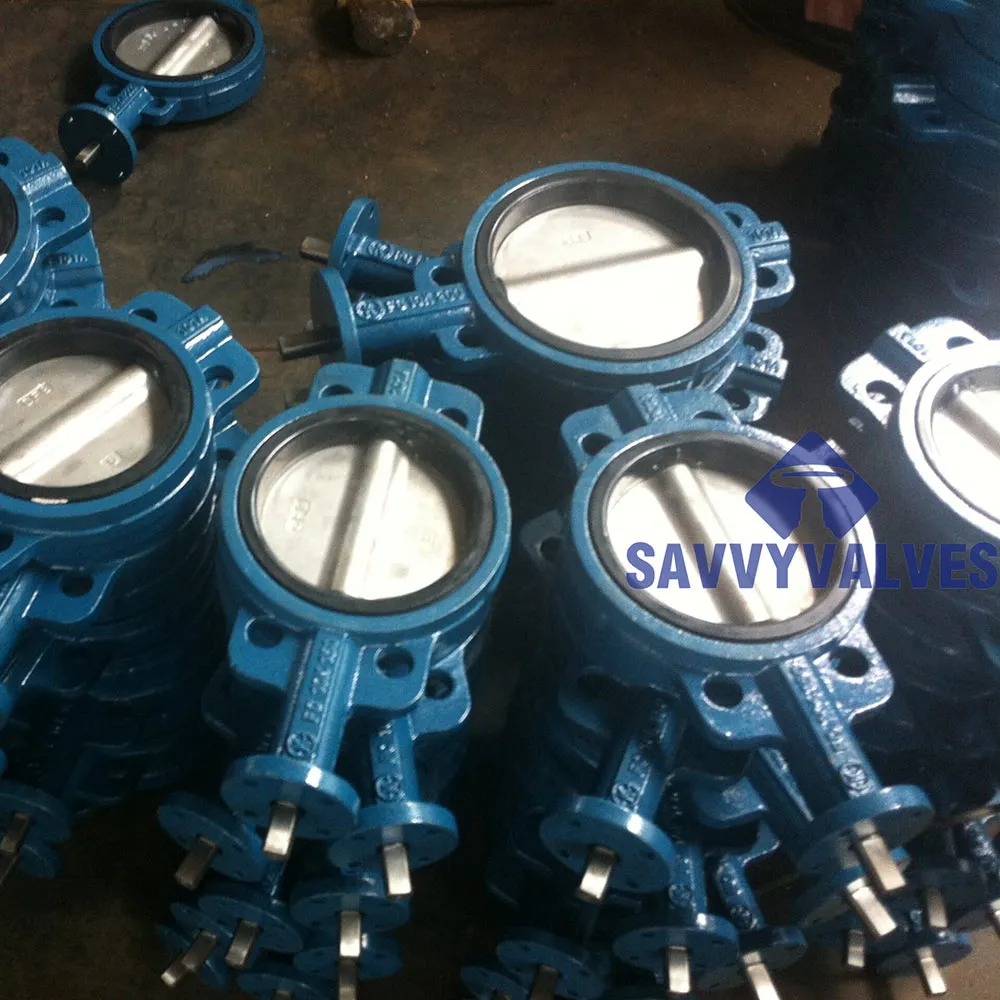

Understanding the technical specifications of wafer style butterfly valves is crucial for ensuring optimal performance and compatibility within specific process conditions. Our Replaceable Cartridge Seat Wafer Butterfly Valve is engineered for superior sealing, extended life, and simplified maintenance.

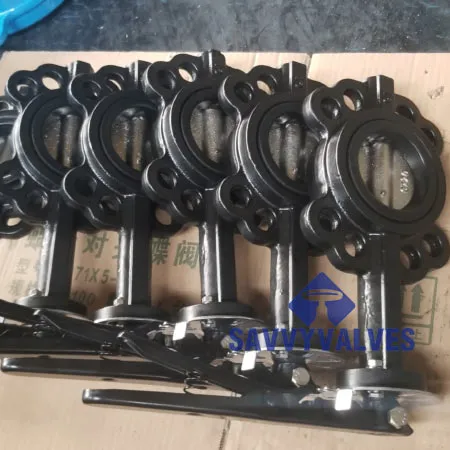

| Parameter | Specification | Standards/Notes |
|---|---|---|
| Valve Type | Wafer Style, Centric Disc, Replaceable Cartridge Seat | Conforms to API 609, ISO 5752 |
| Nominal Size Range | DN50 (2") to DN1200 (48") | Larger sizes available on request |
| Pressure Rating | PN10 / PN16 (150 PSI / 200 PSI) | Equivalent to Class 125/150 for some body materials |
| Temperature Range | -20°C to +200°C (-4°F to +392°F) | Dependent on seat and disc materials |
| Body Materials | Ductile Iron (GGG40/50), Carbon Steel (WCB), Stainless Steel (CF8/CF8M) | Epoxy coated for corrosion resistance (Ductile Iron/Carbon Steel) |
| Disc Materials | Ductile Iron (Nickel Plated), Stainless Steel (CF8/CF8M), Aluminium Bronze | Options for various media compatibility |
| Seat Materials | EPDM, NBR, Viton (FKM), PTFE | Replaceable Cartridge Design for easy maintenance |
| Stem Materials | Stainless Steel (SS410, SS304, SS316) | One-piece or two-piece design |
| Actuation Options | Lever, Gearbox, Pneumatic Actuator, Electric Actuator | ISO 5211 mounting pad |
| Applicable Flanges | ANSI 150, DIN PN10/PN16, JIS 10K | Multi-standard drilling available |
| Leakage Class | API 598 (Zero Leakage / Bubble-tight shutoff) | Ensures superior sealing performance |
The design adheres to international standards, ensuring interoperability and reliable performance. The replaceable cartridge seat mechanism is a significant technical advantage, allowing for simple, in-line replacement of the elastomer seat without removing the entire valve body from the pipeline. This reduces maintenance time and labor costs substantially.
Versatile Application Scenarios and Operational Experience
Wafer style butterfly valves are workhorses in numerous industrial sectors due to their adaptability, efficiency, and cost-effectiveness. Their compact nature and efficient flow characteristics make them ideal for a wide range of fluid control applications.
-
Water Treatment and Distribution: Essential for municipal waterworks, wastewater treatment plants, and irrigation systems. They manage the flow of raw water, treated water, and various chemical solutions for purification. Their low pressure drop contributes to energy savings in large pumping operations.
- HVAC Systems: Widely used in heating, ventilation, and air conditioning systems for controlling the flow of hot and chilled water, crucial for temperature regulation in commercial and industrial buildings.
-
Chemical Processing: With appropriate disc and seat materials (e.g., PTFE-lined, stainless steel discs), these valves handle corrosive chemicals, acids, and alkalis. The replaceable cartridge seat is particularly beneficial here, allowing for cost-effective material upgrades or replacements if chemical compatibility changes.
- Oil & Gas (Non-Critical Applications): Used in utility lines, tank farms, and non-hydrocarbon fluid services, offering a compact and lighter alternative to ball or gate valves where full isolation is not required.
- Power Generation: Found in cooling water systems, service water lines, and auxiliary systems within power plants (thermal, nuclear, hydro).
-
Food & Beverage: With sanitary materials and finishes, they are employed in general utility lines, non-product contact applications, and some less critical process lines.
Customer Feedback and Service Case Details: A major municipal water authority, facing increasing maintenance costs and downtime with traditional valves, implemented our Replaceable Cartridge Seat Wafer Butterfly Valves across several pumping stations. They reported a 30% reduction in average repair time due to the ease of seat replacement and a 15% decrease in annual valve maintenance expenditures within the first two years. This demonstrates the tangible benefits of enhanced maintainability and reliable performance. Another client in the chemical industry specifically praised the versatility of seat material options, which allowed them to standardize on a single valve body design while adapting the seat for different chemical media, significantly streamlining their inventory and procurement processes.
Technical Advantages and Operational Efficiency
The inherent design and advanced features of wafer type butterfly valve offer distinct advantages over other valve types, contributing significantly to operational efficiency and cost savings.
-
Compact and Lightweight Design: Compared to gate or globe valves of equivalent size, wafer butterfly valves are significantly lighter and more compact. This reduces installation space requirements, simplifies pipe support structures, and lowers overall system weight, particularly beneficial in applications with limited space or weight restrictions.
- Cost-Effectiveness: Lower material requirements, simpler manufacturing processes, and reduced installation costs (due to lighter weight and compact design) make them a highly economical choice for many applications. The replaceable cartridge seat further enhances cost-effectiveness by reducing long-term maintenance expenses.
- Low Pressure Drop and High Flow Capacity: The disc-oriented design, when fully open, presents minimal obstruction to flow, resulting in a low pressure drop and high flow coefficient (Cv). This translates into reduced pumping costs and improved system efficiency.
- Quick Operation: As quarter-turn valves, they offer rapid open-to-close cycling, making them ideal for applications requiring frequent operation or emergency shut-off. This speed of operation can be further enhanced with pneumatic or electric actuation.
-
Excellent Sealing Performance: With advancements in elastomer and PTFE seat technology, modern wafer butterfly valves provide bubble-tight shut-off (Zero Leakage, per API 598), ensuring reliable isolation and preventing fugitive emissions.
- Replaceable Cartridge Seat Advantage: This feature is a significant differentiator, allowing for quick, in-line replacement of the soft seat. This minimizes downtime, reduces the need for specialized tools, and extends the overall service life of the valve body, leading to substantial savings in labor and replacement costs.
These technical advantages position the Replaceable Cartridge Seat Wafer Butterfly Valve as a superior choice for a broad spectrum of industrial fluid control challenges, offering an optimal balance of performance, durability, and economical operation.
Vendor Comparison: Wafer Butterfly Valves vs. Other Valve Types
When selecting fluid control components, it's essential to compare wafer style butterfly valves against other common valve types to determine the best fit for specific application requirements.
| Feature | Wafer Butterfly Valve (Replaceable Seat) | Gate Valve | Ball Valve |
|---|---|---|---|
| Size & Weight | Compact & Lightweight | Large & Heavy | Relatively Compact & Moderate Weight |
| Cost (Initial) | Low to Moderate | Moderate to High | Moderate to High |
| Installation Ease | Very Easy (Sandwiched between flanges) | Moderate (Requires bolted flanges) | Moderate (Requires bolted flanges) |
| Flow Control | Good (Throttling & On/Off) | Poor (Primarily On/Off, not for throttling) | Excellent (Throttling & On/Off) |
| Pressure Drop | Low | Very Low (Full bore) | Very Low (Full bore) |
| Sealing | Bubble-tight (Soft seated) | Good (Metal-seated, may leak slightly) | Bubble-tight (Soft seated) |
| Maintenance | Easy (Replaceable seat cartridge) | Difficult (Involves body disassembly) | Moderate (Seat replacement can be complex) |
| Operating Torque | Low | High | Moderate |
| Suitable Media | Water, air, gas, moderate chemicals, slurries | Clean fluids, general utilities | Corrosive fluids, slurries, gas, high purity |
While gate valves offer full, unobstructed flow and ball valves excel in severe service and complete shut-off, wafer style butterfly valves strike an optimal balance for a vast majority of industrial applications where compact design, cost-efficiency, and ease of maintenance are critical. The replaceable cartridge seat design further enhances their competitive edge by significantly reducing the total cost of ownership over the valve's lifecycle.
Customized Solutions for Unique Industrial Demands
Recognizing that off-the-shelf solutions may not always meet the precise requirements of every industrial process, we specialize in providing customized wafer butterfly valve solutions. Our engineering team collaborates closely with clients to tailor valve specifications, ensuring optimal performance in unique operating environments.
Areas of Customization:
- Material Selection: Beyond standard options, we can source and integrate specialized body, disc, and stem materials (e.g., Hastelloy, Monel, Duplex Stainless Steel) for highly corrosive or high-temperature applications. Seat materials can also be customized for specific chemical resistance profiles.
-
Actuation and Control: Integration with specific pneumatic or electric actuators, including failsafe options, smart positioners, limit switches, and advanced control protocols (e.g., HART, Profibus) to match existing plant automation systems.
- End Connections and Dimensions: Custom drilling patterns for non-standard flanges, extended neck designs for insulated pipelines, or specific face-to-face dimensions to accommodate existing piping layouts.
- Coatings and Linings: Application of specialized internal or external coatings (e.g., fusion-bonded epoxy, PTFE lining, ceramic coating) to enhance corrosion resistance, abrasion resistance, or for food-grade applications.
- Fugitive Emission Control: Implementation of enhanced stem packing designs or bellows seals for ultra-low emission applications, meeting stringent environmental regulations.
- Compliance with Specific Standards: Tailoring valves to meet niche industry standards, such as those for marine, pharmaceutical, or explosive environments (e.g., ATEX certification).
Our commitment to engineering excellence allows us to provide solutions that not only meet but often exceed the performance expectations for the most challenging industrial applications, thereby maximizing operational uptime and ensuring long-term system integrity.
Application Case Studies: Real-World Performance
The proven reliability and adaptability of our wafer style butterfly valves are best demonstrated through real-world applications. These case studies highlight their performance in diverse and demanding industrial environments.
Case Study 1: Large-Scale HVAC System Upgrade
A major university campus decided to upgrade its aging HVAC system, requiring 150 new valves for chilled and hot water lines (sizes DN150 to DN400). The primary requirements were compact design for tight plant rooms, high flow efficiency, and minimal maintenance. Our Replaceable Cartridge Seat Wafer Butterfly Valves with EPDM seats and ductile iron bodies were selected.
- Solution: Provided 150 units of DN150-DN400 wafer butterfly valves, largely with gear operators for precise flow modulation.
- Results:
- Reduced installation time by an estimated 25% due to lighter weight and simpler flange-mounted design.
- Achieved significant energy savings (estimated 10-12% annually) through lower pressure drop compared to previous globe valves.
- Maintenance team reported a substantial reduction in service complexity and cost, thanks to the replaceable seat design.
Case Study 2: Chemical Plant Effluent Treatment
A chemical manufacturing facility needed robust valves for its effluent treatment plant, dealing with a variety of mildly corrosive wastewater streams. The environment demanded excellent corrosion resistance and reliable shut-off under fluctuating flow conditions.
- Solution: Supplied wafer butterfly valves with CF8M (316 SS) bodies and discs, coupled with Viton (FKM) replaceable cartridge seats for enhanced chemical resistance.
- Results:
- Achieved complete zero-leakage shut-off, preventing environmental contamination and ensuring process integrity.
- The Viton seats demonstrated superior longevity compared to previously used NBR, reducing the frequency of seat replacements.
- Operational personnel appreciated the consistent low torque required for operation, even after prolonged service.
Case Study 3: Potable Water Distribution Network
A municipal utility sought to upgrade isolation and control points within its potable water distribution network. Key requirements included NSF/ANSI 61 compliance, long service life, and ease of maintenance for critical trunk lines.
- Solution: Provided wafer butterfly valves with fusion-bonded epoxy coated ductile iron bodies, stainless steel discs, and EPDM replaceable seats, all certified for potable water service (NSF/ANSI 61).
- Results:
- Guaranteed compliance with public health standards, ensuring water quality.
- Valves demonstrated excellent durability and corrosion resistance, essential for underground and exposed installations.
- The ease of replacing just the seat, rather than the entire valve, significantly reduced repair costs and facilitated quick returns to service for vital water lines.
Frequently Asked Questions (FAQ)
Q: What is the primary advantage of a replaceable cartridge seat in a wafer style butterfly valve?
A: The primary advantage is significantly reduced maintenance time and cost. Instead of replacing the entire valve or conducting complex in-situ repairs, only the worn-out seat cartridge needs to be replaced. This can often be done without removing the valve body from the pipeline, minimizing downtime and labor expenses. It also allows for easy adaptation to new media by changing seat material.
Q: Can wafer butterfly valves be used for throttling applications?
A: Yes, wafer butterfly valves are effective for throttling, especially with a properly sized actuator and positioner. While they are excellent for on/off service, their quarter-turn operation allows for precise flow modulation. It's important to note that prolonged throttling at very low openings can sometimes lead to premature wear of the seat, so specific application conditions should be discussed with our engineers.
Q: What are the typical lead times for these valves?
A: Standard configurations of our Replaceable Cartridge Seat Wafer Butterfly Valves typically have a lead time of 2-4 weeks. For custom material combinations, specialized coatings, or large project volumes, lead times may extend to 6-10 weeks. We recommend consulting directly with our sales team for precise lead time estimates based on your specific order.
Q: What warranty is offered on your valves?
A: We offer a standard 12-month warranty from the date of installation or 18 months from the date of shipment, whichever comes first, covering defects in materials and workmanship. Extended warranty options are available for specific projects; please contact our sales team for details. Our commitment to quality ensures reliable performance for years to come.
Q: What kind of after-sales support do you provide?
A: Our comprehensive after-sales support includes technical assistance, troubleshooting guides, spare parts availability (especially for our replaceable cartridge seats), and on-site support for complex installations or issues, if required. Our goal is to ensure the long-term, trouble-free operation of our valves in your systems.
Conclusion
The wafer style butterfly valve, particularly advanced variants with replaceable cartridge seats, represents a cornerstone of efficient and reliable fluid control in modern industrial operations. Their compact footprint, high flow capacity, excellent sealing capabilities, and ease of maintenance position them as an economically viable and technically superior choice across a broad spectrum of applications from water treatment to chemical processing. By adhering to rigorous manufacturing standards, embracing technological trends like smart valve integration, and offering customized solutions, we empower industries to optimize their processes, reduce operational costs, and enhance environmental sustainability.
We are dedicated to providing high-performance valve solutions backed by expert technical support and a commitment to customer success. For detailed consultations or to explore how our Replaceable Cartridge Seat Wafer Butterfly Valves can integrate into your specific project, please contact our team of specialists.
References
- American Petroleum Institute (API) Standard 609: Butterfly Valves: Double Flanged, Lug- and Wafer-Type.
- International Organization for Standardization (ISO) 9001: Quality management systems – Requirements.
- ANSI/AWWA C504: Standard for Rubber-Seated Butterfly Valves, 3 In. (75 mm) Through 72 In. (1,800 mm).
- Fluid Power Society. (2018). Industrial Fluid Power: A Comprehensive Guide to Valves and Actuators.
- Valve Manufacturers Association of America (VMA). Valve Magazine - Technical Articles.
