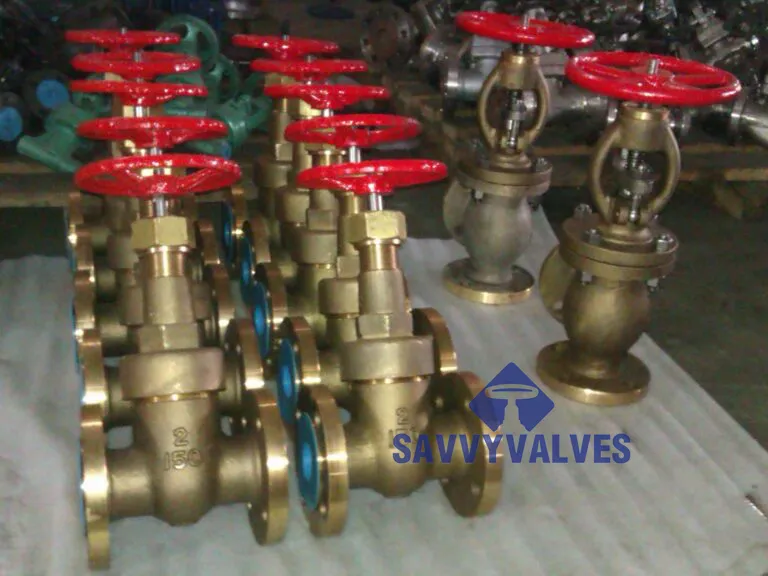

Understanding the Screwed Bonnet Gate Valve: A Core Component in Industrial Flow Control

In the intricate world of industrial fluid management, the screwed bonnet gate valve stands as a foundational component, renowned for its reliability and robust design in isolation applications. This valve type is critically employed across diverse sectors for its ability to provide a tight shut-off and minimal pressure drop when fully open. Its design, particularly the threaded connection between the body and the bonnet, makes it an ideal choice for smaller diameter pipelines where ease of maintenance and compact construction are paramount.

Current industry trends highlight an increasing demand for valves that not only ensure operational safety and efficiency but also comply with stringent environmental regulations regarding fugitive emissions. Manufacturers are focusing on advanced material sciences, precision machining, and innovative sealing technologies to enhance the performance and longevity of these essential components. Digitalization and smart manufacturing principles are also influencing valve production, leading to more consistent quality and optimized lead times. The market is also seeing a push towards more sustainable manufacturing processes and materials.

While the fundamental design of a screwed bonnet gate valve remains consistent, advancements in metallurgy and manufacturing precision continue to push the boundaries of their application, offering enhanced corrosion resistance, higher temperature ratings, and improved sealing capabilities, crucial for demanding industrial environments.

Technical Specifications and Design Principles

The design of a screwed bonnet gate valve is optimized for robust performance and ease of service in specific application ranges. Understanding its key components and their interaction is crucial for proper selection and operation.

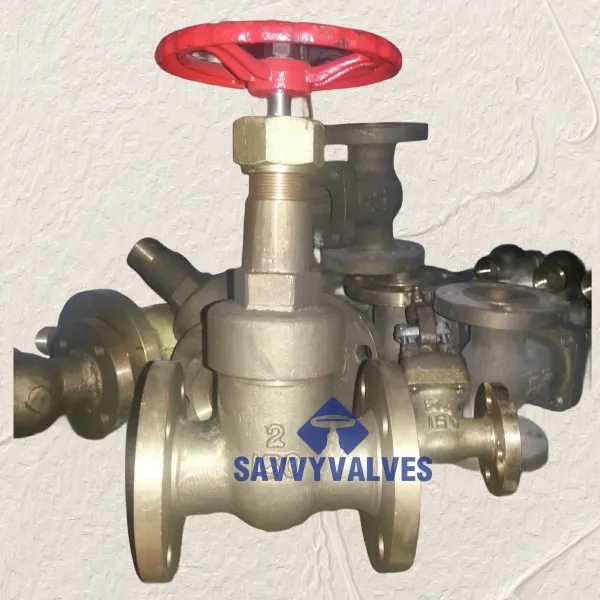

Key Components and Their Functions:

• Body: The primary pressure boundary, typically cast or forged, accommodating the flow path and connections.
• Bonnet: Connected to the body via a threaded joint, it houses the stem assembly and provides access to internal components for maintenance. The screwed design offers a compact solution for smaller valve sizes.
• Wedge (Disc): The gate-like component that moves perpendicular to the flow to start or stop it. Various wedge designs exist, including solid, flexible, or split wedges, each suited for different service conditions.
• Stem: Connects the handwheel (or actuator) to the wedge, translating rotational motion into linear movement. Non-rising stem designs are common for compact installations.
• Packing: Located in the stuffing box, it creates a seal around the stem to prevent fugitive emissions. Modern packing materials comply with low-emission standards (e.g., API 622).
• Handwheel: Manual actuator for opening and closing the valve.

Material Selection:

Material choice is critical and dictated by the process media, temperature, and pressure. Common materials include:

• Carbon Steel (e.g., ASTM A216 WCB): For general purpose, non-corrosive services at moderate temperatures.
• Stainless Steel (e.g., ASTM A351 CF8M): Excellent for corrosive media and higher temperatures.
• Alloy Steel (e.g., ASTM A217 WC6/WC9): For high-temperature and high-pressure services.
• Bronze (e.g., ASTM B62 C83600): Common in water, steam, and general utility services.

Relevant Standards and Parameters:

Adherence to international standards ensures interoperability, safety, and performance. Key standards include:

• API 600 / ISO 10434: Steel Gate Valves — Flanged and Butt-welding Ends (though more applicable to larger valves, principles apply).
• ASME B16.34: Valves—Flanged, Threaded, and Welding End.
• API 598: Valve Inspection and Testing.
• NPT / SW: National Pipe Thread / Socket Weld for end connections.

A typical specification for a screwed bonnet gate valve might appear as follows:

Manufacturing Process and Quality Assurance

The production of a screwed bonnet gate valve involves a series of meticulously controlled stages, ensuring the final product meets stringent performance and safety standards. This process integrates advanced manufacturing techniques with rigorous quality control.

Process Flow:

1. Material Procurement and Inspection: Raw materials (e.g., ASTM A105 forged steel, ASTM A351 CF8M cast stainless steel) are sourced from certified suppliers. Incoming material undergoes spectral analysis and mechanical testing to verify chemical composition and physical properties in accordance with ASTM/ASME standards.
2. Casting or Forging:
   • Forging: For smaller sizes and higher pressure ratings, valve bodies and bonnets are often forged, providing superior grain structure, strength, and integrity. This involves heating metal billets and shaping them under high pressure.
   • Casting: For larger sizes or specific materials, components are cast in molds. This process is followed by heat treatment to achieve desired mechanical properties.
3. CNC Machining: Precision Computer Numerical Control (CNC) machining is employed to achieve exact dimensions for internal and external surfaces, ensuring tight tolerances for seating areas, threads, and end connections (NPT, SW). This phase is critical for achieving optimal sealing and operational smoothness.
4. Assembly: Components including the body, bonnet, wedge, stem, packing, gland, and handwheel are meticulously assembled. Proper lubrication and torque specifications are applied during this stage.
5. Testing and Inspection: Each screwed bonnet gate valve undergoes rigorous testing to validate its integrity and performance.
   • Hydrostatic Body Test (API 598): The valve body is subjected to a pressure significantly higher than its rated working pressure to ensure no external leaks.
   • Hydrostatic Seat Leak Test (API 598): Checks the integrity of the seating surfaces to ensure tight shut-off.
   • Low-Pressure Air Test: Often conducted for fugitive emissions compliance, using air or nitrogen at low pressure to detect leaks.
   • Non-Destructive Testing (NDT): For critical applications, methods like Magnetic Particle Inspection (MPI), Ultrasonic Testing (UT), or Radiographic Testing (RT) may be performed on castings/forgings to detect internal flaws.
6. Surface Treatment and Packaging: Valves are typically coated with anti-corrosion paint or protective layers. Final inspection ensures proper marking, tagging, and secure packaging for shipment.

The commitment to rigorous testing and adherence to standards like ISO 9001 and API Q1 throughout the manufacturing process ensures a high service life and reliable performance, often exceeding 10-15 years in typical operational conditions, depending on the fluid properties and maintenance schedule. This meticulous process ensures that each screwed bonnet gate valve delivered can withstand the demanding conditions of target industries.

Application Scenarios and Target Industries

The versatility and robust nature of the screwed bonnet gate valve make it indispensable across a spectrum of industrial applications where reliable on-off control is critical. Its design is particularly well-suited for smaller line sizes.

Key Target Industries:

• Petrochemical and Oil & Gas: Used extensively in refineries, offshore platforms, and upstream/midstream operations for isolating process lines, utility lines, and instrument connections. Their compact design is advantageous in confined spaces.
• Power Generation: Found in steam, condensate, and cooling water systems within conventional and nuclear power plants, providing reliable shut-off for various auxiliary services.
• Chemical Processing: Critical for handling a wide range of chemicals, including corrosive and abrasive fluids, due to the availability of specialized materials like stainless steel and exotic alloys.
• Water Supply & Drainage: Employed in water treatment plants, pumping stations, and distribution networks for isolating sections of piping for maintenance or flow control.
• Pulp and Paper: Used in various stages of pulp production and paper manufacturing, managing water, steam, and chemical flows.
• HVAC Systems: Found in heating, ventilation, and air conditioning systems for isolating sections of water or steam lines.

Advantages in Typical Application Scenarios:

• Energy Saving: When fully open, the gate valve offers a full bore, resulting in minimal pressure drop and reduced energy consumption for pumping, which is a significant factor in large-scale fluid transfer systems.
• Corrosion Resistance: By selecting appropriate materials (e.g., Duplex Stainless Steel for seawater, Hastelloy for highly acidic media), these valves can withstand aggressive corrosive environments, ensuring longevity and reducing replacement costs.
• Tight Shut-off: The wedge seating mechanism provides a reliable, bi-directional seal, making it ideal for applications requiring absolute isolation of fluid flow.
• High-Temperature/Pressure Resilience: With forged body construction and specialized trim materials, they are designed to perform reliably under extreme temperature and pressure conditions, common in steam and thermal oil systems.

Technical Advantages and Performance Characteristics

The specific construction of a screwed bonnet gate valve offers distinct technical advantages, particularly for smaller bore applications. These attributes contribute significantly to their preference in various industrial settings.

Primary Advantages:

• Compact Design: The screwed bonnet design eliminates the need for flanges and bolting for the bonnet connection, leading to a more compact and lightweight valve. This is highly beneficial in installations with limited space.
• Ease of Field Service for Smaller Lines: For valves up to NPS 2", the screwed bonnet allows for relatively straightforward disassembly and reassembly, simplifying maintenance, packing replacement, and minor repairs without requiring specialized tooling associated with larger bolted bonnet designs.
• Robust Bonnet Seal: When correctly assembled and torqued, the threaded bonnet connection provides a strong and reliable pressure boundary, effectively preventing external leakage. For critical services, sealant compounds can further enhance this seal.
• Low-Pressure Drop: In the fully open position, the gate is completely withdrawn from the flow path, creating a full-bore opening. This results in minimal turbulence and negligible pressure drop, which is crucial for maximizing system efficiency and reducing pumping costs.
• Bi-directional Flow: Gate valves are generally suitable for bi-directional flow, making them versatile for various pipeline configurations.

Performance Comparison: Screwed Bonnet vs. Bolted Bonnet Gate Valves

While both are types of bonnet gate valve, the choice between a screwed bonnet and a bolted bonnet gate valve often depends on the size of the valve, pressure class, and maintenance considerations.

Vendor Comparison and Customized Solutions

Selecting the right vendor for industrial valves, particularly for specialized components like the screwed bonnet gate valve, is a decision that impacts operational reliability, safety, and total cost of ownership. Beyond standard product offerings, customization capabilities are a critical differentiator.

Key Vendor Differentiators:

• Quality Certifications: Look for manufacturers holding certifications like ISO 9001 (Quality Management Systems), API Monogram (for oil and gas industry), CE Marking (for European markets), and compliance with NACE MR0175 for sour service applications.
• Material Traceability: A reputable vendor provides full material traceability (mill test reports) from raw material to finished product, ensuring authenticity and quality.
• Engineering and Technical Support: The ability to offer expert advice on valve selection, material compatibility, and application-specific challenges is invaluable.
• Years of Service & Industry Reputation: A long-standing presence in the industry and positive client testimonials indicate consistent quality and reliability. Savvy Valve Tech, for instance, leverages extensive experience in delivering high-performance valve solutions.
• After-Sales Support & Warranty: Comprehensive warranty programs and readily available spare parts minimize downtime and operational risks.

Customized Solutions:

For highly specialized or severe service applications, off-the-shelf valves may not suffice. Leading manufacturers offer extensive customization options for their screwed bonnet gate valve product lines:

• Specialty Materials: Fabrication in exotic alloys such as Duplex Stainless Steel, Super Duplex, Hastelloy, or Inconel for extreme corrosion resistance or high-temperature strength.
• Trim Configurations: Specific trim materials (e.g., Stellited seats, hardened wedges) to enhance wear resistance in abrasive or high-velocity applications.
• Cryogenic Service: Extended bonnets and special materials for applications dealing with extremely low temperatures (e.g., LNG, liquid nitrogen).
• Special Coatings: Internal or external coatings for enhanced corrosion protection or reduced friction.
• Actuation Options: While typically handwheel operated, for remote control or automation, these valves can be adapted for pneumatic, electric, or hydraulic actuation.
• NACE Compliance: Ensuring materials and manufacturing processes meet NACE MR0175/ISO 15156 standards for resistance to sulfide stress cracking in sour gas environments.

Partnering with a vendor capable of providing these tailored solutions ensures that the valve integrates seamlessly into the system, maximizing performance and extending operational life.

Application Case Studies and Customer Experience

Real-world deployments demonstrate the tangible benefits and reliability of quality screwed bonnet gate valve solutions. These examples highlight their effectiveness and the positive impact on operational efficiency and safety.

Case Study 1: Chemical Processing Facility – Corrosive Acid Isolation

A major chemical producer faced recurring issues with valve failures in their hydrochloric acid processing lines (NPS 1" & 1.5"), leading to frequent maintenance and safety concerns. Standard carbon steel gate valves succumbed to corrosion within months. After consulting with a specialized valve manufacturer, they implemented custom-fabricated screwed bonnet gate valve units made from Hastelloy C276, specifically designed for high resistance to oxidizing and reducing acids. The compact screwed bonnet design allowed for easy integration into existing tight pipe racks. Post-installation, the valves have been operating flawlessly for over three years, significantly reducing unscheduled downtime and improving worker safety. The client reported a 70% reduction in valve-related maintenance costs for this specific line.

Case Study 2: Offshore Oil Platform – Utility Water Isolation

On an offshore oil and gas production platform, small bore utility water lines (NPS 3/4" & 1") experienced regular stem packing leaks in conventional globe valves, resulting in increased fugitive emissions and maintenance. The client sought a more reliable and compact isolation solution. We supplied API 602 forged steel screwed bonnet gate valves with high-performance graphite packing, meeting API 622 low-emission standards. The non-rising stem design was particularly beneficial in congested pipe runs. The installation led to a drastic reduction in leaks and extended maintenance intervals from 6 months to over 2 years, improving environmental compliance and operational efficiency. Customer feedback highlighted the "robust build and dependable sealing performance, even in a demanding marine environment."

Customer Feedback Highlights:

• "The screwed bonnet gate valves provided by Savvy Valve Tech have proven to be exceptionally reliable in our high-pressure steam lines. Their technical support during selection was invaluable." – _Procurement Manager, Power Plant_
• "We appreciate the robust construction and the attention to detail in testing. The quick lead times on our custom orders are also a significant advantage." – _Project Engineer, Water Treatment Solutions_

Trust and Support: Your Partner in Valve Technology

Building long-term partnerships in the B2B sector is founded on trust, transparency, and unwavering support. At Savvy Valve Tech, we are committed to providing not just high-quality screwed bonnet gate valves but also a comprehensive service ecosystem.

Frequently Asked Questions (FAQ):

Q: What is the typical lead time for a standard screwed bonnet gate valve order?

A: For standard configurations and common materials, lead times typically range from 4 to 6 weeks, depending on order volume. Expedited options are available for urgent requirements.

Q: Do you offer custom material options for corrosive applications?

A: Absolutely. We specialize in custom solutions, offering a wide range of exotic alloys such as Duplex, Super Duplex, Hastelloy, Monel, and Inconel to suit the most aggressive media. Our engineering team can assist with material selection.

Q: What is your warranty policy?

A: All our valves come with a standard 12-month warranty from the date of installation or 18 months from the date of shipment, whichever comes first, covering defects in materials and workmanship. Extended warranties can be negotiated for specific projects.

Q: How do you ensure product quality and compliance?

A: We maintain ISO 9001 certified quality management systems and adhere to international standards like API, ASME, and ANSI. Each valve undergoes rigorous inspection and testing, including hydrostatic and pneumatic tests, with full material traceability reports provided.

Lead Time & Fulfillment Details:

Our streamlined manufacturing processes and robust supply chain enable us to provide competitive lead times. Typical lead times for off-the-shelf screwed bonnet gate valves are 4-6 weeks, while custom-engineered solutions may require 8-12 weeks depending on complexity and material availability. We offer global shipping capabilities and work closely with logistics partners to ensure timely and secure delivery.

Warranty Commitments:

Our commitment to quality is backed by a comprehensive warranty. We stand by the durability and performance of our products, ensuring peace of mind for our clients. In the rare event of a product issue, our dedicated support team is ready to assist with troubleshooting, repair, or replacement in accordance with our warranty terms.

Customer Support & After-Sales Service:

Our experienced customer support team is available to provide technical assistance, product selection guidance, and after-sales service. From initial inquiry to post-installation support, we are dedicated to ensuring optimal valve performance throughout its operational life. This includes access to original spare parts, maintenance guides, and on-site support if required. Our long-term partnerships with major clients across petrochemical, power, and water industries are a testament to our enduring reliability and service excellence.

Conclusion

The screwed bonnet gate valve remains a critical component in industrial fluid control, offering a reliable, compact, and cost-effective solution for on-off service in smaller bore applications. Its enduring design, coupled with continuous advancements in material science and manufacturing precision, ensures its continued relevance in the most demanding environments. By prioritizing quality, adherence to international standards, and comprehensive customer support, manufacturers contribute significantly to the safety, efficiency, and longevity of industrial processes.

References

1. American Petroleum Institute (API). API Specification 602: Gate, Globe, and Check Valves for Sizes NPS 4 (DN 100) and Smaller.
2. American Society of Mechanical Engineers (ASME). ASME B16.34: Valves—Flanged, Threaded, and Welding End.
3. International Organization for Standardization (ISO). ISO 9001: Quality management systems—Requirements.
4. National Association of Corrosion Engineers (NACE). NACE MR0175/ISO 15156: Petroleum and natural gas industries—Materials for use in H2S-containing environments in oil and gas production.
5. Valve Manufacturers Association of America (VMA). Valve Basics.
