Why the industry keeps picking the SAVVY motorised Solid wedge gate valve (BB, OS&Y, RS)

The last five years have been kind to smart actuation and tough metal-seated isolation valves. Plants want fewer unplanned stops and more precise control—even on a classic gate valve. That’s where the SAVVY motorised Solid wedge gate valve has been quietly earning fans. To be honest, it’s the kind of kit you notice only when something goes wrong. But here, it just… doesn’t.

Core build and specs (the quick take)

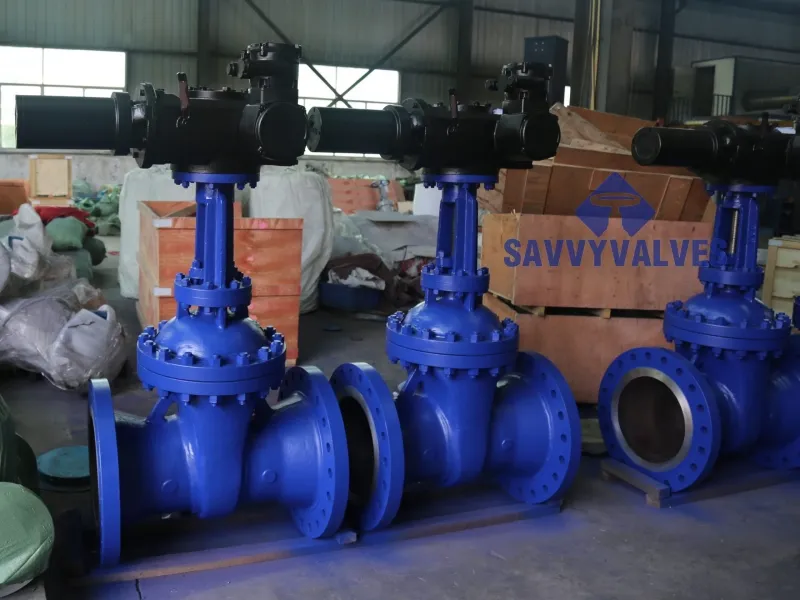

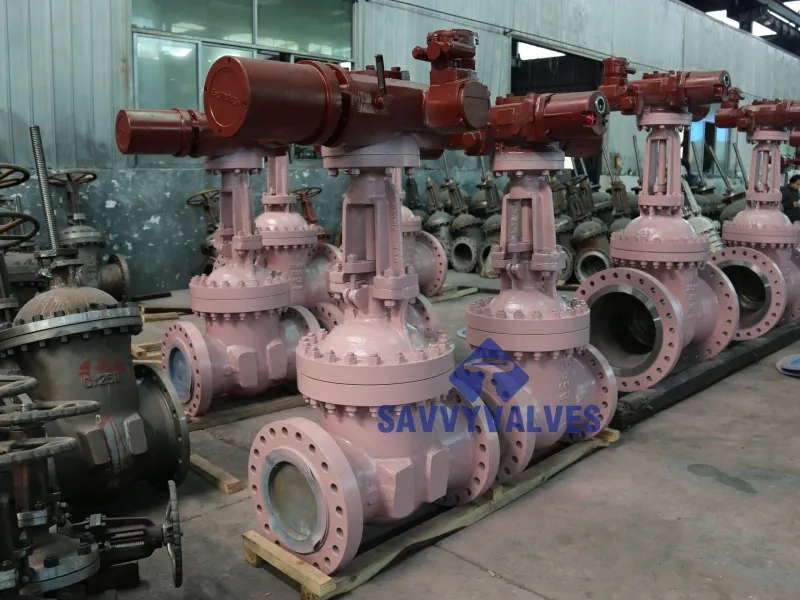

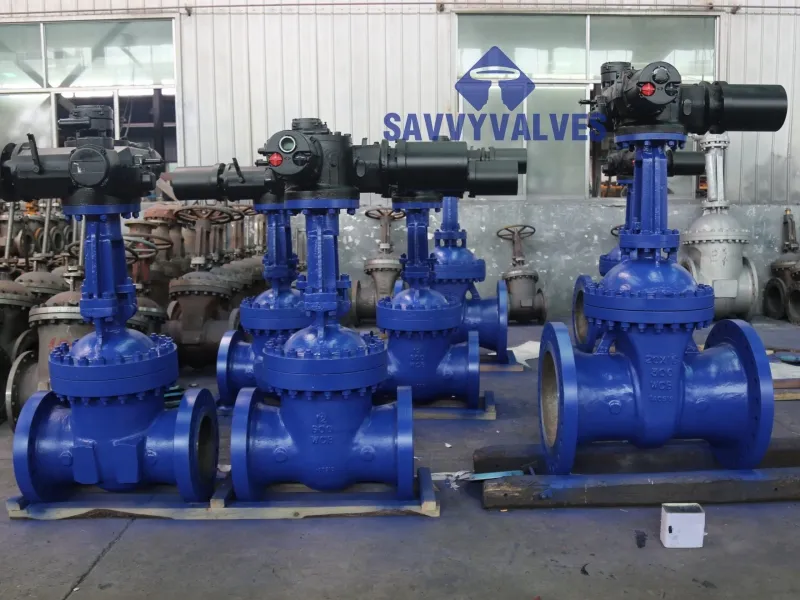

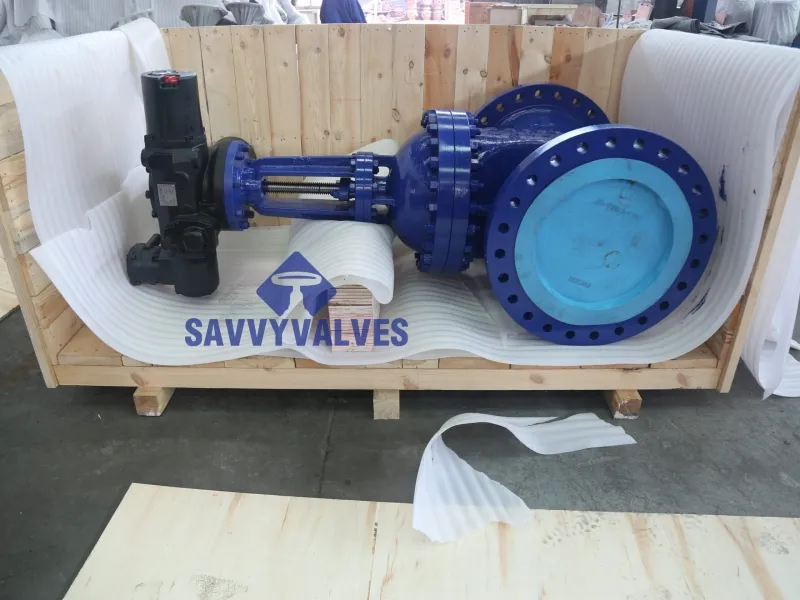

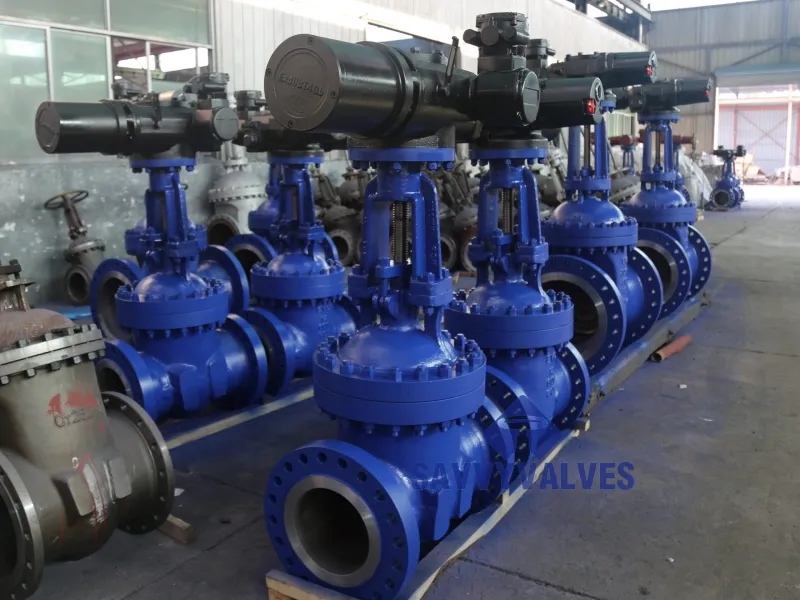

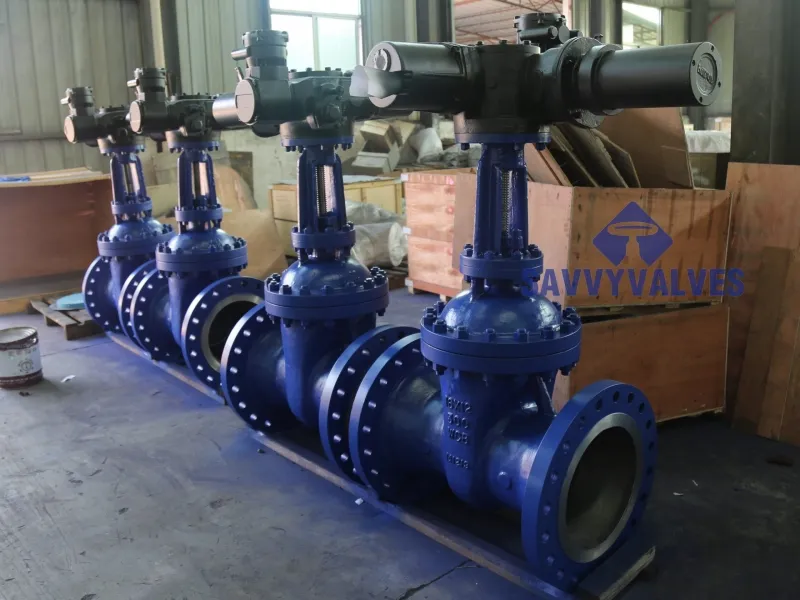

This model is a bolted-bonnet (BB), outside screw & yoke (OS&Y), rising-stem (RS) design with a Limitorque intelligent modulating actuator. Size on the photo build: 20″×16″; ratings: ASME Class 300 and 600.

Parameter	Specification
Body/Bonnet	ASTM A216 WCB
Disc/Wedge	WCB with Stellite 6 hardfacing (flexible wedge)
Stem	ASTM A182 F6a (410 SS)
Seat	A105 with Stellite 6 overlay
Actuation	Limitorque intelligent, 4–20 mA, 480 VAC, 3PH, 60 Hz, manual override
Test standard	API 598: shell 1.5×, seat 1.1× rating; leakage rate A
Design standard	API 600; ASME B16.34; flanges per ASME B16.5
Service life	≈25–30 years in treated water; ≈15–20 in hydrocarbon service (real-world use may vary)

Manufacturing and testing—how it’s put together

Materials are PMI-verified, castings are normalized, and critical dimensions get 100% gauged. Seats and wedge faces receive Stellite 6 overlay, then precision lapping to hit tight sealing performance. NDE is typically MT/PT on seating, UT on sections with thickness changes, and hydro per API 598. I like that torque signatures are recorded at factory FAT, which makes commissioning smoother than you’d expect.

Where it fits (and why it stays)

Refining, midstream pipelines, petrochem, power (CW and boiler island isolation), steel plants, and large water transmission lines. The SAVVY motorised Solid wedge gate valve handles Class 300/600 pressures and dirty service decently; the flexible wedge tolerates a bit of thermal distortion, which, frankly, saves operators on seat wear. OS&Y makes packing inspection easy and obvious.

Industry trend check

Two themes: smarter actuators and tougher trims. Plants want modulating isolation for slow-ramps and soft-starts; Limitorque’s diagnostics hit that. Also, Stellite overlays remain the workhorse where abrasive fines lurk. Low-emissions packing per ISO 15848 is requested more often; SAVVY can tailor packing sets to that spec on request.

Customization notes

NACE MR0175/ISO 15156 compliance for sour gas service
Alternate trims: 13Cr, 316, Monel, or hardfacing variations
By-pass, drain, positioners, torque switches, and IP-rated actuator enclosures (IEC 60529)

Real-world stories (anonymized)

Refinery, Middle East: swapping legacy gear-operated gates on a 20″ crude line for motorised Class 600 units cut isolation time from ≈14 minutes to 90 seconds with better repeatability. After 18 months, seat leakage remained at API 598 rate A. Power plant, Southeast Asia: two SAVVY motorised Solid wedge gate valve units on a CW header showed no measurable stem leak after 10k cycles; operators liked the manual override during outages.

How it stacks up (quick vendor snapshot)

Criteria	SAVVY	Global Brand X	Regional Maker Y
Design baseline	API 600, ASME B16.34	API 600	Varies
Actuator	Limitorque modulating, diagnostics	Own-brand or Limitorque/Auma	Generic electric
Hardfacing	Stellite 6 seat & wedge	Stellite 6	Often optional
Lead time	≈6–12 weeks (typical)	≈10–20 weeks	≈8–16 weeks
Price band	Competitive mid	Premium	Low–mid

Customer feedback? Many say the torque curve is predictable, and surprisingly, the commissioning time was shorter than budgeted. Also, service access on the OS&Y yoke is straightforward—no drama.

Compliance, documentation, and where it’s from

Certs typically include ISO 9001 QMS and material traceability EN 10204 3.1; PED or ATEX-related actuator docs on request. Factory address (office): Block A Yintai Building, NO.48, North Xianyang Road, Hongqiao District, Tianjin, China.

Wrapping up

If you need a motorised gate that closes tight, modulates when asked, and won’t chew through seats, the SAVVY motorised Solid wedge gate valve is, frankly, a sensible pick.
