Why the SAVVY 2-Piece Cryogenic Floating Ball Valve keeps showing up on my project lists
In LNG, hydrogen, and specialty gases, valves either behave at low temperature or they don’t—there’s not much middle ground. Over the past year, I’ve visited three sites that swapped legacy cryo units for the SAVVY 2-Piece Cryogenic Floating Ball Valve, and, to be honest, the operators sounded relieved. Fewer leaks, easier actuation, less maintenance downtime. That tracks with what I’ve seen across the industry.
What’s driving cryogenic valve demand now
Two words: energy transition. LNG remains strong, but hydrogen, bio-LNG, and cold box revamps are pushing specs toward tighter leakage rates and smarter actuation. Actually, the biggest shift I hear from buyers is consistent helium tightness at temperature, not just “nameplate” performance.
Product snapshot and core specs

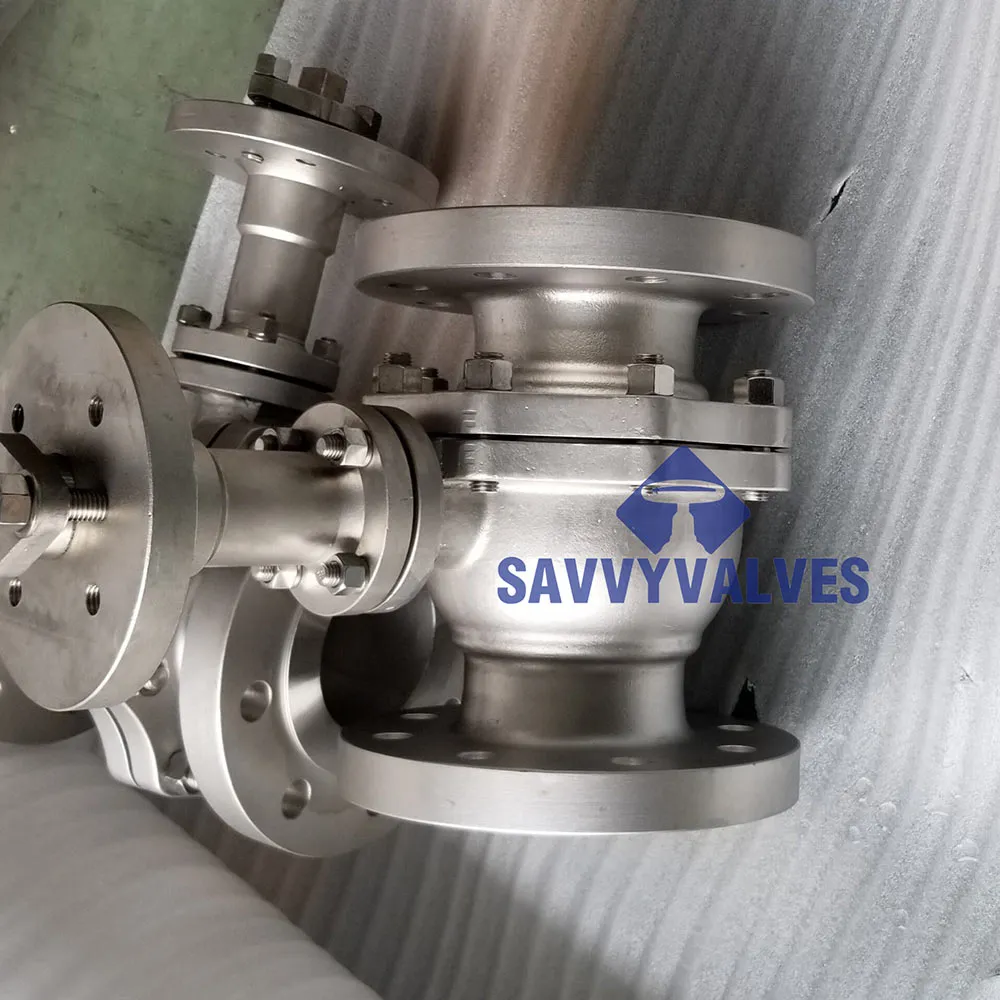

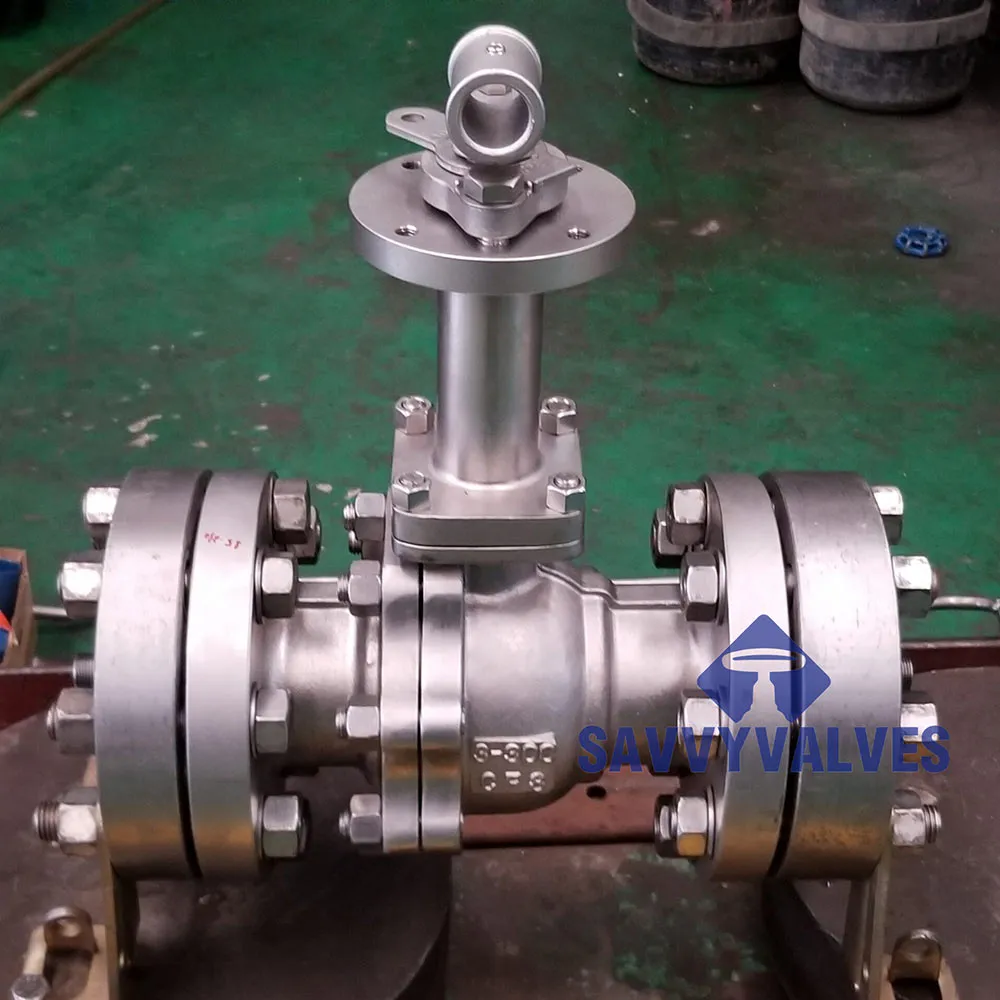

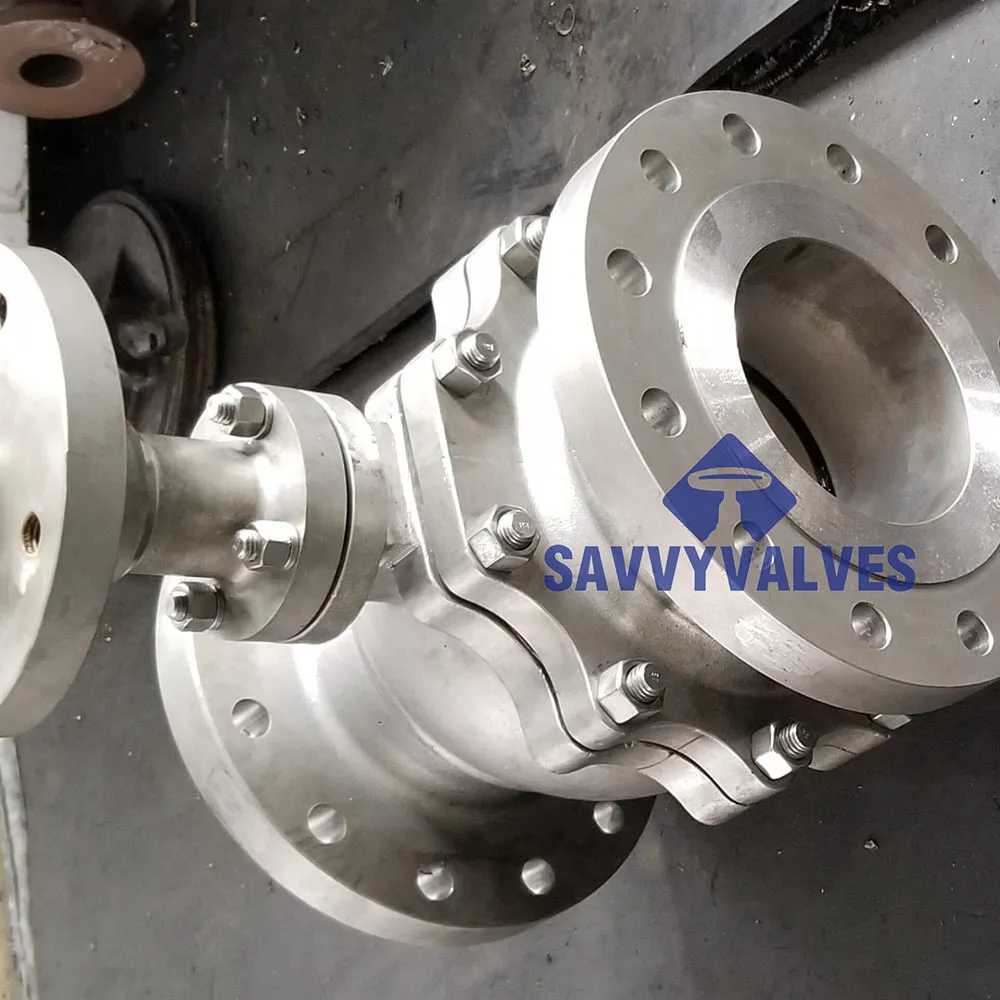

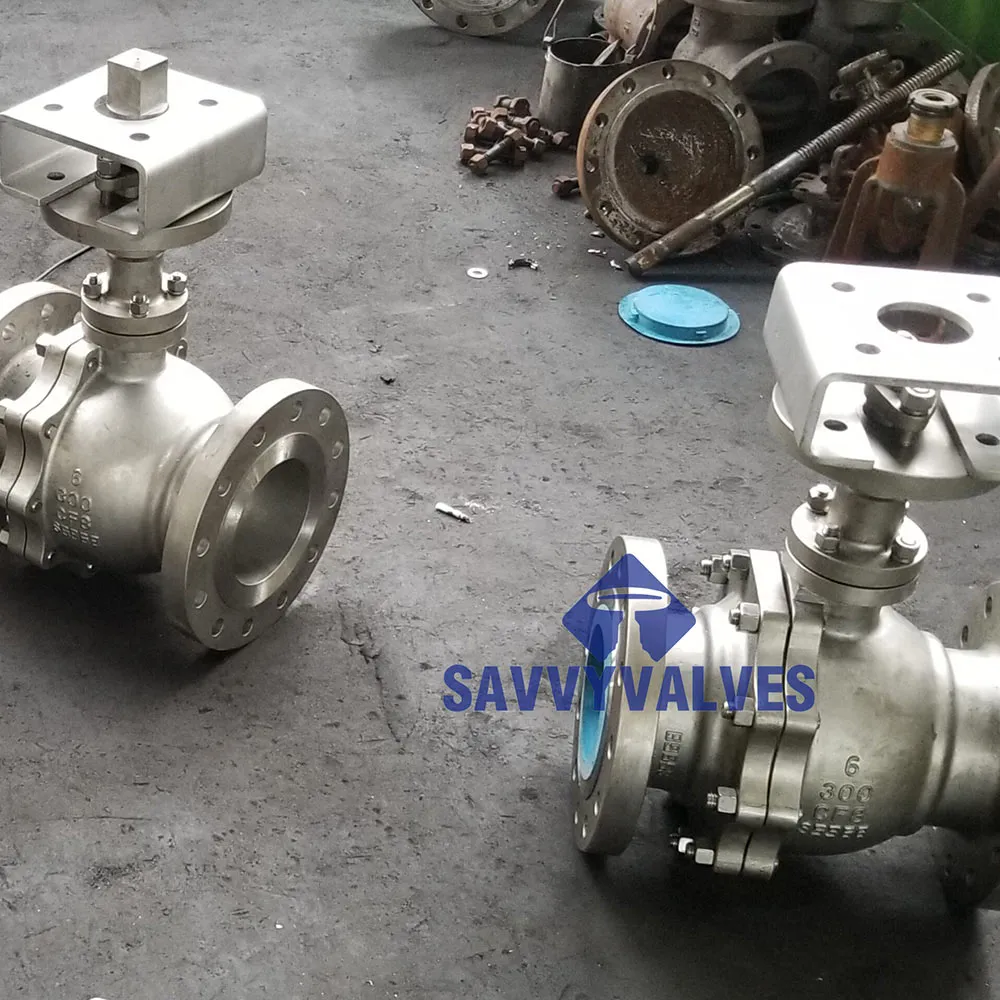

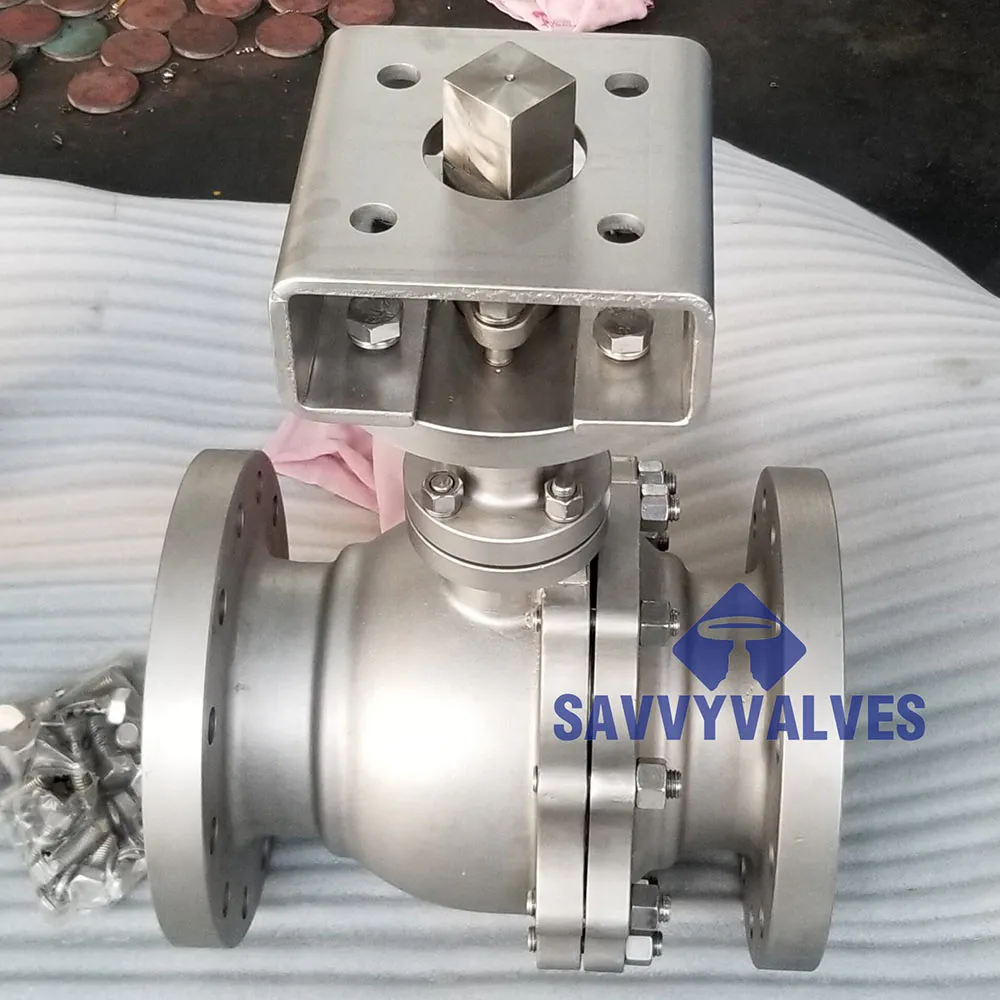

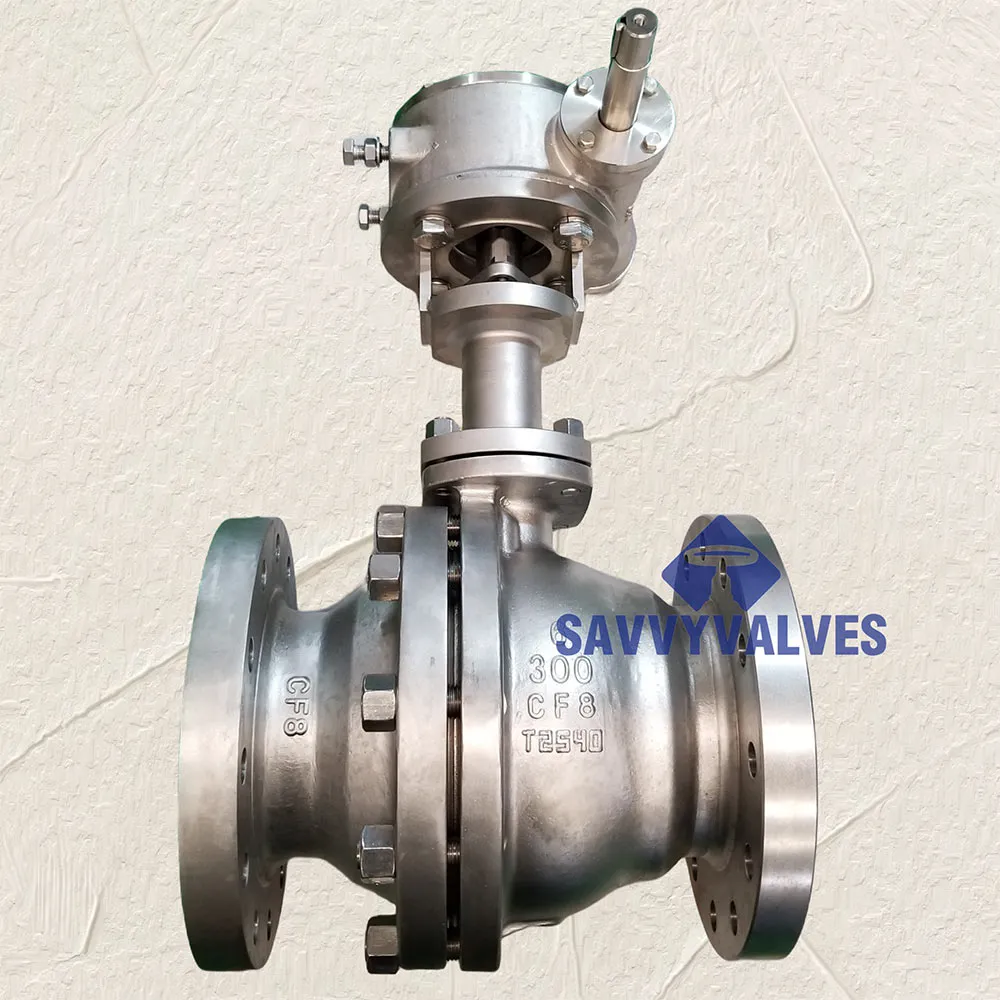

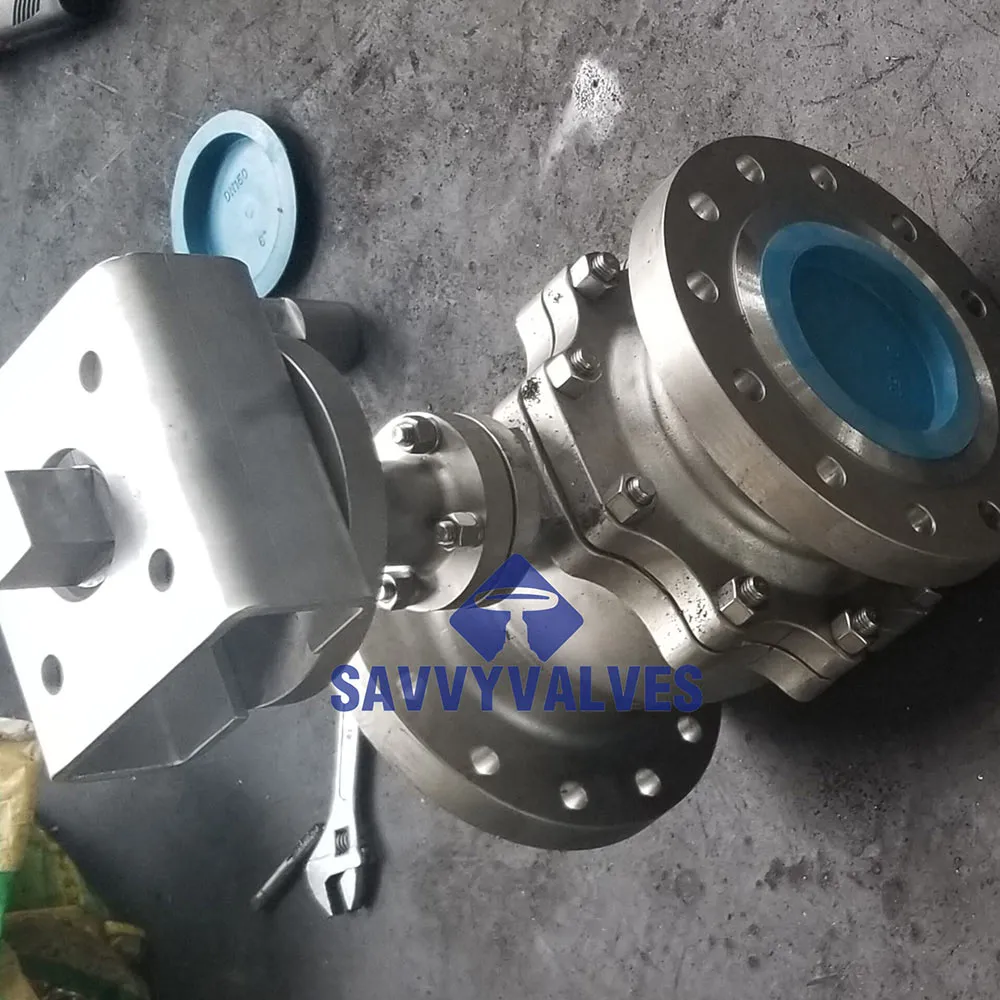

The showcased configuration below is the 6-inch, Class 300 flanged model with pneumatic actuation. Many customers say it’s a “drop-in” for brownfield LNG lines.
| Parameter | Spec (≈/typical where noted) |
|---|---|
| Size | 6″ |
| Pressure Rating | ASME Class 300 (ASME B16.34) |
| Ends | Flanged per ASME B16.5 Class 300 |
| Temperature | Standard tested to -70 ℃; options to ≈ -196 ℃ on request |
| Body/Bonnet | ASTM A351 CF8 with cryogenic extension bonnet |
| Ball | ASTM A182 F304 |
| Stem | ASTM A182 F304, blowout-proof design |
| Seats | Spring-energized PCTFE |
| Actuation | Pneumatic actuator, ISO 5211 mount |
| Leakage (helium) | ≤ 1×10^-6 atm·cc/s at setpoint (real-world use may vary) |
| Service Life | ≈100,000 cycles at -70 ℃ in-house tested |
How it’s built (materials → methods → testing)
Materials: CF8 body/bonnet and F304 ball/stem handle thermal shock well; PCTFE seats keep elasticity at cryo temperatures. Methods: precision casting, tight-tolerance machining, lapped ball-seat pairs, and extended stem column to protect packing. Testing: API 598 and EN 12266 seat tests, plus BS 6364/ISO 28921 cryogenic qualification runs when specified. I guess the secret sauce is the spring-energized seat stack—it maintains sealing force as everything shrinks.
Where it’s used
LNG process lines, BOG, ship bunkering skids; liquid nitrogen/oxygen/argon plants; hydrogen pilot lines; pharmaceutical cold boxes; specialty gas storage. One plant manager told me the SAVVY 2-Piece Cryogenic Floating Ball Valve “just seats” after cooldown, which sounds simple but matters on night shift.
Advantages and customization
- Low fugitive emissions: stacked graphite/PTFE packing; optional live-loading.
- Smooth torque with pneumatic actuation; SIL-ready packages on request.
- Options: extended bonnet lengths, cavity relief, anti-static, mechanical stops, positioners, and oxygen-cleaning.
- Docs: material traceability (3.1), hydro/helium reports, and cryo curves.
Mini case: LNG pump discharge retrofit
A coastal LNG site replaced aging Class 300 units on 6″ pump discharge lines. Result? Helium leak rate improved from ≈5×10^-6 to ≤1×10^-6 atm·cc/s, torque dropped ≈12% at -60 ℃, and maintenance intervals stretched to a planned 18 months. Not a miracle—just competent engineering executed well.
How it stacks up
| Feature | SAVVY 2-Piece Cryogenic Floating Ball Valve | Competitor A | Competitor B |
|---|---|---|---|
| Cryo standard | BS 6364 / ISO 28921 (on request) | BS 6364 | In-house only |
| Seat material | PCTFE, spring-energized | PTFE | PCTFE |
| He leak rate | ≤1×10^-6 atm·cc/s | ≈5×10^-6 | ≤1×10^-6 |
| Lead time | 4–8 wks (typ.) | 10–14 wks | 8–12 wks |
| Warranty | 18 months | 12 months | 12 months |
What users say and compliance notes
Feedback trends: “predictable torque,” “no seat chatter after cooldown,” and “packing holds.” Certifications available: ISO 9001 QMS, material EN 10204 3.1, PED on request. Design/inspection against ASME B16.34; leakage per API 598/EN 12266; cryo validation per BS 6364 or ISO 28921 when specified.
Origin (office): Block A Yintai Building, NO.48, North Xianyang Road, Hongqiao District, Tianjin, China. If you need drawings, torque curves, or packing emissions data, ask for the cryo dossier for the SAVVY 2-Piece Cryogenic Floating Ball Valve.
Authoritative citations
- ASME B16.34: Valves—Flanged, Threaded, and Welding End. https://www.asme.org
- ASME B16.5: Pipe Flanges and Flanged Fittings. https://www.asme.org
- API 598: Valve Inspection and Testing. https://www.api.org
- BS 6364: Specification for Valves for Cryogenic Service. https://www.bsigroup.com
- ISO 28921-1: Cryogenic valves—Testing. https://www.iso.org
