Industry Trends & The Critical Role of Cryogenic Gate Valves
The global energy landscape is rapidly evolving, driven by increasing demand for cleaner fuels and the expansion of industrial gas applications. This paradigm shift has placed immense importance on the reliable and safe handling of cryogenic fluids – substances maintained at extremely low temperatures, often below -150°C (-238°F). At the heart of managing these critical processes lies the cryogenic gate valve, an essential component for isolation and control in challenging environments.
Key industry trends propelling the demand for high-performance cryogenic valves include the burgeoning Liquefied Natural Gas (LNG) and Liquefied Petroleum Gas (LPG) sectors, growth in air separation units (ASUs) for industrial gases like oxygen, nitrogen, and argon, and advancements in aerospace and medical cryogenics. The emphasis is on valves that offer uncompromising integrity, minimal heat ingress, and superior operational reliability under severe cold. Specifically, the market is seeing a surge in demand for robust solutions like the forged gate valve, recognized for its enhanced material strength and structural integrity over cast alternatives, particularly in high-pressure and critical applications.

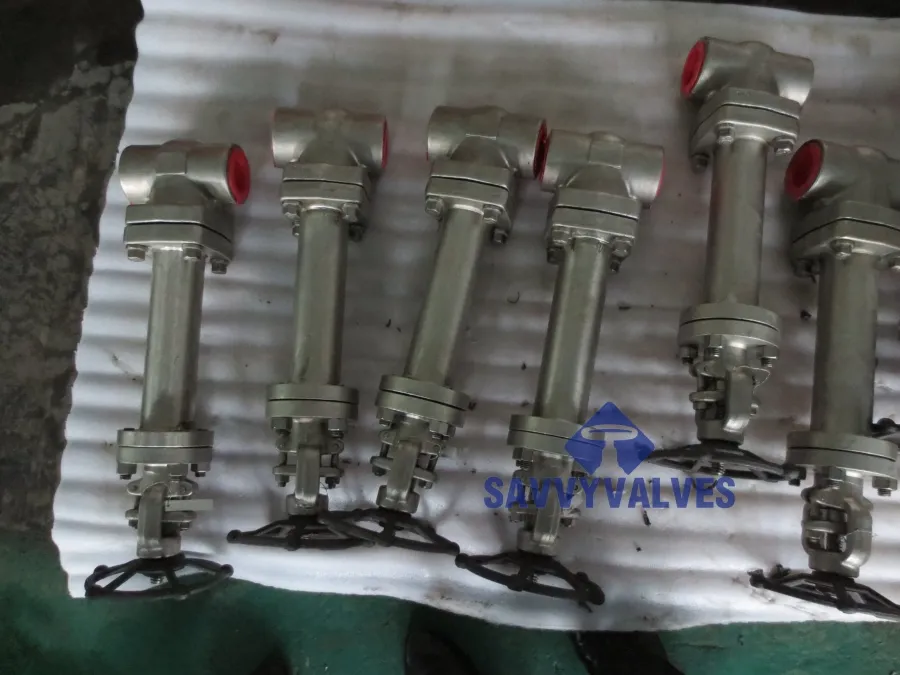

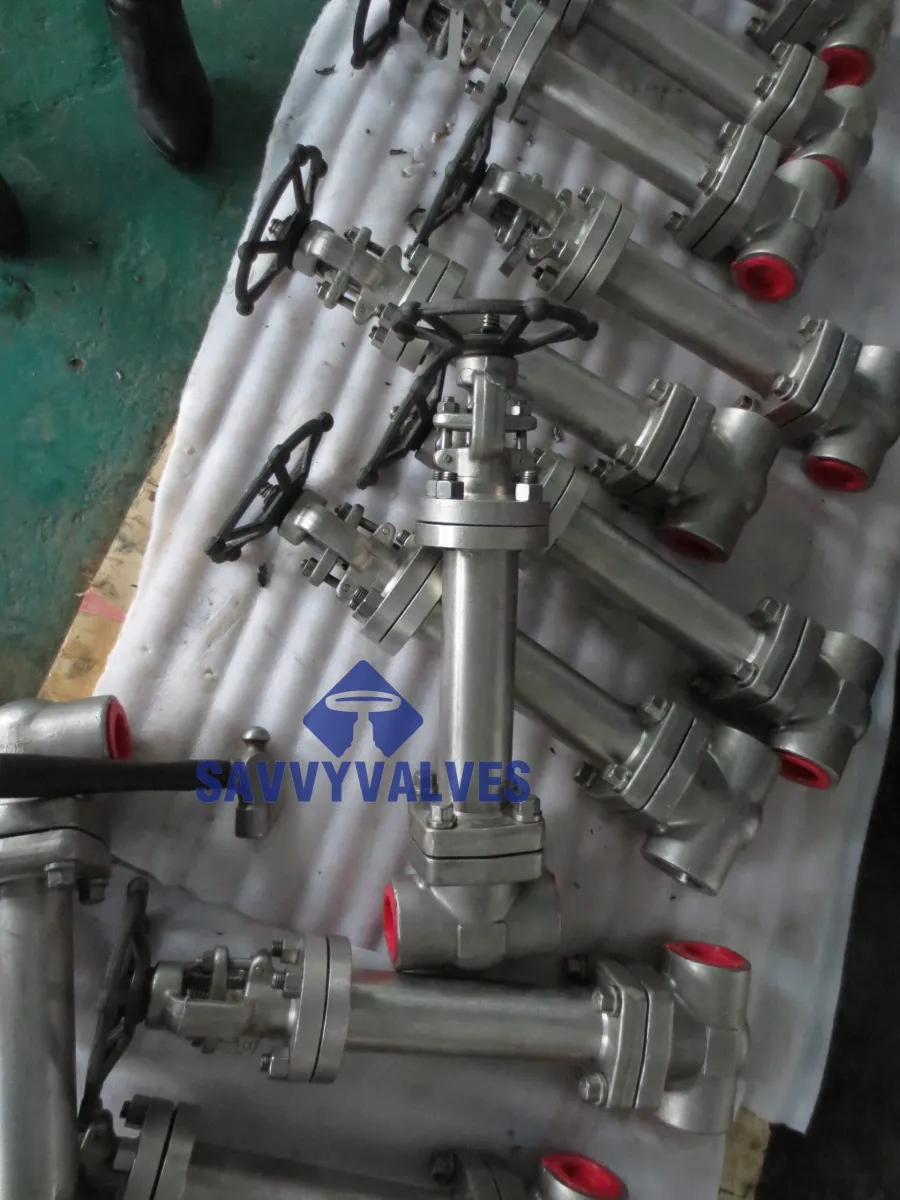

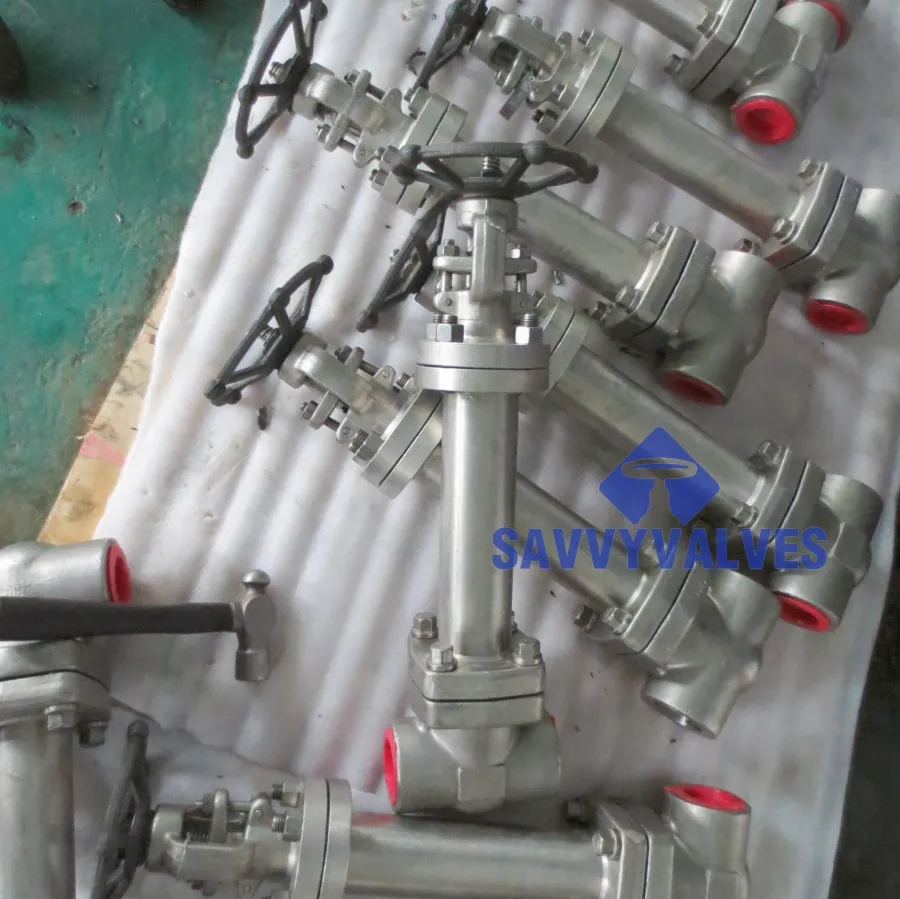

Savvy Valve Tech's CNG LNG LPG Pattern forged cryogenic gate valve exemplifies the innovation required to meet these demands, offering an engineered solution for precise fluid control in ultra-low temperature service. This product is meticulously designed to prevent leaks, ensure operational safety, and provide extended service life, contributing significantly to the efficiency and reliability of cryogenic systems.
Detailed Manufacturing Process Flow of a Cryogenic Gate Valve
The production of a cryogenic gate valve is a highly specialized and precise process, demanding stringent material selection, advanced manufacturing techniques, and rigorous testing protocols to ensure peak performance in extreme low-temperature environments. Here's an overview of the critical stages:
1. Material Selection (Expertise)
For cryogenic applications, materials must maintain ductility and impact strength at extremely low temperatures, resisting embrittlement. Common choices include:
- Stainless Steels: Austenitic grades like 304, 316, 316L, 321, and 347 are preferred due to their excellent low-temperature properties. Alloys such as ASTM A182 F304L, F316L, F321, and F347 are often specified for forged components.
- Nickel Alloys: Inconel and Monel are used for highly corrosive or specialized applications at ultra-low temperatures.
- Bronze Alloys: Occasionally used for specific low-pressure, oxygen service applications.
Non-metallic sealing materials, such as PTFE (Polytetrafluoroethylene), PCTFE (Polychlorotrifluoroethylene), and reinforced graphite, are selected for their low-temperature flexibility and chemical inertness.
2. Forging Process (Manufacturing Advantage)
Unlike casting, which can introduce porosity and internal defects, forging offers superior material integrity. The forging process involves shaping metal under high pressure, resulting in:
- Improved Grain Structure: Aligns the grain flow, enhancing mechanical properties like tensile strength, fatigue resistance, and toughness, which are crucial for the integrity of a forged gate valve under cryogenic stress.
- Elimination of Internal Defects: Reduces the likelihood of voids or inconsistencies, leading to a denser, more uniform material.
- Enhanced Pressure Containment: Critical for high-pressure cryogenic applications where system safety is paramount.
3. CNC Machining & Fabrication
After forging, advanced CNC (Computer Numerical Control) machining ensures precision for all valve components—body, bonnet, wedge, stem, and seating surfaces. Critical aspects include:
- Tight Tolerances: Essential for accurate component fit and effective sealing, particularly around the stem and seat.
- Surface Finish: Optimized to minimize friction and wear, and to prevent potential leakage paths.
- Extended Bonnet Design: A hallmark of cryogenic valves, providing a thermal barrier between the packing gland and the cold service fluid, protecting the packing from extreme temperatures and ensuring a fugitive emission-free seal.
4. Assembly & Cleaning (Experience)
Assembly takes place in a cleanroom environment to prevent contamination, which can be catastrophic in cryogenic systems, especially oxygen service. Specialized lubricants compatible with cryogenic temperatures are used. Valves are meticulously degreased and cleaned to specified standards (e.g., ASTM G93, CGA G-4.1) to remove any contaminants before final assembly.
5. Rigorous Testing & Quality Control (Authoritativeness)
Each cryogenic gate valve undergoes comprehensive testing to certify its performance and safety:

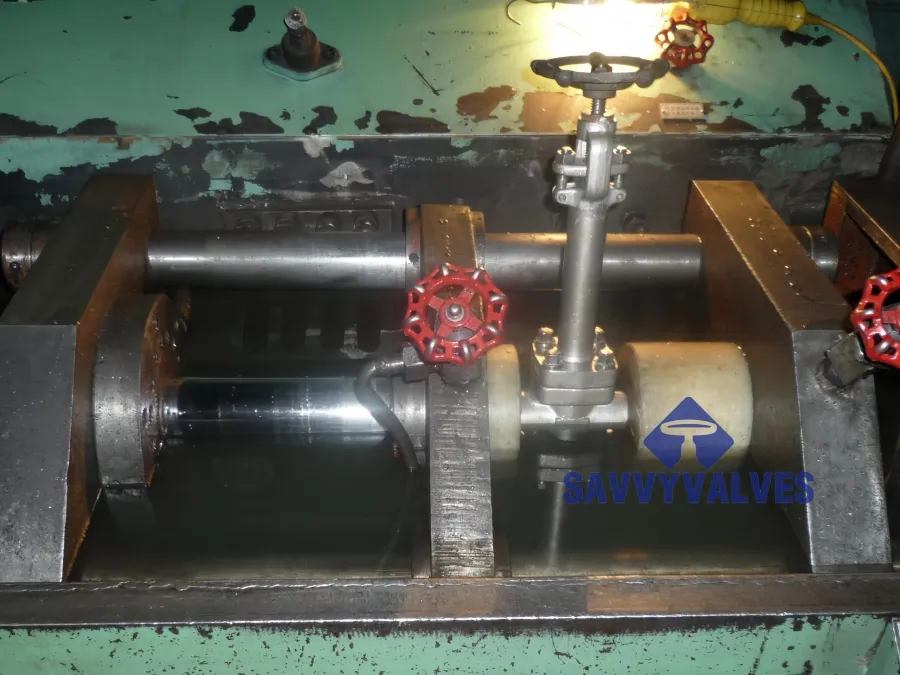

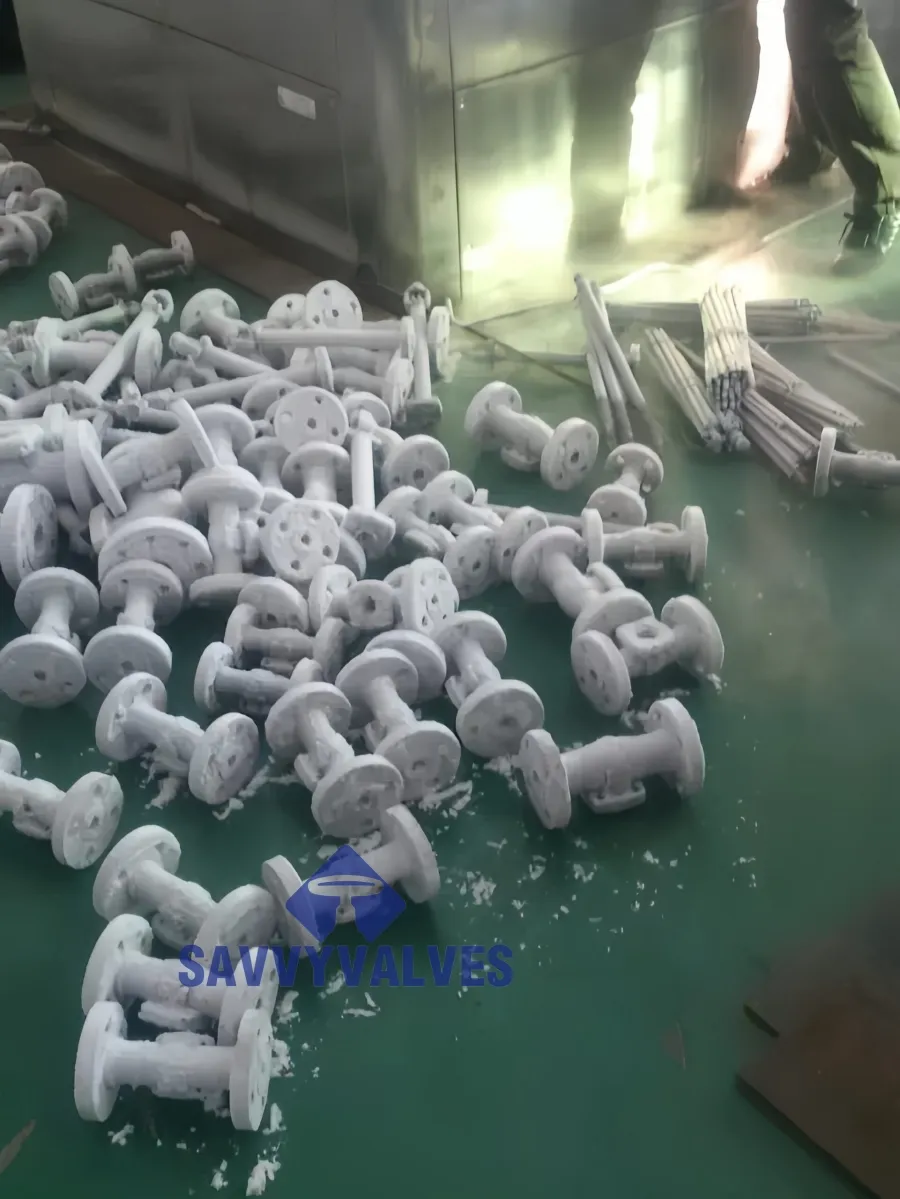

- Cryogenic Test: The most crucial test, typically performed using liquid nitrogen (LN2) or helium, to simulate actual operating conditions. The valve is submerged and cycled under pressure to detect leaks (fugitive emissions) and verify operability at design temperature. Standards include MSS SP-134, BS 6364, and API 624 for fugitive emissions.
- Hydrostatic Test: Pressure testing of the valve body and seat for structural integrity and leak tightness according to API 600, ASME B16.34, and ISO 17292.
- Pneumatic Test: Air or nitrogen pressure testing for seat and shell integrity.
- Non-Destructive Testing (NDT): Includes X-ray, ultrasonic, magnetic particle, or dye penetrant inspection of critical components to detect internal flaws.
- Fugitive Emissions Testing: Critical for environmental compliance and safety, using highly sensitive mass spectrometer leak detectors.
- Cycle Testing: To confirm the service life and durability of the valve under repeated operation.
Target industries for these valves include petrochemical, LNG/LPG terminals, industrial gas production (air separation units), and specialized chemical processing. Advantages demonstrated include energy saving through reduced heat ingress, superior corrosion resistance due to material selection, and exceptional reliability in critical isolation scenarios.
Technical Specifications and Parameters of Cryogenic Gate Valves
Understanding the precise technical specifications is paramount for selecting the appropriate cryogenic gate valve for any application. These parameters dictate the valve's compatibility, performance, and longevity in demanding cryogenic service. Below is a table outlining typical specifications for a high-performance CNG LNG LPG Pattern forged cryogenic gate valve.
It's crucial to specify not just the pressure class (e.g., Class 800) but also the size (e.g., 3/4 inch) and material composition when procuring a 3 4 800 gate valve for cryogenic service, as these factors collectively determine suitability and safe operation.
Application Scenarios and Technical Advantages
The unique challenges of cryogenic fluid handling necessitate valves engineered for extreme conditions. The cryogenic gate valve excels in applications requiring positive shut-off and minimal thermal transfer.
Target Industries:
- LNG & LPG Terminals: Critical for loading, unloading, storage, and regasification processes, ensuring safe isolation of liquefied gases.
- Air Separation Units (ASU): Used in the production and distribution of industrial gases like Oxygen, Nitrogen, Argon, where temperatures drop to -196°C.
- Petrochemical & Chemical Processing: For handling various cryogenic hydrocarbons, refrigerants, and specialized chemicals.
- Space Exploration & Rocketry: In ground support equipment for fueling liquid oxygen (LOX) and liquid hydrogen (LH2) propulsion systems.
- Pharmaceutical & Biotechnology: For cryo-preservation and cold chain logistics of sensitive biological materials.
- Industrial Gas Transportation: In pipeline systems and tanker trucks designed for cryogenic fluids.
Technical Advantages:
- Superior Sealing & Fugitive Emissions Control: Engineered with an extended bonnet and specialized packing systems (e.g., live-loaded PTFE) to create an effective thermal barrier, ensuring zero external leakage and meeting strict environmental regulations like API 624. This directly translates to enhanced safety and compliance.
- Corrosion Resistance: Utilizing high-grade stainless steels and nickel alloys specifically designed to resist corrosion in cryogenic and potentially moist environments, significantly extending service life and reducing maintenance costs.
- Energy Saving (Reduced Heat Ingress): The extended bonnet design minimizes heat transfer from the ambient environment to the cryogenic fluid, preventing boil-off and conserving valuable energy resources. This contributes to operational efficiency and lower energy consumption in cryogenic plants.
- Robust Construction: Forged bodies offer superior strength and integrity compared to cast alternatives, making them highly resistant to thermal shock and external forces inherent in cryogenic service. This robust design ensures a longer service life and reduced risk of catastrophic failure.
- Reliable Isolation: Gate valves are designed for full-open or full-closed service, providing excellent positive shut-off. The wedge mechanism, combined with precision seating surfaces, ensures bubble-tight isolation, which is critical for safety and process control in cryogenic systems.
- Low Maintenance: Designed for durability and long service intervals under severe conditions, reducing operational expenditures and downtime.
In typical application scenarios, these advantages translate into tangible benefits: for an LNG regasification plant, robust forged gate valves mean fewer unplanned shutdowns, reduced product loss from evaporation, and a safer working environment. In air separation, the precise isolation prevents cross-contamination and ensures the purity of industrial gases, directly impacting product quality and plant efficiency.
Vendor Comparison and Customized Solutions
Choosing the right vendor for cryogenic gate valves is a critical decision that impacts system safety, reliability, and total cost of ownership. While many general industrial valve manufacturers exist, specialized cryogenic valve providers offer distinct advantages. Below is a comparison table highlighting key differentiators.
Customized Solutions:
Recognizing that no two cryogenic applications are identical, specialized manufacturers offer extensive customization. This ensures the cryogenic gate valve precisely matches the operational parameters and installation constraints of the project. Customization options include:
- Material Variations: Beyond standard grades, specific alloys for enhanced corrosion resistance or extreme low-temperature ductility (e.g., high nickel content steels).
- Extended Bonnet Lengths: Tailored to specific insulation thickness requirements, optimizing thermal performance.
- End Connections: Flange types, pressure classes, and welding configurations (e.g., specifically designed for butt-welding into a cryogenic pipeline).
- Actuation Systems: Manual handwheels, gear operators, pneumatic actuators (double-acting, spring-return), or electric actuators, with options for limit switches, positioners, and failsafe modes.
- Seat Designs: Metal-seated for high temperature/pressure or soft-seated (PCTFE) for bubble-tight shutoff.
- Testing Protocols: Additional testing per customer or project-specific requirements, such as helium leak tests to extremely low rates or specific low-temperature cycling.
- Special Coatings & Surface Treatments: For enhanced wear resistance or specific fluid compatibility.
Savvy Valve Tech's commitment to delivering exact solutions means collaborating closely with clients to engineer valves that exceed performance expectations while adhering to critical industry standards and project specifications. Our expertise ensures that every forged gate valve is optimized for its intended cryogenic service, providing unparalleled safety and efficiency.
Application Case Studies and Customer Feedback (Experience)
Real-world application demonstrates the indispensable value of high-quality cryogenic gate valves. Here are examples illustrating their impact:
Case Study 1: LNG Export Terminal Expansion Project
Client: A major international energy corporation in the Middle East.
Challenge: Expanding an existing LNG export terminal required reliable isolation valves for critical manifold sections, operating at -162°C and high pressures. Previous valves from a general supplier experienced stem packing leakage and operational stiffness after extended periods in cryogenic service, leading to increased maintenance and safety concerns.
Solution: Savvy Valve Tech provided DN200 (NPS 8") Class 600 forged gate valves, specifically designed with extended bonnets and live-loaded PTFE packing, manufactured from ASTM A182 F316L. Each valve underwent in-house cryogenic testing with liquid nitrogen to BS 6364 and fugitive emissions testing to API 624.
Outcome & Feedback: Over three years of operation, the Savvy Valve Tech valves have shown zero fugitive emissions and consistent, smooth operation, even after extended periods of inactivity. The client reported a significant reduction in maintenance costs, improved operational safety, and praised the robust construction and pre-shipment testing rigor. "The reliability of these cryogenic gate valves has significantly enhanced our operational efficiency and safety protocols at the terminal," stated the project lead engineer.
Case Study 2: Industrial Gas Pipeline Network Upgrade (Air Separation Unit)
Client: A leading industrial gas producer in Southeast Asia.
Challenge: Upgrading their ASU pipeline network for liquid oxygen and liquid nitrogen required compact, high-pressure isolation for specific process lines. The project specified a high-integrity 3 4 800 gate valve, capable of sustaining temperatures down to -196°C, within confined spaces.
Solution: Savvy Valve Tech supplied compact, forged Class 800 (NPS 3/4") cryogenic gate valves with socket weld ends, manufactured from ASTM A182 F304L. The valves were designed with a slightly reduced extended bonnet for space optimization, while still ensuring thermal integrity.
Outcome & Feedback: The client noted the exceptional build quality and the valves' ability to maintain tight shut-off under fluctuating pressures and temperatures inherent in ASU operations. The compact design facilitated easier installation in the congested pipe rack. "We've experienced no thermal expansion issues or leakage with the Savvy valves. Their performance is consistently reliable, contributing to the purity and safe delivery of our industrial gases," commented the plant manager.
Trustworthiness: FAQ, Lead Time, Warranty & Support
Frequently Asked Questions (FAQ):
-
Q: What is the primary difference between a standard gate valve and a cryogenic gate valve?
A: The main difference lies in design and material selection. Cryogenic gate valves feature an extended bonnet to prevent packing freezing, materials that maintain ductility at extreme low temperatures (e.g., specific stainless steels), and specialized packing for fugitive emissions control in cryogenic service. They undergo rigorous cryogenic testing to ensure performance at operating temperatures.
-
Q: How do you ensure zero fugitive emissions for cryogenic valves?
A: We employ an extended bonnet design that creates a thermal barrier, protecting the stem packing from the extreme cold. Combined with live-loaded, high-performance packing materials (e.g., PTFE or reinforced graphite) and precision machining of the stem and packing area, this significantly reduces potential leak paths. All valves are subjected to API 624 or ISO 15848-1 certified fugitive emissions testing.
-
Q: Can your cryogenic gate valves be customized for specific applications?
A: Absolutely. We offer extensive customization for materials, end connections, actuation types (manual, geared, pneumatic, electric), extended bonnet lengths, and special testing requirements to precisely match your project's unique specifications and operational environment.
Lead Time & Fulfillment Details:
Lead times for our CNG LNG LPG Pattern forged cryogenic gate valves vary based on valve size, material, quantity, and customization requirements. Standard configurations typically range from 8-12 weeks, while highly customized or large-volume orders may extend to 16-20 weeks. We maintain a transparent communication process, providing detailed production schedules and regular updates. Expedited options are available for urgent project needs, subject to material availability and production capacity.
Warranty Commitments:
Savvy Valve Tech stands behind the quality and performance of our products. All cryogenic gate valves come with a standard 12-month warranty from the date of commissioning or 18 months from shipment, whichever comes first. This warranty covers manufacturing defects and material failures under normal operating conditions. Extended warranty options are available upon request.
Customer Support & After-Sales Service:
Our commitment extends beyond delivery. Savvy Valve Tech provides comprehensive after-sales support, including:
- Technical Assistance: Our team of expert engineers is available to provide guidance on installation, operation, and troubleshooting.
- Spare Parts: Readily available genuine spare parts to ensure long-term serviceability and minimal downtime.
- Field Service: On-site support for complex installations, maintenance, or performance diagnostics, if required.
- Documentation: Comprehensive manuals, certifications, and test reports accompany every valve.
We are dedicated to building lasting partnerships through reliable products and exceptional service.
Conclusion
The selection of a cryogenic gate valve is a decision of paramount importance for any facility handling ultra-low temperature fluids. Its impact reverberates across operational safety, environmental compliance, and long-term cost efficiency. As demand for cryogenic applications continues to grow, particularly in LNG, LPG, and industrial gas sectors, the need for robust, reliable, and expertly engineered valves becomes even more critical.
Savvy Valve Tech is committed to providing best-in-class CNG LNG LPG Pattern forged gate valve solutions that not only meet but exceed stringent industry standards. Our dedication to superior material science, precision manufacturing, rigorous testing, and comprehensive customer support ensures that our valves offer unmatched performance, extended service life, and peace of mind in the most demanding cryogenic environments. Partner with us to secure the integrity and efficiency of your critical cryogenic systems.
References
- American Petroleum Institute (API). "API Standard 600: Gate Valves - Flanged, Bolting Gland, Full-Port Type."
- American Society of Mechanical Engineers (ASME). "ASME B16.34: Valves - Flanged, Threaded, and Welding End."
- International Organization for Standardization (ISO). "ISO 17292: Metal ball valves for petroleum, petrochemical and allied industries."
- Manufacturers Standardization Society of the Valve and Fittings Industry (MSS). "MSS SP-134: Valves for Cryogenic Service."
- British Standards Institution (BSI). "BS 6364: Specification for valves for cryogenic service."
