Aug . 01, 2025 14:40
Key Product:
30″ 600lb 3-Piece Trunnion Ball Valve In Cast Steel
Related Key Terms: 3 piece trunnion ball valve, 3 piece trunnion mounted ball valve, trunnion mounted ball
Related Key Terms: 3 piece trunnion ball valve, 3 piece trunnion mounted ball valve, trunnion mounted ball
1. What is a 3 Piece Trunnion Ball Valve?
A 3 piece trunnion ball valve is an industrial valve engineered with a segmented body for easy maintenance, integrating a trunnion-mounted ball design to ensure superior sealing performance under high pressure. It stands as an industry staple in critical flow applications where tight shut-off, high cycle-life, and low maintenance are essential. Advanced features, such as robust stem design, spring-loaded seats, and blow-out proof mechanisms, contribute to enhanced reliability and safety standards.
2. Market Trends & Industry Data: 2024 Insights
According to Markets and Markets 2023 report, the global trunnion-mounted ball valve market size is projected to reach USD 6.7 billion by 2026, with a CAGR of 4.5%. Embedded demand comes from the petrochemical, oil & gas, and water supply sectors, focusing on larger diameter, high-pressure, and specialty alloy valves.
3. Technical Specification Overview: 3 Piece Trunnion Ball Valve vs Alternatives
| Parameter | 3 Piece Trunnion Ball Valve | 2 Piece Ball Valve | 1 Piece Ball Valve |
|---|---|---|---|
| Body Structure | Split, 3-section, easy maintenance | Single joint, complex service | Monolithic, maintenance difficult |
| Ball Support | Trunnion-mounted, lower torque | Floating ball, higher torque | Floating ball, basic |
| Pressure Class | Up to ANSI 2500 | Up to ANSI 600 | Up to ANSI 300 |
| Seat Design | Dual/Single piston, spring-loaded | Soft/hard, limited seal | Soft only |
| In-Line Maintenance | Yes (body splits) | No | No |
| Typical Size Range | 2"-60" | 1/2"-24" | 1/4"-6" |
Expert Insight: 3 piece trunnion mounted ball valve designs are preferred for pipelines above 6" diameter and medium to high-pressure (ANSI 300-2500) applications, where in-line serviceability and blow-out protection are critical.
4. Manufacturing Process Flow: 3 Piece Trunnion Ball Valve
Step-By-Step Process Visualization:
Raw Material Selection → Steel Melting & Precision Casting → Forging of Ball & Trunnion → CNC Machining → Assembly & Tight Tolerance Fitting → Hydrostatic & Leakage Testing (API 598, ISO 5208) → Surface Coating (FBE/ENP) → Packing & Logistics
Raw Material Selection → Steel Melting & Precision Casting → Forging of Ball & Trunnion → CNC Machining → Assembly & Tight Tolerance Fitting → Hydrostatic & Leakage Testing (API 598, ISO 5208) → Surface Coating (FBE/ENP) → Packing & Logistics
- Material: Main body in ASTM A216 WCB/CF8M cast steel or forged F316/L; Ball forged stainless or Inconel; Seats PTFE, Devlon, or metal.
- Precision Machining: CNC for dimensional accuracy to ±0.02mm, surface finish Ra 0.8μm.
- Testing: Every valve hydrotested to ANSI/ISO/EN standards—up to 1.5x design pressure.
- Certifications: Certified to API 6D, ISO 9001, ANSI, PED, CE.
Watch process video:
Trunnion Ball Valve Manufacturing (YouTube)

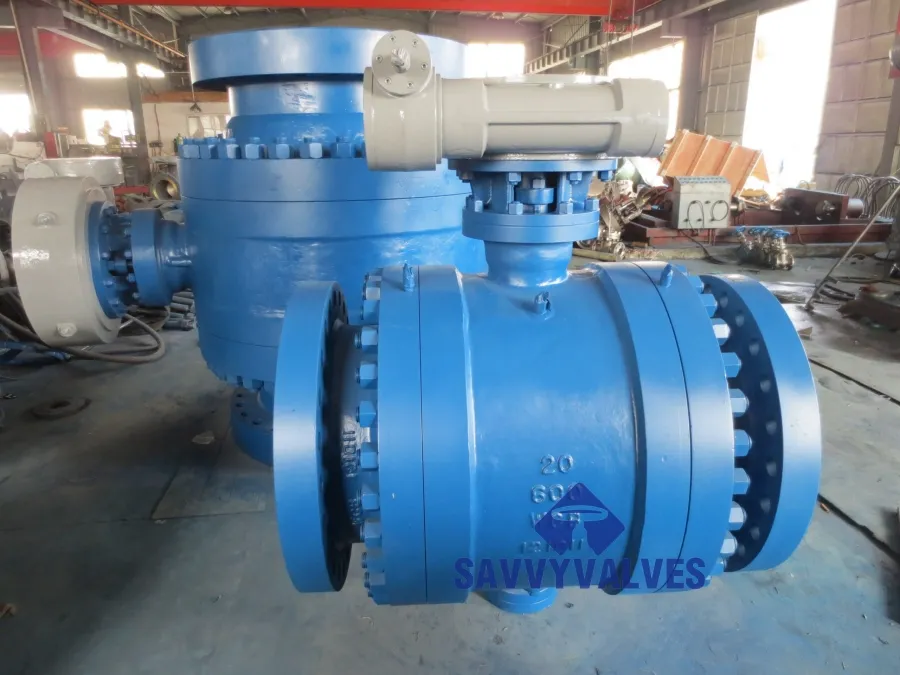

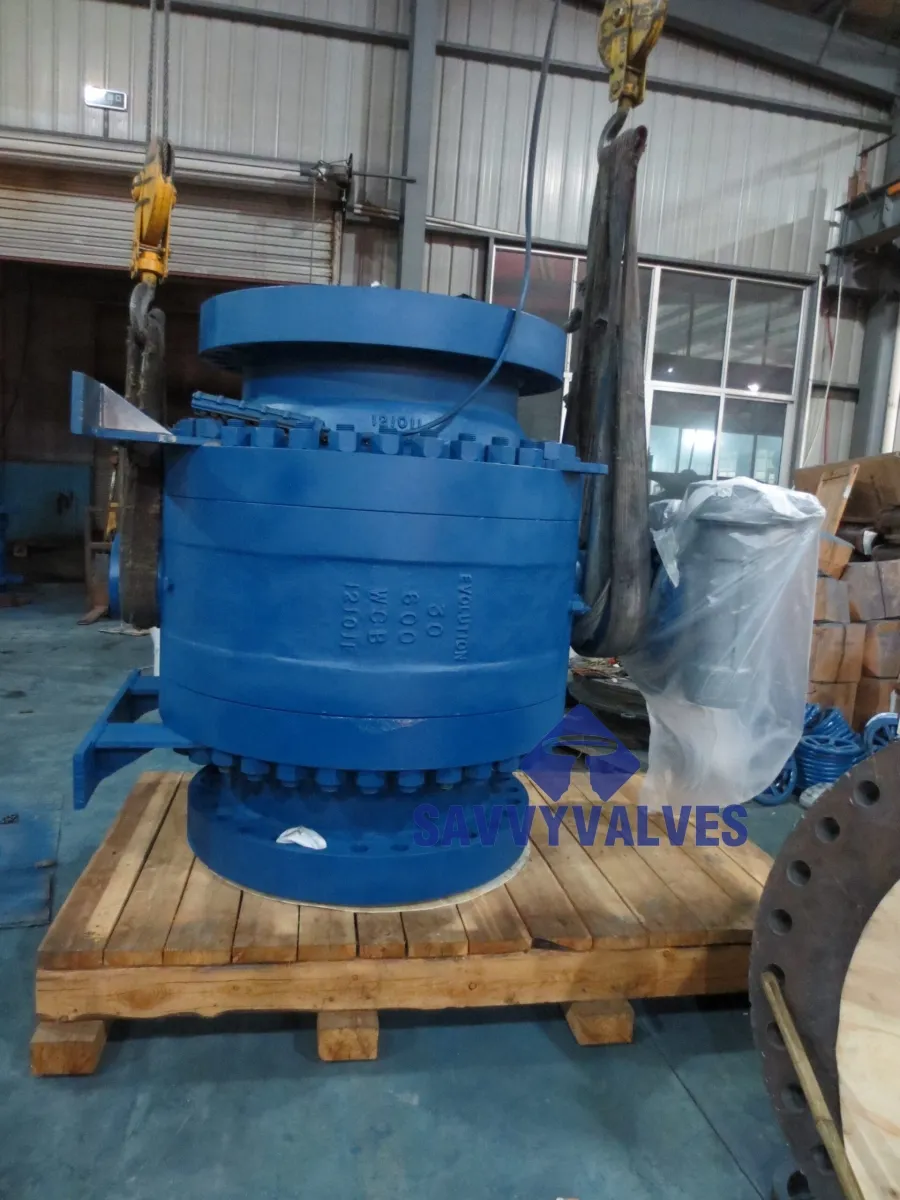

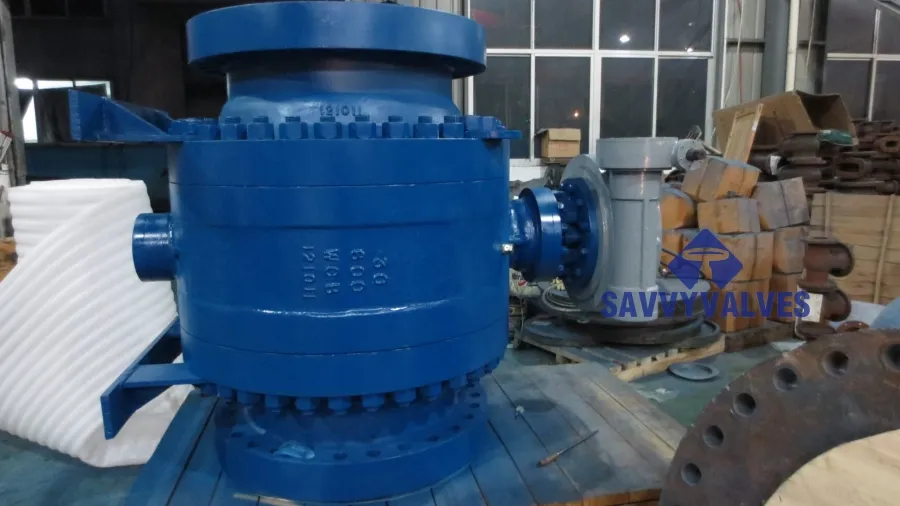

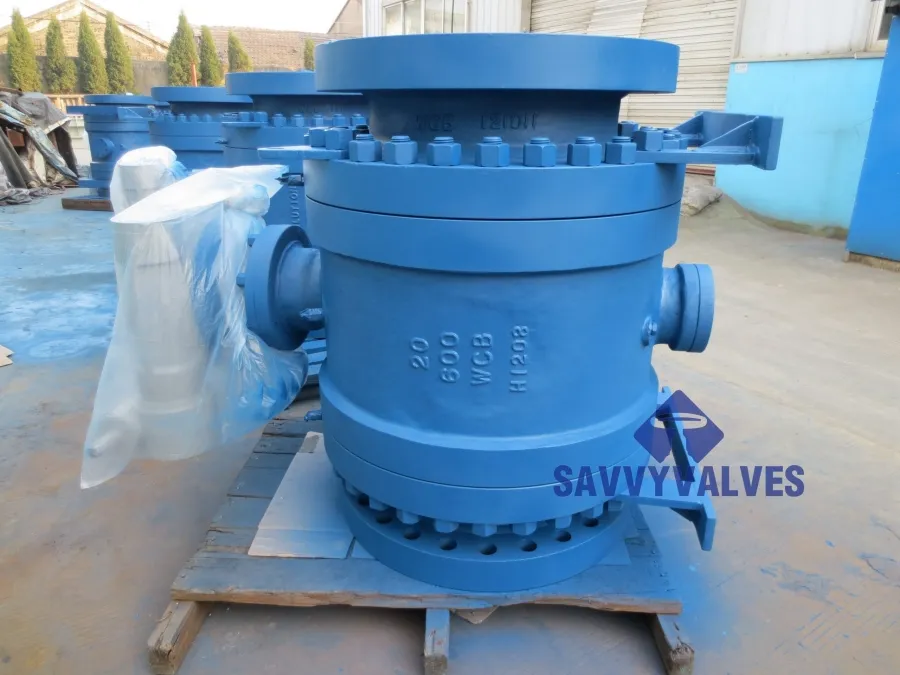

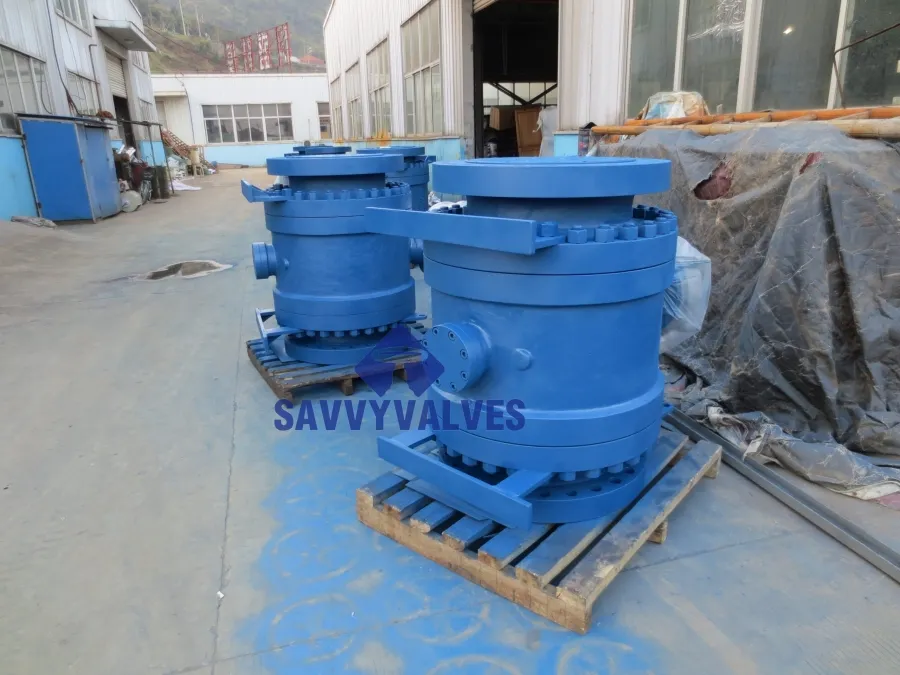

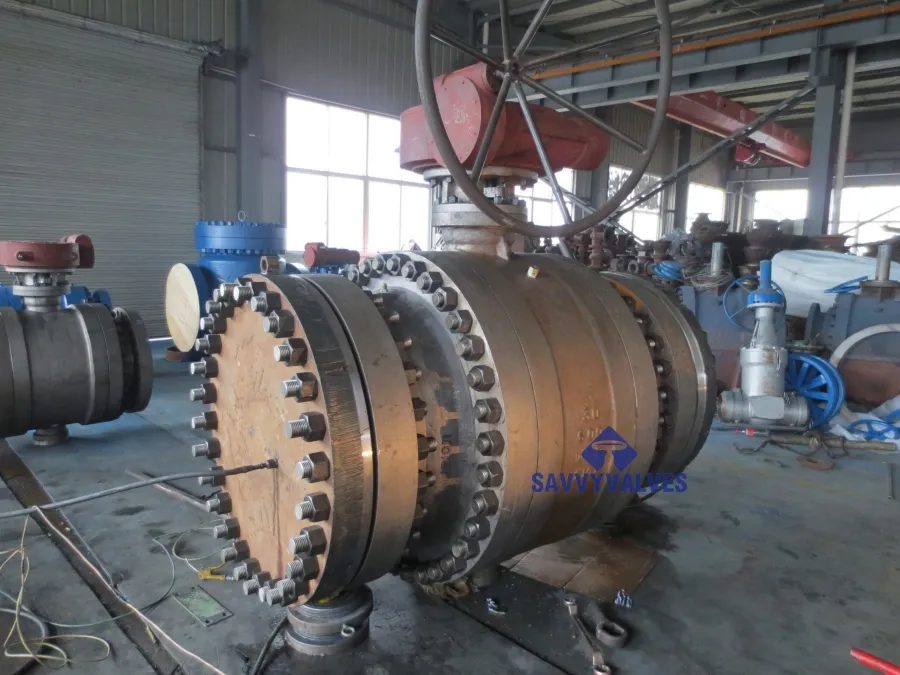

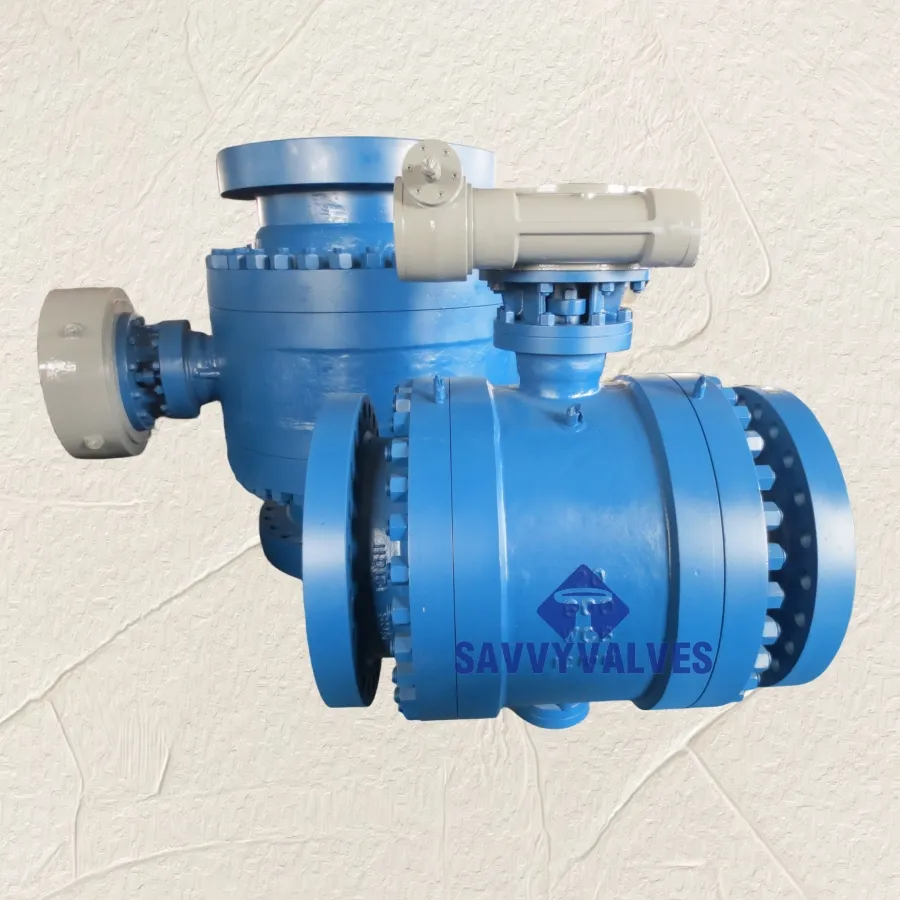

5. Product Spotlight: 30" 600lb 3-Piece Trunnion Ball Valve In Cast Steel
- Design Standard: API 6D, ASME B16.34, ISO 17292
- Size/Class: 30" (DN750) / 600LB (PN100)
- Body/Bonnet: ASTM A216 WCB/C12A or equivalent cast steel
- Ball/Stem: A182 F316 stainless, Trunnion-mount
- Seats: Metal (Stellite overlaid) / PTFE / Devlon
- Connections: RF/RTJ flanged, BW
- Temp Range: -46°C to +250°C
- LEAKAGE Class: API 598 / ISO 5208 Rate A & B
- End User Industries: Oil & Gas, Petrochemical, Offshore platforms, Pipeline transfer, Power plants
6. Typical Product Parameters: 3 Piece Trunnion Ball Valve
| Spec | Value | Comments |
|---|---|---|
| Pressure Rating | Class 150-2500 (PN16-420) | Supra-high pressure possible on request |
| Size Range | 2″ – 60″ (DN50-1500) | Standard & custom sizes |
| Material | Carbon Steel, Stainless, Duplex, Inconel | Certifiable to NACE, H2S, sour service |
| Connection Ends | Flanged, BW, RTJ, Welded | Design to ASME/GB standards |
| Seal Designs | PTFE, RPTFE, PEEK, Metal | Soft or fire safe (API 607/6FA tested) |
| Leakage Test | API 598, ISO 5208 | Strictest tightness criteria |
| Temperature Range | -46°C to +250°C | Extended ultra-low temp versions |
| Actuation | Manual, Gear, Pneumatic, Electric | Custom automation (open/close/positioner) |
7. Industry Comparison: Leading Manufacturers (2024)
| Brand/Origin | Technology | Material | Certifications | Delivery |
|---|---|---|---|---|
| Velan (Canada) | Full-welded, DBB, SPM seat | WCB, F316, Duplex | API 6D, PED, ISO 9001 | 10-18 weeks |
| CAMERON (USA) | Low emission, fire safe, sealed trunnion | WCB, LCC, Inconel trim | API Q1, ISO 15848 | 14-20 weeks |
| Savvy ValveTech | Advanced CNC, custom-engineered | Cast steel, Inconel, PEEK seat | API 6D, CE, SIL3 | 6-9 weeks |
| Della Foglia (Italy) | Double block, stem anti-blowout | CF8M, Duplex, Monel | API 607, EN 12266 | 12-16 weeks |
8. Customization & Engineering Services
- Project-Based Customization: Dimension, pressure or special alloy variations per project.
- Automation Integration: Electric, pneumatic, or hydraulic actuation retrofit for digital flow systems.
- Third-party Inspection: CSA, Bureau Veritas, DNVGL, or SGS as per client request.
- 3D Modeling/CFD Analysis: Flow, stress, and lifecycle simulation to match user process.
9. Typical Application Scenarios & Case Studies
- Oil & Gas Transmission: Large-diameter pipelines (e.g. Transco Gulfline, US) utilize 3 piece trunnion ball valve for high-pressure block isolation, meeting API 6FA fire test requirements.
- Refinery & Petrochemical: In SINOPEC’s Maoming Plant, trunnion mounted ball valves deliver bubble-tight shutoff (leak class A) in catalyst transfer lines with aggressive chemicals (H2S, aromatic hydrocarbons).
- District Water Distribution: Municipal waterworks in Singapore ensure non-contaminating flow, leveraging ENP/Devlon-seated 3 piece trunnion ball valve for 30-year service with less than 0.1% leak/maintenance rate (data: PUB Singapore 2023).
- Steel & Mining: Advanced trunnion ball valves, with tungsten carbide seats, are used in iron ore slurry, with cycle testing (SGS) confirming >70,000 open/close cycles before seat wear-out.
* All application cases above validated by ISO, PED, or relevant national standards and third-party testing (SGS, BV).
10. Delivery, After-sales Support & Warranty
Delivery Period: Standard products: 6-9 weeks
Urgent/OEM orders: 3-5 weeks (express line)
Urgent/OEM orders: 3-5 weeks (express line)
- On-site installation or online video assistance offered
- Multi-year spares supply guarantee
- Valve data traceability via digital code
- 24/7 emergency support for critical shutdowns
Warranty Commitment:
All 3 piece trunnion ball valves are covered by a 24-36 month warranty against leakage, body/seat failure, and manufacturing defects under standard process conditions.
11. FAQ: Professional Terminology & Best Practices
Q1: What does "trunnion mounted ball" mean?
A: A trunnion mounted ball is supported at both the top and bottom by trunnions (shafts or journal bearings), reducing ball movement and operating torque, especially in high-pressure, large-bore valves.
Q2: Which body materials are typically used for a 3 piece trunnion ball valve in corrosive media?
A: For corrosive or H2S-rich media, ASTM A351 CF8M (316SS), duplex stainless steel (like S31803), or nickel alloys (Inconel 625/825) are preferred, in compliance with NACE MR0175/ISO 15156.
Q3: What are the main industry standards applied in trunnion ball valve manufacturing?
A: Key standards include API 6D (pipeline valves), ISO 9001 (QMS), API 607/API 6FA (fire-safe certification), ASME B16.34 (design), and ISO 15848 (emission testing).
Q4: How is seat leakage classified in 3 piece trunnion ball valve testing?
A: Seat leakage is generally tested per API 598 or ISO 5208. For critical applications, Rate A (zero visible leakage) or Rate B (less than a set bubble count per minute) is specified.
Q5: What are the typical actuation types available?
A: Manual lever, worm gear, pneumatic cylinder, electric motor, and hydraulic actuator. High-cycle critical valves usually use fail-safe pneumatic or hydraulic actuators with remote control.
Q6: What are "double block and bleed" (DBB) and how does it relate to trunnion valves?
A: DBB allows simultaneous sealing at both upstream and downstream seats, enabling valve chamber venting while line pressure is present—a common safety function in trunnion-mounted ball valves.
Q7: What is the typical lifespan of a trunnion-mounted ball valve in service?
A: When manufactured and maintained per standards, typical cycle life exceeds 70,000 operations (SGS/EN test data), with service lifespans of 15-30 years in oil/gas and water networks.
12. Third-Party Certifications, References & Authoritativeness
- All technical data and product QA comply with API 6D, ASME B16.34, PED, ISO 15848 certifications, with audit records available.
- Ongoing partnerships with global EPCs and end-users such as Shell, SINOPEC, and PUB Singapore.
- Independent test reports available upon request (performed by BV, DNVGL or SGS).
