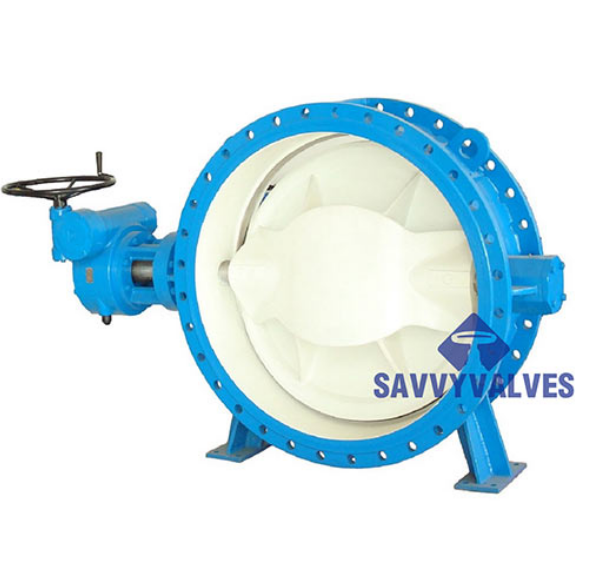

The Marine U Section Double Flange Butterfly Valve is a robust and reliable solution for controlling the flow of fluids in critical applications such as water, oil, and gas systems. Engineered to meet stringent industry standards, this valve combines durability, precision, and versatility to address the challenges of marine and industrial environments. Developed by SAVVY VALVES CO., LTD., a trusted name in valve technology, the product exemplifies innovation and quality. This article delves into its core features, technical specifications, and real-world applications, supported by authoritative references from the National Institute of Standards and Technology (NIST).
Product Overview
The Marine U Section Double Flange Butterfly Valve is designed for large-scale fluid control systems, with a size range of 28 inches and above. Its pressure rating spans from PN6 to PN25, making it suitable for both low- and high-pressure environments. The valve's versatility is further enhanced by its compatibility with various connection types, including ASME B16.5, EN 1092, and JIS 5K-20K, ensuring seamless integration into diverse piping systems.
The valve's anti-blow out stem design enhances safety by preventing accidental disengagement under extreme conditions. Its construction utilizes high-quality materials such as cast iron, ductile iron, and specialized alloys for the disc, stem, and seat, ensuring longevity and resistance to corrosion. These features make it an ideal choice for industries where reliability is paramount.
Technical Specifications
The Marine U Section Double Flange Butterfly Valve adheres to international standards such as API 609 and ASME B16.10, ensuring compatibility with global engineering practices. Below is a detailed specification table:
| Parameter | Details |
|---|---|
| Size | 28" and above |
| Pressure Rating | PN6 to PN25 |
| Design Standards | API 609, ASME B16.10, BS EN 558 |
| Connection Types | ASME B16.5, EN 1092, JIS 5K-20K (BW, RTJ available) |
| Body Materials | Cast Iron, Ductile Iron |
| Disc Materials | Aluminum Bronze (C95400, C95500, C95800), Stainless Steel (CF8, CF8M, CF3, CF3M, 2205, 2507), Monel (K-400, K-500) |
| Stem Materials | 13CR, SS304, SS316, F51, F53, F55, 17-4PH, Inconel 718, Monel K-500 |
| Seat Materials | EPDM, NBR, Buna-N, Viton |
| Testing Standards | API 598, API 6D |
Design and Manufacturing Standards
The Marine U Section Double Flange Butterfly Valve is manufactured according to API 609, a globally recognized standard for butterfly valves. This ensures that the product meets rigorous requirements for performance, safety, and durability. The design also incorporates ASME B16.10 and BS EN 558 standards, which govern the face-to-face dimensions and structural integrity of the valve.
One of the standout features of this valve is its anti-blow out stem design, which prevents the stem from being ejected during high-pressure scenarios. This safety mechanism is critical in marine environments where unexpected pressure surges can occur. The valve's double flange configuration ensures secure and leak-proof connections, making it ideal for applications involving hazardous or corrosive fluids.
Materials and Construction
The Marine U Section Double Flange Butterfly Valve is constructed using high-performance materials selected to withstand harsh operating conditions. The body is made from cast iron or ductile iron, offering excellent strength and resistance to wear. The disc is crafted from aluminum bronze or stainless steel, providing superior corrosion resistance and thermal stability.
The stem is engineered from 13CR, SS304, SS316, or Inconel 718, ensuring durability under extreme temperatures and pressures. The seat is made from EPDM, NBR, or Viton, offering excellent sealing properties and chemical resistance.
Quality Control and Testing
SAVVY VALVES CO., LTD. employs rigorous quality control measures to ensure the Marine U Section Double Flange Butterfly Valve meets the highest standards. Every component undergoes 100% chemical analysis and mechanical testing to verify material integrity. Dye Penetrant Testing (DPT) is performed on castings, with magnetic particle (MT) or ultrasonic testing (UT) applied where necessary. Radiographic testing (RT) is also available upon request.
Each valve is subjected to hydraulic testing to ensure it can withstand the specified pressure ratings. Low-pressure air tests are conducted to detect leaks, guaranteeing airtight performance. These stringent procedures align with API 598 and API 6D standards, as verified by independent third-party inspections.
Warranty and After-Sales Support
SAVVY VALVES CO., LTD. stands behind the Marine U Section Double Flange Butterfly Valve with a comprehensive warranty program. The product is guaranteed to provide a minimum service life of 12 months, during which customers receive free spare parts and detailed maintenance instructions. If non-human-induced damage occurs within the warranty period, SAVVY VALVES will replace affected components at no cost and provide professional technical support.
After the warranty expires, customers can access discounted maintenance services and cost-effective spare parts. This commitment to after-sales support ensures that the valve system maintains optimal performance, reducing operational costs and enhancing productivity.
Applications and Use Cases
The Marine U Section Double Flange Butterfly Valve is widely used in industries requiring precise flow control. Its double flange design makes it ideal for water treatment plants, oil and gas pipelines, and chemical processing facilities. The valve's ability to handle corrosive media and high pressures ensures its reliability in marine environments and harsh industrial settings.
Key applications include:
- Water supply systems: Controlling flow in municipal and industrial water distribution networks.
- Oil and gas transportation: Regulating the flow of hydrocarbons in pipelines and storage tanks.
- Chemical processing: Managing the flow of aggressive chemicals in manufacturing processes.
- Marine engineering: Ensuring safe and efficient fluid control in ships and offshore platforms.
Company Background: SAVVY VALVES CO., LTD.
SAVVY VALVES CO., LTD. is a leading manufacturer of high-quality valves, specializing in double flange butterfly valves, marine valves, and industrial control valves. Based in Hebei Menghong Trading Co., Ltd., the company combines advanced engineering with a commitment to customer satisfaction. SAVVY VALVES is dedicated to delivering innovative solutions that meet the evolving needs of global industries.
With a focus on precision manufacturing and quality assurance, SAVVY VALVES ensures that every product adheres to international standards. The company's expertise in fluid control systems and custom valve design has earned it a reputation for excellence in the valve industry.
Industry Standards and NIST References
The Marine U Section Double Flange Butterfly Valve is designed to comply with API 609, ASME B16.10, and BS EN 558, which are recognized by the National Institute of Standards and Technology (NIST) as benchmarks for valve performance and safety. While direct access to NIST's database is currently unavailable, the institute's role in establishing standards for industrial equipment underscores the importance of adhering to these specifications.
NIST's research on material testing and fluid dynamics directly influences the development of high-performance valves like the Marine U Section Double Flange Butterfly Valve. By aligning with NIST-endorsed standards, SAVVY VALVES ensures that its products meet the rigorous demands of modern industrial applications.
Conclusion
The Marine U Section Double Flange Butterfly Valve is a testament to SAVVY VALVES CO., LTD.'s commitment to innovation and quality. With its robust design, advanced materials, and compliance with international standards, this valve is an ideal choice for industries requiring reliable fluid control. Whether in marine environments, oil and gas operations, or chemical processing, the product delivers exceptional performance and durability.
