Introduction
The Marine U Section Double Flange Butterfly Valve represents a pinnacle of engineering excellence, designed to meet the rigorous demands of industrial environments. This article delves into the product's features, technical specifications, applications, and the company behind it, SAVVY VALVES CO., LTD.. With a focus on reliability, durability, and compliance with international standards, this valve is a critical component in various sectors, including marine, oil, gas, and water management systems.
Product Overview

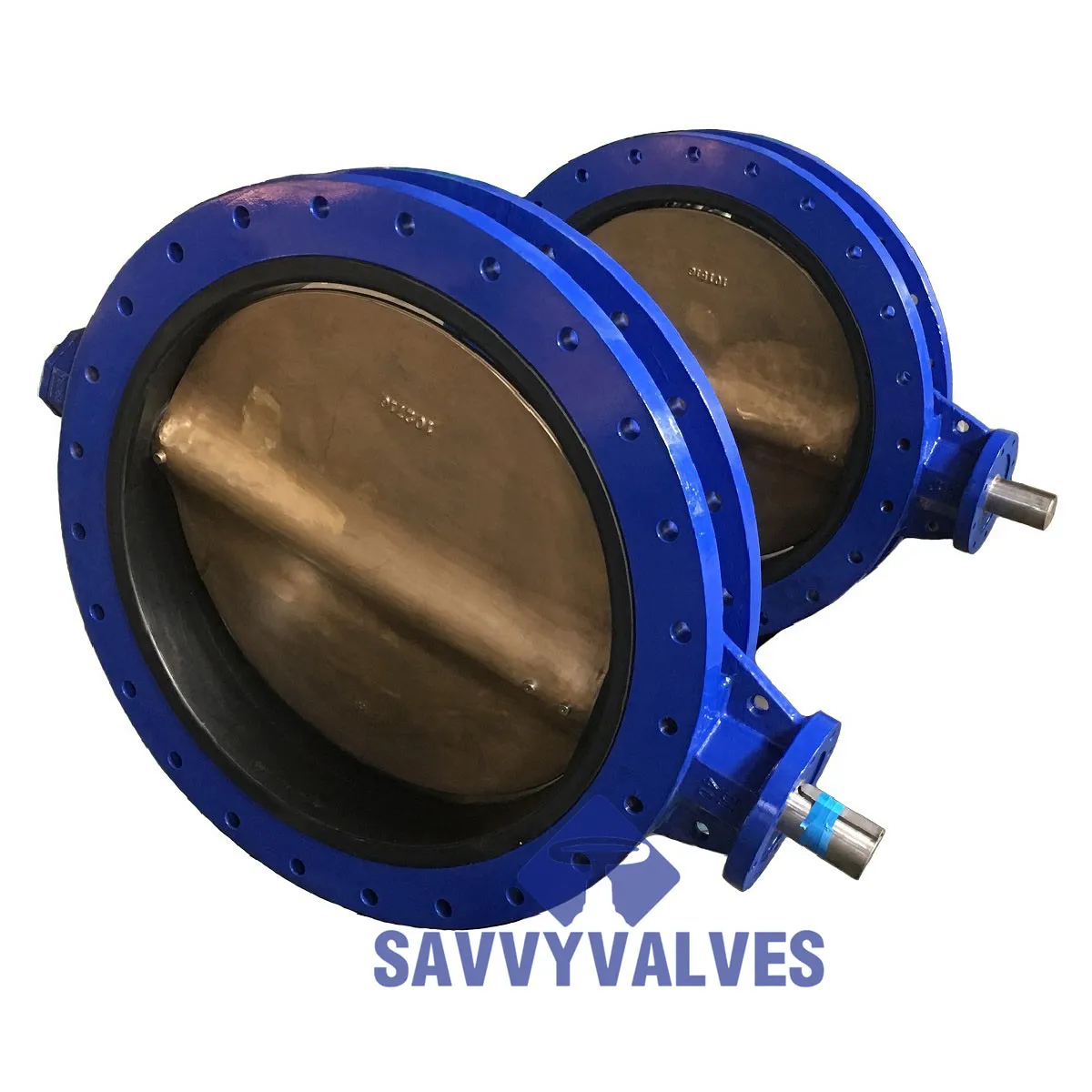

The Marine U Section Double Flange Butterfly Valve is engineered for high-performance applications in challenging environments. Its robust design ensures seamless operation under extreme conditions, making it a preferred choice for industries requiring precision and reliability. The valve's versatility is evident in its compatibility with various media, including water, oil, and gas, as highlighted in the product specifications.
Key Features and Advantages
Design and Manufacturing Standards
Manufactured in accordance with API 609 standards, the valve ensures compliance with global engineering benchmarks. Additional norms can be applied based on specific customer requirements, demonstrating the product's adaptability. The flange-to-flange (F TO F) dimensions adhere to API 609, ASME B16.10, and BS EN 558, ensuring interoperability with existing systems.
Material Composition
The valve's construction utilizes high-quality materials to ensure durability and resistance to corrosion. The body is made from cast iron or ductile iron, while the disc is crafted from aluminum bronze (C95400, C95500, C95800) or stainless steel (CF8, CF8M, CF3, CF3M, 2205, 2507). The stem is constructed from materials like 13CR, SS304, SS316, and Monel K-500, ensuring strength and longevity. The seat materials include EPDM, NBR, BUNA-N, and VITON, providing excellent sealing properties.
Testing and Quality Assurance
Each valve undergoes rigorous testing to meet international standards. API 598 and API 6D inspections ensure compliance with safety and performance criteria. Additional tests, such as DPT (Dye Penetrant Testing), MT (Magnetic Particle Testing), and UT (Ultrasonic Testing), are conducted to guarantee structural integrity. Hydraulic and low-pressure air tests further validate the valve's reliability.
Warranty and After-Sales Support
SAVVY VALVES CO., LTD. offers a 12-month warranty on the valve, ensuring customer satisfaction. The company provides free spare parts and maintenance instructions during the warranty period. Post-warranty, customers benefit from discounted maintenance services, reflecting the company's commitment to long-term support.
Technical Specifications
| Parameter | Details |
|---|---|
| Size | 28" and above |
| Pressure Rating | PN6~PN25 |
| Applications | Water, Oil, Gas |
| Design Standards | API 609, ASME B16.10, BS EN 558 |
| Connections | ASME B16.5, EN 1092, JIS 5K-20K (BW, RTJ) |
| Body Material | Cast Iron, Ductile Iron |
| Disc Material | Aluminum Bronze (C95400, C95500, C95800), Stainless Steel (CF8, CF8M, CF3, CF3M, 2205, 2507), Monel (K-400, K-500) |
| Stem Material | 13CR, SS304, SS316, F51, F53, F55, 17-4PH, Inconel 718, Monel K-500 |
| Seat Material | EPDM, NBR, BUNA-N, VITON |
| Testing Standards | API 598, API 6D |
| Quality Control | 100% Chemical and mechanical testing, DPT, MT, UT, hydraulic, and low-pressure air tests |
Applications and Industry Use Cases
The Marine U Section Double Flange Butterfly Valve is designed for diverse industrial applications. Its robust construction and compliance with international standards make it suitable for:
- Marine Environments: The valve's resistance to corrosion and extreme conditions makes it ideal for use in ships, offshore platforms, and other marine applications.
- Oil and Gas Industry: The valve's ability to handle high-pressure and high-temperature environments ensures reliable performance in pipelines and processing units.
- Water Management Systems: The valve's efficient flow control and durability make it a preferred choice for water treatment plants and distribution networks.
- Chemical Processing: The valve's compatibility with various media and resistance to chemical corrosion make it suitable for use in chemical plants and refineries.
For more information on the Marine U Section Double Flange Butterfly Valve, visit the SAVVY VALVES CO., LTD. website.
Company Background: SAVVY VALVES CO., LTD.
SAVVY VALVES CO., LTD., based in Hebei, China, is a leading manufacturer of high-quality industrial valves. With a focus on innovation and customer satisfaction, the company has established itself as a trusted supplier in the global market. The SAVVY VALVES team is committed to delivering products that meet the highest standards of performance and reliability.
The company's dedication to quality is evident in its comprehensive quality control processes, which include rigorous testing and inspections. SAVVY VALVES' commitment to excellence is further reinforced by its 12-month warranty, ensuring customer confidence in its products.
As a leader in the valve industry, SAVVY VALVES CO., LTD. continues to invest in research and development to stay at the forefront of technological advancements. The company's products, including the Marine U Section Double Flange Butterfly Valve, are designed to meet the evolving needs of industries worldwide.
Conclusion
The Marine U Section Double Flange Butterfly Valve by SAVVY VALVES CO., LTD. is a testament to engineering excellence and innovation. With its advanced design, high-quality materials, and rigorous testing, this valve is a reliable solution for demanding industrial applications. The company's commitment to quality, customer support, and compliance with international standards ensures that customers receive products that meet the highest expectations.
For more information about the Marine U Section Double Flange Butterfly Valve and other products, visit the SAVVY VALVES CO., LTD. website.
