Efficient Lug-Type Pneumatic Knife Gate Valve for Slurry & Pulp

Introduction to Lug-Type Pneumatic Knife Gate Valves and Industry Trends

In the realm of industrial fluid control, efficiency, reliability, and robust performance are paramount. The Lug-Type Pneumatic Knife Gate Valve stands out as a critical component, particularly in handling abrasive slurries, viscous media, and pulpy materials where precise shut-off and minimal clogging are essential. Its design, characterized by a sharp, sliding gate and a lugged body for direct mounting between flanges, offers superior operational benefits in demanding environments.

Current industry trends underscore a growing demand for automated, low-maintenance, and highly durable valve solutions. The rise of Industry 4.0 has accelerated the adoption of pneumatic actuation for its inherent safety, speed, and reliability, especially in hazardous or remote locations. Furthermore, there's a significant drive towards sustainable operations, necessitating valves that offer energy efficiency, longer service life, and reduced fugitive emissions. Material science advancements are also playing a crucial role, allowing manufacturers to produce valves capable of withstanding increasingly harsh chemical and abrasive conditions, thereby extending their operational lifespan and reducing total cost of ownership (TCO).

The strategic integration of a Lug-Type Pneumatic Knife Gate Valve into a process system contributes significantly to these goals, providing precise control, enhancing operational safety, and minimizing downtime in applications ranging from mineral processing to wastewater treatment.

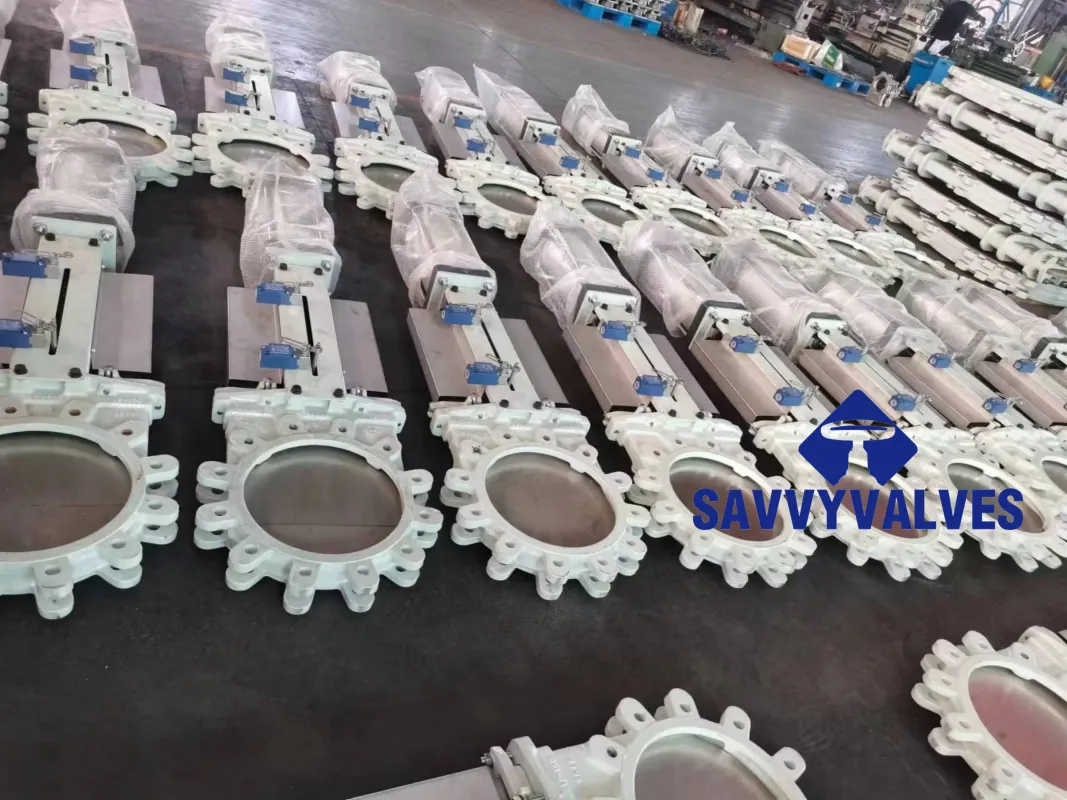

Figure 1: Typical Lug-Type Pneumatic Knife Gate Valve in industrial application.

Technical Specifications and Core Components

Understanding the intricate technical specifications and core components is vital for selecting the optimal Lug-Type Pneumatic Knife Gate Valve for any given application. These valves are engineered for unidirectional or bi-directional flow, designed to shear through dense media and provide a tight shut-off.

Structure and Functionality

• Body: The lugged cast body, typically ductile iron, stainless steel (304, 316, 316L), or special alloys, is designed for direct mounting between flanges, ensuring easy installation and removal without disassembling the entire pipeline.
• Gate: A sharpened stainless steel (e.g., SS304, SS316) or hardened alloy gate slides perpendicularly to the flow, effectively cutting through suspended solids and providing a positive shut-off. Polished gates minimize friction and material buildup.
• Seat: Resilient seats (e.g., EPDM, NBR, Viton, PTFE) or metal-to-metal seats provide bubble-tight shut-off. The choice of seat material is critical for chemical compatibility and temperature range.
• Packing: Multi-layered packing (e.g., PTFE impregnated, graphite, braided fiber) around the gate stem prevents leakage to the atmosphere, crucial for environmental compliance and process integrity.
• Actuator: Pneumatic actuators (double-acting or spring-return) provide rapid and reliable operation. Air-to-open/air-to-close configurations are common, with optional accessories like solenoid valves, limit switches, and positioners for advanced control.

Key Technical Parameters

The following table outlines typical parameters for a standard Lug-Type Pneumatic Knife Gate Valve, highlighting the versatility and robustness of its design.

Manufacturing Process Flow and Quality Assurance

The production of a high-performance Lug-Type Pneumatic Knife Gate Valve involves a meticulous manufacturing process, ensuring adherence to stringent quality standards and maximizing service life. From raw material selection to final testing, each stage is critical for the valve's integrity and reliability.

Process Stages:

1. Material Selection and Sourcing:

   Raw materials like ductile iron, various grades of stainless steel (e.g., ASTM A351 CF8M for corrosion resistance), and specialized alloys are sourced from certified suppliers. Material Test Certificates (MTCs) are verified to ensure chemical composition and mechanical properties meet international standards (e.g., ASTM, EN).

2. Casting/Forging of Body and Components:

   Valve bodies are typically produced via precision casting, while gates and stems may be forged for enhanced strength and metallurgical integrity. This process ensures a robust structure capable of withstanding operational pressures and temperatures. Advanced simulation software is often used to optimize casting designs and minimize defects.

3. CNC Machining:

   High-precision Computer Numerical Control (CNC) machining centers are employed to finish critical dimensions such as flange faces, bore diameters, gate guides, and stem threads. This guarantees precise tolerances, superior surface finishes, and perfect alignment for optimal sealing and operation. Modern CNC techniques reduce material waste and increase production efficiency, contributing to energy saving in the manufacturing process.

4. Gate Fabrication and Finishing:

   The knife gate itself undergoes specialized grinding and polishing to achieve a razor-sharp edge and smooth surface, critical for cutting through media and preventing material accumulation. Hard-facing treatments like Stellite overlays or specialized coatings can be applied for enhanced abrasion and corrosion resistance, extending the service life significantly, especially in abrasive slurry applications.

5. Assembly:

   Components are meticulously assembled in a clean environment. This includes installing the gate, seat, packing, stem, and actuator. Proper torqueing of fasteners and precise alignment are crucial for leak-free performance and smooth operation.

6. Testing and Quality Control:

   Every Lug-Type Pneumatic Knife Gate Valve undergoes rigorous testing to industry standards such as ISO 5208 (Pressure Testing of Valves), ANSI/ASME B16.34 (Valves—Flanged, Threaded, and Welding End), and MSS SP-81 (Stainless Steel Knife Gate Valves). This includes hydrostatic shell testing, seat leakage testing, and functional testing of the actuator. Non-destructive testing (NDT) like X-ray or ultrasonic inspection may be performed on critical components.

7. Surface Treatment and Finishing:

   External surfaces are cleaned, primed, and coated with corrosion-resistant paints suitable for industrial environments. Specialized coatings for highly corrosive atmospheres can also be applied.

Target industries for these valves include petrochemical, mining, pulp and paper, wastewater treatment, and power generation. The emphasis on high-quality materials and precise manufacturing results in valves with extended service life, reduced maintenance needs, and enhanced operational efficiency, directly translating to energy saving through minimized system downtime and optimal flow control.

Figure 2: Precision CNC machining ensures exact dimensions and superior finish for valve components.

Application Scenarios and Technical Advantages

The versatile design and robust construction of the Lug-Type Pneumatic Knife Gate Valve make it indispensable across a wide array of demanding industrial applications. Its unique ability to handle challenging media efficiently provides significant technical advantages over conventional valve types.

Typical Application Scenarios:

• Pulp and Paper Industry: Essential for handling wood pulp, paper stock slurries, and chemical recovery lines. The knife gate effectively cuts through fibers without clogging, ensuring smooth process flow and minimizing downtime.
• Mining and Mineral Processing: Widely used in slurry pipelines containing abrasive ores, tailings, and chemical reagents. The robust design and wear-resistant materials provide extended service life in extremely erosive environments.
• Wastewater Treatment: Critical for controlling flow in raw sewage, sludge, and grit removal systems. The valve's ability to handle suspended solids and fibrous materials prevents blockages and maintains operational continuity.
• Chemical and Petrochemical: Used for isolation and control of corrosive and viscous fluids. Specific material selections, such as Hastelloy or Duplex stainless steel, cater to aggressive chemical services.
• Power Generation: Applied in ash handling systems, flue gas desulfurization (FGD), and cooling water systems, where slurries and abrasive media are common.
• Food and Beverage: Specialized versions with polished gates and sanitary connections are used for viscous food products and waste streams.

Technical Advantages:

• Superior Slurry Handling: The sharp edge of the gate effectively cuts through fibrous or abrasive slurries, preventing clogging and ensuring positive shut-off even in challenging media.
• High Flow Capacity & Low Pressure Drop: When fully open, the knife gate valve offers a full-bore design, resulting in minimal turbulence, high flow capacity, and negligible pressure drop, contributing to energy efficiency.
• Reliable Shut-off: The self-cleaning action of the gate and the choice of resilient or metal seats provide reliable, leak-tight shut-off, crucial for process isolation and safety.
• Compact Design: Compared to other gate valve types, the knife gate valve has a shorter face-to-face dimension, saving space and simplifying installation. The lugged body further facilitates direct mounting between flanges.
• Corrosion and Abrasion Resistance: Available in a wide range of materials and with specialized coatings, these valves can be tailored to resist specific corrosive chemicals and abrasive media, ensuring long-term performance and reduced maintenance costs.
• Automated Operation: Pneumatic actuation allows for rapid, remote, and automated control, integrating seamlessly into modern Distributed Control Systems (DCS) or SCADA, improving operational safety and efficiency. This is a key benefit for energy saving by optimizing process control.

Figure 3: A Lug-Type Pneumatic Knife Gate Valve installed in a challenging industrial pipeline.

Vendor Comparison and Customized Solutions

Choosing the right vendor for a Lug-Type Pneumatic Knife Gate Valve involves more than just price; it requires a comprehensive evaluation of product quality, technical expertise, customization capabilities, and post-sales support. SavvyValveTech distinguishes itself through a commitment to engineering excellence and client-centric solutions.

Key Factors for Vendor Selection:

• Certifications: Look for ISO 9001, CE, API, and other relevant industry-specific certifications that attest to quality management and product performance.
• Material Traceability: Ensure complete material traceability from foundry to finished product.
• Engineering Expertise: A vendor with strong engineering capabilities can offer valuable insights and solutions for unique application challenges.
• Customization Options: The ability to tailor valve specifications (materials, coatings, actuation) is crucial for optimized performance in specific processes.
• After-Sales Support: Availability of spare parts, technical assistance, and field service significantly impacts long-term operational costs.

Vendor Comparison: SavvyValveTech vs. Generic Supplier

Customized Solutions

Recognizing that no two industrial applications are identical, SavvyValveTech specializes in providing bespoke Lug-Type Pneumatic Knife Gate Valve solutions. This includes:

• Application-Specific Materials: For highly corrosive or abrasive media, valves can be supplied with exotic alloys (e.g., Titanium, Monel) or internal ceramic liners.
• Special Coatings: PTFE, hard chrome, or other proprietary coatings on the gate and body components to enhance chemical resistance or reduce friction.
• Actuation and Control: Beyond standard pneumatic cylinders, options include electro-pneumatic positioners for modulating control, manual override systems, and various limit switch configurations for feedback.
• Extended Stems and Gland Packing: For high-temperature or vacuum applications, or to accommodate insulation.
• Sanitary Designs: For hygienic processes, valves can be designed with polished wetted parts and specific sealing materials to meet FDA requirements.

These customized solutions ensure optimal performance, extended lifespan, and reduced operational costs tailored precisely to the client's unique process demands.

Real-World Application Case Studies & Customer Experience

Practical application demonstrates the true value of a reliable Lug-Type Pneumatic Knife Gate Valve. SavvyValveTech prides itself on successful deployments that consistently exceed client expectations, leading to enhanced operational efficiency and reduced total cost of ownership.

Case Study 1: Enhanced Slurry Control in a Copper Mine

• Client: Major South American Copper Mining Corporation
• Challenge: The client faced frequent clogging and premature wear in their conventional gate valves, handling highly abrasive copper concentrate slurry. This led to significant downtime and high maintenance costs.
• Solution: SavvyValveTech supplied DN300 (12-inch) Lug-Type Pneumatic Knife Gate Valves with Hardox-lined gates and reinforced UHMW-PE seats. The pneumatic actuation was integrated into their existing DCS for remote, automated control.
• Outcome: After 18 months of continuous operation, the client reported a 60% reduction in valve-related downtime and a 45% decrease in maintenance expenditures. The precise shut-off of the knife gate valves also improved process control and reduced material wastage. "The SavvyValveTech knife gate valves have proven incredibly robust in our challenging slurry lines. Their extended lifespan has significantly boosted our operational efficiency," stated the Plant Manager.

Case Study 2: Optimized Wastewater Treatment Plant Operations

• Client: Municipal Wastewater Treatment Facility, Europe
• Challenge: The existing cast iron valves in their primary sludge lines were prone to jamming due to fibrous materials and grit, requiring manual intervention and periodic shut-downs for cleaning.
• Solution: SavvyValveTech provided DN200 (8-inch) stainless steel Lug-Type Pneumatic Knife Gate Valves with PTFE-impregnated packing and flexible EPDM seats. The pneumatic actuators were chosen for fast, reliable action.
• Outcome: The new valves demonstrated exceptional performance in handling the difficult media. The self-cleaning action of the knife gate prevented material buildup, and the pneumatic operation allowed for seamless integration into their SCADA system. This resulted in a 30% reduction in operator intervention and a 20% increase in overall plant throughput due to minimized disruptions. Customer feedback highlighted the "unwavering reliability and minimal maintenance" as key benefits.

Case Study 3: Pulp & Paper Mill Efficiency Improvement

• Client: Leading International Pulp and Paper Manufacturer
• Challenge: Managing high-consistency pulp stock, their previous valves frequently experienced leakage and packing issues, leading to product loss and environmental concerns.
• Solution: Implementation of SavvyValveTech's bi-directional Lug-Type Pneumatic Knife Gate Valves, featuring polished SS316 gates and encapsulated resilient seats, along with a robust stem packing design.
• Outcome: The superior sealing capabilities and enhanced packing system drastically reduced leakage, complying with stricter environmental regulations. The automatic pneumatic control also facilitated more precise dosing of pulp, contributing to product consistency and a 15% reduction in raw material waste. The client commended the "exceptional leak integrity and long-term durability" of the valves.

Trustworthiness & Support: Your Partner in Valve Technology

At SavvyValveTech, we build trust through transparency, verifiable quality, and unwavering customer support. Our commitment extends beyond the sale of a Lug-Type Pneumatic Knife Gate Valve, encompassing the entire lifecycle of the product.

Frequently Asked Questions (FAQ)

Q: What makes a lug-type knife gate valve different from a wafer-type?

A: A lug-type valve features threaded bolt holes (lugs) on its body, allowing it to be bolted directly to each flange in the pipeline. This enables removal of the valve from the line for maintenance without disturbing the other side of the piping. A wafer-type valve is sandwiched between two pipe flanges and requires both sides of the pipeline to be de-pressurized and supported for removal.

Q: Can these valves handle corrosive chemicals?

A: Yes, with appropriate material selection. SavvyValveTech offers body materials like SS316, Duplex, Hastelloy, and various seating materials (e.g., PTFE, Viton) specifically chosen for their chemical resistance properties. Our engineers can assist in selecting the optimal material for your specific corrosive media.

Q: What kind of maintenance is required for a pneumatic knife gate valve?

A: Maintenance is generally minimal, focusing on periodic inspection of the packing gland for leaks, checking actuator air supply and seals, and ensuring smooth gate operation. Lubrication of the stem and actuator linkages may be required. We provide detailed maintenance manuals with each valve.

Q: What is the typical service life of your valves?

A: The service life of a Lug-Type Pneumatic Knife Gate Valve is highly dependent on the application, media characteristics, and operating conditions. However, with proper material selection and regular maintenance, our valves are designed for an extended service life, often exceeding 5-10 years in typical industrial applications. Our certifications (e.g., ISO 9001, API) and stringent testing protocols ensure long-term reliability.

Lead Time & Fulfillment

For standard configurations of Lug-Type Pneumatic Knife Gate Valves, our typical lead time ranges from 4 to 6 weeks. For urgent requirements, we maintain a stock of common sizes and materials for expedited shipping. Customized solutions may require additional engineering and manufacturing time, which will be clearly communicated during the quotation phase. We utilize robust logistics networks to ensure timely and secure delivery worldwide.

Warranty Commitments

SavvyValveTech stands behind the quality and performance of its products. All Lug-Type Pneumatic Knife Gate Valves come with a comprehensive warranty, typically covering 12 to 24 months from the date of installation or 18 to 30 months from the date of shipment, whichever comes first. Specific warranty terms are provided with each order, covering manufacturing defects and material failures under normal operating conditions.

Customer Support and Authoritative References

Our commitment to our clients is paramount. SavvyValveTech provides comprehensive after-sales support, including technical assistance, spare parts supply, troubleshooting guides, and field service when required. Our team of experienced engineers and technical specialists is available to assist with installation, commissioning, and optimization. We operate under stringent quality management systems certified to ISO 9001:2015, and our valves comply with international standards such as ASME, ANSI, MSS SP-81, and EN directives. Our long-standing partnerships with global clients across petrochemical, mining, and wastewater sectors, alongside over 20 years of dedicated service in valve manufacturing, attest to our authoritativeness and trustworthiness in the industry.

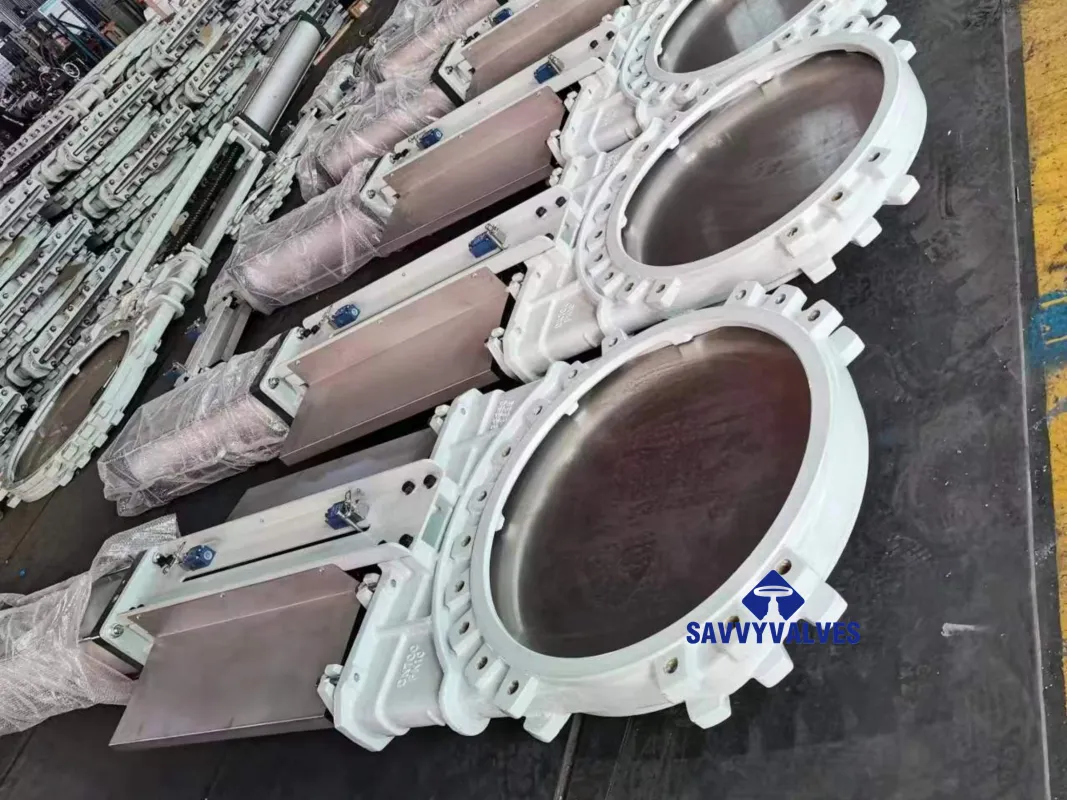

Figure 4: Detailed view of the pneumatic actuator and robust construction.

Conclusion

The Lug-Type Pneumatic Knife Gate Valve is an indispensable asset in modern industrial processes, offering unparalleled reliability and efficiency in handling challenging media. Its robust design, coupled with advanced manufacturing techniques and a commitment to quality, ensures optimal performance across diverse sectors, from the abrasive conditions of mining to the demanding requirements of wastewater treatment. By focusing on customization, adherence to stringent industry standards, and comprehensive customer support, SavvyValveTech delivers not just a valve, but a complete solution engineered for longevity, operational efficiency, and a superior return on investment.

As industries continue to evolve towards greater automation and sustainability, the demand for high-performance, low-maintenance valves will only increase. The adaptability and proven track record of the pneumatic knife gate valve position it as a critical component in future industrial infrastructures, driving efficiency and ensuring operational integrity.

Authoritative References

1. American Petroleum Institute (API) Standards. (2020). API Specification 607: Fire Test for Soft-Seated Quarter-Turn Valves.
2. Manufacturers Standardization Society of the Valve and Fittings Industry (MSS). (2018). MSS SP-81: Stainless Steel, Bonnetless, Flanged, Wafer, Lug, and Buttwelding-End Knife Gate Valves.
3. International Organization for Standardization (ISO). (2017). ISO 5208: Industrial valves - Pressure testing of metallic valves.
4. American Society of Mechanical Engineers (ASME). (2017). ASME B16.34: Valves – Flanged, Threaded, and Welding End.
5. Valves, Pipes, and Fittings Handbook. (2021). Fluid Control Technologies for Abrasive Slurries. Engineering & Process Systems Publishing.
