Understanding Butterfly Valve PN10: Why It Matters Globally
Imagine a simple device that controls the flow of liquids and gases efficiently, reliably, and at a fraction of the cost of more complex valves. That’s basically what a butterfly valve PN10 does—and it’s everywhere, quietly enabling water treatment plants, chemical industries, and even humanitarian projects worldwide. With a pressure rating suited to many everyday industrial and municipal applications, this valve type is both a practical workhorse and a clever design marvel.
Why should anyone outside plumbing or industrial sectors care? Well, in a world increasingly dependent on sustainable water management and efficient industrial processes, understanding tools like the butterfly valve PN10 is key to improving infrastructure resilience, reducing costs, and ultimately protecting the planet’s scarce resources.
The Global Footprint of Butterfly Valve PN10
From bustling urban centers to remote rural communities, the use of butterfly valves rated PN10 (which essentially means they handle pressures up to 10 bar) is surprisingly widespread. According to reports by the International Organization for Standardization (ISO) and the United Nations, efficient valve mechanisms play a foundational role in sustainable water distribution systems and clean energy generation.
Here’s a stat that stood out to me: in emerging markets, over 60% of water infrastructure projects incorporate piping and valve systems rated for pressures roughly equivalent to PN10. This is no coincidence. Butterfly valves offer a combination of size, cost, and durability that genuinely hits the sweet spot for many applications facing budget constraints and tough operational environments.
However, challenges remain, especially where durability under corrosive environments or precise flow control is critical. This forces engineers and users to constantly rethink how to get the best value from something that looks deceptively simple.

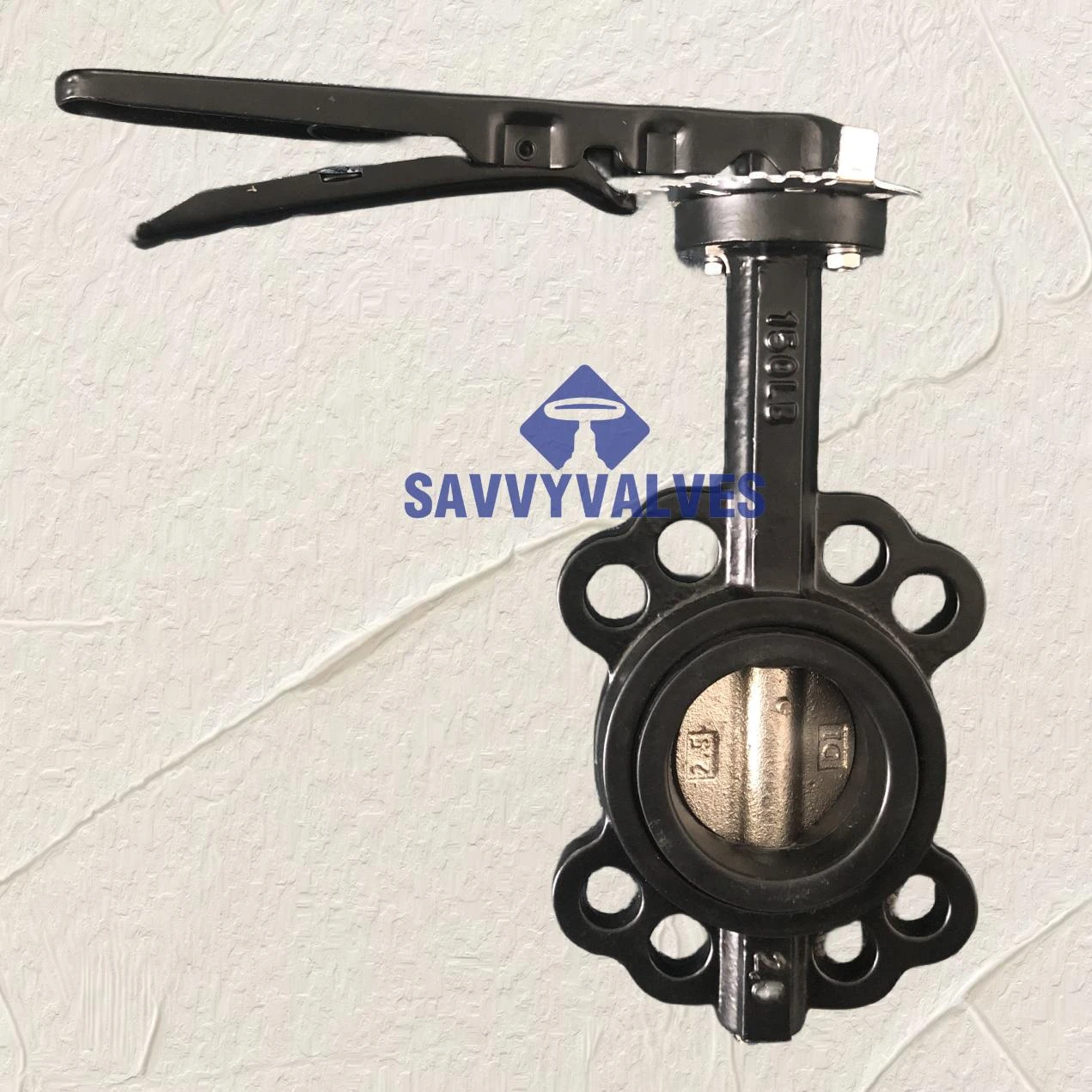

But What Exactly Is a Butterfly Valve PN10?
At its core, a butterfly valve controls flow by rotating a disk within the pipe. When open, the disk aligns with the flow direction, allowing fluid to pass freely. When closed, it swings perpendicular to the flow, effectively blocking it. It’s like turning a light switch—only for fluids.
The “PN10” part means “Pressure Nominal 10,” a standard indicating this valve can reliably function at pressures up to 10 bar (about 145 psi). This rating makes it ideal for a wide range of commercial, municipal, and light industrial uses where pressure conditions are moderate, but durability can't be compromised.
In modern industries, these valves aren’t just mechanical gadgets; they’re critical components helping to maintain system integrity and safety. For example, in disaster relief water systems or remote agricultural irrigation schemes, the ability to quickly shut off and regulate flow without complex setups is invaluable.
Core Components You Should Know
- Valve Body: Usually made from ductile iron, stainless steel, or PVC depending on the environment.
- Disc (Butterfly): The heart of the valve, often made from metal or coated with resilient materials like epoxy.
- Shaft/Stem: Connects the disc to the actuator or handle; crucial for smooth rotation and durability.
- Seat: The sealing ring around the valve body ensuring tight shutoff, often elastomeric or PTFE-based.
- Actuator: Can be manual (lever or gear) or automated (electric or pneumatic) depending on system needs.
Each component’s material and design impact durability, ease of maintenance, and cost. For instance, in saltwater applications, stainless steel shafts will outlast cheaper alloys, but they add upfront cost — a tradeoff many operators consider carefully.
Global Applications & Real-World Uses of Butterfly Valve PN10
Industries and geographies alike have embraced butterfly valves PN10 for their balance of reliability and affordability:
- Municipal water systems: Regulating potable water lines in urban centers across Europe and Asia.
- Agriculture: Used for irrigation controls especially in emerging countries where infrastructure upgrades are underway.
- Wastewater treatment: Handling corrosive effluents reliably at treatment plants across North America.
- Food & beverage: Sanitary versions ensure safe flow control in brewing and dairy processing.
- Disaster relief operations: Portable water distribution kits often integrate butterfly valves for quick, failsafe shutoffs.
In fact, I once noticed a project in sub-Saharan Africa that relied heavily on butterfly valves PN10 because their local suppliers knew these valves could withstand harsh sunlight and intermittent operation with minimal maintenance. That kind of user insight really highlights why this valve type isn’t just “industry standard” — it’s a cultural and operational fit too.
Quick Summary:
Butterfly valves PN10 are everywhere because they meet a straightforward need for sturdy, moderately pressurized flow control. Their simple design, material choices, and scalability make them appropriate across vast climates and industries.
Advantages & Long-Term Value: More Than Just Price
Let’s get real — cost matters, but there are some deeper reasons engineers specify butterfly valve PN10 models:
- Cost efficiency: Lower initial and maintenance expenses compared to gate valves.
- Compact design: Takes up less space, which truly matters in retrofit or constrained setups.
- Durability: Designed to handle 10 bar pressure with corrosion-resistant materials, increasing lifecycle.
- Ease of operation: Quarter-turn actuation means faster open/close times and less wear.
- Environmental impact: Reduced material use and long service life reduce waste.
There’s also an intangible benefit — trust. Operators who’ve had a butterfly valve PN10 installed report fewer emergency shutdowns and less frequent replacements, cutting downtime and frustration.
Product Specification Table
| Feature | Typical PN10 Butterfly Valve | Notes |
|---|---|---|
| Pressure Rating | 10 bar (145 psi) | Standard PN10 rating |
| Valve Body Material | Ductile Iron / Stainless Steel / PVC | Varies by application |
| Disc Material | Epoxy-coated Steel / Stainless Steel | Corrosion resistant options available |
| Seat Material | EPDM / PTFE / NBR | Depends on fluid compatibility |
| Operation | Manual lever / Gear / Electric actuator | Scalable to system needs |
| Applicable Standards | ISO 5752, EN 593, API 609 | Compliance ensures safety & reliability |
Vendor Comparison Table
| Vendor | Material Options | Price Range (USD) | Lead Time | Customization |
|---|---|---|---|---|
| Savvy Valve Tech | Ductile Iron, SS, PVC | $150 - $500 | 2-4 weeks | Full OEM support & specifc designs |
| Global Valve Co. | Cast Iron, Stainless Steel | $180 - $600 | 3-5 weeks | Standard lines only |
| EcoFlow Valves | PVC, UPVC | $120 - $400 | 1-3 weeks | Limited customization |
Looking Ahead: Trends and Innovations in Butterfly Valve PN10
It feels like valves, of all things, aren’t often in the spotlight — but several exciting trends are reshaping this humble device:
- Smart Actuation: Integration with IoT sensors for real-time flow and pressure monitoring.
- New Materials: Advanced composites and coatings that resist corrosion and biofouling longer.
- Sustainability Focus: Manufacturers adopting eco-friendly production methods and recyclable components.
- Automation: Pneumatic and electric actuators lowering human error and improving safety in critical systems.
For example, some water utilities in Scandinavia have started using butterfly valves equipped with sensor feedback that signals maintenance needs before a seal fails — you kind of avoid that dreaded surprise shutdown.
Common Challenges & Practical Solutions
Of course, no valve is perfect. Some hurdles with butterfly valve PN10 units include:
- Leakage risks: Imperfect sealing if the seat wears out or installation isn’t precise.
- Limited throttling control: Not ideal for very precise flow restrictions.
- Corrosion in aggressive fluids: Failure if materials are mismatched for the medium.
Solutions? Proper material selection, routine inspection, and pairing valves with suitable actuators and control systems usually do the trick. Also, increasing awareness around training installers and operators helps reduce costly errors.
FAQ: Your Burning Questions About Butterfly Valve PN10
1. What is the main difference between a butterfly valve PN10 and other pressure ratings?
The PN number indicates the maximum pressure the valve can safely handle at a given temperature. PN10 means it’s rated for about 10 bar pressure. Other ratings like PN16 or PN25 handle higher pressures but often cost more. PN10 valves strike a balance for many water and industrial uses with moderate pressures.
2. Can butterfly valves PN10 be used with potable water systems?
Absolutely, as long as the materials used for the valve body, disc, and seat comply with potable water safety standards. Typically, EPDM or NSF-certified liners are used to ensure no contamination.
3. How often should butterfly valve PN10 require maintenance in industrial settings?
Routine inspection every 6–12 months is common, but this depends heavily on operating conditions. Harsh environments might require more frequent checks to prevent unexpected failures.
4. Are butterfly valves PN10 compatible with automation?
Yes, many PN10 butterfly valves come with provisions for electric or pneumatic actuators, enabling integration with modern control systems for remote operation and monitoring.
5. Where can I find reliable butterfly valve PN10 suppliers?
Suppliers like butterfly valve pn10 specialists offer a range of options with OEM support. It’s best to compare vendors by material, price, lead time, and customization capabilities before deciding.
Wrapping It Up: Why Butterfly Valve PN10 Still Holds Its Ground
Truthfully, even with all the high-tech gadgets in pipelines today, butterfly valves PN10 remain essential. They combine cost-effectiveness, reliable pressure handling, and adaptability across industries—from water distribution to food processing to emergency projects.
If you’re considering an upgrade or specifying parts for your project, these valves deserve a spot on your shortlist. For a deep dive, tailored advice, or product support, don’t hesitate to visit our website and see what the experts recommend.
Sometimes, the simplest solutions quietly power our complex world—a butterfly valve PN10 is a perfect example.
