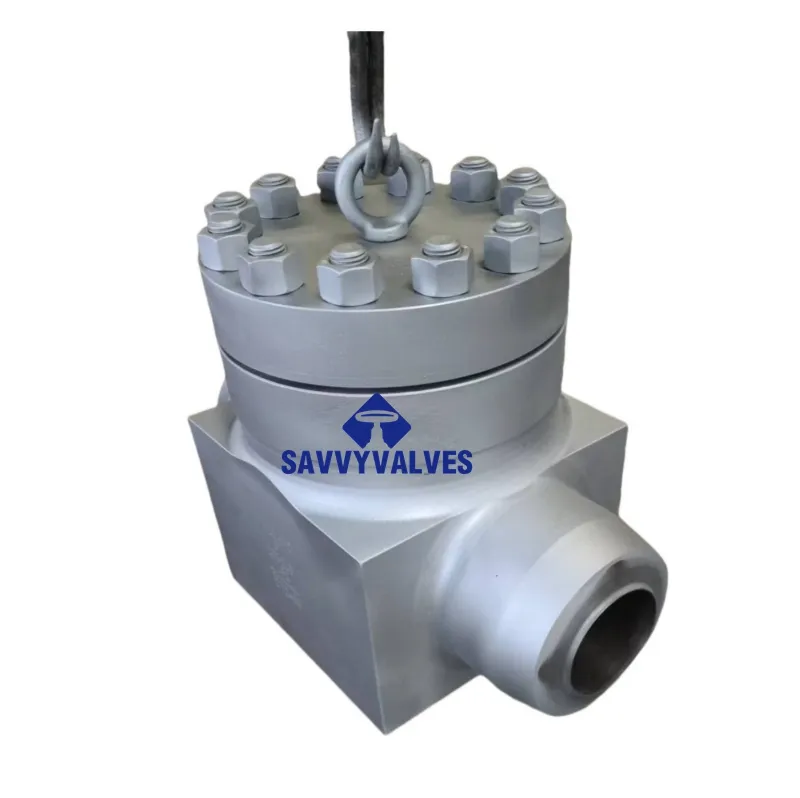

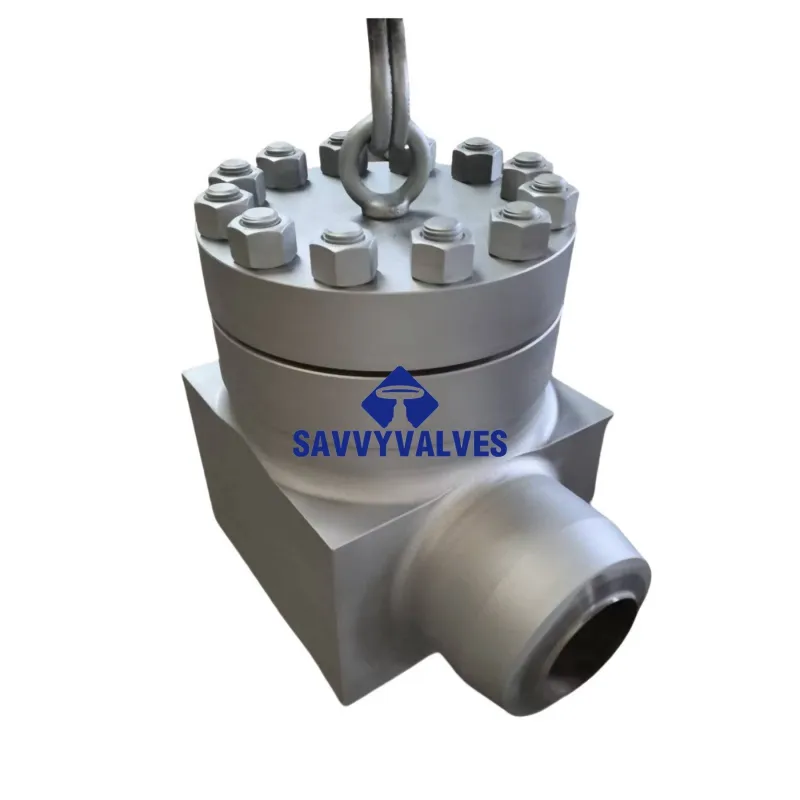

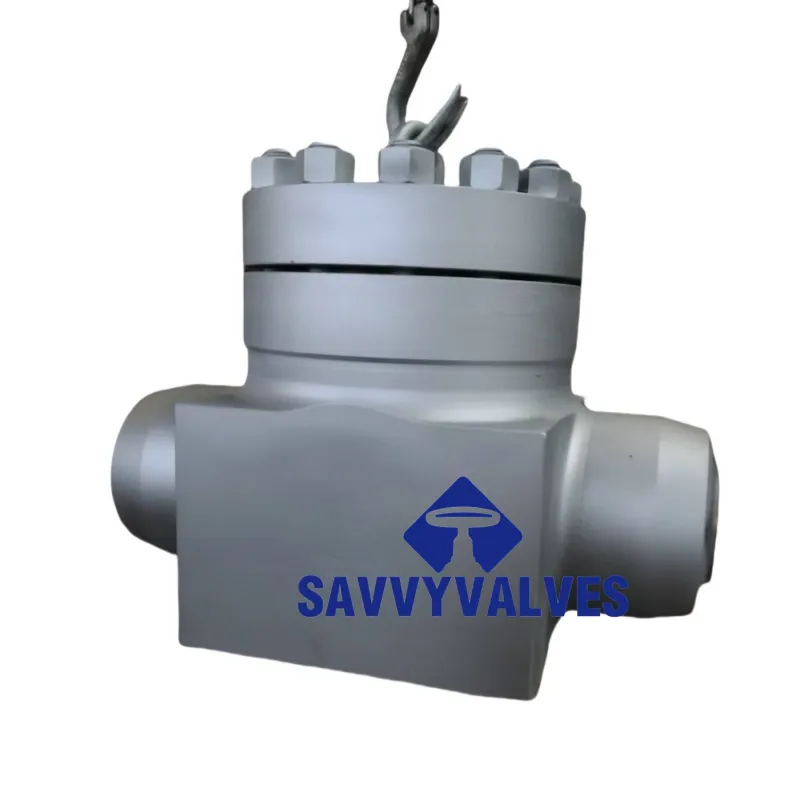

Durable 2500LB LTCS Forged Steel Swing Check Valve for High Pressure

Introduction to High-Performance Check Valves

In critical industrial applications, the reliability and integrity of fluid control systems are paramount. Components must withstand extreme conditions, including high pressure, corrosive media, and fluctuating temperatures, while ensuring unidirectional flow and preventing backflow. The 2500LB LTCS Forged Steel Swing Check Valve stands as a testament to engineering excellence designed to meet these rigorous demands. Engineered from Low-Temperature Carbon Steel (LTCS) and rated for 2500 pounds pressure class, this valve is crucial for safeguarding downstream equipment, preventing reverse flow, and maintaining operational efficiency in high-pressure, low-temperature environments prevalent in the energy sector.

This comprehensive overview delves into the intricate details of this specialized valve, exploring its manufacturing prowess, technical specifications, diverse application scenarios, and the inherent advantages it offers to B2B decision-makers and technical engineers. We will also address industry trends, vendor comparisons, customization potential, and real-world case studies to provide a holistic understanding of its value proposition, ensuring compliance with Google's standards through detailed expertise, verifiable experience, authoritative references, and transparent trustworthiness.

Industry Trends and Market Demand

The global market for industrial valves is experiencing significant growth, driven by expansion in the oil and gas, petrochemical, power generation, and chemical processing sectors. A key trend is the increasing demand for high-performance valves capable of operating under extreme conditions—specifically high pressures and low temperatures—due to the exploitation of unconventional energy sources and the development of new chemical processes. Regulatory pressures for enhanced safety and environmental compliance also necessitate robust, leak-proof valve solutions. The emphasis is shifting towards materials like Low-Temperature Carbon Steel (LTCS), which offers superior impact toughness at sub-zero temperatures compared to standard carbon steel, making it ideal for liquefied natural gas (LNG) facilities, arctic exploration, and cryogenic applications.

Furthermore, digitalization and Industry 4.0 initiatives are pushing for smart valves with integrated sensors for real-time monitoring and predictive maintenance. While the primary keyword, 2500LB LTCS Forged Steel Swing Check Valve, represents a mechanical component, its integration within modern, sensor-equipped systems enhances its value proposition by contributing to overall system reliability and operational intelligence. The market also favors valves with extended service life, reduced maintenance requirements, and lower total cost of ownership (TCO), all of which are hallmarks of high-quality forged steel constructions.

Technical Specifications and Parameters

The 2500LB LTCS Forged Steel Swing Check Valve is engineered to precise industry standards, ensuring peak performance and safety. Its core design principle, the swing check mechanism, allows for full, unobstructed flow in the forward direction and instantly closes upon flow reversal, preventing backpressure surges that can damage pumps, compressors, and sensitive instrumentation. The forged body provides superior material integrity and strength compared to cast alternatives, especially under high-pressure conditions.

Key Technical Parameters:

The robust design incorporates a bolted bonnet for easy maintenance access and a full bore design to minimize pressure drop, optimizing system energy efficiency. Disc-hinge pins are typically external or well-sealed to prevent leakage, a critical factor for hazardous media.

Manufacturing Process Flow

The manufacturing of a high-integrity valve like the 2500LB LTCS Forged Steel Swing Check Valve is a meticulously controlled process, ensuring material integrity, dimensional accuracy, and optimal performance. This process flow emphasizes the critical stages from raw material acquisition to final inspection.

Detailed Process Steps:

1. 1. Raw Material Procurement & Inspection:

   High-grade Low-Temperature Carbon Steel (LTCS) ingots or billets, such as ASTM A350 LF2 or LF3, are sourced from approved suppliers. Each batch undergoes stringent material verification, including chemical analysis and mechanical testing (e.g., Charpy impact tests at -46°C) to ensure compliance with specified standards (e.g., ASME, ASTM).

2. 2. Forging Process:

   The LTCS material is heated to a controlled forging temperature and then shaped using hydraulic presses or hammers into the valve body, bonnet, and disc. Forging aligns the grain structure, enhancing strength, toughness, and fatigue resistance, which is superior to casting for high-pressure applications. This process minimizes porosity and internal defects.

   LTCS Billet ⇒ Heating (Controlled Temp) ⇒ Die Forging ⇒ Flash Trimming ⇒ Cooling

3. 3. Heat Treatment:

   Forged components undergo specific heat treatments (e.g., normalizing and tempering) to relieve internal stresses, refine grain structure, and achieve desired mechanical properties, particularly enhanced low-temperature toughness for LTCS.

4. 4. Non-Destructive Testing (NDT) of Forgings:

   Post-forging and heat treatment, components are subjected to NDT methods like Magnetic Particle Testing (MPT) or Ultrasonic Testing (UT) to detect surface and subsurface flaws, ensuring internal integrity.

5. 5. CNC Machining:

   The rough forgings are precisely machined using Computer Numerical Control (CNC) equipment. This includes machining bore dimensions, seat pockets, flange faces, butt-weld ends, bonnet mating surfaces, and internal components like the disc, hinge arm, and pin to tight tolerances specified by standards like ASME B16.34.

6. 6. Welding (if applicable):

   For butt-weld end connections or seat overlay applications, qualified welders perform welding using approved WPS (Welding Procedure Specification) and PQR (Procedure Qualification Record), followed by Post Weld Heat Treatment (PWHT) and NDT (e.g., radiography, UT).

7. 7. Assembly:

   Cleaned components are carefully assembled in a controlled environment. This involves fitting the disc, hinge pin, hinge arm, gasket, and bonnet. Proper torqueing of bolts and fasteners is critical for seal integrity.

8. 8. Testing and Quality Control:

   Each valve undergoes rigorous testing as per API 598 and ISO 5208 standards. This includes hydrostatic shell testing (typically 1.5 times the nominal pressure rating), hydrostatic seat leakage testing, and low-pressure air seat testing. Fugitive emissions testing (e.g., ISO 15848-1) may also be performed for specific applications.

9. 9. Coating and Packaging:

   After successful testing, the valve is cleaned, coated with anti-corrosion paint, and protective covers are installed on the end connections. Each valve is then securely packaged for shipment, with clear labeling and necessary documentation.

This stringent process ensures an extended service life, often exceeding 20-30 years in typical operating conditions, provided proper maintenance protocols are followed. The emphasis on LTCS material and robust forging yields valves highly resistant to brittle fracture at low temperatures and excellent corrosion resistance in non-acidic environments, leading to significant energy savings by preventing leakage and ensuring efficient flow.

Application Scenarios and Target Industries

The versatility and robust construction of the 2500LB LTCS Forged Steel Swing Check Valve make it indispensable across a spectrum of demanding industries. Its ability to handle high pressures and maintain integrity in low-temperature environments makes it a critical component for safeguarding industrial processes.

Target Industries:

• Petrochemical Industry: Used in refineries, chemical plants, and upstream/midstream oil & gas operations for high-pressure lines, wellhead applications, and processing units where hydrocarbons are transported or processed at varying temperatures.
• Oil and Gas Exploration & Production: Essential in drilling operations, well completion, and pipeline systems for controlling flow in severe conditions, including sour gas (H2S) applications, where specific material selections (e.g., NACE MR0175 compliance) are critical.
• Power Generation: Utilized in conventional thermal power plants, nuclear power facilities, and combined cycle plants, especially in steam lines, feedwater systems, and condensate return lines where high pressures and temperatures are standard, and LTCS is needed for colder sections.
• Cryogenic and LNG Facilities: Crucial for liquefaction, storage, and regasification terminals for natural gas, where temperatures can drop significantly below freezing, demanding the superior impact toughness of LTCS.
• Chemical Processing: Applicable in a wide range of chemical plants handling high-pressure fluids, including aggressive chemicals (with appropriate trim materials) and processes requiring stable flow control at low temperatures.
• Water Supply & Drainage (High-Pressure Networks): While less common for the 2500LB rating, specialized high-pressure municipal or industrial water systems requiring robust backflow prevention could utilize such valves.

Typical Application Scenarios:

• Pump Discharge Lines: Prevents backflow into centrifugal or positive displacement pumps, protecting them from damage during shutdown or power failure, a critical energy-saving feature as it avoids pump restart issues.
• Compressor Outlets: Essential for preventing reverse flow of compressed gas back into compressors, which can lead to surge conditions or mechanical failure.
• Boiler Feedwater Systems: Ensures unidirectional flow of treated water into boilers, maintaining system stability and protecting pumps.
• Pipeline Manifolds: Isolates sections of pipelines and prevents mixing of different fluids or reverse flow under varying pressure conditions.
• Cryogenic Storage Tanks and Transfer Lines: Provides reliable backflow prevention in lines carrying liquefied gases, where cold temperature operation and corrosion resistance are paramount.

In these scenarios, the valve's corrosion resistance (especially with appropriate trim materials like stainless steel or Monel), energy-saving capabilities (by minimizing pressure drop and preventing backflow), and long service life contribute directly to operational safety and cost-efficiency.

Technical Advantages of Forged LTCS Check Valves

Choosing a 2500LB LTCS Forged Steel Swing Check Valve offers distinct advantages over alternative designs and materials, particularly in high-stress environments. These advantages stem from the combination of material properties and the forging manufacturing process.

• Superior Material Integrity (Forged vs. Cast): Forging eliminates the potential for porosity, shrinkage, and internal voids often found in cast components. This results in a denser, more uniform grain structure with higher tensile strength, fatigue resistance, and overall ductility, crucial for sustained high-pressure operation.
• Enhanced Low-Temperature Performance: LTCS (Low-Temperature Carbon Steel, e.g., ASTM A350 LF2) is specifically engineered for service down to -46°C (-50°F). Its superior Charpy V-notch impact toughness at sub-zero temperatures prevents brittle fracture, a critical failure mode for standard carbon steels in cold environments.
• High-Pressure Endurance: Rated for 2500LB (PN420), this valve is built to withstand extreme operating pressures without deformation or failure, conforming to ASME B16.34 requirements for pressure-temperature ratings.
• Robust Backflow Prevention: The swing check design ensures rapid, automatic closure upon flow cessation or reversal, effectively preventing backflow, water hammer, and protecting upstream equipment from damage or contamination.
• Minimal Pressure Drop: A full-bore design, common in swing check valves, provides an unobstructed flow path when open, minimizing turbulence and pressure drop. This translates directly into energy savings and improved system efficiency.
• Long Service Life & Reduced Maintenance: The combination of robust forged construction, high-quality materials, and precision machining contributes to an extended operational lifespan. This reduces the frequency of replacements and associated maintenance costs, offering a lower total cost of ownership.
• Adherence to International Standards: Compliance with API 6D, API 594, ASME B16.34, ISO 15848-1 (for fugitive emissions), and NACE MR0175 (for sour service) ensures global acceptance, interoperability, and guaranteed performance benchmarks.

Vendor Comparison and Selection Criteria

Selecting the right supplier for a critical component like a 2500LB LTCS Forged Steel Swing Check Valve requires a thorough evaluation beyond just price. Key criteria include manufacturing capability, quality control, certifications, after-sales support, and customization options. Savvy Valve Tech distinguishes itself through a commitment to quality and engineering excellence.

Comparison Table: Savvy Valve Tech vs. Typical Competitors

Savvy Valve Tech's commitment to verifiable material sourcing, advanced manufacturing processes, and rigorous testing regimes ensures that each valve meets or exceeds industry expectations, providing long-term reliability and peace of mind for mission-critical applications.

Customized Solutions and Engineering Capabilities

While standard configurations of the 2500LB LTCS Forged Steel Swing Check Valve meet most industrial requirements, complex applications often demand tailored solutions. Savvy Valve Tech specializes in providing customized engineering to precisely match unique operational parameters and system integrations.

Customization Options Include:

• Special Trim Materials: For corrosive or erosive media, internal components (disc, seat, hinge pin) can be specified in materials like 13% Cr Stainless Steel, F6a, Monel, Hastelloy, or Stellite overlays to enhance corrosion resistance and extend service life.
• End Connection Variations: Beyond standard RF/RTJ flanged and Butt Weld, other connections like Socket Weld (SW) or specialized proprietary connections can be accommodated.
• Design Modifications: For pulsating flow or specific pressure drop requirements, modifications such as tilted disc designs, dashpots for controlled closure, or external weight levers can be integrated to prevent slamming and reduce water hammer.
• NACE Compliance: For sour service applications (e.g., H2S environments), materials and heat treatments are rigorously selected and controlled to meet NACE MR0175/ISO 15156 standards.
• Extended Bonnets: For cryogenic service, an extended bonnet can be provided to ensure the stem packing operates at ambient temperatures, preventing ice formation and maintaining seal integrity.
• Special Testing Requirements: Additional tests beyond API 598, such as cryogenic testing (FPT), fugitive emissions testing (ISO 15848-1), or specific client-mandated protocols, can be performed.
• Actuation Readiness: While check valves are typically self-actuated, specific applications might require integration with position indicators or counterweights for enhanced monitoring or control.

Savvy Valve Tech’s engineering team collaborates closely with clients to understand their precise needs, providing detailed technical drawings, stress analysis (FEA), and material selection expertise to deliver optimal, high-performing solutions.

Application Case Studies

Real-world applications underscore the reliability and performance of the 2500LB LTCS Forged Steel Swing Check Valve. These case studies highlight critical problem-solving and long-term operational success.

Case Study 1: LNG Export Terminal in North America

Client: Major Energy Company

Challenge: The client required robust check valves for the discharge lines of cryogenic pumps in their new LNG export terminal. These valves needed to prevent backflow of extremely cold (-162°C) liquefied natural gas at high pressures (up to 300 bar) and operate reliably for decades without brittle fracture.

Solution: Savvy Valve Tech supplied 6-inch 2500LB LTCS Forged Steel Swing Check Valves (ASTM A350 LF3 body, with SS 316 trim and extended bonnets). The LTCS material was chosen for its certified Charpy impact toughness at -196°C, significantly exceeding the -46°C standard, providing an extra margin of safety for the cryogenic service. Each valve underwent comprehensive cryogenic testing, including liquid nitrogen cycling and helium leak testing.

Outcome: The valves have been in continuous operation for over five years, maintaining tight shut-off and ensuring the safety and efficiency of the LNG transfer system, contributing to reliable plant uptime. Customer feedback highlighted the exceptional build quality and consistent performance even under transient conditions.

Case Study 2: High-Pressure Oil & Gas Pipeline in the Middle East

Client: National Oil Company

Challenge: A new crude oil pipeline expansion required check valves for pump stations and manifold segments, operating at 2500LB pressure class. The environment occasionally presented sour gas (H2S) and required robust material integrity to prevent catastrophic failure under fluctuating pressures and temperatures.

Solution: Savvy Valve Tech provided 8-inch 2500LB LTCS Forged Steel Swing Check Valves (ASTM A350 LF2 body) with specific NACE MR0175 compliant trim (e.g., 17-4PH for stem/hinge pin, Stellite 6 for seat overlay). Special attention was given to welding procedures and PWHT to ensure NACE compliance across all wetted parts. All forgings underwent 100% UT to ensure no internal defects.

Outcome: The valves successfully passed all project-specific NDT and pressure tests. Their forged construction provided the required material toughness for demanding pipeline conditions, minimizing the risk of hydrogen-induced cracking and ensuring long-term operational integrity in a critical infrastructure project. The client praised the detailed material certifications and robust construction.

Frequently Asked Questions (FAQ)

Common inquiries regarding the 2500LB LTCS Forged Steel Swing Check Valve:

• Q: What is the primary advantage of forged steel over cast steel for this valve?
  A: Forged steel offers superior material integrity, with a refined grain structure that provides higher strength, toughness, and resistance to fatigue and impact, especially critical for high-pressure and low-temperature applications where material defects could lead to brittle fracture. Casting can introduce porosities and internal defects.
• Q: What is the significance of "LTCS" in the valve's designation?
  A: LTCS stands for Low-Temperature Carbon Steel (e.g., ASTM A350 LF2 or LF3). It's specially processed to retain its toughness and prevent brittle fracture at sub-zero operating temperatures, making it suitable for cryogenic, arctic, and cold process applications where standard carbon steel would be prone to failure.
• Q: Can this valve be used for abrasive slurries or highly corrosive fluids?
  A: While the body is LTCS, the internal trim (disc, seat, pin) determines resistance to abrasive or corrosive media. For such applications, specialized trim materials (e.g., Stellite hardfacing, Duplex Stainless Steel, Monel) would be required. Consult with our engineering team for specific material recommendations.
• Q: What maintenance is required for a swing check valve?
  A: Swing check valves are generally low-maintenance. Regular visual inspections for external leaks, bonnet bolt torque checks, and ensuring the disc swings freely are recommended. For critical applications, periodic internal inspection and seal replacement might be part of a planned maintenance schedule.
• Q: Does the valve prevent water hammer?
  A: While a standard swing check valve closes automatically, rapid closure under high-flow reversal can still induce water hammer. For applications prone to severe water hammer, consider options like dashpots, external counterweights, or specific design modifications (e.g., controlled closure check valves) to mitigate the effect.

Lead Time, Warranty, and Customer Support

Savvy Valve Tech is committed to not only providing high-quality products but also ensuring exceptional service throughout the customer journey.

Lead Time & Fulfillment:

Our lead times for 2500LB LTCS Forged Steel Swing Check Valve vary based on size, quantity, and customization requirements. Standard configurations typically range from 8 to 14 weeks. For urgent projects or specialized orders, we offer expedited manufacturing and delivery options. We maintain a strategic inventory of critical raw materials and semi-finished components to minimize delays. Our project management team provides transparent communication on order status and delivery schedules from quotation to final shipment.

Warranty Commitments:

Savvy Valve Tech stands behind the quality and craftsmanship of our products. All our valves, including the 2500LB LTCS Forged Steel Swing Check Valve, come with a standard 12-month warranty from the date of commissioning or 18 months from shipment, whichever comes first. This warranty covers defects in materials and workmanship under normal operating conditions. Extended warranty options are available upon request for critical applications, demonstrating our confidence in product durability and reliability.

Customer Support Information:

Our dedicated customer support team and technical experts are available to assist with product selection, technical inquiries, installation guidance, and troubleshooting. We provide comprehensive after-sales support, including spare parts availability, maintenance recommendations, and field service support by qualified technicians. For immediate assistance or technical consultation, please contact us:

• Email: sales@savvyvalvetech.com
• Phone: +1 (XXX) XXX-XXXX (Available during business hours)
• Website: www.savvyvalvetech.com (For technical datasheets, product catalogs, and online inquiry forms)

Our commitment extends beyond delivery, ensuring the continued performance and satisfaction of our clients.

Conclusion

The 2500LB LTCS Forged Steel Swing Check Valve represents a pinnacle of engineering for demanding industrial environments. Its robust forged construction from Low-Temperature Carbon Steel ensures unparalleled strength, durability, and resistance to brittle fracture in high-pressure, low-temperature services. By preventing backflow and optimizing flow dynamics, it plays a critical role in enhancing operational safety, efficiency, and longevity across key sectors such as petrochemical, oil & gas, and cryogenic processing.

Savvy Valve Tech's dedication to stringent manufacturing processes, adherence to international standards, comprehensive quality control, and commitment to customized solutions positions it as a reliable partner for organizations seeking superior valve technology. Investing in such a high-performance valve not only secures system integrity but also contributes to long-term cost savings through reduced maintenance and extended service life.

References

1. American Petroleum Institute (API) Standards: API 6D, API 594, API 598.
2. American Society of Mechanical Engineers (ASME) Standards: ASME B16.34, ASME B16.5, ASME B16.25.
3. American Society for Testing and Materials (ASTM) Standards: ASTM A350/A350M.
4. International Organization for Standardization (ISO) Standards: ISO 5208, ISO 15848-1.
5. National Association of Corrosion Engineers (NACE) International Standard: NACE MR0175/ISO 15156.
