Double Flanged Dual Plate Check Valve is a key solution in the manufacturing industry, specifically within General equipment manufacturing industry and Valve and plug manufacturing. This article explores how SAVVY VALVES CO.,LTD. supports professionals with durable, high-performance products, and explains why this product is an ideal choice for businesses in these sectors.
Table of Contents
- Double Flanged Dual Plate Check Valve Overview
- Benefits & Use Cases of Double Flanged Dual Plate Check Valve in Valve and plug manufacturing
- Cost, Maintenance & User Experience
- Sustainability & Market Trends in manufacturing
- Conclusion on Double Flanged Dual Plate Check Valve from SAVVY VALVES CO.,LTD.
Double Flanged Dual Plate Check Valve Overview

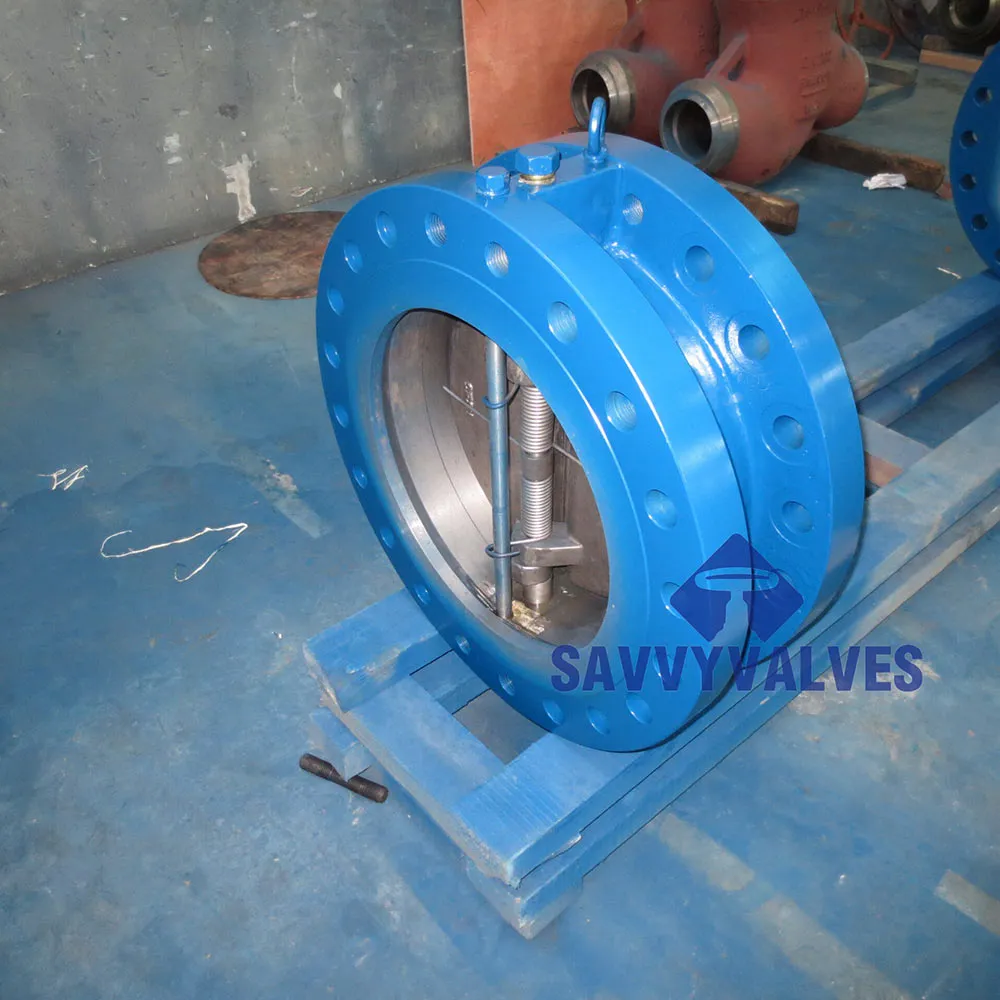

A double flanged dual plate check valve—also called a dual plate check valve double flanged—is a compact, spring-assisted non-return valve designed to prevent reverse flow while minimizing pressure drop. Two semi-circular discs pivot on a central hinge pin and are driven closed by a torsion spring, enabling rapid shutoff and reduced water hammer. The double flanged body simplifies alignment and bolting between pipeline flanges, especially in large diameters or lined-pipe installations common across the General equipment manufacturing industry and valve-and-plug production facilities.
Typical specifications include sizes from 2" to 24" (DN50–DN600 and above), pressure classes up to Class 600/PN100, and materials such as WCB, CF8/CF8M, duplex stainless steel, and nickel alloys. Seats can be metal-to-metal (hard-faced, e.g., Stellite) for high temperature or erosive service, or resilient (NBR/EPDM/FKM) for bubble-tight shutoff. Face-to-face dimensions conform to API 594 (Type B, double flange); pressure testing meets API 598/ISO 5208; flanges align to ASME B16.5/EN 1092. These attributes make the valve a robust choice for pump discharge, cooling water, steam condensate recovery, and process utility loops where reliability and low head loss matter.
SAVVY VALVES CO.,LTD. manufactures this solution with rigorous QA and material traceability, supporting customized metallurgy, spring torque selection, and retainerless designs that eliminate external leakage paths. Their 24" 600 lb metal-seated variant exemplifies heavy-duty performance in high-pressure, high-temperature service, balancing durability with cost-effective operation.
Benefits & Use Cases of Double Flanged Dual Plate Check Valve in Valve and plug manufacturing
Within valve and plug manufacturing plants, utilities and process loops are the lifeblood of production. A double flange check valve protects pumps and test benches in hydrostatic test skids, ensures clean directional flow in cooling towers and closed-loop chillers, safeguards boiler feedwater and condensate lines, and stabilizes compressed air and nitrogen networks that support machining and assembly. The double flanged configuration streamlines installation in large-bore manifolds, reduces misalignment, and maintains gasket compression consistency—key advantages over wafer-only bodies when frequent maintenance or rigging constraints exist.
Core performance benefits include low cracking pressure for efficient pump starts, short face-to-face for compact piping, and spring-assisted rapid closure that mitigates slam and water hammer. Metal seats tolerate elevated temperatures and particulate-laden media; resilient seats deliver tight shutoff in clean services. Optional retainerless pins minimize fugitive emissions, while corrosion-resistant springs and pins extend lifecycle in aggressive cooling water or chemical wash lines. Compared with conventional swing checks, a Double Flanged Dual Plate Check Valve often delivers lower pressure drop, translating into measurable energy savings and smaller pump sizing.
Backed by application engineering, SAVVY VALVES CO.,LTD. supports sizing and spring torque optimization to match system transients, integrates client standards (MSS, ASME, EN), and offers project documentation and MTRs. For OEMs and EPCs, this reduces approval cycles and accelerates commissioning while improving reliability KPIs in production facilities.
Cost, Maintenance & User Experience
Total cost of ownership for a Double Flanged Dual Plate Check Valve is shaped by energy efficiency, uptime, and maintenance intervals. Thanks to streamlined flow geometry, pressure losses are typically lower than traditional swing checks, reducing pump horsepower and electrical consumption. On large cooling-water and process-transfer loops, this can yield annual savings that outpace the initial price delta within one to two budget cycles. The robust, double flanged body improves gasket sealing and reduces rework during outages—valuable in plants where rigging windows are tight and downtime is costly.
Maintenance is straightforward: periodic inspection of disc edges, seat condition, and spring integrity; verification of hinge pin wear; and confirmation of disc travel. Metal-seated versions excel in abrasive or high-temperature services with extended service intervals; resilient seats provide bubble-tight shutoff in utilities with quick, economical replacements when needed. Users in the General equipment manufacturing industry report smoother pump shutdowns, fewer water-hammer incidents, and reduced vibration at discharge headers compared with non-spring-assisted designs—improvements that enhance operator confidence and protect downstream assets like flowmeters and control valves.
SAVVY VALVES CO.,LTD. enhances user experience with clear documentation, markings for flow direction, and options like retainerless construction, exotic alloys, and NACE-compliant parts. For brownfield retrofits, experienced engineers help match face-to-face and bolting patterns, ensuring drop-in replacements that minimize schedule risk and commissioning time.
Sustainability & Market Trends in manufacturing
Manufacturers are prioritizing decarbonization, resource efficiency, and safer plants. Check valves play a direct role: lower head loss means less pumping energy and lower Scope 2 emissions; reliable non-return protects equipment and avoids fluid losses and unplanned downtime. Regulatory expectations around materials compliance and fugitive emissions are also rising. Designs that offer retainerless pins and traceable metallurgy help align with modern EHS and quality systems, while longer service life reduces waste and lifecycle environmental impact.
Market trends highlight growing demand for high-pressure, high-temperature double flange check valve solutions in energy, chemical processing, and water infrastructure upgrades. Digitally enabled documentation, serialized traceability, and rapid project turnaround are now baseline expectations. SAVVY VALVES CO.,LTD. invests in advanced machining, rigorous QA, and application engineering—bringing CFD-informed disc profiles, optimized spring torque selection, and global standards compliance to each project. By combining durable construction with energy-efficient flow characteristics, SAVVY’s double flanged dual plate check valves help operators meet sustainability targets without compromising reliability or cost control.
Conclusion on Double Flanged Dual Plate Check Valve from SAVVY VALVES CO.,LTD.
For B2B decision makers in manufacturing—especially within the General equipment manufacturing industry and valve and plug manufacturing—a Double Flanged Dual Plate Check Valve delivers dependable backflow protection, low pressure drop, and installation-friendly design. SAVVY VALVES CO.,LTD. stands out with robust metallurgy options, precise spring-assisted closure, and compliance with global standards, offering a practical blend of performance and lifecycle value.
