Cryogenic Globe Valve: Reliable Flow Control for Extreme Cold

Understanding Cryogenic Globe Valves in Critical Applications

In industries dealing with extremely low temperatures, such as those involving liquefied natural gas (LNG), liquefied petroleum gas (LPG), and industrial gases, the integrity and reliability of every component are paramount. Central to the safe and efficient handling of these cryogenic fluids are specialized valves designed to withstand harsh operating conditions. Among these, the cryogenic globe valve plays a critical role in regulating flow, isolating sections, and ensuring system safety. These valves are engineered to prevent leakage, minimize heat ingress, and maintain operational stability in environments where temperatures can plummet to -196°C (-320°F) or lower. Their robust construction and precise design are indispensable for preventing phase changes, material embrittlement, and potential hazards associated with cryogenic fluid handling.

This article delves into the intricate world of cryogenic globe valves, exploring their design principles, manufacturing excellence, diverse applications, and the rigorous standards that define their performance. We aim to provide B2B decision-makers and technical engineers with comprehensive insights into selecting, implementing, and optimizing these essential components within their critical infrastructure.

Industry Trends and Market Dynamics in Cryogenic Valve Technology

The global demand for energy, particularly cleaner-burning fuels like natural gas, continues to drive significant growth in the cryogenic industry. This expansion is directly fueling innovation and market expansion for cryogenic globe valve solutions. The increasing number of LNG liquefaction and regasification terminals, cross-country gas pipelines, and the burgeoning industrial gas sector (oxygen, nitrogen, argon, helium) are key market drivers. Furthermore, advancements in space exploration and pharmaceutical manufacturing, which rely on ultra-low temperature processes, are broadening the application landscape for these specialized valves.

Recent market analysis indicates a steady compound annual growth rate (CAGR) for the global industrial valves market, with cryogenic valves representing a crucial high-growth segment. Projections often place the cryogenic valve market at a substantial valuation, reflecting increasing investments in energy infrastructure and industrial expansion. The stringent regulatory environment, particularly concerning safety and emissions, compels industries to adopt higher-quality, more reliable cryogenic globe valve manufacturers' products that comply with international standards such as ISO 17292, BS 6364, and ASME B16.34. This focus on compliance and enhanced safety is shaping product development towards even greater robustness and longer service life.

Technological trends also include the integration of smart valve technology, offering real-time monitoring, predictive maintenance capabilities, and remote operation, which are becoming increasingly vital for optimizing performance and reducing operational costs in complex cryogenic systems.

Technical Specifications and Design Principles of Cryogenic Globe Valves

The design and engineering of a cryogenic globe valve are fundamentally different from standard industrial valves due to the extreme operating temperatures involved. Key design principles focus on minimizing heat ingress, ensuring material integrity at low temperatures, and maintaining leak-tightness.

Construction Materials: The choice of material is critical. Austenitic stainless steels (e.g., ASTM A351 CF8M/CF3M, A182 F316/F304) are preferred for their excellent ductility and strength retention at cryogenic temperatures, preventing embrittlement. Bronzes (e.g., ASTM B148 C95800) are also used for specific applications due to their thermal conductivity and corrosion resistance. Sealing components often utilize materials like PCTFE (Polychlorotrifluoroethylene) or modified PTFE (e.g., RPTFE, PEEK) for their low-temperature resilience and superior sealing properties.

Extended Bonnet Design: A hallmark of cryogenic valves is the extended bonnet. This design physically separates the stem packing from the cold fluid, creating a gas column that allows the packing to operate at ambient or near-ambient temperatures. This prevents the packing from freezing, maintains its elasticity, and ensures a reliable seal, thus minimizing fugitive emissions and reducing operational torque.

Live-Loaded Packing: To compensate for thermal cycling and material contraction, live-loaded packing systems (e.g., using Belleville springs) are often employed. This mechanism continuously applies pressure to the packing, ensuring a consistent seal and reducing the need for frequent maintenance adjustments.

Flow Characteristics: Globe valves are inherently designed for throttling and flow regulation, offering excellent control over fluid flow. The body geometry is optimized for minimal pressure drop while ensuring smooth flow paths to prevent cavitation and erosion, especially critical with highly volatile cryogenic liquids.

Here is a table outlining typical technical parameters for a high-performance cryogenic globe valve:

Figure 1: Internal components and extended bonnet design of a cryogenic globe valve.

Manufacturing Process Flow of a Cryogenic Globe Valve

The production of a reliable cryogenic globe valve involves a highly controlled and specialized manufacturing process, emphasizing precision, material integrity, and rigorous testing. The journey from raw material to a certified valve is detailed below:

1. Material Selection and Procurement: The process begins with meticulous selection of high-grade cryogenic-compatible materials, primarily austenitic stainless steels (e.g., 304L, 316L) or specific bronzes. These materials are chosen for their excellent impact strength and ductility at extremely low temperatures, ensuring they do not become brittle. All materials undergo strict chemical and mechanical property verification upon receipt, conforming to international standards like ASTM.
2. Casting or Forging:

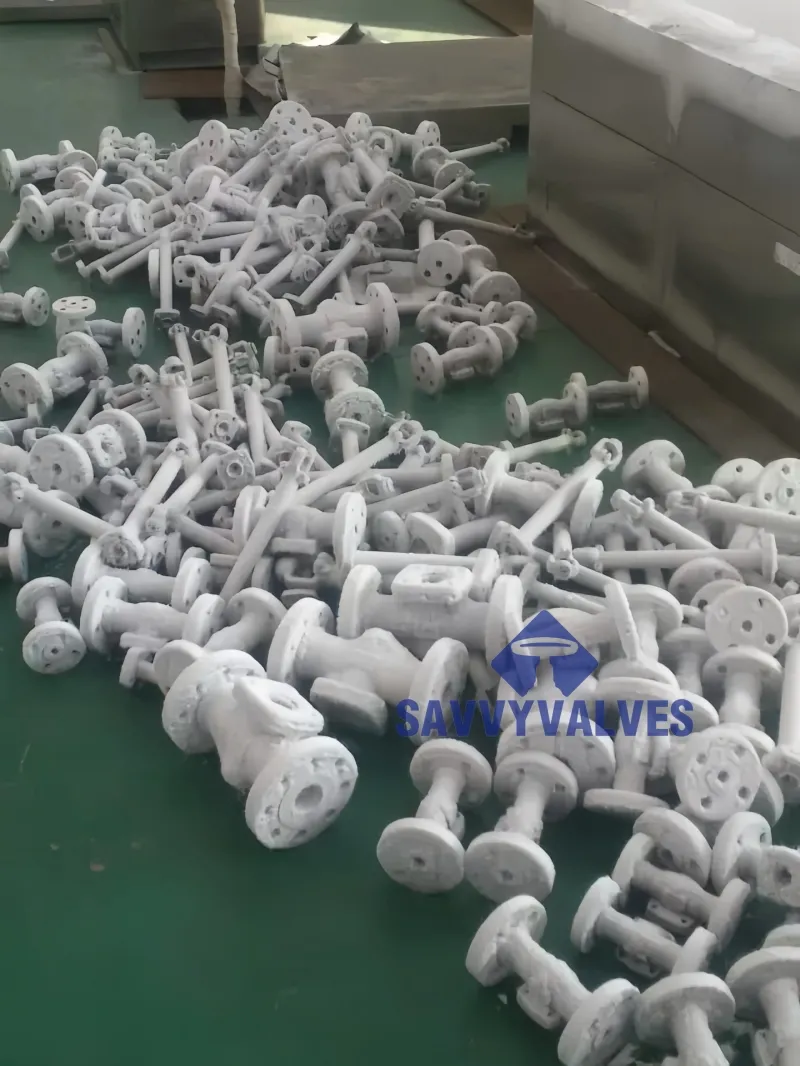

   • Casting: For larger valve bodies and complex geometries, investment casting is often employed. This method ensures precise dimensions and a uniform metallurgical structure.
   • Forging: Smaller, high-pressure cryogenic globe valve bodies and components like stems are typically forged. Forging enhances material density and grain structure, resulting in superior strength and fatigue resistance.
   Both processes are followed by heat treatment to achieve optimal mechanical properties and stress relief.
3. CNC Machining: Precision machining is critical for achieving tight tolerances on valve components such as the body, bonnet, stem, disc, and seat. Advanced CNC (Computer Numerical Control) machines are used to shape these parts to exact specifications, ensuring perfect alignment and sealing surfaces. Surface finish requirements are very strict to minimize friction and wear and ensure smooth operation and sealing integrity.
4. Cleaning and Degreasing: All components undergo thorough cleaning and degreasing processes to eliminate any contaminants (oils, dust, metal particles) that could compromise performance or react with cryogenic fluids. This is particularly important for oxygen service valves, where cleanliness standards are exceptionally high to prevent combustion.
5. Assembly in Cleanroom Conditions: The assembly of the cryogenic globe valve is often performed in controlled environments, such as cleanrooms, to prevent contamination. Skilled technicians carefully assemble the valve, paying close attention to packing installation, disc-seat alignment, and overall mechanical integrity.
6. Testing and Quality Assurance: This is the most crucial phase, ensuring the valve meets all performance and safety standards.
   • Hydrostatic Pressure Test: Tests the body shell's integrity against specified pressure ratings (e.g., API 598, ISO 5208).
   • High-Pressure Gas Test (e.g., Nitrogen): Verifies seat and back-seat sealing capabilities.

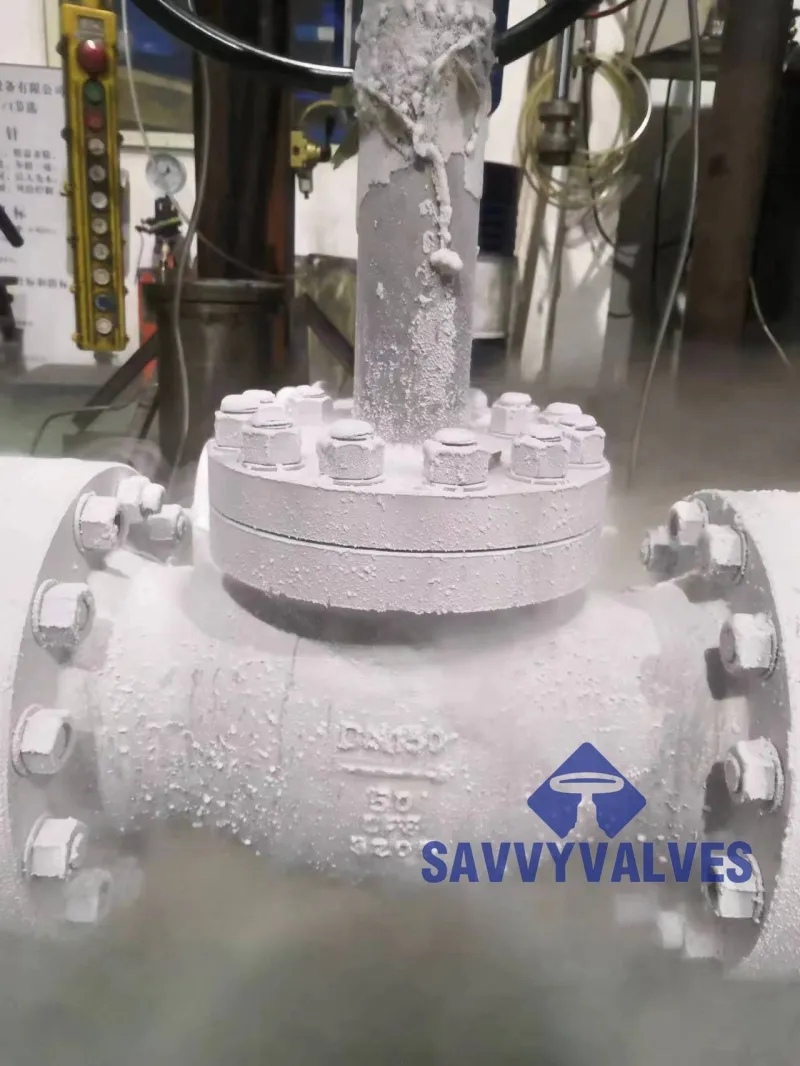

   • Cryogenic Test (Low Temperature Test): This critical test is performed as per standards like BS 6364, MSS SP-134, or ISO 17292. The valve is submerged in liquid nitrogen or another cryogenic medium, cooled to its minimum specified operating temperature, and tested for external leakage through the stem packing and internal seat leakage. This ensures the valve maintains its sealing integrity and operational functionality under actual cryogenic conditions. Fugitive emission tests (e.g., ISO 15848-1) are also often conducted here.
   • Operational Cycling Test: Ensures smooth operation and consistent torque over multiple open/close cycles at cryogenic temperatures.
7. Surface Treatment and Certification: After successful testing, the valves are surface-treated (e.g., passivation) to enhance corrosion resistance. Finally, each valve is marked with relevant information (manufacturer, size, pressure class, material, unique serial number) and issued with complete certification documents, including material test reports, NDT reports, and pressure test certificates, ensuring traceability and compliance.

Advantages in Typical Application Scenarios:

• Energy Saving: The extended bonnet design significantly reduces heat ingress into the cryogenic system by minimizing thermal conduction from the warmer ambient environment to the super-cold process fluid. This insulation effect leads to reduced boil-off rates for cryogenic liquids, resulting in substantial energy savings in storage and transfer operations.
• Corrosion Resistance: Primarily constructed from high-alloy stainless steels, these valves exhibit exceptional resistance to corrosion, even in the presence of moisture and various industrial atmospheres. This extends the valve's service life and reduces maintenance frequency, especially in humid or aggressive industrial environments like petrochemical plants.
• Extended Service Life: Adherence to stringent manufacturing and testing standards, coupled with the use of superior materials, ensures a significantly long service life, typically exceeding 10-15 years under proper operating conditions. This translates to lower total cost of ownership (TCO) for target industries such as petrochemical, LNG/LPG terminals, air separation units, and specialized metallurgy.

This meticulous process guarantees that the valve can reliably perform its function of flow control and isolation in the most demanding low-temperature environments, serving industries like petrochemicals, metallurgy, and industrial gas production where safety and efficiency are paramount.

Application Scenarios and Real-World Case Studies

The versatility and reliability of the cryogenic globe valve make it indispensable across a multitude of critical low-temperature applications. From energy infrastructure to advanced manufacturing, these valves ensure safe and efficient operation.

• LNG Liquefaction, Storage, and Regasification Terminals: Here, cryogenic globe valves are used extensively for controlling the flow of super-cooled natural gas during liquefaction, transport via pipelines or ships, and subsequent regasification for distribution. They regulate pressure, isolate sections for maintenance, and prevent backflow.
• LPG Storage and Transfer Facilities: Similar to LNG, LPG is stored and transported at low temperatures. Globe valves are critical for managing the precise flow rates required for loading/unloading operations and maintaining safety protocols.
• Air Separation Units (ASUs) and Industrial Gas Production: ASUs produce high-purity oxygen, nitrogen, and argon by cryogenic distillation of air. Globe valves control the flow of these gases at various stages, ensuring efficient separation and safe handling of liquefied forms.
• Chemical and Petrochemical Processing: Many chemical processes involve cryogenic temperatures for purification, separation, or reaction control. These valves handle aggressive media while maintaining temperature integrity.
• Aerospace and Rocketry: Liquid oxygen (LOX) and liquid hydrogen (LH2) are common propellants for rockets. Cryogenic globe valves manage the precise flow of these propellants from storage tanks to rocket engines, critical for ignition and controlled thrust.
• Food and Beverage Industry: Cryogenic freezing processes use liquid nitrogen or CO2. Globe valves control these chilling agents, ensuring rapid and efficient food preservation.

Application Case Studies

Case Study 1: Major LNG Terminal Expansion Project

A leading energy company undertaking a significant expansion of an existing LNG import terminal required highly reliable flow control for its regasification units. The project demanded valves capable of handling LNG at -162°C (-260°F) and pressures up to Class 600. Our role as a key cryogenic globe valve supplier involved providing several large-bore (NPS 12", Class 600) motorized cryogenic globe valves, manufactured from ASTM A351 CF8M stainless steel with PCTFE seating. These valves were crucial for isolating sections of the high-pressure boil-off gas (BOG) compressors and directing the flow of vaporized natural gas into the transmission pipeline. The custom-engineered valves featured an extended bonnet designed for optimal thermal separation and integrated with intelligent actuators for remote operation and diagnostic capabilities. Post-installation, the valves demonstrated exceptional leak tightness, passing stringent fugitive emission tests, and contributed to a 5% reduction in BOG losses compared to previous installations, showcasing enhanced energy efficiency. Customer feedback highlighted the robust construction and ease of integration with their existing DCS (Distributed Control System).

Case Study 2: Industrial Gas Plant Upgrade for Oxygen Production

An industrial gas producer initiated an upgrade of their oxygen production facility, requiring replacement of aging control valves in their air separation unit (ASU). The specific challenge was to find cryogenic globe valves capable of precise throttling of liquid oxygen (LOX) at -183°C (-297°F) with absolute zero leakage to atmosphere, crucial for both safety and product purity. We supplied DN100 (NPS 4"), PN40 (Class 300) cryogenic globe valves, specifically designed for oxygen service with stringent cleanliness requirements. These valves featured 316L stainless steel construction, metal-to-metal seating with Stellited trim for enhanced wear resistance, and a specialized stem packing system verified for ultra-low fugitive emissions (ISO 15848-1, Class BH). The valves were subjected to 100% cryogenic proof testing in-house and third-party certified for oxygen compatibility. The successful deployment resulted in a measurable improvement in process control stability and eliminated previous stem packing leakage issues, contributing to a safer working environment and reducing operational losses.

Figure 2: Cryogenic globe valves in an industrial gas handling facility.

Technical Advantages of Advanced Cryogenic Globe Valve Designs

Modern cryogenic globe valve designs incorporate several technical advancements that provide significant operational and safety advantages in demanding low-temperature environments:

• Superior Sealing Performance: Utilizing advanced packing materials like reinforced PTFE or graphite with live-loading mechanisms ensures consistently tight stem sealing, even during thermal cycling. Coupled with precision-machined metal-to-metal or soft seats (PCTFE, PEEK), these valves achieve bubble-tight shut-off, crucial for preventing costly product loss and ensuring safety.
• Low Operating Torque: Optimized stem thread designs, combined with specialized anti-friction coatings and robust thrust bearings, significantly reduce the torque required for operation. This allows for easier manual operation and smaller, more cost-effective actuators for automated systems, contributing to energy efficiency.
• Thermal Isolation via Extended Bonnet: The critically important extended bonnet design effectively creates a vapor barrier, protecting the packing and actuator from extreme cold. This minimizes heat transfer from the environment to the cold process fluid, reduces ice formation on external components, and prevents embrittlement of the packing, prolonging its service life.
• Compliance with International Standards: Reputable cryogenic globe valve manufacturers adhere to a comprehensive suite of international standards. This includes design specifications like ASME B16.34 (Valves—Flanged, Threaded, and Welding End), BS 6364 (Specification for Valves for Cryogenic Service), API 600 (Steel Gate Valves—Flanged and Butt-Welding Ends, Bolted Bonnets), and fugitive emissions standards like ISO 15848-1. Adherence to these standards guarantees a baseline of quality, safety, and performance.
• Enhanced Safety and Reliability: Every aspect of a high-quality cryogenic globe valve, from material selection to rigorous testing, is geared towards maximizing safety. Features like anti-blowout stems, robust body construction, and fire-safe designs (where applicable) provide layers of protection against potential failures, especially critical when handling highly flammable or hazardous cryogenic fluids. The inherent design for precise flow regulation also contributes to stable process control, further enhancing overall system safety.

Vendor Comparison: Choosing the Right Cryogenic Globe Valve Supplier

Selecting the appropriate cryogenic globe valve supplier is as critical as selecting the valve itself. The long-term performance, safety, and cost-effectiveness of your cryogenic systems depend heavily on the vendor's capabilities and commitment to quality. Here are key attributes to consider when comparing potential suppliers:

A thorough evaluation based on these factors ensures partnership with a cryogenic globe valve manufacturers that can truly meet the demanding requirements of your operations, guaranteeing longevity, safety, and performance.

Customized Solutions for Specialized Applications

While standard cryogenic globe valve designs meet many industrial needs, specific projects often present unique challenges that necessitate customized solutions. Experienced cryogenic globe valve manufacturers excel at collaborating with clients to engineer valves tailored to precise operational parameters. This bespoke approach can involve several modifications:

• Tailored Materials: Beyond standard stainless steels, custom solutions might involve exotic alloys (e.g., Monel, Hastelloy) for highly corrosive cryogenic media or specific bronze alloys for enhanced thermal properties in specific gas services. This extends to seat and trim materials, where different grades of PCTFE, PEEK, or even ceramic compounds might be selected for abrasive or ultra-high cycle applications.
• Special Sizes and End Connections: Projects often require non-standard valve sizes (e.g., exceptionally small for laboratory setups, or very large for pipeline tie-ins) or specific end connections not typically stocked (e.g., specialized weld preparations, proprietary flange designs). Customization ensures perfect fit-up and integration into existing piping systems.
• Actuation Options and Integration: While manual handwheels are common, many applications demand automated control. Customized solutions include integrating pneumatic, electric, or hydraulic actuators, often with specific control logic, feedback systems, and explosion-proof ratings to meet plant safety standards and operational requirements. This allows for seamless integration with existing Distributed Control Systems (DCS) or Safety Instrumented Systems (SIS).
• Specific Performance Requirements: This could include valves designed for extremely low-pressure drop, ultra-high cycling, enhanced fugitive emission performance beyond standard specifications, or valves configured for particular installation orientations. Specialized engineering ensures that these precise performance metrics are met without compromise.
• Cryogenic Extension Lengths: While standard extended bonnets are common, some insulation systems or spatial constraints might demand unusually long or short extensions to ensure the packing operates at a safe temperature zone while accommodating the system layout.

Engaging with a supplier capable of providing these bespoke solutions is paramount for projects with unique operational envelopes, ensuring optimal performance, safety, and long-term reliability.

Authoritativeness and Trustworthiness: Our Commitment

In the demanding realm of cryogenic applications, trust is built upon a foundation of proven expertise, rigorous standards, and unwavering support. As a dedicated cryogenic globe valve manufacturer, our commitment to Authoritativeness and Trustworthiness is demonstrated through several key aspects:

• Certifications: We operate under a robust Quality Management System certified to ISO 9001. Our products adhere to international safety and performance standards including CE marking, API 6D/600 (where applicable), BS 6364 for cryogenic service, and meet strict fugitive emission requirements of ISO 15848-1. These certifications are independently audited and attest to our consistent quality and compliance.
• Partner Clients & Years of Service: Over X years in the industry, we have cultivated strong partnerships with major energy companies, EPC (Engineering, Procurement, and Construction) contractors, and industrial gas producers globally. Our valves are trusted in critical infrastructure projects, from large-scale LNG terminals to advanced pharmaceutical facilities, a testament to our enduring reliability.
• Warranty Commitments: We stand behind the quality and performance of our cryogenic globe valves with a comprehensive 12-month operational or 18-month ex-works warranty (whichever comes first), covering manufacturing defects and material failures. Extended warranty options are available for specific project requirements.
• Lead Time & Fulfillment: Our optimized production processes and robust supply chain allow for competitive and transparent lead times, typically ranging from 8-12 weeks for standard configurations and 14-20 weeks for customized solutions, depending on complexity and material availability. We provide detailed project timelines and maintain open communication throughout the order fulfillment process.
• Customer Support & After-Sales Service: Our commitment extends beyond product delivery. We offer dedicated 24/7 technical support, providing prompt assistance for installation, commissioning, troubleshooting, and maintenance. Our global network of service partners ensures timely field support, spare parts availability, and training programs for your operational teams.

Figure 3: Quality assurance and final inspection of a cryogenic globe valve.

Our track record and adherence to these principles underscore our position as a reliable and authoritative partner for all your cryogenic valve requirements.

Frequently Asked Questions (FAQ) about Cryogenic Globe Valves

Conclusion: The Indispensable Role of Cryogenic Globe Valves

The cryogenic globe valve is far more than a simple flow control device; it is a meticulously engineered component critical to the safety, efficiency, and reliability of cryogenic systems worldwide. From the burgeoning LNG market to specialized industrial gas production and advanced aerospace applications, its robust design and ability to operate flawlessly at extreme low temperatures are indispensable.

The continuous advancements in material science, manufacturing precision, and rigorous testing methodologies ensure that modern cryogenic globe valves meet and exceed the stringent demands of these critical applications. By understanding the detailed manufacturing processes, technical specifications, and diverse application scenarios, B2B decision-makers and engineers can make informed choices, selecting high-quality valves that ensure operational integrity and longevity.

Partnering with experienced and authoritative cryogenic globe valve manufacturers and suppliers that emphasize quality, compliance, and comprehensive after-sales support is paramount for success in any cryogenic project. This strategic approach mitigates risks, optimizes performance, and ultimately contributes to the safe and sustainable handling of valuable cryogenic resources.
