In critical industrial fluid handling systems, the selection of robust, reliable, and chemically resistant valves is paramount. The CPVC True union floating ball valve stands as a cornerstone in this segment, offering unparalleled performance in corrosive environments where metallic alternatives falter. Engineered for precision and longevity, these valves are integral to maintaining operational integrity across a spectrum of demanding applications, from chemical processing to advanced water treatment. This comprehensive guide delves into the technical intricacies, application advantages, and market relevance of this essential component, providing B2B decision-makers and engineers with the insights necessary to make informed procurement and design choices.
Industry Trends and Market Dynamics in Fluid Control
The global industrial valve market is experiencing a significant shift, driven by increasing demands for specialized materials that can withstand aggressive media and challenging operating conditions. There's a pronounced trend towards non-metallic valves, particularly those made from advanced thermoplastics like Chlorinated Polyvinyl Chloride (CPVC), due to their superior corrosion resistance, lighter weight, and often lower total cost of ownership compared to traditional metallic alloys. Market analysis from Grand View Research indicates the global industrial valves market size was valued at USD 77.2 billion in 2022 and is expected to grow at a compound annual growth rate (CAGR) of 4.3% from 2023 to 2030, with a notable segment expansion in the chemical and water & wastewater industries. This growth is largely fueled by stringent environmental regulations, the need for enhanced process safety, and the optimization of energy consumption in industrial facilities. The adoption of valves like the CPVC True union floating ball valve aligns perfectly with these trends, offering reliable performance, reduced maintenance, and compliance with evolving industry standards for material compatibility and operational efficiency. Furthermore, the integration of smart technologies and automation in fluid control systems is pushing manufacturers to develop valves that are not only robust but also compatible with advanced control mechanisms, positioning high-performance plastic valves as a forward-looking solution.
Technical Specifications and Design Principles
The design of a CPVC True union floating ball valve integrates several critical engineering principles to ensure optimal performance and longevity in corrosive fluid service. CPVC, as the primary material of construction, offers excellent resistance to a wide range of acids, bases, and salts, and performs reliably at higher temperatures than standard PVC, typically up to 200°F (93°C). The "True Union" design is a hallmark of maintainability, allowing the valve body to be easily removed from the pipeline for service or replacement without disturbing the entire piping system. This is achieved through two union nuts that independently connect the valve body to the pipe ends. The "Floating Ball" mechanism ensures tight shut-off with minimal torque requirements. In this design, the ball is free to float slightly downstream against the downstream seat, creating a positive seal when pressure is applied.
Key Technical Parameters:
| Parameter | Specification |
|---|---|
| Body Material | CPVC (Cellular Thermoplastic ASTM D1784 Class 23447) |
| Ball Material | CPVC |
| Seat Material | PTFE (Teflon) |
| O-Ring Material | EPDM or FPM (Viton) |
| Sizes Available | 1/2" (DN15) to 6" (DN150) |
| Pressure Rating | Up to 150 PSI (10 Bar) at 73°F (23°C), derating for higher temperatures per ASTM F1970 |
| Temperature Range | -4°F (-20°C) to 200°F (93°C) |
| End Connections | Socket (Solvent Cement), Threaded (NPT, BSPT), Flanged |
| Standards Met | ISO 9001 (Manufacturing), ASTM D1784 (CPVC Material), NSF/ANSI 61 (Potable Water) |

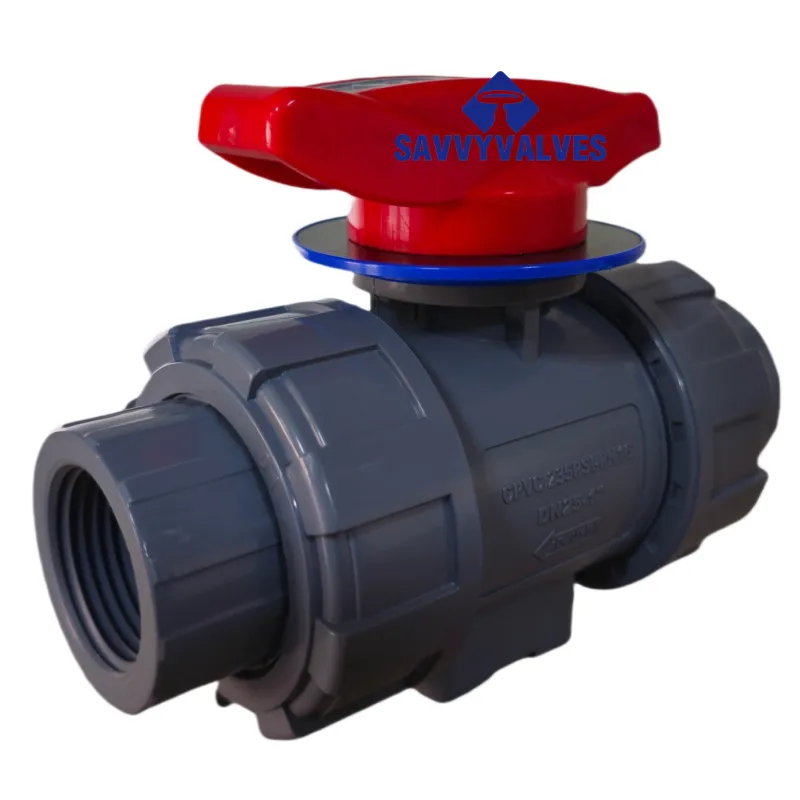

Image 1: Detailed view of a CPVC True union floating ball valve structure.
The precise engineering of these valves ensures a leak-proof seal and smooth operation over thousands of cycles, crucial for applications demanding consistent performance. Compliance with standards such as ASTM D1784 ensures the material's integrity, while certifications like NSF/ANSI 61 affirm its suitability for potable water applications, enhancing trustworthiness and applicability across diverse sectors.
Manufacturing Process Flow of CPVC True Union Floating Ball Valves
The production of a high-quality CPVC True union floating ball valve involves a meticulous, multi-stage manufacturing process, leveraging advanced polymer processing techniques and stringent quality control protocols. This ensures that each valve meets precise technical specifications and offers reliable performance in demanding industrial environments.
Schematic Process Steps:
- Material Selection & Preparation: High-grade CPVC resin (e.g., Lubrizol's FlowGuard Gold or equivalent) is selected, ensuring compliance with ASTM D1784 standards for chemical resistance and temperature performance. Additives for UV stabilization and enhanced mechanical properties are incorporated.
- Injection Molding: The main components—valve body, ball, stem, and union nuts—are precision injection molded. This process involves heating the CPVC pellets to a molten state and injecting them under high pressure into precisely engineered molds. Advanced CNC-controlled injection molding machines ensure dimensional accuracy, surface finish, and material integrity.
- CNC Machining & Finishing: Post-molding, critical surfaces, O-ring grooves, and stem sealing areas undergo fine CNC machining to achieve exact tolerances. This ensures a tight seal and smooth operation. Any flash or imperfections are removed, and components are deburred.
- Component Assembly: The valve components are meticulously assembled in a clean environment. This includes inserting the PTFE seats, EPDM/FPM O-rings for stem and body seals, the CPVC ball, and securing the stem. The True Union nuts are attached, allowing for robust pipeline integration.
-
Pressure Testing & Quality Control: Each valve undergoes rigorous testing. This typically includes:
- Hydrostatic Test: Valve body integrity is checked by subjecting it to internal water pressure significantly higher than its rated working pressure (e.g., 225 PSI for a 150 PSI rated valve) for a specified duration, ensuring no leaks.
- Pneumatic Seat Test: Air pressure (e.g., 80 PSI) is applied to check the tightness of the ball and seat seals, ensuring zero leakage as per industry standards (e.g., API 598 or equivalent).
- Operational Torque Test: The valve is cycled to ensure smooth operation and verify that the operating torque falls within specified parameters, critical for manual and actuated applications.
- Final Inspection & Packaging: A final visual inspection confirms aesthetics, proper labeling, and absence of defects. Valves are then carefully packaged to prevent damage during transit, ready for distribution.
This rigorous process, backed by ISO 9001 certified manufacturing facilities, ensures a service life often exceeding 15-20 years under proper operating conditions. The emphasis on material quality and precise manufacturing translates directly into advantages in typical application scenarios, such as energy saving through minimal flow resistance and superior corrosion resistance, reducing the need for frequent replacements and associated downtime.
Key Technical Advantages of CPVC True Union Floating Ball Valves
- Superior Corrosion Resistance: CPVC inherently resists a broad spectrum of aggressive chemicals, including strong acids (e.g., sulfuric acid, hydrochloric acid), bases, and salt solutions. This makes the CPVC True union floating ball valve an ideal choice for applications where metallic valves would corrode, leading to system failure and contamination.
- Enhanced Temperature Performance: While PVC is limited to lower temperatures, CPVC valves maintain structural integrity and pressure ratings at temperatures up to 200°F (93°C), extending their utility to warmer process lines.
- Durability and Long Service Life: Designed for robust industrial use, these valves offer excellent mechanical strength, abrasion resistance, and a prolonged operational life, reducing replacement frequency and total cost of ownership.
- Ease of Installation and Maintenance: Their lightweight nature simplifies handling and installation. The True Union design allows for quick and easy removal from the pipeline for maintenance or seal replacement without needing to dismantle the entire piping system, significantly reducing downtime.
- Cost-Effectiveness: While the initial cost might be comparable or slightly higher than standard PVC, the significantly extended service life, reduced maintenance, and superior performance in aggressive environments make CPVC valves a more cost-effective solution in the long run.
- Energy Efficiency: The smooth internal bore of CPVC valves minimizes friction and pressure drop, contributing to more efficient fluid flow and potentially lowering pumping energy requirements.
Application Scenarios and Case Studies
The versatility and robustness of the CPVC True union floating ball valve make it indispensable across a multitude of industries where fluid purity and resistance to corrosive media are critical. Its operational advantages translate directly into enhanced system reliability and reduced operational expenditures.
Target Industries:
- Chemical Processing: Handling acids, alkalis, and various corrosive chemicals.
- Water Treatment: Municipal and industrial water treatment plants, desalination facilities, demineralized water lines, and chemical dosing.
- Petrochemical: Transfer of aggressive hydrocarbons and corrosive byproducts.
- Pulp & Paper: Bleach lines and other chemical processes.
- Metal Finishing/Plating: Acidic and caustic baths.
- Pharmaceutical & Food Processing: Applications requiring high purity and chemical resistance, often with NSF/ANSI 61 certified valves.
- Power Generation: Cooling water systems and water treatment within power plants.
Application Case Studies:
A major chlor-alkali production facility in Texas faced recurrent valve failures in its sodium hypochlorite and dilute hydrochloric acid transfer lines. Traditional metallic valves, despite special coatings, corroded rapidly, leading to frequent replacements, costly downtime, and safety concerns. Upon recommendation, the plant replaced over 200 gate and plug valves with 2-inch and 3-inch CPVC True Union Floating Ball Valves. The CPVC valves exhibited exceptional resistance to the highly corrosive media, maintaining their integrity for over five years without any signs of corrosion or leakage. This led to a 70% reduction in valve-related maintenance costs and a significant improvement in operational safety and uptime. The plant estimated savings of over $250,000 annually due to reduced material costs and labor.
A leading semiconductor manufacturing plant required valves for its ultra-pure demineralized water distribution system. The purity of the water is critical to preventing contamination of sensitive microchips. Previous systems using stainless steel valves experienced issues with ion leaching and particulate generation, compromising water quality. By implementing 1-inch to 4-inch CPVC True Union Floating Ball Valves throughout the system, the facility achieved superior water purity. The non-metallic nature of CPVC eliminated concerns about metallic ion contamination, and the smooth bore prevented particulate buildup. Regular quarterly water quality tests consistently showed high purity levels, enabling the plant to maintain its stringent production standards and avoid costly product rejections. The True Union design also facilitated quick, clean maintenance when required, further minimizing process interruptions.

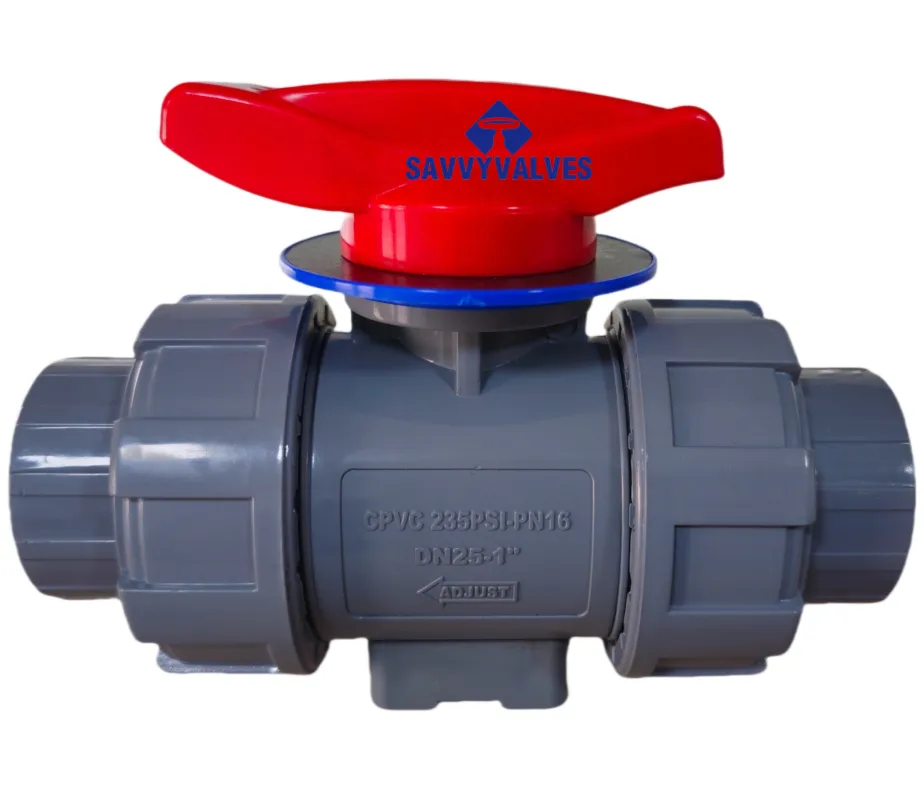

Image 2: A CPVC True union floating ball valve in an industrial setting.
Vendor Comparison and Selection Criteria
Selecting the right supplier for CPVC True Union Floating Ball Valves is as crucial as selecting the valve itself. While numerous vendors offer CPVC valves, discerning buyers must evaluate several factors beyond mere price. Quality, reliability, certification, and after-sales support significantly impact the long-term performance and cost-effectiveness of fluid control systems.
Key Comparison Factors:
| Criterion | High-Quality Vendor Offerings | Generic/Lower-Tier Vendor Risks |
|---|---|---|
| Material Quality & Traceability | Uses virgin, certified CPVC resin (e.g., ASTM D1784 Class 23447), with full material traceability and material test reports (MTRs). Guarantees consistent chemical and temperature resistance. | May use recycled or lower-grade CPVC, leading to inconsistent performance, reduced chemical resistance, and premature failure. Lack of MTRs. |
| Design & Manufacturing Precision | Precision-engineered components, optimized ball/seat design for low torque and tight shut-off, robust stem design, ISO 9001 certified manufacturing. | Looser tolerances, inferior surface finish, potentially weaker stem designs, leading to higher operating torque, leakage, and shorter service life. |
| Certifications & Standards | Compliance with international standards (e.g., ISO, ANSI), specific industry certifications (e.g., NSF/ANSI 61 for potable water, FDA for food contact where applicable). | Limited or no verifiable certifications, self-declared compliance, increasing risk for regulated applications. |
| Testing & QA Protocols | 100% factory tested for hydrostatic integrity and seat leakage, detailed QA documentation, performance data available. | Batch testing only, less rigorous or undocumented testing, higher risk of field failures. |
| Customization & Support | Ability to provide customized solutions (materials, end connections, actuation), strong technical support, responsive after-sales service, robust warranty. | Limited customization options, minimal technical support, short or non-existent warranty, difficult access to spare parts. |
Savvy Valve Tech distinguishes itself through a commitment to high-grade CPVC materials, precision manufacturing, and adherence to global industry standards, providing superior performance and verifiable product integrity, reducing operational risks for critical B2B applications. Our decade of experience in industrial fluid control further underscores our authoritativeness in the sector.
Customized Solutions and Project Engineering
Recognizing that no two industrial projects are identical, high-quality vendors offer bespoke solutions for the CPVC True union floating ball valve to meet unique operational demands. Customization capabilities are crucial for complex systems that require specific material combinations, end connections, or automation features.
Customization Options Include:
- Specialized Seal Materials: While PTFE and EPDM are standard, FPM (Viton) or other elastomers can be specified for enhanced chemical compatibility with particular aggressive media or higher temperature applications.
- End Connection Variations: Beyond standard socket, threaded, or flanged ends, specific standards like JIS, DIN, or specialized connections can be accommodated.
- Actuation Options: Manual valves can be adapted for automated control with pneumatic or electric actuators, often requiring specific mounting pads (e.g., ISO 5211 standard) and custom stem extensions.
- Pressure and Temperature Ratings: While standard ratings are provided, specific applications might require valves engineered for slightly higher momentary pressures or unique temperature cycles, requiring material grade adjustments or specialized testing.
- Material Tracability & Documentation: Providing comprehensive material certifications, full traceability, and detailed test reports for regulatory compliance in pharmaceutical or high-purity applications.
- Color Coding & Branding: For large projects, custom colors or branding may be available to align with site-specific safety protocols or corporate identity.
Engaging with a vendor that possesses robust project engineering capabilities ensures that the customized valves integrate seamlessly into existing or new infrastructure, delivering optimal performance and regulatory compliance. This consultative approach minimizes risks and maximizes the return on investment for complex B2B projects.
Frequently Asked Questions (FAQ)
A: CPVC undergoes a chlorination process that enhances its chemical resistance and significantly increases its maximum operating temperature (up to 200°F / 93°C) compared to PVC (typically up to 140°F / 60°C). This makes CPVC ideal for hot corrosive fluids where PVC would degrade.
A: Yes, many CPVC True Union Floating Ball Valves are certified for potable water service, typically meeting NSF/ANSI Standard 61 requirements. Always verify the specific valve's certification for such applications.
A: With proper installation, chemical compatibility, and operating within specified pressure/temperature limits, a high-quality CPVC valve can provide 15 to 20 years of reliable service or more. Regular maintenance, especially for the PTFE seats and EPDM/FPM O-rings, can extend this life.
A: Consult chemical resistance charts provided by the valve manufacturer or CPVC resin suppliers. These charts detail the compatibility of CPVC, PTFE, EPDM, and FPM with thousands of chemicals at various concentrations and temperatures. It's crucial to check all wetted parts.
Lead Time, Warranty, and Customer Support
Understanding the logistical and support commitments from a valve manufacturer is crucial for B2B procurement and project planning.
Lead Time and Fulfillment:
- Standard Products: For common sizes (1/2" to 2") and configurations of CPVC True union floating ball valve, typical lead times range from 1 to 3 weeks, depending on order quantity and current inventory levels.
- Larger or Specialized Products: Larger diameters (3" to 6") or customized valves (e.g., with specific actuation, end connections, or materials) may require 4 to 8 weeks for manufacturing and quality control.
- Expedited Options: Rush orders can often be accommodated for an additional fee, subject to material availability and production scheduling.
- Global Logistics: We leverage an extensive network of distribution partners to ensure timely and efficient delivery to various international locations.
Warranty Commitments:
Our CPVC True Union Floating Ball Valves typically come with a comprehensive warranty against defects in materials and workmanship, effective from the date of purchase.
- Standard Warranty Period: 12 to 24 months, depending on the product series and application.
- Coverage: The warranty covers manufacturing defects and material failures under normal operating conditions. It does not cover damage from improper installation, misapplication, chemical incompatibility, or unauthorized modifications.
- Claim Process: A clear, streamlined process is in place for warranty claims, requiring proof of purchase and a description of the defect for prompt evaluation and resolution.
Customer Support and After-Sales Service:
- Technical Assistance: Our team of experienced engineers provides pre-sales consultations, product selection guidance, and post-sales technical support to ensure optimal valve performance.
- Spare Parts Availability: Critical wear parts, such as PTFE seats and O-rings, are readily available to facilitate easy and cost-effective maintenance, extending the overall valve life.
- Training & Documentation: We offer installation guides, maintenance manuals, and, upon request, training sessions for client personnel to ensure correct usage and longevity of our products.
- Responsive Channels: Dedicated customer service representatives are accessible via phone, email, and online portals to address inquiries efficiently and effectively.
Conclusion
The CPVC True union floating ball valve is more than just a component; it is a critical asset for industrial operations requiring superior resistance to corrosive chemicals, reliable performance at elevated temperatures, and ease of maintenance. Its robust design, backed by stringent manufacturing processes and adherence to international standards, ensures an extended service life and significantly reduces total operational costs. By understanding the detailed technical specifications, application advantages, and comprehensive support available, B2B decision-makers can confidently integrate these valves into their most demanding fluid handling systems, enhancing safety, efficiency, and long-term economic viability. Choosing a reputable manufacturer with a proven track record, customization capabilities, and strong after-sales support ensures a partnership that delivers enduring value and performance.
References
- Grand View Research. (2023). Industrial Valves Market Size, Share & Trends Analysis Report By Product, By Material, By Application, By Region, And Segment Forecasts, 2023 - 2030. Available from: https://www.grandviewresearch.com/industry-analysis/industrial-valves-market
- ASTM International. (2020). ASTM D1784 - 20, Standard Specification for Rigid Poly(Vinyl Chloride) (PVC) Compounds and Chlorinated Poly(Vinyl Chloride) (CPVC) Compounds. Available from: https://www.astm.org/d1784-20.html
- NSF International. (2023). NSF/ANSI/CAN 61: Drinking Water System Components – Health Effects. Available from: https://www.nsf.org/standards/by-scope/drinking-water-food-safety/drinking-water-treatment/nsf-ansi-can-61
- ISO. (2022). ISO 9001:2015 - Quality management systems — Requirements. Available from: https://www.iso.org/standard/62085.html
- Valves, Pipes, and Fittings (2018). Chemical Resistance of CPVC. Retrieved from various manufacturer's guides, typically based on published ASTM data and internal testing.
