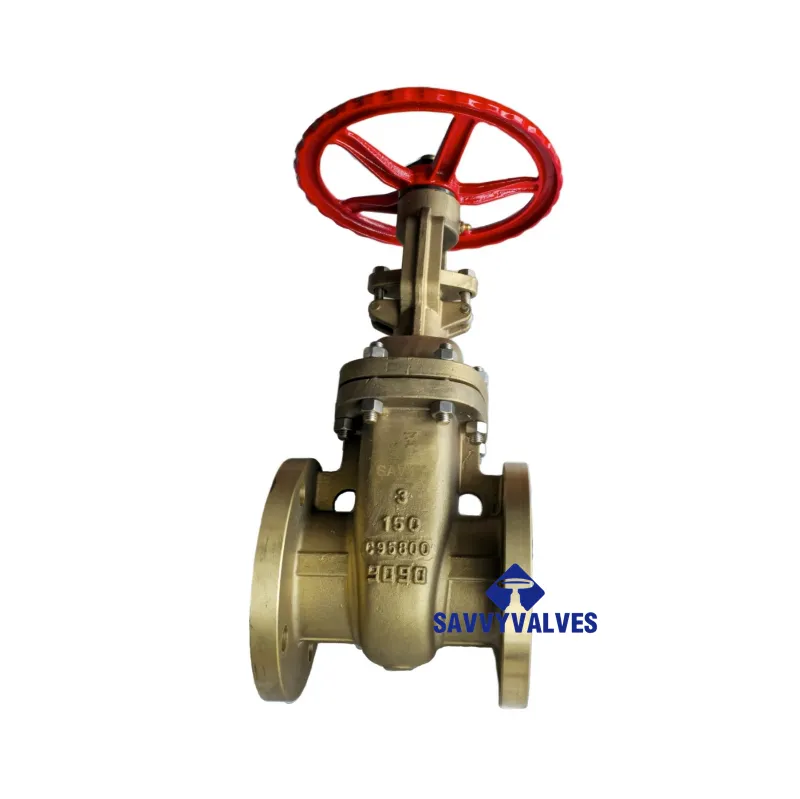

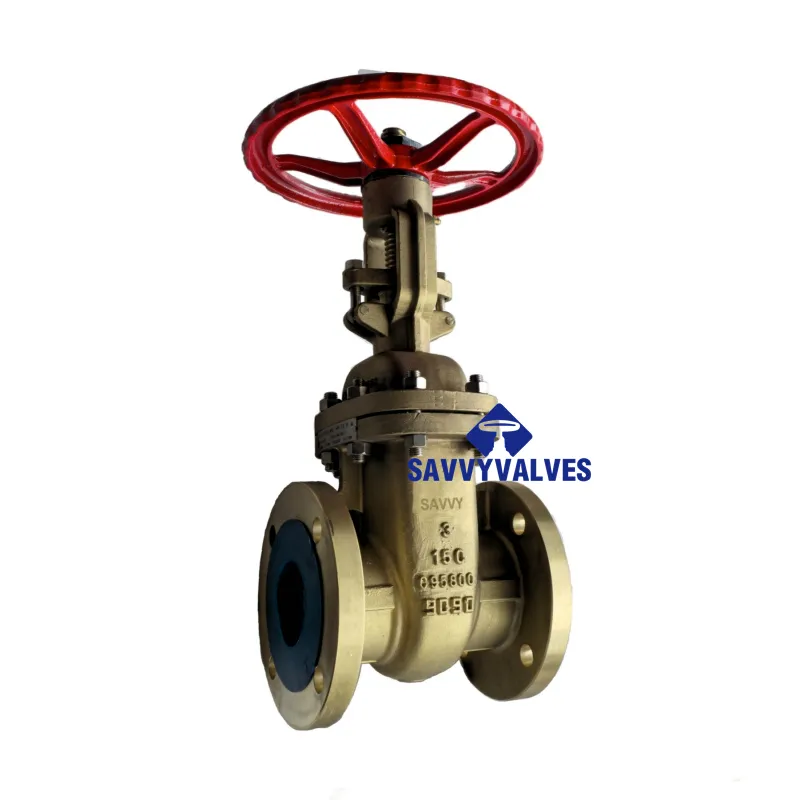

Gate Valve Spotlight: B148 C95800 Nickel-Aluminum Bronze Gate Valve
If you work around seawater, brine, or mildly sour hydrocarbons, you already know: aluminum bronze is the quiet hero. This 3-inch, Class 150 gate valve from Tianjin (office at Block A, Yintai Building, No.48 North Xianyang Road, Hongqiao District) leans into that legacy—and, to be honest, it’s been winning over maintenance teams who were tired of dezincification and galling headaches.
Why aluminum-bronze (C95800) is trending
Across marine, desalination, and offshore, we’re seeing a shift back to corrosion-tolerant alloys. Nickel-aluminum bronze offers excellent resistance to seawater, biofouling, and even cavitation. It also holds up under sand-laden flow better than many stainless grades. Many customers say torque stays stable month to month—surprisingly consistent given the conditions.
Technical snapshot
| Parameter | Spec (≈, real-world may vary) |
|---|---|
| Size / Rating | 3" (DN80) / 150LB (PN20) |
| Body/Bonnet/Disc/Stem | ASTM B148 C95800 nickel-aluminum bronze |
| Seat | Integral metal-to-metal |
| Operation | Handwheel |
| Ends | RF Flange (ASME B16.5) |
| Shell test (API 598) | ≈ 30 bar for PN20 |
| Seat test (API 598 / ISO 5208) | ≈ 22 bar, leakage rate per standard |
| Typical hardness | ≈ 170–220 HB |
| Expected service life | ≈ 20–30 years in seawater with routine service |
Manufacturing and testing flow (how it’s built)
- Materials: certified C95800 ingots; heat traceability with EN 10204 3.1 MTRs.
- Casting: controlled sand casting; riser/feeder optimization to reduce porosity; solution heat treatment.
- Machining: CNC finish to tight flange and seat tolerances; stem thread accuracy checked.
- Surface integrity: VT and PT on seating and pressure boundaries.
- Pressure tests: per API 598 / ISO 5208—shell at 1.5×, seat at 1.1× rating.
- PMI, hardness mapping, and torque check; coating as specified (if any).
- Documentation: ISO 9001 QMS, hydrostatic charts, dimensional reports.
Where it fits (and why it’s chosen)
Marine cooling lines, ballast systems, firewater headers, desalination intake/outfall, offshore produced water, coastal power plants. The B148 C95800 Nickel-Aluminum Bronze Gate Valve shrugs off chloride pitting and offers good resistance to cavitation in throttling edges (even though it’s a gate, operators sometimes do it—real life!).
Vendor comparison (indicative)
| Criteria | Savvy Valve Tech | Vendor A (Generic Import) | Vendor B (Local Fabricator) |
|---|---|---|---|
| Material control | PMI + 3.1 certs | Batch certs only | Varies by lot |
| Testing | API 598 full suite | Pressure only | Pressure + visual |
| Lead time | ≈ 4–8 weeks | ≈ 2–6 weeks | ≈ 6–10 weeks |
| Lifecycle cost | Lower (corrosion savings) | Low upfront | Medium |
Customization
Options include gear operator, NACE MR0175/ISO 15156 documentation for sour service, special coatings for brackish grit, stem packing upgrades (graphite/PTFE hybrids), and class upgrades. RF flange drilling per ASME B16.5; PED/CE upon request.
Field notes (mini case studies)
- Desalination intake, Gulf region: after ≈18 months, no significant pitting; operators report “steady handwheel torque.”
- Harbor firewater loop: switched from brass to B148 C95800 Nickel-Aluminum Bronze Gate Valve; leak events dropped to zero over one storm season.
Customer feedback seems to converge on the same point: fewer surprises in salt and sand. And, actually, that’s what plant managers are buying—predictability.
Standards and references
- ASTM B148 – Aluminum-Bronze Sand Castings (C95800)
- API 598 – Valve Inspection and Testing
- ISO 5208 – Pressure Testing of Metallic Valves
- NACE MR0175/ISO 15156 – Materials for H2S-containing environments
- ASME B16.5 – Pipe Flanges and Flanged Fittings
